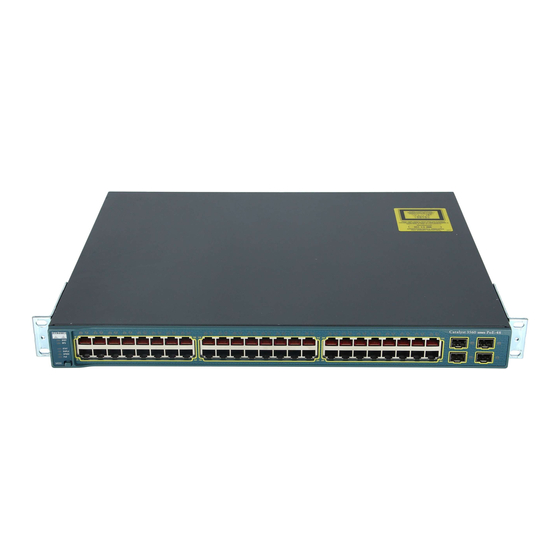

Catalyst 3560 Switch
Hardware Installation Guide
March 2010
Americas Headquarters
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
http://www.cisco.com
Tel: 408 526-4000
800 553-NETS (6387)
Fax: 408 527-0883
Text Part Number: OL-6337-07

Advertisement

Table of Contents
loading

Related Manuals for Cisco WS-C3560-48PS-S

Summary of Contents for Cisco WS-C3560-48PS-S

  • Page 1 Catalyst 3560 Switch Hardware Installation Guide March 2010 Americas Headquarters Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 http://www.cisco.com Tel: 408 526-4000 800 553-NETS (6387) Fax: 408 527-0883 Text Part Number: OL-6337-07...
  • Page 2 You can determine whether your equipment is causing interference by turning it off. If the interference stops, it was probably caused by the Cisco equipment or one of its peripheral devices. If the equipment causes interference to radio or television reception, try to correct the interference by using one or more of the following measures: •...

  • Page 3: Table Of Contents

    Cable Guard 1-15 Rear Panel Description 1-15 Internal Power Supply 1-18 DC Power Connector 1-18 Cisco RPS 1-19 Cisco RPS 2300 1-19 Cisco RPS 675 1-19 Console Port 1-19 Security Slots 1-20 Management Options 1-20 Catalyst 3560 Switch Hardware Installation Guide...
  • Page 4 Contents Network Configurations 1-21 Switch Installation (24- and 48-Port Switches) C H A P T E R Preparing for Installation Warnings Installation Guidelines Box Contents Tools and Equipment Verifying Switch Operation Powering Off the Switch Installing the Switch Rack-Mounting Removing Screws from the Switch Attaching Brackets to the Catalyst 3560 Switch Mounting the Switch in a Rack 2-10...
  • Page 5 Contents Box Contents Tools and Equipment Verifying Switch Operation Powering Off the Switch Installing the Switch Desk or Shelf Mounting Desk or Shelf Mounting (Unsecured) Desk or Shelf Mounting (Secured) Under the Desk or Shelf Mounting Wall-Mounting (with Mounting Screws) 3-12 Magnet Mounting 3-15...
  • Page 6 Contents Technical Specifications A P P E N D I X Connector and Cable Specifications A P P E N D I X Connector Specifications 10/100 and 10/100/1000 Ports SFP Module Ports Dual-Purpose Ports Console Port Cable and Adapter Specifications SFP Module Cable Specifications Two Twisted-Pair Cable Pinouts Four Twisted-Pair Cable Pinouts for 1000BASE-T Ports...

  • Page 7: Preface

    Cisco.com Product Documentation home page. For information about the standard Cisco IOS Release 12.2 commands, see the Cisco IOS documentation set available from the Cisco.com home page at Products & Services > Technical Support & Documentation > See Documentation > Cisco IOS Software.

  • Page 8: Related Publications

    Cisco.com site: http://www.cisco.com/en/US/products/hw/switches/ps5528/tsd_products_support_series_home.html Release Notes for the Catalyst 3750, 3560, 2970, and 2960 Switches • Before installing, configuring, or upgrading the switch, see the release notes on Cisco.com Note for the latest information. Catalyst 3560 Switch Software Configuration Guide •...

  • Page 9: Obtaining Documentation And Submitting A Service Request I-Ix

    Obtaining Documentation and Submitting a Service Request For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at: http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html...
  • Page 10 Preface Obtaining Documentation and Submitting a Service Request Catalyst 3560 Switch Hardware Installation Guide OL-6337-07...

  • Page 11: Chapter 1 Product Overview

    For power redundancy, all but the Catalyst 3560 8- and 12-port switches include connections for an optional Cisco RPS 2300 or Cisco RPS 675 that operates on AC power and supplies backup DC power to the switches.
  • Page 12 1000BASE-T (only Catalyst 3560 24- and 48-port switches) 1000BASE-ZX • Coarse Wavelength-Division Multiplexing (CWDM) • SFP module patch cable. (CAB-SFP-50CM=.) Switches running Cisco IOS Release 12.2(25)SEB or • later support this patch cable. Catalyst 3560 Switch Hardware Installation Guide OL-6337-07...

  • Page 13: Front Panel Description

    Chapter 1 Product Overview Front Panel Description Configuration: For 10/100 and 10/100/1000 ports, the speed and duplex settings are autonegotiated. • For 10/100 and 10/100/1000 ports, PoE settings are autonegotiated. • For 1000BASE-T SFP module ports, the speed and duplex settings are autonegotiated. •...
  • Page 14 Chapter 1 Product Overview Front Panel Description The 10/100 ports on the switch are grouped in pairs. The first member of the pair (port 1) is above the second member (port 2) on the left, as shown in Figure 1-2. Port 3 is above port 4, and so on. The SFP module slots are numbered 1 and 2.
  • Page 15 Chapter 1 Product Overview Front Panel Description The 10/100 ports on the switch are grouped in pairs. The first member of the pair (port 1) is above the second member (port 2) on the left, as shown in Figure 1-4. Port 3 is above port 4, and so on. The SFP module slots are numbered 1 to 4.
  • Page 16 Chapter 1 Product Overview Front Panel Description Figure 1-6 Catalyst 3560-12PC-S Switch Front Panel SYS T STA T CO NS O DP LX SP D C a ta ly st 35 MO DE P o E -1 2 SE RIE S Console port Dual-purpose port 10/100 PoE ports...
  • Page 17 Chapter 1 Product Overview Front Panel Description The 10/100/1000 ports on the Catalyst 3560-24TS switch are grouped in pairs. The first member of the pair (port 1) is above the second member (port 2) on the left, as shown in Figure 1-8.
  • Page 18 Chapter 1 Product Overview Front Panel Description The 10/100/1000 ports on the Catalyst 3560G-48TS switch are grouped in pairs. The first member of the pair (port 1) is above the second member (port 2) on the left, as shown in Figure 1-10.

  • Page 19: Poe Ports

    – IP phone or an access point is connected. You can connect a Cisco IP Phone or Cisco Aironet Access Point to a Catalyst 3560 PoE switch • 10/100 or 10/100/1000 port and to an AC power source for redundant power. The powered device might change to the AC power source as its primary power source when connected to it.

  • Page 20: Sfp Module Slots

    Product Overview Front Panel Description Many legacy powered devices, including older Cisco IP phones and access points that do not fully support IEEE 802.3af, might not support PoE when connected to the switches by a crossover cable. SFP Module Slots See the release notes for the latest list of supported SFP modules.

  • Page 21: Leds

    Chapter 1 Product Overview Front Panel Description LEDs You can use the switch LEDs to monitor switch activity and its performance. Figure 1-12 shows the switch LEDs and the Mode button that you use to select one of the port modes. All the LEDs described here are visible in the embedded device manager and Network Assistant GUIs.
  • Page 22 The Catalyst 3560-8PC and Catalyst 3560-12PC-S switches do not have an RPS LED. Note For more information about the Cisco RPS 2300 and the RPS 675, see the Cisco Redundant Power System 2300 Hardware Installation Guide and the Cisco RPS 675 Redundant Power System Hardware Installation Guide.

  • Page 23: Port Leds And Modes

    Chapter 1 Product Overview Front Panel Description Port LEDs and Modes The port LEDs, as a group or individually, display information about the switch and about the individual ports: Table 1-4 Modes for Port LEDs Selected Mode Port Mode Description STAT Port status The port status.
  • Page 24 Caution connected to a PoE port. Only standard-compliant cabling can be used to connect Cisco prestandard IP Phones or wireless access points or IEEE 802.3af-compliant devices to PoE ports. You must remove from the network the cable or device that causes a PoE fault.

  • Page 25: Dual-Purpose Port Leds

    You can order an optional cable guard to secure cables to the front of the switch and prevent them from being accidentally removed. To order a cable guard (CBLGRD-C3560-12PC or CBLGRD-C3560-8PC), contact your Cisco representative. The cable guard serves a different purpose than the cable guide (see “Attaching the Cable Guide” section on page 2-11).
  • Page 26 Chapter 1 Product Overview Rear Panel Description The switch rear panel has an AC power connector, an RPS connector, and an RJ-45 console port. (See Figure 1-14, Figure 1-15, and Figure 1-16 for examples of the Catalyst 3560 rear panels.) Figure 1-14 Catalyst 3560-24PS and 3560-48PS Switch Rear Panel CO NS OL...
  • Page 27 Chapter 1 Product Overview Rear Panel Description Figure 1-16 Catalyst 3560V2-24PS, 3560V2-48PS, 3560V2-24TS, 3560V2-48TS Switch Rear Panel CO NS OL RJ-45 console port RPS connector Fan exhaust AC power connector Figure 1-17 Catalyst 3560V2-24TS-SD Switch Rear Panel CO NS OL RJ-45 console port RPS connector Fan exhaust...

  • Page 28: Internal Power Supply

    Chapter 1 Product Overview Rear Panel Description The Catalyst 3560-8PC and Catalyst 3560-12PC-S rear panels have an AC power connector and heat sinks. (See Figure 1-18.) Figure 1-18 Catalyst 3560-8PC and Catalyst 3560-12PC-S Switch Rear Panel Heat sinks AC power connector Internal Power Supply An internal power supply powers the switch.

  • Page 29: Cisco Rps

    It automatically senses when the internal power supply of a connected switch fails and provides power to the failed switch, preventing loss of network traffic. The Cisco RPS 2300 has two output levels: -52 V and 12 V. The maximum output power depends on the installed power-supply modules.

  • Page 30: Security Slots

    Cisco Network Assistant • Cisco Network Assistant is a free software program that you download from Cisco.com and run on your PC. It offers advanced options for configuring and monitoring multiple devices, including switches, switch clusters, switch stacks, routers, and access points.

  • Page 31: Network Configurations

    Cisco IOS CLI • The switch CLI is based on Cisco IOS software and is enhanced to support desktop-switching features. You can fully configure and monitor the switch and switch cluster members from the CLI. You can access the CLI either by connecting your management station directly to the switch console port or by using Telnet from a remote management station.
  • Page 32 Chapter 1 Product Overview Management Options Catalyst 3560 Switch Hardware Installation Guide 1-22 OL-6337-07...

  • Page 33: Preparing For Installation

    C H A P T E R Switch Installation (24- and 48-Port Switches) This chapter describes how to install the Catalyst 3560 24- and 48-port switches, including how to interpret the power-on self-test (POST) that ensures proper operation. It also describes how to make connections to the switch.

  • Page 34: C H A P T E R 2 Switch Installation (24- And 48-Port Switches)

    If a redundant power system (RPS) is not connected to the switch, install an RPS connector cover on Warning the back of the switch. Statement 265 Attach only the following Cisco RPS model to the RPS receptacle: Warning PWR-RPS2300 / PWR675-AC-RPS-N1 Statement 370 Read the wall-mounting instructions carefully before beginning installation.
  • Page 35 Chapter 2 Switch Installation (24- and 48-Port Switches) Preparing for Installation Do not work on the system or connect or disconnect cables during periods of lightning activity. Warning Statement 1001 Before performing any of the following procedures, ensure that power is removed from the DC circuit. Warning Statement 1003 Read the installation instructions before connecting the system to the power source.
  • Page 36 Chapter 2 Switch Installation (24- and 48-Port Switches) Preparing for Installation This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the Warning absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available.

  • Page 37: Installation Guidelines

    Chapter 2 Switch Installation (24- and 48-Port Switches) Preparing for Installation Statement 371—Power Cable and AC Adapter To comply with the Telcordia GR-1089 Network Equipment Building Systems (NEBS) standard for Caution electromagnetic compatibility and safety, connect the ethernet cables only to intrabuilding or nonexposed wiring or cabling.

  • Page 38: Box Contents

    – copper port and one SFP module slot) Box Contents The switch getting started guide on Cisco.com describes the box contents. If any item is missing or damaged, contact your Cisco representative or reseller for support. Tools and Equipment You need to supply a number-2 Phillips screwdriver to rack-mount the switch.

  • Page 39: Powering Off The Switch

    The other LEDs turn off and then reflect the switch operating status. If a switch fails POST, the System LED turns amber. POST failures are usually fatal. Call Cisco technical support representative if your switch fails POST. Powering Off the Switch After a successful POST, disconnect the power cord from the switch.

  • Page 40: Removing Screws From The Switch

    Chapter 2 Switch Installation (24- and 48-Port Switches) Installing the Switch Removing Screws from the Switch Before you install the switch in a rack, remove the switch chassis screws (see Figure 2-1.) Figure 2-1 Removing Screws from the Catalyst 3560 Switch C at al ys t 35 60 SE RIE S...
  • Page 41 Chapter 2 Switch Installation (24- and 48-Port Switches) Installing the Switch Figure 2-3 Attaching Brackets for 24-Inch Racks to a Catalyst 3560 Switch, Front Panel Forward SY ST RP S ST AT DU PL X SP EE D Po E MO DE Phillips flat-head screws Figure 2-4...

  • Page 42: Mounting The Switch In A Rack

    Chapter 2 Switch Installation (24- and 48-Port Switches) Installing the Switch Figure 2-6 Attaching Brackets for 19-Inch Telco Racks to a Catalyst 3560 Switch C at al ys t 35 60 SE RIE S Po E -4 8 Phillips flat-head screws Figure 2-7 Attaching Brackets for 24-Inch Telco Racks to a Catalyst 3560 Switch C at al ys t...

  • Page 43: Attaching The Cable Guide

    Chapter 2 Switch Installation (24- and 48-Port Switches) Installing the Switch After the switch is mounted in the rack: Power on the switch. See the “Verifying Switch Operation” section on page 2-6. Connect to a 10/100 or 10/100/1000 port, and run Express Setup. See the Catalyst 3560 Switch Getting Started Guide for instructions.

  • Page 44: Wall-Mounting

    Chapter 2 Switch Installation (24- and 48-Port Switches) Installing the Switch Wall-Mounting These switches wall-mount only with the front panel facing up: Catalyst 3560-24PS, 3560-24TS-S, 3560-48PS, and 3560-48TS-S • Catalyst 3560G-24PS, 3560G-24TS, 3560G-48PS, and 3560G-48TS • These switches wall-mount with the front panel facing up or down: Catalyst 3560V2-24PS, 3560V2-24TS, 3560V2-48PS, and 3560V2-48TS •...
  • Page 45 Chapter 2 Switch Installation (24- and 48-Port Switches) Installing the Switch Attaching the RPS Connector Cover If you are not using an RPS with your switch, use the two Phillips pan-head screws to attach the RPS connector cover to the back of the switch, as shown in Figure 2-11.

  • Page 46: Mounting The Switch On A Wall

    Chapter 2 Switch Installation (24- and 48-Port Switches) Installing the Switch Mounting the Switch on a Wall For the best support of the switch and cables, make sure the switch is attached securely to wall studs or to a firmly attached plywood mounting backboard. Mount the switch with the front panel facing up, as shown in Figure 2-12.

  • Page 47: Table- Or Shelf- Mounting

    B-4 for cable stipulations for SFP connections. Use only Cisco SFP modules. Each SFP module has an internal serial EEPROM that is encoded with security information, which Cisco uses to identify and validate that the SFP module meets the requirements for the switch.

  • Page 48: Installing Sfp Modules Into Sfp Module Slots

    Chapter 2 Switch Installation (24- and 48-Port Switches) Installing and Removing SFP Modules Installing SFP Modules into SFP Module Slots Figure 2-13 shows an SFP module that has a bale-clasp latch. Figure 2-13 SFP Module with a Bale-Clasp Latch We strongly recommend that you do not install or remove fiber-optic SFP modules with cables attached Caution because of the potential damage to the cables, the cable connector, or the optical interfaces in the SFP module.

  • Page 49: Removing Sfp Modules From Sfp Module Slots

    Chapter 2 Switch Installation (24- and 48-Port Switches) Installing and Removing SFP Modules For fiber-optic SFP modules, remove the dust plugs from the optical ports, and store them for later use. Step 5 Caution Do not remove the dust plugs from the fiber-optic SFP module port or the rubber caps from the fiber-optic cable until you are ready to connect the cable.

  • Page 50: Inserting And Removing The Sfp Module Patch Cable

    Chapter 2 Switch Installation (24- and 48-Port Switches) Inserting and Removing the SFP Module Patch Cable For fiber-optic SFP modules, insert a dust plug into the optical ports of the SFP module to keep the Step 5 optical interfaces clean. Step 6 Place the removed SFP module in an antistatic bag or other protective environment.

  • Page 51: 10/100 Or 10/100/1000 Ports

    You can configure the 10/100 or 10/100/1000 ports on the Catalyst 3560 PoE switches either to automatically provide PoE if a Cisco IP Phone, Cisco Aironet Access Point, or end device compliant with IEEE 802.3af is connected or to never provide PoE, even if an IP phone or an access point is connected.

  • Page 52: Connecting The Switch To Compatible Devices

    The Catalyst 3560 switch can connect to a Cisco IP Phone through a straight-through, twisted four-pair Category 5 cable. The rear panel of the Cisco IP Phone might have more than one RJ-45 connector. Use the LAN-to-phone connector to connect the IP phone to the switch. See the Cisco IP Phone documentation for more information about connecting devices.

  • Page 53: Connecting To Fiber-Optic Sfp Modules

    Chapter 2 Switch Installation (24- and 48-Port Switches) Connecting the Switch to Compatible Devices Reconfigure and reboot the connected device, if necessary. Step 3 Repeat Steps 1 through 3 to connect each device. Step 4 Connecting to Fiber-Optic SFP Modules Class 1 laser product.

  • Page 54: Connecting To 1000Base-T Sfp Modules

    Chapter 2 Switch Installation (24- and 48-Port Switches) Connecting the Switch to Compatible Devices If the LED is off, the target device might not be turned on, there might be a cable problem, or there • might be problem with the adapter installed in the target device. See Chapter 4, “Troubleshooting,”...

  • Page 55: Connecting To A Dual-Purpose Port

    Chapter 2 Switch Installation (24- and 48-Port Switches) Connecting the Switch to Compatible Devices If the LED is off, the target device might not be turned on, there might be a cable problem, or there • might be problem with the adapter installed in the target device. See Chapter 4, “Troubleshooting,”...

  • Page 56: Where To Go Next

    • switch. See the Catalyst 3560 Switch Software Configuration Guide and the Catalyst 3560 Switch Command Reference on Cisco.com for information on using the CLI with a Catalyst 3560 switch. Start an SNMP application such as the CiscoView application. •...

  • Page 57: Preparing For Installation

    C H A P T E R Switch Installation (8- and 12-Port Switches) This chapter describes how to start your switch installation, including how to interpret the power-on self-test (POST) that ensures proper operation. It also describes how to install the switch. This chapter describes the installation information specific to the Catalyst 3560-8PC and Note Catalyst 3560-12PC-S switches.

  • Page 58: C H A P T E R 3 Switch Installation (8- And 12-Port Switches)

    If a redundant power system (RPS) is not connected to the switch, install an RPS connector cover on Warning the back of the switch. Statement 265 Attach only the following Cisco RPS model to the RPS receptacle: Warning PWR-RPS2300 / PWR675-AC-RPS-N1 Statement 370 Read the wall-mounting instructions carefully before beginning installation.
  • Page 59 Chapter 3 Switch Installation (8- and 12-Port Switches) Preparing for Installation Do not work on the system or connect or disconnect cables during periods of lightning activity. Warning Statement 1001 Before performing any of the following procedures, ensure that power is removed from the DC circuit. Warning Statement 1003 Read the installation instructions before connecting the system to the power source.
  • Page 60 Chapter 3 Switch Installation (8- and 12-Port Switches) Preparing for Installation This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the Warning absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available.

  • Page 61: Installation Guidelines

    Chapter 3 Switch Installation (8- and 12-Port Switches) Preparing for Installation Statement 371—Power Cable and AC Adapter To comply with the Telcordia GR-1089 Network Equipment Building Systems (NEBS) standard for Caution electromagnetic compatibility and safety, connect the ethernet cables only to intrabuilding or nonexposed wiring or cabling.

  • Page 62: Equipment That You Supply

    1000BASE-ZX SFP module at each end of the link. • Cisco Ethernet Switches are equipped with cooling mechanisms, such as fans and blowers. However, these fans and blowers can draw dust and other particles, causing contaminant buildup inside the chassis, which can result in a system malfunction.

  • Page 63: Box Contents

    Switch Installation (8- and 12-Port Switches) Verifying Switch Operation Box Contents The switch getting started guide on Cisco.com describes the box contents. If any item is missing or damaged, contact your Cisco representative or reseller for support. Tools and Equipment You need to supply a number-2 Phillips screwdriver to rack-mount the switch.

  • Page 64: Desk Or Shelf Mounting

    Chapter 3 Switch Installation (8- and 12-Port Switches) Installing the Switch Desk or Shelf Mounting • Desk or Shelf Mounting (Unsecured), page 3-8 Desk or Shelf Mounting (Secured), page 3-8 • • Under the Desk or Shelf Mounting, page 3-9 Desk or Shelf Mounting (Unsecured) Locate the adhesive strip with the rubber feet in the accessory kit.
  • Page 65 Chapter 3 Switch Installation (8- and 12-Port Switches) Installing the Switch Use a 0.144-inch (3.7 mm) or a #27 drill bit to drill a 1/2-inch (12.7 mm) hole in the three screw Step 4 template slots. Step 5 Insert three screws in the slots on the screw template, and tighten until they touch the top of the screw template.
  • Page 66 Chapter 3 Switch Installation (8- and 12-Port Switches) Installing the Switch Figure 3-3 Installing the Mounting Screws Under a Desk or Shelf Desk or shelf Adhesive Screw template Wall Screws Peel the adhesive strip off the bottom of the screw template, and attach it to the underside of the desk or Step 3 shelf.
  • Page 67 Chapter 3 Switch Installation (8- and 12-Port Switches) Installing the Switch Place the switch onto the mounting screws and slide the switch forward until it locks in place, as shown Step 7 Figure 3-4. Figure 3-4 Mounting the Switch Under a Desk or Shelf al y Desk or shelf Slides on this way...

  • Page 68: Wall-Mounting (With Mounting Screws)

    Chapter 3 Switch Installation (8- and 12-Port Switches) Installing the Switch Wall-Mounting (with Mounting Screws) Mount the switch with the front panel facing down (as shown in Figure 3-5 on page 3-13 Figure 3-6 on page 3-14.) Warning Read the wall-mounting instructions carefully before beginning installation. Failure to use the correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system.
  • Page 69 Chapter 3 Switch Installation (8- and 12-Port Switches) Installing the Switch Figure 3-5 Installing the Mounting Screws on a Wall T H I S S I D E A W A Y F R O M M O U N T I N G S U R F A C E C A B L E...
  • Page 70 Chapter 3 Switch Installation (8- and 12-Port Switches) Installing the Switch Place the switch onto the mounting screws and slide it down until it locks in place, as shown Step 8 Figure 3-6. Figure 3-6 Installing the Switch On a Wall Switch Slides down Screw...

  • Page 71: Magnet Mounting

    Chapter 3 Switch Installation (8- and 12-Port Switches) Installing the Switch Magnet Mounting Read the wall-mounting instructions carefully before beginning installation. Failure to use the Warning correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system.

  • Page 72: Rack-Mounting

    Chapter 3 Switch Installation (8- and 12-Port Switches) Installing the Switch Connect to a 10/100 or 10/100/1000 port, and run Express Setup. See the Catalyst 3560 Switch Getting Started Guide for instructions. To use the CLI setup program, see Appendix D, “Configuring the Switch with the CLI-Based Setup Program.”...

  • Page 73: Wall-Mounting (With Rack-Mount Brackets)

    Chapter 3 Switch Installation (8- and 12-Port Switches) Installing the Switch Mounting the Switch in a 19-Inch Rack After the brackets are attached to the switch, insert the switch into the 19-inch rack, and align the bracket in the rack. Use either the 10-32 pan-head screws or the 12-24 pan-slotted screws to secure the switch in the rack, as shown in Figure 3-9.
  • Page 74 Chapter 3 Switch Installation (8- and 12-Port Switches) Installing the Switch Do not wall-mount the switch with its front panel facing up or sideways. According to safety regulations, wall-mount the switch with its front panel facing down to prevent airflow restriction and to provide easier access to the cables.

  • Page 75: Securing The Ac Power Cord

    Chapter 3 Switch Installation (8- and 12-Port Switches) Installing the Switch Securing the AC Power Cord The AC power-cord retainer is an optional part (PWR-CLIP-CMP). Insert the power-cord retainer wire into the slot on the plastic holder. Step 1 Attach the plastic holder onto the switch rear panel with the supplied screw (see Figure 3-11).

  • Page 76: Where To Go Next

    Use the CLI from the console to configure the switch as a member of a cluster or as an individual switch. See the Catalyst 3560 Switch Software Configuration Guide and the Catalyst 3560 Switch Command Reference on Cisco.com for information on using the CLI with a Catalyst 3560 switch. •...

  • Page 77: Chapter 4 Troubleshooting

    You can also get statistics from the browser interface, from the command-line interface (CLI), or from a Simple Network Management Protocol (SNMP) workstation. See the software configuration guide, the switch command reference guide on Cisco.com, or the documentation that came with your SNMP application for details.

  • Page 78: Evaluate Switch Post Results

    LED blinks amber. If POST fails, the system LED remains amber. If POST completes successfully, the system LED rapidly blinks green. POST failures are usually fatal. Contact your Cisco technical support representative if your switch does Note not pass POST.

  • Page 79: Ethernet And Fiber Cables

    Transceiver Module Port Issues Use only Cisco small form-factor (SFP) modules on the switch. Each Cisco module has an internal serial EEPROM that is encoded with security information. This encoding provides a way for Cisco to identify and validate that the module meets the requirements for the switch.

  • Page 80: Port And Interface Settings

    Chapter 4 Troubleshooting Diagnosing Problems Port and Interface Settings An obvious but sometimes overlooked cause of port connectivity failure is a disabled port. Verify that the port or interface is not disabled or for some reason powered off. If a port or interface is manually shut down on one or the other side of the link, the link does not come up until you re-enable the port.

  • Page 81: Autonegotiation And Network Interface Cards

    Chapter 4 Troubleshooting Clearing the Switch IP Address and Configuration These circumstances can result in a mismatch: A manually set speed or duplex parameter is different from the manually set speed or duplex • parameter on the connected port. A port is set to autonegotiate, and the connected port is set to full duplex with no autonegotiation. •...

  • Page 82: Locating The Switch Serial Number

    You can also configure the switch by using the CLI setup procedure described in Appendix D, “Configuring the Switch with the CLI-Based Setup Program.” Locating the Switch Serial Number If you contact Cisco Technical Assistance, you need to know the serial number of your switch. See Figure 4-1 through Figure 4-5 to locate the serial number on your switch.
  • Page 83 Chapter 4 Troubleshooting Locating the Switch Serial Number Figure 4-4 Serial Number Location on the Catalyst 3560-48TS-S and 3560V2-48TS Switch CO NS OL SN: XXXNNNNXXXX Figure 4-5 Serial Number Location on the Catalyst 3560-48TS, Catalyst 3560G-48PS, Catalyst 3750G-48TS, and Catalyst 3750G-48PS Switches ST AC K CO NS OL ST AC K...
  • Page 84 Chapter 4 Troubleshooting Locating the Switch Serial Number Catalyst 3560 Switch Hardware Installation Guide OL-6337-07...

  • Page 85: Appendix

    A P P E N D I X Technical Specifications Table A-1 on page A-1, Environmental Ranges for all Catalyst 3560 Switches • Table A-2 on page A-2, Technical Specifications for the Catalyst 3560-24PS Switch • Table A-3 on page A-2, Specifications for the Catalyst 3560-48PS Switch •...
  • Page 86 Appendix A Technical Specifications Table A-2 Technical Specifications for the Catalyst 3560-24PS Switch Power Requirements AC input voltage 100 to 240 VAC (autoranging) 5.5 A to 2.8 A, 50 to 60 Hz + 12 V DC input voltage for RPS 675 @7.5 A and –48 V @7.8 A Maximum power consumption...
  • Page 87 Appendix A Technical Specifications Table A-4 Specifications for the Catalyst 3560-24TS-S Switch Power Requirements AC input voltage 100 to 240 VAC (autoranging) 450 to 190 mA, 50 to 60 Hz + 12 V DC input voltages for RPS 675 @ 5 A Power consumption 45 W Maximum power consumption...
  • Page 88 Appendix A Technical Specifications Table A-7 Specifications for the Catalyst 3560G-24TS Switch Power Requirements AC input voltage 100 to 240 VAC (autoranging) 1.5 to 3 A, 50 to 60 Hz + 12 V DC input voltages for RPS 675 @10.5 A Maximum power consumption 100 W Maximum power dissipation...
  • Page 89 Appendix A Technical Specifications Table A-9 Specifications for the Catalyst 3560G-48TS Switch Power Requirements AC input voltage 100 to 240 VAC (autoranging) 3 to 1.5 A, 50 to 60 Hz + 12 V DC input voltages for RPS 675 @17.5 A Maximum power consumption 160 W Maximum power dissipation...
  • Page 90 Appendix A Technical Specifications Table A-11 Specifications for the Catalyst 3560V2-48PS and 3560V2-24PS Switch (continued) Environmental Ranges DC input voltages for +12 V @14 A and –48 V @7.8 A RPS 2300 and 675 Power consumption 560 W Power dissipation 220 W, 690 BTUs per hour Power rating 0.56 kVA...
  • Page 91 Appendix A Technical Specifications Table A-13 Specifications for the Catalyst 3560V2-24TS-SD Switch (continued) Environmental Ranges Power Requirements DC input voltage –36 to –72 VDC 3 to 1.5 A Power consumption 94 W, 321 BTUs per hour Physical Dimensions Weight 9 lb (4.1 kg) Dimensions (H x W x D) 1.73 x 17.5 x 11.8 in.
  • Page 92 Appendix A Technical Specifications Catalyst 3560 Switch Hardware Installation Guide OL-6337-07...

  • Page 93: Appendix

    A P P E N D I X Connector and Cable Specifications This appendix describes the Catalyst 3560 switch ports and the cables and adapters that you use to connect the switch to other devices and includes these sections: “Connector Specifications” section on page B-1 •...

  • Page 94: Sfp Module Ports

    Appendix B Connector and Cable Specifications Connector Specifications Figure B-1 10/100 Port Pinouts Label 4 5 6 7 8 Figure B-2 shows the pinout for a 10/100/1000 port. Figure B-2 10/100/1000 Port Pinouts Label 4 5 6 7 8 TP0+ TP0- TP1+ TP2+...

  • Page 95: Dual-Purpose Ports

    Appendix B Connector and Cable Specifications Connector Specifications Figure B-4 Copper SFP Module RJ-45 Connector Label 4 5 6 7 8 TP0+ TP0- TP1+ TP2+ TP2- TP1- TP3+ TP3- Dual-Purpose Ports The Ethernet port on a dual-purpose port uses standard RJ-45 connectors. Figure B-5 shows the pinouts.

  • Page 96: Cable And Adapter Specifications

    Appendix B Connector and Cable Specifications Cable and Adapter Specifications Cable and Adapter Specifications SFP Module Cable Specifications, page B-4 • Two Twisted-Pair Cable Pinouts, page B-5 • Four Twisted-Pair Cable Pinouts for 1000BASE-T Ports, page B-6 • Identifying a Crossover Cable, page B-6 •...

  • Page 97: Two Twisted-Pair Cable Pinouts

    Appendix B Connector and Cable Specifications Cable and Adapter Specifications Table B-1 Fiber-Optic SFP Module Port Cabling Specifications (continued) Wavelength Core Size/Cladding Modal Bandwidth SFP Module (nanometers) Fiber Type Size (micron) (MHz/km) Cable Distance CWDM 1470, 1490, G.652 — 62 miles (100 km) 1510, 1530, 1550, 1570, 1590, 1610...

  • Page 98: Four Twisted-Pair Cable Pinouts For 1000Base-T Ports

    Appendix B Connector and Cable Specifications Cable and Adapter Specifications Four Twisted-Pair Cable Pinouts for 1000BASE-T Ports Figure B-8 Figure B-9 show the schematics of four twisted-pair cables for 1000BASE-T SFP module ports on Catalyst 3560 switches. Figure B-8 Four Twisted-Pair Straight-Through Cable Schematic for 1000BASE-T Ports Switch Router or PC 1 TP0+...

  • Page 99: Adapter Pinouts

    Appendix B Connector and Cable Specifications Cable and Adapter Specifications Figure B-10 Identifying a Crossover Cable Pin 1 on one connector and pin 1 on the other connector should be different colors. Pin 1 Pin 1 Adapter Pinouts Table B-2 lists the pinouts for the console port, the RJ-45-to-DB-9 adapter cable, and the console device.
  • Page 100 Appendix B Connector and Cable Specifications Cable and Adapter Specifications Table B-3 Console Port Signaling Using a DB-25 Adapter Switch Console RJ-45-to-DB-25 Console Port (DTE) Terminal Adapter Device Signal DB-25 Pin Signal Catalyst 3560 Switch Hardware Installation Guide OL-6337-07...

  • Page 101: Appendix

    A P P E N D I X Connecting to DC Power This appendix describes how to make DC power connections to the Catalyst 3560V2-24TS-SD switch. “Switch Installation (24- and 48-Port Switches)” “Switch Installation (8- and 12-Port Switches)” for instructions on installing the switch. Connecting to DC Power To connect the Catalyst 3560V2-24TS-SD switch to a DC-input power source, follow the steps in these sections:...
  • Page 102 Appendix C Connecting to DC Power Connecting to DC Power The Catalyst 3560V2-24TS-SD switch is suitable only for intrabuilding or nonexposed wiring Caution connections. Preparing for Installation Locate the ground lug and the two number-10-32 screws on the switch rear panel and the DC terminal block plug in the DC-switch accessory kit.
  • Page 103 Appendix C Connecting to DC Power Connecting to DC Power Figure C-1 Stripping the Ground Wire 0.5 in. (12.7 mm) ± 0.02 in. (0.5 mm) Wire lead Insulation Slide the open end of the ground lug over the exposed area of the 6-gauge wire. Step 3 Using a Panduit crimping tool, crimp the ground lug to the 6-gauge wire, as shown in Figure...
  • Page 104 Appendix C Connecting to DC Power Connecting to DC Power Figure C-3 Attaching the Ground Lug Assembly Over the RPS Connector CO NS OL Figure C-4 Attaching the Ground Lug to the Ground Lug Hole Ground hole location Catalyst 3560 Switch Hardware Installation Guide OL-6337-07...
  • Page 105 Appendix C Connecting to DC Power Connecting to DC Power Wiring the DC-Input Power Source Before performing any of the following procedures, ensure that power is removed from the DC circuit. Warning Statement 1003 Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Warning Statement 1030 Caution...
  • Page 106 Appendix C Connecting to DC Power Connecting to DC Power Figure C-6 Stripping the DC-Input Power Source Wire 0.25 inch (6.3 mm) ± 0.02 inch (0.5 mm) Insert the exposed wire of one of the four DC-input power source wires into the terminal block plug, as Step 5 shown in Figure...
  • Page 107 Appendix C Connecting to DC Power Connecting to DC Power Figure C-8 Torquing the Terminal-Block Captive Screws Torque to 4.5 lbf-in. (72 ozf-in.) Repeat Steps 4 and 5 for the remaining three DC-input power source wires. Figure C-9 shows the Step 7 completed wiring of a terminal block plug.
  • Page 108 Appendix C Connecting to DC Power Connecting to DC Power Figure C-10 Inserting the Terminal Block in the Block Header CO NS OL Tie wrap Terminal block Step 9 Remove the tape from the circuit-breaker switch handle, and move the circuit-breaker handle to the on position.

  • Page 109: Appendix

    A P P E N D I X Configuring the Switch with the CLI-Based Setup Program This appendix provides a command-line interface (CLI)-based setup procedure for a standalone switch. Review the safety warnings in Chapter 2, “Switch Installation (24- and 48-Port Switches)” Chapter 3, “Switch Installation (8- and 12-Port Switches).”...
  • Page 110 Appendix D Configuring the Switch with the CLI-Based Setup Program Preparing for Setup Use the supplied RJ-45-to-DB-9 adapter cable to insert the RJ-45 connector into the console port on the Step 2 switch rear panel, as shown in Figure D-2. Figure D-2 Connecting a Switch to a PC CO NS OL...

  • Page 111: Completing The Setup Program

    If you started the terminal emulation program before you powered on your switch, the PC or terminal displays the bootloader sequence. You need to press Enter to display the setup program prompt. If you are connecting the switch to a Cisco redundant power system (RPS), see the documentation that Note shipped with your RPS.
  • Page 112 Appendix D Configuring the Switch with the CLI-Based Setup Program Completing the Setup Program Enter an enable password, and press Return. Step 4 Enter enable password: enable_password Enter a virtual terminal (Telnet) password, and press Return. Step 5 The password can be from 1 to 25 alphanumeric characters, is case sensitive, allows spaces, but ignores leading spaces.
  • Page 113 Telnet. For configuration information, see the switch software configuration guide or the switch command reference. To use CMS, see the CMS online help. To use Network Assistant, see the Getting Started with Cisco Network Assistant guide.
  • Page 114 Appendix D Configuring the Switch with the CLI-Based Setup Program Completing the Setup Program Catalyst 3560 Switch Hardware Installation Guide OL-6337-07...
  • Page 115 I N D E X autonegotiation Numerics troubleshooting 10/100/1000 ports auto-MDIX feature cable lengths 2-5, 3-6 connectors and cables cable guard 1-15 described cable guide, attaching 2-11 dual-purpose ports 1-10 cable lengths 2-5, 3-5 illustrated cables pinouts crossover four twisted-pair pinout, 1000BASE-T ports 10/100 ports identifying auto-MDIX feature...
  • Page 116 Index torquing recommendation Cisco IOS command-line interface 1-21 DC circuit warning Cisco IP Phones, connecting to 1-9, 2-20 DC-I grounding note 2-5, 3-5 Cisco Network Assistant 1-20 DC power Cisco RPS connecting to C-1 to C-2 See RPS specifications CiscoView...
  • Page 117 (8- and 12-port switches) 3-15 mounting in a rack 24- and 48-port switches 2-7 to 2-11 message URL http 8- and 12-port switches 3-16 to 3-17 //www.cisco.com/web/learning/index.html i-vii mounting on a desk Mode button 1-11 24- and 48-port switches 2-15 mounting...
  • Page 118 Index mounting brackets port and interface troubleshooting attaching (24- and 48-port switches) port LEDs 2-8 to 2-10 1-13 rack-mount (24- and 48-port switches) port modes 2-10 rack-mount (8- and 12-port switches) changing 3-17 1-11 mounting desk- or shelf-mounting LEDs 1-13 24- and 48-port switches See also Mode button 2-15...
  • Page 119 Index 24- and 48-port switches 2-7, 2-11 four twisted-pair 1000BASE-T ports 8- and 12-port switches two twisted-pair 10/100 ports 3-16, 3-17 rear panel SunNet Manager 1-21 clearance Switch models illustrated 2-5, 3-5 description 1-15 to 1-19 switch powering on 2-6, 3-7 removing SFP modules 2-17 to 2-18 restricted access area warning...
  • Page 120 Index PoE shock hazard 2-4, 3-4 removing power from DC circuit restricted access area servicing equipment Catalyst 3560 Switch Hardware Installation Guide IN-6 OL-6337-07...

This manual is also suitable for:

Ws-c3560-48ts-eWs-c3560e-48pd-sfWs-c3560-48ps-eWs-c3560g-24ts-eWs-c3560g-48ps-eWs-c3560-24ps-e ... Show all

Table of Contents
