Y991Mam1.fm Page 1 Tuesday, January 19, 2010 4:39 PM
Dell
OptiPlex
Setup and Features Information

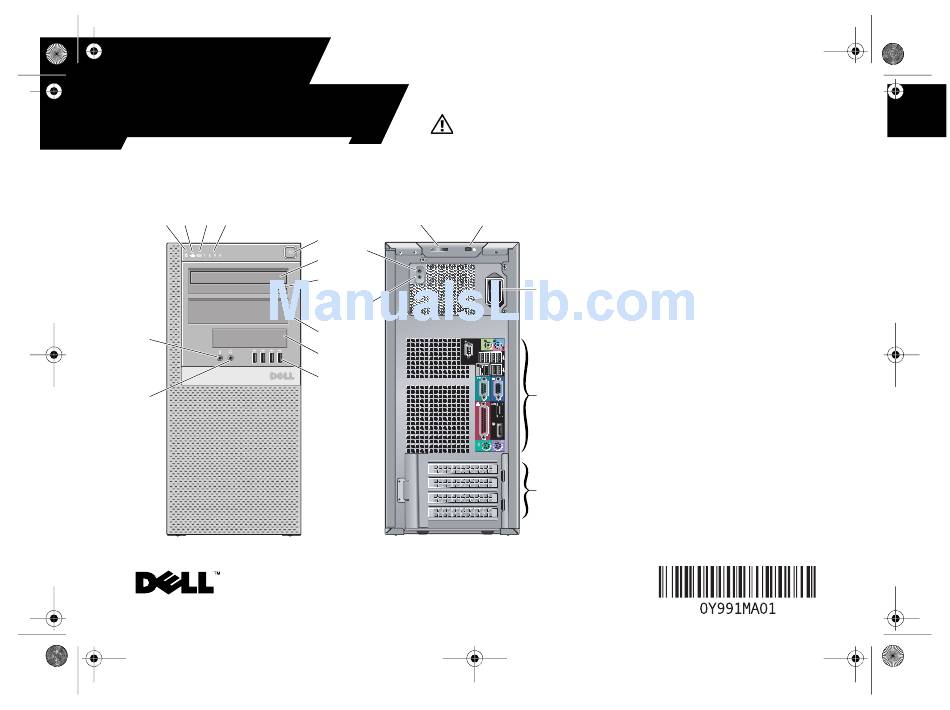

Mini Tower — Front and Back View
1
2
3
4
12
11
Models: Mini Tower: DCSM1F; Desktop: DCNE1F; and Small Form Factor: DCCY1F series
About Warnings
980
WARNING:
for property damage, personal injury, or death.
13
5
19
6
7
18
8
9
10
A WARNING indicates a potential
14
1 drive activity light
2 network activity light
3 Wi-Fi
15
4 diagnostic lights (4)
5 power button, power light
6 optical drive
7 optical drive eject button
8 optical drive filler panel
9 flex bay
10 USB 2.0 connectors (4)
16
11 headphone connector
12 microphone connector
13 padlock ring
14 security cable slot
15 power cable connector
16 back panel connectors
17
17 expansion card slots (4)
18 power supply diagnostic button
19 power supply diagnostic light
February 2010
®
activity light (optional)

Advertisement

Table of Contents
loading

Summary of Contents for Dell OptiPlex 980 MT

  • Page 1 Y991Mam1.fm Page 1 Tuesday, January 19, 2010 4:39 PM About Warnings Dell OptiPlex ™ ™ WARNING: A WARNING indicates a potential for property damage, personal injury, or death. Setup and Features Information Mini Tower — Front and Back View 1 drive activity light 2 network activity light ®...
  • Page 2: Desktop Front And Back View

    Y991Mam1.fm Page 2 Tuesday, January 19, 2010 4:39 PM Desktop — Front and Back View 1 power button, power light 2 optical drive 3 optical drive eject button 4 USB 2.0 connectors (2) 5 microphone connector 6 headphone connector 7 flex bay 8 drive activity light 9 network activity light 10 Wi-Fi activity light (optional)
  • Page 3: Small Form Factor Front/Back View

    Y991Mam1.fm Page 3 Tuesday, January 19, 2010 4:39 PM Small Form Factor — Front and Back View 1 power button, power light 2 optical drive 3 optical drive eject button 4 flex bay 5 headphone connector 6 microphone connector 7 USB 2.0 connectors (2) 8 drive activity light 9 network activity light 10 Wi-Fi activity light (optional)
  • Page 4: Mini Tower/Desktop/Small Form Factor Back Panel

    Y991Mam1.fm Page 4 Tuesday, January 19, 2010 4:39 PM Mini Tower, Desktop, and Small Form Factor — Back Panel 1 parallel connector 2 serial connector 3 link integrity light 4 network adapter connector 5 network activity light 6 Wi-Fi antenna (optional) 7 headphone connector 8 line-in/microphone connector 9 USB 2.0 connectors (6)
  • Page 5: Quick Setup

    (optional). (optional). section, read the safety information that shipped with your computer. For additional best practices information, see www.dell.com/regulatory_compliance. NOTE: Some devices may not be included if you did not order them. Connect the monitor using only one of the following cables: a The blue VGA cable.
  • Page 6: Specifications

    NOTE: The following specifications are only those required by law Externally accessible: to ship with your computer. For a complete and current listing of the specifications for your computer, go to support.dell.com. 3.5-inch drive bays 5.25-inch drive bays one (slimline)
  • Page 7 Four amber lights located on the front panel supply may be defective. AC power must be of the computer. For information on the connected during this test. diagnostic lights, see the Service Manual available on the Dell Support website at Power Wattage Maximum heat Voltage support.dell.com/manuals.
  • Page 8: Macrovision Product Notice

    Macrovision Product Notice Trademarks used in this text: Dell, the DELL logo, and OptiPlex are trademarks of Dell Inc.; Intel and Pentium are registered trademarks and Core is a trademark This product incorporates copyright protection technology that is of Intel Corporation in the U.S. and other countries.; Wi-Fi is a registered protected by U.S.
