CE SERIES
CE SERIES
CE SERIES
CE SERIES
CE SERIES

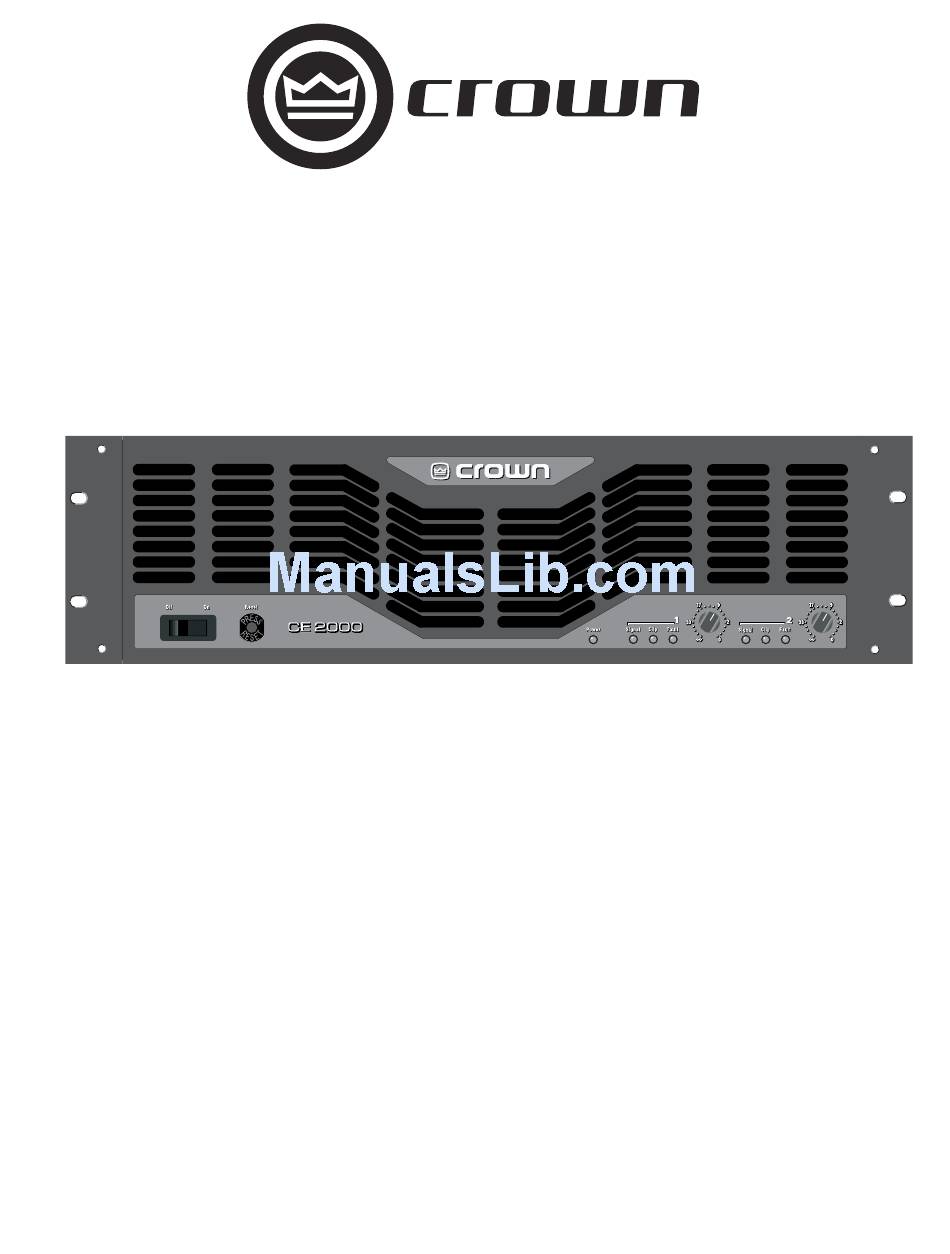

Service Manual
PROFESSIONAL AUDIO AMPLIFIERS
PROFESSIONAL AUDIO AMPLIFIERS
PROFESSIONAL AUDIO AMPLIFIERS
PROFESSIONAL AUDIO AMPLIFIERS
PROFESSIONAL AUDIO AMPLIFIERS
(some units may have the model names: CE-1000A, CE-2000A, CE-2000TX,
UT-1010, UT-2020, M120, M240, S2, and S3)
