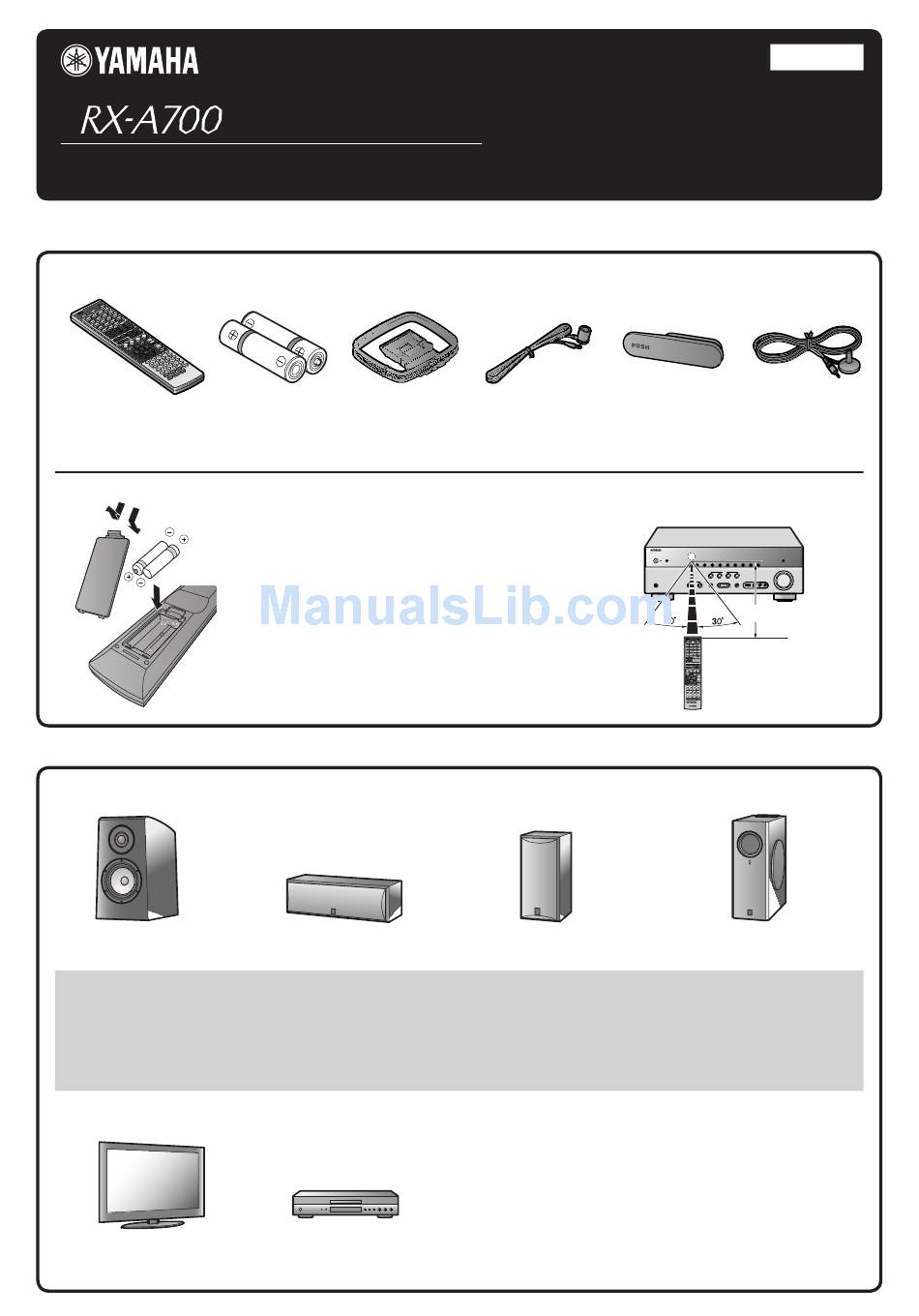

Quick Reference Guide
■
Accessories
The following accessories are supplied with this product.
Remote control
Preparing the remote control
1
3
2
2
■
Items necessary for connection
Speakers
Ex.
Front speaker
• Use speakers with an impedance of at least 6Ω. 4Ω speakers can also be used as the front speakers. For more information on speaker
impedance, refer to page 3.
• If you are using a CRT monitor, we recommend that you use magnetically shielded speakers.
• Prepare at least two front speakers. The priority of the other speakers is as follows:
1
Two surround speakers
2
One center speaker
3
One (or two) surround back speaker (s)/presence speakers
External components
TV
Batteries (2)
AM loop antenna
(AAA, R03, UM-4)
1
Take off the battery compartment cover.
2
Insert the two supplied AAA batteries
into the battery case, following the
polarity markings.
3
Snap the battery compartment cover
back into place.
Center speaker
Playback device such as
BD (Blu-ray Disc)/DVD players
Indoor FM antenna
Be sure to aim the remote control directly at the remote
control sensor on this unit during operation.
Ex.
Surround speaker, surround back
speaker, and presence speaker
Cable
• Cables for connecting external components
(may differ depending on the components you are connecting)
• Speaker cables
(a quantity to match the number of speakers you are connecting)
• Audio pin cable
(for subwoofer)
- 1 -
VIDEO AUX input cover
YPAO microphone
within 20 feet (6 m)
Ex.
Active subwoofer
English
for U.S.A.
Ex.
