Sony STR-DE545 - Fm Stereo/fm-am Receiver Dimensions

STR-DE545
RM-PP404 REMOTE CONTROL
5/8" 1 3/4 "
FM
COAXIAL
AM.
ANTENNA
FRONT REAR
5.1 INPUTS
NOTE:
WHERE THERE ARE CLOSE TOLERANCES INVOLVED IN CABINET BUILDING
OR APPLICATIONS WHICH REQUIRE A GREAT DEGREE OF PRECISION WE
RECOMMEND THAT THE PRODUCT ITSELF BE USED TO MAKE THE ACTUAL
MEASUREMENTS.
IN THE DESIGN OR MANUFACTURE OF ENCLOSURES .
Consumer Integrated Systems • Park Ridge, New Jersey 07656 • FAX (201) 986 3062 • b2b.sel.sony.com
Features and specifications subject to change without notice. • Non-metric weights and measurements are approximate.
DESCRIPTION:
DIMENSIONS
(WHD):
WEIGHT:

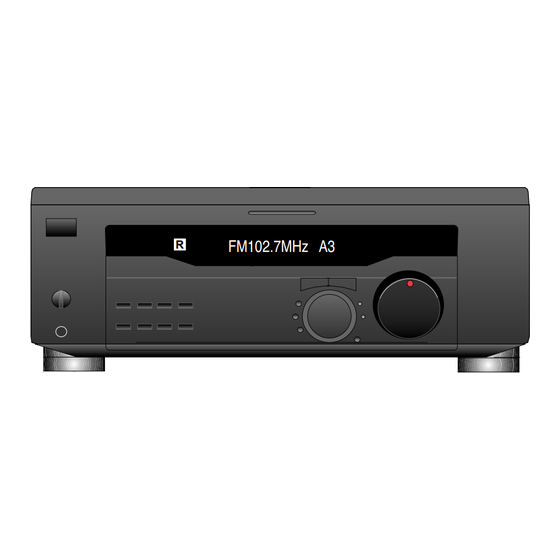

FRONT VIEW

R FM102.7MHz A3
12 1/4 "
SIDE VIEW
1" 1 3/4 "

BACK VIEW

DIGITAL IN
TV/SAT DVD
VIDEO IN VIDEO IN VIDEO OUT VIDEO IN
OPTICAL OPTICAL COAX
S -VIDEO
IN
CNT
SUB
WOOFER
AUX CD MD/TAPE DVD VIDEO
TV/SAT
SONY WILL NOT BE RESPONSIBLE FOR INACCURACIES
Dolby Digital
Receiver
17" x 6 1/4" x 12"
Approx 18 lbs
17"
12 "
10 1/2"
5"
1 7/8 "
MONITOR CTRL
A1 ll
VIDEO
OUT
SPEAKERS
REAR CENTER B FRONT A
S -VIDEO
OUT
AUDIO
OUT
FRONT
4 8
SUB
IMP SELECT
WOOFER IMP 8 - 16 ohms 4 - 16 ohms FRONT A or B
8 - 16 ohms FRONT A + B
POWER
REQUIREMENTS:
POWER
CONSUMPTION:
5 3/4"
6 1/4"
1 3/4 " 5/8"
1/2"
5/8"
AC OUTLET
SWITCHED
120V
60H
250
Watts
