Summary of Contents for Belkin F5U415
-
Page 1: User Manual
User Manual USB Flex Hub Introduction... -
Page 3: Table Of Contents
Table of Contents Introduction Features ............................1 Package Contents........................1 Technical Specifications......................2 Installation............................3 Information ............................5... -
Page 4: Features

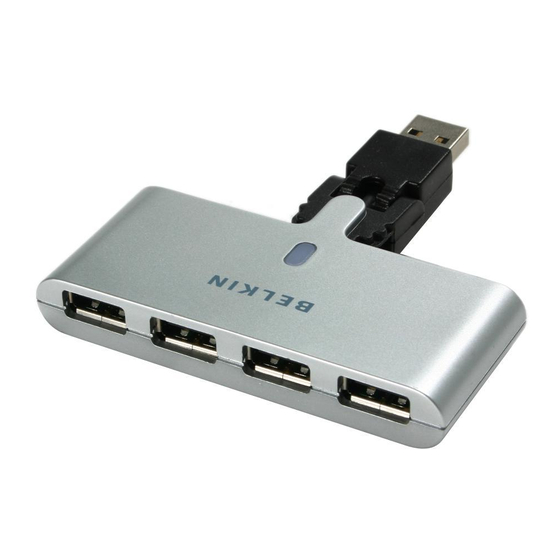

Plug-and-Play connectivity with all USB devices, including such peripherals as scanners, printers, mass-storage drives, and high-resolution cameras (both Hi-Speed USB 2.0 and USB 1.1). Using Belkin’s new flexible design, you can rotate the Hub for ease of use and fold it into a compact shape for easy storage. -
Page 5: Technical Specifications
Per-Port Voltage: DC +5V Per-Port Current: 500mA (max) (self-powered mode) Power Mode: Self-powered/bus-powered Operating Temperature: 5° C ~ 40° C Storage Temperature: -20° C ~ 60° C Power Supply: Output: DC 5V, 2.6A Plug Size: 3.5mm (outer) 1.0mm (center) Plug Polarity: Center-pin positive... -
Page 6: Installation
Important Note: Please do not connect any USB devices to the Hub until instructed to do so in step 4 of this installation procedure. 1. Plug the AC adapter into a wall outlet or surge protector. Plug the DC connector into the DC power jack found on the rear of the Hub. - Page 7 Installation 4. Plug the USB A connector of the USB device into any of the downstream ports of the Hub. Important Note: When moving a device from one port on the Hub to another, it may be necessary to reinstall the USB drivers for that device.
-
Page 8: Information
F5U415 to which this declaration relates: Complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 9 What is not covered by this warranty? All above warranties are null and void if the Belkin product is not provided to Belkin for inspection upon Belkin’s request at the sole expense of the purchaser, or if Belkin determines that the Belkin product has been improperly installed, altered in any way, or tampered with.
- Page 10 Belkin, Belkin may designate, in its sole discretion, an equipment repair facility to inspect and estimate the cost to repair such equipment. The cost, if any, of shipping the equipment to and from such repair facility and of such estimate shall be borne solely by the purchaser.
- Page 11 AT BE CY CZ DK FR DE GR HU IE LU MT NL PL PT ES SE GB LI NO CH BG RO TR For information on product disposal please refer to OPERATES ON http://environmental.belkin.com CHANNELS 1-13 Information | 08...
- Page 12 +34 91 791 23 00 +34 91 490 23 35 fax © 2007 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
