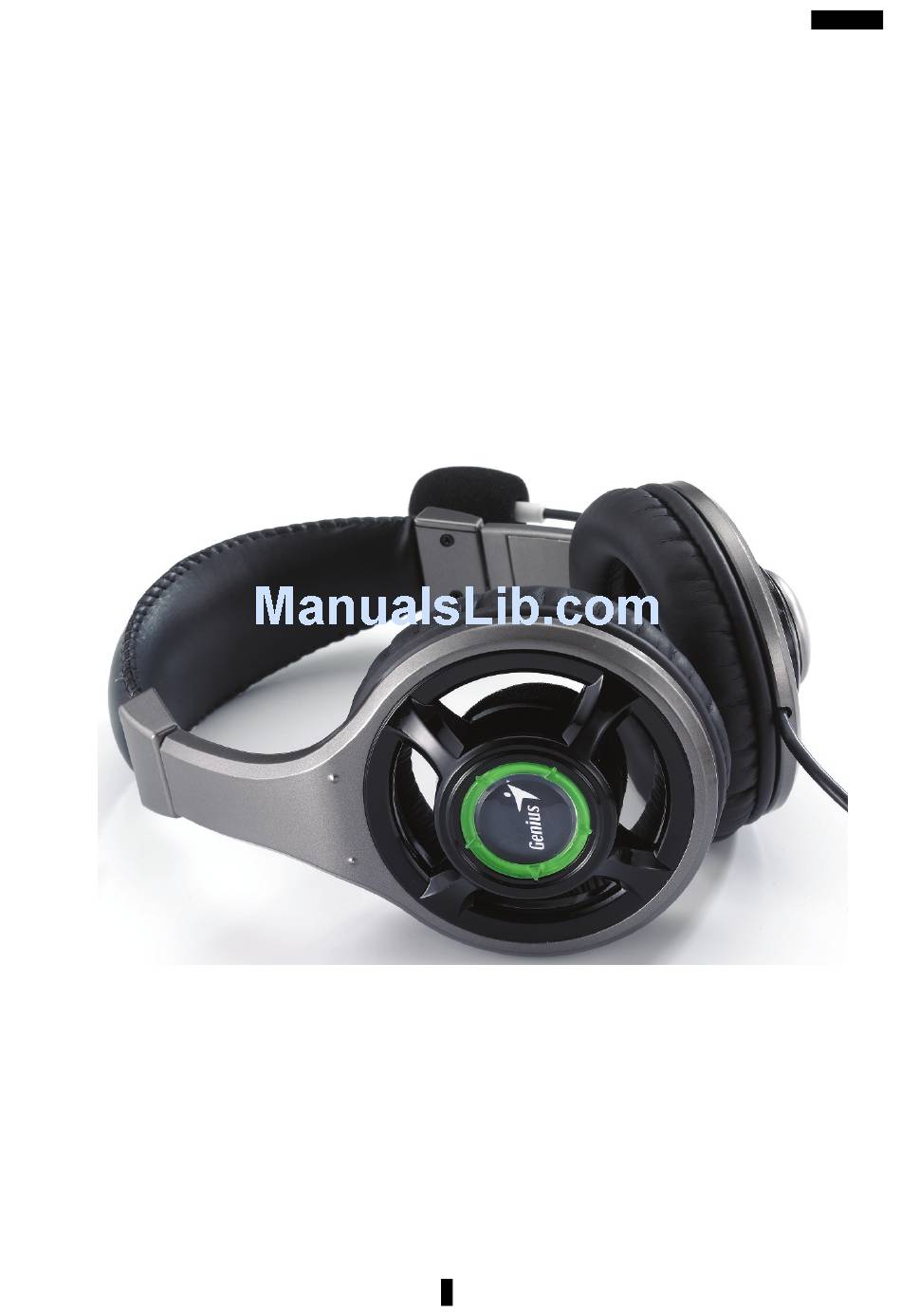

HS-04U User's Manual
1
______________________________________________
____________________________________________________

Summary of Contents

  • Page 1

    __________________________________________________________________________________________ENGLISH HS-04U User’s Manual ______________________________________________ ____________________________________________________...

  • Page 2: Table Of Contents

    __________________________________________________________________________________________ENGLISH Table of Content HS-04U introduction………………………………….3 Introducing Xear 3D Sound Technology…………4 Function Structure and Overview…………………...5 System Requirement and Installation………………6 User Interface and Function Control …………...…..9 ______________________________________________ ____________________________________________________...

  • Page 3: Hs-04u Introduction

    Volume up Plug the USB into your computer and system will search the USB device automatically. In the original , the volume will show green light , once Microphone mute on , the volume button will show red light. ______________________________________________...

  • Page 4: Introducing Xear 3d Sound Technology

    Thanks to Xear 3D™ Sound Technology, even if you are using a pair of earphones or 2CH speakers, you can still get a better virtual 5.1CH or 7.1CH environment capable only by Xear 3D™ Sound Technology. Better yet, all audio formats can be converted to thrilling 3-dimensional audio by this technology.

  • Page 5: Function Structure And Overview

    __________________________________________________________________________________________ENGLISH 3. Function Structure and Overview The following shows the function overview of the driver. Optional features mean optional offers decided by system manufacturers. Xear 3D Driver Function Diagram ______________________________________________ ____________________________________________________...

  • Page 6: System Requirement And Installation

    • System recommended: use Intel Pentium III or AMD K6 500 CPU above • At least 256MB RAM • At least 50 MB hard disk space For good sound quality, please adjust your system’s H/W acceleration and Sample rate conversion quality to Full and Best.

  • Page 7

    __________________________________________________________________________________________ENGLISH Before you install the Xear 3D sound audio driver, you must make sure that the USB Multi-media Sound Device is already connected to the PC system already. If your PC system has more than one USB connecting port, please remember which one is connected for installation, and when the next time when you plug this USB Multi-media Sound Device to a PC, you have to plug it into the same port.

  • Page 8

    When set up program complete installation system will need to restart to initialize the driver. After you reboot and the system is running up again, you will see a small icon in the lower right of the screen. You can click it to open the Xear 3D Sound driver functions.

  • Page 9: User Interface And Function Control

    (See next page for more information) 7.Dolby Headphone: Open Dolby Headphone environment effectively. 8.Digital Volume Control: Open each channel to adjust digital volume. (See next page for more information) 9.Channel Display & Speaker Test: Shows analog output channel status and directly click speaker graphic for sound testing.

  • Page 10

    1.Reset Volume Mixer : Playback Volume Control 1.Balance Control 7.SW Synth Volume Balance 2.Volume Up/Down Control 8. SW Synth Volume Control 3.Master Volume On/Off 9. SW Synth Volume On/Off 4.Wave Volume Balance 10.CD Volume Balance 5.Wave Volume Control 11.CD Volume Control 6.Wave Volume On/Off...

  • Page 11

    Recording Volume Control 1.Stereo Mixer Balance 6.Microphone Record Volume On/Off 2.Stereo Mixer Control 7.Microphone Record Advanced Setting 3.Stereo Mixer On/Off 8.Wave Volume Balance 4.Microphone Record Balance 9.Wave Volume Control 5.Microphone Record Volume Control 10. Wave Volume On/Off Effects : ______________________________________________ __________________________________________________...

  • Page 12

    Environment Size 1.Bathroom 6.Large 2.Concert hall 7.Middle 3.Underwater 8.Small 4.Music Pub 5.More option: 27 mode for selected Equalizer 9.Ten Band Equalizer Adjust 18.Pre-Set Mode (Metal) 10.Pre-Set Mode (Default) 19.Pre-Set Mode (RAP) 11.Pre-Set Mode (Dance) 20.Pre-Set Mode (Classic) 12.Pre-Set Mode (Bass) 21.Pre-Set Mode (Vocal)

  • Page 13

    WEEE NOTICE : Symbol for Separate Collection in European Countries This symbol indicates that this product is to be collected separately. The following apply only to users in European countries: This product is designated for separate collection at an appropriate collection point.

  • Page 14

    __________________________________________________________________________________________ENGLISH • Ce produit a été conçu afin de faire l’objet d’une collecte séparée dans un centre de tri adéquat. Ne vous débarrassez pas de ce produit avec vos ordures ménagères. • Pour plus d’informations, contactez votre revendeur ou le service assurant l’élimination des déchets.

  • Page 15

    Dėl tolimesnės informacijos, susisiekite su mažmenininku arba vietinės valdžios organais atsakingais už atliekų tvarkymą. Symbool voor gescheiden afvalophaling in Europese landen Dit symbool geeft aan dat dit product afzonderlijk moet worden opgehaald. Het volgende geldt alleen voor inwoners van Europese landen: •...
