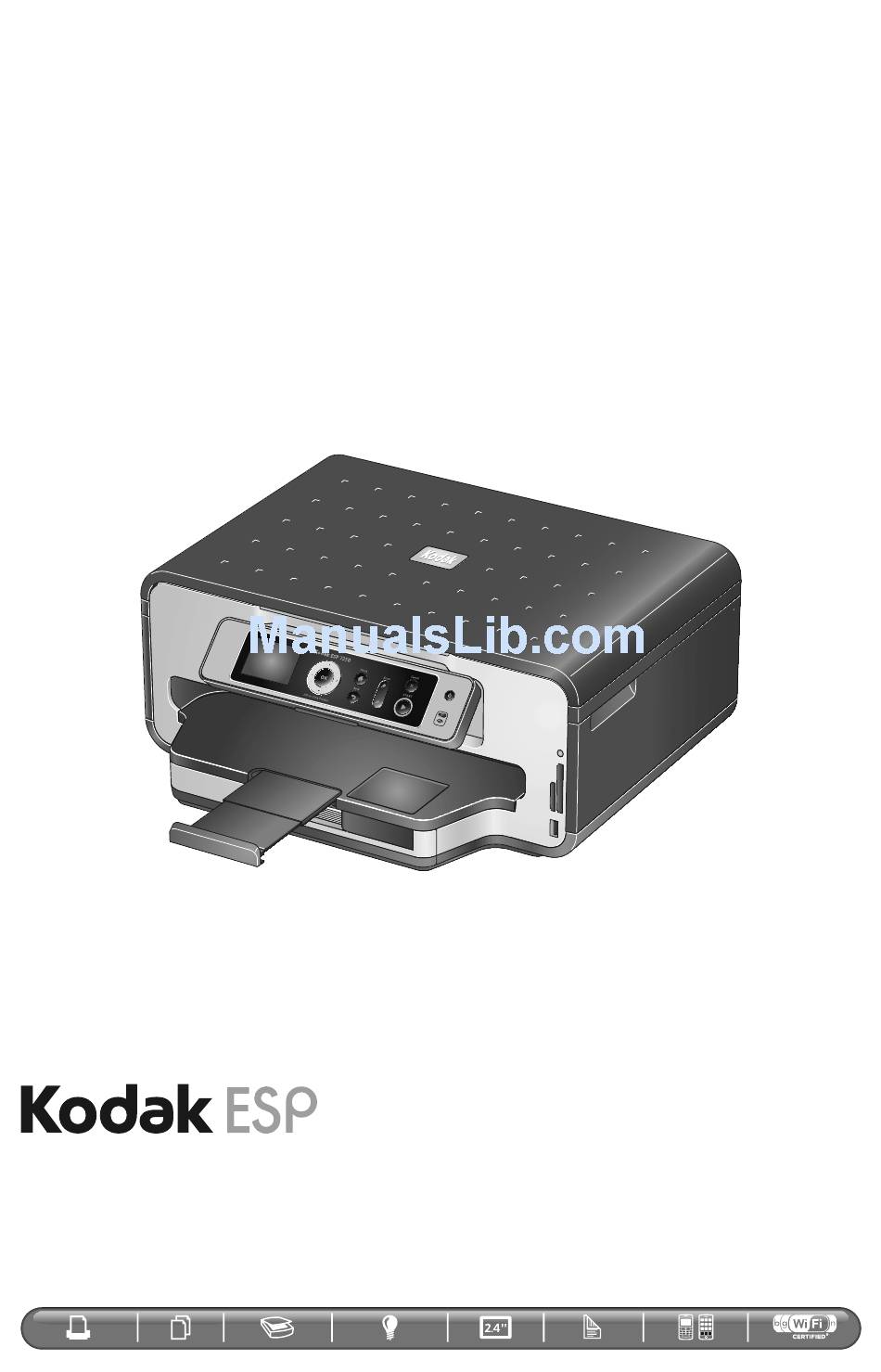

- Page 1 User Guide • Guide d'utilisation Guía del usuario • Guia do Usuário 7200 Series All-in-One Printers • Imprimantes tout-en-un Impresoras multifunción • Impressoras Multifuncionais...
- Page 2 Support is available! Go to www.kodak.com/go/aiosupport, and select your printer model for: • Frequently Asked Questions (FAQs) • software or firmware upgrades • Extended User Guide • and more! If you prefer, you can chat online, send us an e-mail, or call for technical support. Go to www.kodak.com/go/contact.
-
Page 3: Table Of Contents
Printing pictures..........................7 Copying ..............................9 Scanning ..............................10 Ordering supplies..........................10 3 Troubleshooting Basic troubleshooting .........................11 Getting help on the Web........................12 4 Safety and Warranty Information Safety information ..........................13 LCD screen safety..........................13 Ink cartridge safety..........................13 Warranty Information........................14 Declaration of Conformity........................ 15... -
Page 4: Printer Overview
Feature Description Displays pictures, messages, and menus Navigation buttons Used to navigate menus; scroll through pictures OK button Selects a menu item, accepts a setting, and continues with the current operation Back button Displays the previous screen Home button Displays the main menu; toggles between screens... -
Page 5: Components
KODAK ESP 7200 Series All-in-One Printer Components Control panel Output tray extender with paper stop Power cord port 12 Output tray USB port 13 Scanner glass Ethernet port 14 Scanner lid Duplexer/rear-access cleanout cover 15 Front paper-edge guides Printer access door... -
Page 6: Home Center Software
Paper sizes In the main paper tray : 4 x 6 in. / 10 x 15 cm to 8.5 x 14 in. / 22 x 36 cm In the photo paper tray : 4 x 6 in. / 10 x 15 cm to 5 x 7 in. / 13 x 18 cm... -
Page 7: Loading Plain Paper
2. Make sure the left paper-edge guide is to the far left. 3. Move the front paper-edge guide forward. Left paper- edge guide Paper tray extender Front paper-edge guide NOTE: For paper longer than 11 in. / 28 cm, press and pull out the paper tray extender. www.kodak.com/go/aiosupport... - Page 8 6. Move both the left and front paper-edge guides until they touch the paper. 7. Push in the main paper tray until it clicks into place, and lower the output tray. 8. Pull out the output tray extender until it is fully extended.
-
Page 9: Loading Photo Paper
2. Move the left paper-edge guide to the far left and the front paper-edge guide forward. 3. Fan and stack the photo paper, then insert the paper (short side first) into the tray with the logo side facing up and the glossy side down. IMPORTANT: If the photo paper is loaded the wrong way, the ink on your pictures will be wet and the image quality will be affected. -
Page 10: Basic Functions
2. Select File > Print . 3. In the Print window, select your KODAK Printer. 4. Choose the pages to print, number of copies, etc, then click OK (on a computer with WINDOWS OS) or Print (on a computer with MAC OS). - Page 11 3. Press Start to begin printing. The printer prints a single 4 x 6 in. / 10 x 15 cm picture. For more information about printing, see the Extended User Guide at www.kodak.com/go/esp7250support.
-
Page 12: Copying
3. Select the picture you want to print, then select Send to begin printing. The printer prints a single 4 x 6 in. / 10 x 15 cm picture. NOTE: See the user guide for your device for more information. -
Page 13: Scanning
KODAK ESP 7200 Series All-in-One Printer Scanning Before scanning, make sure that the printer is connected to your computer with a USB 2.0 cable, a wireless network, or via an Ethernet network/cable. To scan a document or picture: 1. Lift the scanner lid, and place the document or picture face down on the scanner glass. -
Page 14: Troubleshooting
Troubleshooting Basic troubleshooting Some problems can be resolved quickly by power cycling the printer: Turn off your printer. Wait five seconds. Turn on the printer. Use the following information to help troubleshoot problems with your printer. Problem Possible Solutions Printer does not •... -
Page 15: Getting Help On The Web
• Remove the duplexer and gently remove any paper from the rear-access cleanout area. • Make sure the paper in the tray is free of tears or creases. • Make sure you do not overload the paper tray. For more information, go to www.kodak.com/go/itg. Select All-in-one printer, then Paper jam. -
Page 16: Safety And Warranty Information
• Do not attempt to repair or service this product. • If the power cord or plug is damaged, if any liquid has been spilled onto the product, if the product has been dropped or the case damaged, if the product does not operate normally or exhibits a major change in performance level, unplug this product and contact Kodak at www.kodak.com/go/contact. -
Page 17: Warranty Information
Liability for any special consequential or incidental damages (including but not limited to loss of revenue or profit, downtime costs, loss of the use of the equipment, cost of substitute equipment, facilities or services or claims of your customers for such damages resulting from the purchase, use or failure of the Product), regardless of cause, or for breach of any written or implied warranty is expressly disclaimed. -
Page 18: Declaration Of Conformity
AS/NZS 4268:2003 + A1:2005 + A2:2006 The product herewith complies with the requirements of the Low Voltage Directive 2006/95/EC, the EMC Directive 2004/108/EC and carries the CE marking. In addition, it complies with the WEEE Directive 2002/96/EC and RoHS Directive 2002/95/EC. - Page 19 © Eastman Kodak Company, 2009 Rochester, NY 14650 MC/MR/TM: Kodak, ESP and EasyShare. Eastman Kodak Company is an authorized licensee of the CompactFlash trademark. 1K5858 Printed in China Imprimé en Chine Impreso en China Impresso na China...
