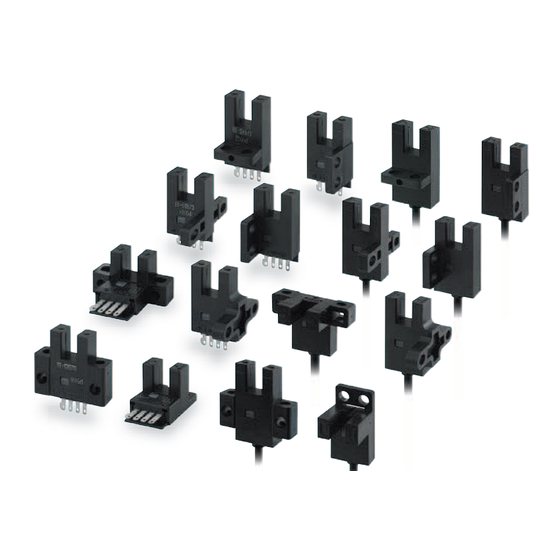

- Page 1 Photomicro Sensors with Built-in Amplifier EE-SX670-WR EE-SX670 EE-SX770 EE-SX910-R Be sure to read page 27 before ordering. Actual size...
- Page 2 EE-SX 670-WR EE-SX 912-R EE-SX 671-WR EE-SX 914-R EE-SX EE-SX EE-SX 913-R 674-WR EE-SX EE-SX 677-WR EE-SX 676-WR EE-SX EE-SX 673-WR EE-SX EE-SX EE-SX EE-SX EE-SX 672-WR EE-SX 675-WR EE-SX EE-SX EE-SX A Complete Product Lineup for the Perfect Selection...
-
Page 3: Ordering Information
(selectable) *3 *3. These models can be used as Light-ON when the L terminal and positive (+) terminal are connected to each other. To use them as Dark-ON, do not connect these terminals to each other. When used at light-ON, it is useful to select the connector EE-1001-1. The L terminal and positive (+) terminal of this connector are short-circuited in advance. - Page 4 EE-SX677-C1J-R EE-SX677P-C1J-R connectors (0.1 m) * These models can be used as Light-ON when the L line and positive (+) line are connected to each other. To use them as Dark-ON, do not connect these lines to each other. Accessories for Models with Connectors (Order Separately)
-
Page 5: Ratings And Specifications
Approx. 2.4 g Approx. 2.3 g Approx. 3 g Approx. 2.7 g Approx. 2.2 g Approx. 2.2 g Pre-wired Weight Approx. 18.9 g Approx. 17.3 g Approx. 17.8 g Approx. 16.8 g Approx. 17.1 g Approx. 18.3 g Approx. 16.9 g Approx. 16.9 g models (pack- Models with... -
Page 6: Engineering Data (Typical)
Distance d (mm) Distance d (mm) Vcc =12 V, No. of repetitions: 20, ∆ d1 = 0.002 mm, ∆ d2 = 0.004 mm, ∆ d3 = 0.005 mm, ∆ d4 = 0.02 mm, ∆ d5 = 0.04 mm I/O Circuit Diagrams... -
Page 7: Safety Precautions
Therefore, do not use them in applications in which the sensor will be • The terminal base uses a polycarbonate resin, which could be subjected to splashes from water, oil, or any other liquid. Liquid deformed by excessive soldering heat, resulting in damage to the entering the Sensor may result in malfunction. - Page 8 Terminal Arrangement EE-SX470/470P EE-SX471/471P OUTPUT OUTPUT GND (0 V) GND (0 V) * L Terminal needs no connection * L Terminal needs no connection for all EE-SX47@ series sensors. for all EE-SX47@ series sensors. 26.2 Four, R2 25.4 Two, 3.2 dia.
- Page 9 EE-SX675/675P EE-SX674A/674R Terminal Arrangement Terminal Arrangement EE-SX474/474P OUTPUT OUTPUT GND (0 V) GND (0 V) * L Terminal needs no connection for all EE-SX47@ series sensors. 16.7 Optical axis Two, R1 Two, 3.5 dia. holes Indicator window 6.35 21.5 6.95 13.4...
- Page 10 100±15 100±15 3.2 dia. holes Indicator window EE-SX670-C1J-R 25.4 EE-SX671-C1J-R 13.4 6.35 Optical axis Robot cable with 2.8 dia., 4 conductors, 13.4 (conductor cross-section: 0.15 mm insulator diameter: 0.8 mm); Standard length: 1 m 11.2 6.35 13.4 Detection window 13.8...
- Page 11 13.6 Optical axis 10.3 Detection window (2.9) 4.6 dia. holes 4.6 dia. 15.5 holes Robot cable with 2.8 dia., 4 conductors, (conductor cross-section: 0.15 mm 13.4 insulator diameter: 0.8 mm); Standard 16.7 length: 1 m EE-SX676-WR/676P-WR EE-SX677-WR/677P-WR Terminal Arrangement Terminal Arrangement...
- Page 12 Vinyl-insulated round cable of 4 dia., 4 cores, (0.2 mm with 1.1-dia. insulator) 2000 Two, C1 ± 5 Terminal Arrangement Brown 2.54 Pink 7.62 Black Blue ± 5 In the interest of product improvement, specifications are subject to change without notice.
- Page 13 Incident light EE-SX772 EE-SX772P T-shaped Dark-ON No incident light EE-SX772A EE-SX772R Incident light EE-SX872 EE-SX872P Light-ON No incident light EE-SX872A EE-SX872R *1. The operation indicator of models with suffix code (A) or (R) will turn ON when the light is interrupted.
- Page 14 * e-CON is a new industrial standard being promoted by manufacturers of FA devices and connectors. The E39-ECON@M (cable length: 2 m or 5 m) with an e-CON connector on one end, and the E39-ECONW@M (cable length: 0.5 m to 2 m in units of 0.1 m) with e-CON connectors on both ends are available.
- Page 15 Light source GaAs infrared LED with a peak wavelength of 940 nm Indicator Light indicator (red) (turns ON when light is interrupted for models with A or R suffix) Supply voltage 5 to 24 VDC ±10%, ripple (p-p): 10% max.
- Page 16 Tr OFF 2.16 2.18 2.20 2.22 Distance d (mm) Distance d (mm) Distance d (mm) Vcc = 24 V No. of repetitions: 20, Ta = 25 ° C I/O Circuit Diagrams NPN Output Output Model Timing charts Output circuit configuration Incident...
- Page 17 *1. The E39-ECON@M (cable length: 2 m or 5 m) with an e-CON connector on one end, Power supply and the E39-ECONW@M with e-CON connectors on both ends (cable length: 0.5 m to 2 m in units of Blue (0 V) 0.1 m) are available.
- Page 18 Vinyl-insulated round cable of 2.4 dia., 3 cores: 0.3/2 m of 2.4 dia., 3 cores: 0.3/2 m of 2.4 dia., 3 cores: 0.3/2 m Output Output Output In the interest of product improvement, specifications are subject to change without notice.
- Page 19 Both NPN and PNP output models are available for use according to system requirements. Possible to directly switch up to 100 mA Output control of up to 100 mA is supported for either NPN or PNP outputs. Models with Connectors for Simplify Wiring...
-
Page 20: List Of Models
(0.3 m) U-shaped Pre-wired models (1 m) E-SX914-R EE-SX914P-R Models with junction EE-SX914-C1J-R EE-SX914P-C1J-R connectors (0.3 m) Accessories (Order Separately) Connector with Robot Cable Type Cable length Model Remarks Connector with Cable EE-1016-R Connector with lock, AWG26, 4-core Robot Cable... - Page 21 5 mA load current with a residual voltage of 0.4 V max. Protection circuits Power supply reverse polarity protection; output reverse polarity protection 3 kHz min. (8 kHz average) Light incident: 15 µ s average; light interrupted: 40 µ s Response frequency average* Ambient illumination 1,000 lx max.
- Page 22 Repeated Sensing Position Characteristics EE-SX910 Dark-ON d=±0.002 Light-ON 3.14 3.16 3.18 Distance d (mm) Vcc = 24 V, No. of repetitions: 20, Ta = 25°C (Differential distance = 0.025 mm max.) I/O Circuit Diagrams Output Output transistor Model Timing charts Output circuit type...
- Page 23 The resistance of the resistor is generally 4.7 k Ω and its • Power Supply Voltage wattage is 1/2 W for a supply voltage of 24 V and 1/4 W for 12 V. Do not exceed the voltage range...
-
Page 24: Dimensions (Unit: Mm)
13.4 Optical axis Optical axis Indicator window 1.75 6 12 17.4 EE-SX911-C1J-R Sensing window Robot cable of 2.8 dia., 4 cores, Connector Terminal Arrangement (0.15 mm with 0.8-mm dia. (Four, R1.6) insulator); Two, 3.2 dia. dia. Standard length: 1 m 18.7... - Page 25 ■ Sensors with DC Power Supply of 30 V or Less 1. When connected to one of the circuits (Class 2) described in (1), (2), and (3) below, a sensor can be used even if it is not UL certified. Use the following UL-certified products for combining DC power supplies.
-
Page 26: Performance Data
Please read and understand this document before using the products. Please consult your OMRON representative if you have any questions or comments. WARRANTY OMRON’s exclusive warranty is that the products are free from defects in materials and workmanship for a period of one year (or other period if specified) from date of sale by OMRON. OMRON... - Page 27 ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. Cat. No. E382-E1-01 In the interest of product improvement, specifications are subject to change without notice.
