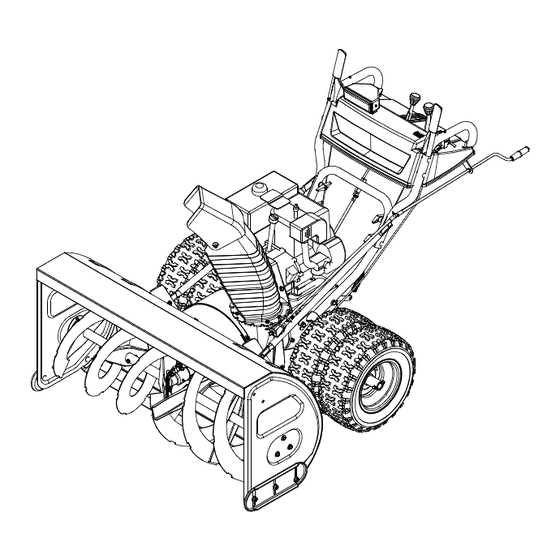

45" Snow Thrower
Model 1345 SWE
IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
Warning:
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 368023 Cleveland, Ohio 44136-9722.
CUB CADET CORP. P.O. BOX 368023 CLEVELAND, OHIO 44136-9722
PRINTED IN U.S.A.
FORM NO. 770-10300A
ECO No. 1481
(8/2000)
Advertisement
Table of Contents
Related Manuals for Cub Cadet 1345 SWE
Summary of Contents for Cub Cadet 1345 SWE
- Page 1 Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 368023 Cleveland, Ohio 44136-9722. CUB CADET CORP. P.O. BOX 368023 CLEVELAND, OHIO 44136-9722 PRINTED IN U.S.A.
-
Page 2: Table Of Contents
For future reference, please copy the model number and the serial number of the equipment in the space below. (Model Number) (Serial Number) CUB CADET CORP. P.O. BOX 368023 CLEVELAND, OHIO 44136 CALLING CUSTOMER SUPPORT If you have difficulty assembling this product or have any questions regarding the controls, operation or maintenance of this unit, please call the Customer Dealer Referral Line. -
Page 3: Important Safe Operation Practices
SECTION 1: IMPORTANT SAFE OPERATION PRACTICES This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. -
Page 4: Maintenance And Storage
Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless and deadly gas. Do not operate machine while under the influence of alcohol or drugs. Muffler and engine become hot and can cause a burn. Do not touch. -
Page 5: Assembling Your Snow Thrower
SECTION 2: ASSEMBLING YOUR SNOW THROWER Unpacking • Remove staples from the top, sides, and ends of the shipping crate. • Set panels aside to avoid tire punctures or personal injury. • Remove and discard plastic bag that covers unit. •... - Page 6 • Tighten the two wing nuts already in place on the upper holes and secure the handles firmly. Refer to Figure 2. • Slide the shift rod connector down over the end of the lower shift rod as shown in Figure 2. Tap the connector until it locks on the lower shift rod.
- Page 7 If adjustment is necessary, proceed as follows: • Loosen the jam nut and thread the cable in (for less slack) or out (for more slack) as necessary. See Figure 7. “Z” End Jam Nut Auger Control Cable Figure 7 • Recheck adjustment;...
-
Page 8: Knowing Your Snow Thrower
SECTION 3: KNOWING YOUR SNOW THROWER WARNING: Be familiar with all the controls and their proper operation. Know how to stop the machine and disengage them quickly. Fuel Tank Discharge Chute Auger Traction Control / Auger Control Lock The traction control is located on the right handle. Refer to Figure 9. -
Page 9: Operating Your Snow Thrower
Wheel Steering Controls The left and right wheel steering controls are located on the underside of the handles and are used to assist in steering the snow thrower. • Squeeze the right wheel steering control when turning right; squeeze the left control when turning left. -
Page 10: Operating Tips
• If your house wiring system is not a three-wire grounded system, do not use this electric starter under any conditions. • If your home electrical system is grounded, but a three-hole receptacle is not available, one should be installed by a licensed electrician before using the electric starter. -
Page 11: Making Adjustments
WARNING: The temperature of the muffler and the surrounding areas may exceed ° F. Avoid these areas. • For the most efficient snow removal, remove snow immediately after it falls. • Discharge snow downwind whenever possible. • Slightly overlap each previous cleaning path. SECTION 5: MAKING ADJUSTMENTS WARNING: NEVER attempt to clean... -
Page 12: Maintaining Your Snow Thrower
• Rotate the ferrule up or down on the shift rod as necessary until the ferrule lines up with the upper hole in the shift lever. Refer to Figure 12. • Insert ferrule from the left side of the snow thrower into the upper hole. - Page 13 Lube Under Chute Base Chute Crank Spirals Figure 14 Discharge Chute The base of the discharge chute and the spirals on the chute crank should be lubricated at least every 25 hours of use. When applying the lubrication, apply the lubricant as shown in Figure 14 to the point under the base of the chute and where the spirals contact the discharge chute.
-
Page 14: Servicing Your Snow Thrower
SECTION 7: SERVICING YOUR SNOW THROWER WARNING: Before servicing, repairing, or inspecting, disengage all clutch levers and stop engine. Wait until all moving parts have come to a complete stop. Disconnect spark plug wire and ground it against the engine to prevent unintended starting. - Page 15 Engine Pulley Shoulder Bolt Figure 18 Auger Belt • Remove the cotter pin and washer from the ferrule in order to disconnect the auger idler rod from the brake bracket assembly as shown in Figure 19. • Slip the auger control belt (the front belt) off the engine pulley.
- Page 16 Extension Spring Drive Belt Figure 21 • Attach the “Z” fitting of the cable into the brake bracket assembly. Refer to Figure 19. • Slip the auger control belt over engine pulley. • Insert ferrule on auger idler rod into bracket assembly and secure with flat washer and cotter pin.
-
Page 17: Off-Season Storage
• Reassemble the new friction wheel rubber to the friction wheel assembly, tightening the six screws in rotation and with equal force. It is important to assemble the rubber on the friction wheel symmetrically for proper functioning. Friction Wheel Plates Screws Friction Wheel Rubber... -
Page 18: Trouble Shooting Guide
Auger control cable in need of adjustment. Auger belt loose or damaged. Shear bolt(s) sheared. NOTE: For repairs beyond the minor adjustments listed above, contact the local Cub Cadet dealer. Cause Fill tank with fresh gasoline. Clean the fuel line. -
Page 19: Parts List
SECTION 10: PARTS LIST FOR MODEL 1345 SWE... - Page 20 MODEL 1345 SWE 29 27 34 26 NOTE: For painted parts, please refer to the list of color codes below. Please add the applicable color code, wherever needed, to the part number to order a replacement part. For instance, if a part, numbered 700-xxxx, is painted Cub Yellow, the part number to order would be 700-xxxx-0716.
- Page 21 MODEL 1345 SWE Ref. No. Part No. 05244A Bearing Housing 618-0281A Bracket Assembly: Auger Break 684-0090A Impeller Assembly: 16” 710-0371 Hex Lock Bolt 5/16-18 x .875” 710-0451 Carriage Bolt 5/16-18 x .750” 710-0459A Hex Screw, Special 3/8-24 x 1.5” 710-0528 Hex Screw 5/16-18 x 1.25”...
- Page 22 MODEL 1345 SWE 15 48 61 NOTE: For painted parts, please refer to the list of color codes below. Please add the applicable color code, wherever needed, to the part number to order a replacement part. For instance, if a part, numbered 700-xxxx, is painted Cub Yellow, the part number to order would be 700-xxxx-0716.
- Page 23 MODEL 1345 SWE Ref. No. Part No. Part Description 05523 Support Bracket: Pivot 618-0278 Bush Assembly 618-0279 Dogg Assembly LH 618-0280 Dogg Assembly RH 618-0282B Shift Assembly 618-0296 Wheel Bearing Assembly 684-0115 Support Bracket Assembly 684-0116 Shift Arm Assembly 684-0117...
- Page 24 MODEL 1345 SWE 21 13 22 11 NOTE: For painted parts, please refer to the list of color codes below. Please add the applicable color code, wherever needed, to the part number to order a replacement part. For instance, if a part, numbered 700-xxxx, is painted Cub Yellow, the part number to order would be 700-xxxx-0716.
- Page 25 MODEL 1345 SWE Ref. Part No. Part Description 646-0012 Cable Assembly: Auger/Drive Engagement 684-0053A Chute Crank Assembly 705-5266 Chute Crank Bracket 710-0216 Hex Screw 3/8-16 x .75” 710-0347 Hex Screw3/8-16 x 1.75” 710-0458 Carriage Bolt 5/16-18 x 1.75” 710-0572 Carriage Bolt 5/16-18 x 2.5”...
- Page 26 MODEL 1345 SWE 6 15 16 12 Ref. No. Part No. 07386 684-0123A 710-0191 710-0237 710-0502A 710-0607 710-1245 712-0116 714-0118 731-0321 732-0303 736-0159 736-0217 736-0242 736-0264 737-3007 738-0215A 748-0234 754-0131 756-0240 756-0241B 784-5726 712-0324 732-0705 736-0173 629-0071 Description Washer Belt Cover Bracket Assembly Hex Screw 3/8-24 x 1.25”...
- Page 27 MODEL 1345 SWE Ref. No. Part No. Description 710-0276 Carriage Screw 710-0458 Carriage Bolt 5/16-18 x 1.75” 710-0805 Hex Bolt 5/16-18 x 1.5” 710-0896 Hex AB Screw 1/4-14 x .625” 710-3015 Hex Screw 1/4-20 x .75” 712-0429 Hex Lock Nut...
-
Page 28: Cleveland, Ohio
There is no other express warranty. Contact your authorized Cub Cadet servicing dealer who sold you your Cub Cadet equipment. If this dealer is not available, see the Consumer Yellow Pages under “lawn mowers” for the name of a dealer near you.
