Xerox WorkCentre M24 Quick Start Manual

Auditron setting for print

Hide thumbs Also See for WorkCentre M24:

Download this manual See also: Service Manual, Reference Manual

Enlarged version

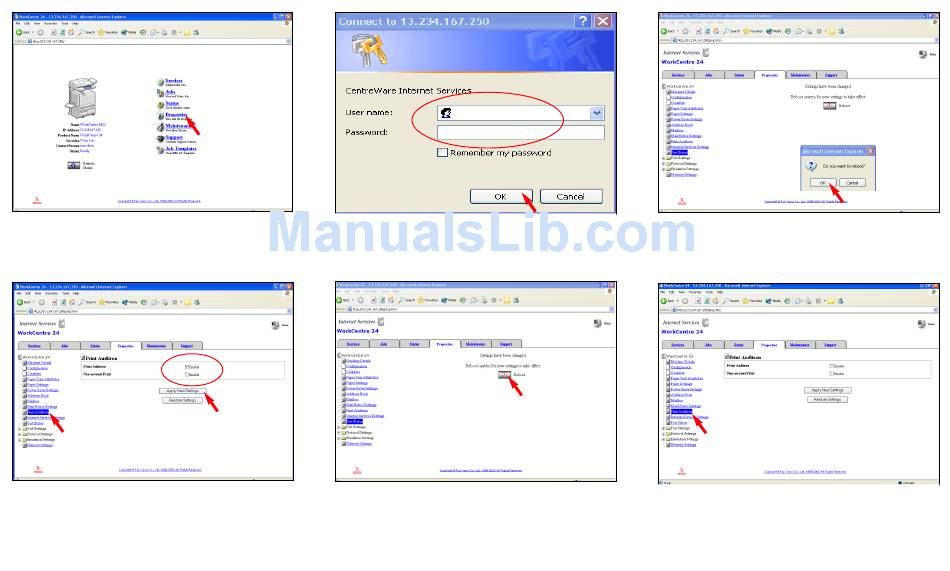

Fig. 1

Obtain IP address of the WorkCentre M24 from the machine settings

list or network administrator. Run your Internet browser and enter IP

address in the address field. You will see the Home page like the one

above. Click Properties.

Fig. 2

Click

then check mark

Print Auditron

Enable

Settings.

Note: In an environment that includes Mac's, enable, next to "Non-

Account" Print must be checked in order for the Mac users to be able to

print.

Fig. 3

Enter the User Name and Password. Click OK. (See Machine

Administration User Guide for default password)

Fig. 4

and click

Apply New

The "Settings have been changed" confirmation screen appears. Click

Reboot.

Auditron Settings for Print - 1 of 4

Fig. 5

Click

(The WorkCentre M24 will take approximately 5 minutes to

reboot.)

Fig. 6

Click

Print Auditron

on the left to refresh the web page.

Page 1 Fig. 1 Obtain IP address of the WorkCentre M24 from the machine settings list or network administrator. Run your Internet browser and enter IP address in the address field. You will see the Home page like the one above. Click Properties.
Page 2: Quick Start Guide
Fig. 9 * Ensure the "Settings have been changed" message appears. You are now ready to configure the WorkCentre M24 print driver. Continue with Auditron Setting for Print Part 2 of 2. The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a...
Page 3 Name. Enter Enter Owner the user name and password for the Job Owner previously configured on the Internet Services screen for the WorkCentre M24. Click Ok. You are now ready to print. Auditron Settings for Print - 3 of 4 FOR POSTSCRIPT DRIVER ONLY: Fig.
Page 4 Enter Owner Name. Enter the user name and password for the Job Owner previously configured on the Internet Services screen for the WorkCentre M24. Click Ok. You are now ready to print. Note: If the auditron print feature is enabled then all users must have the proper settings in their driver before they are able to print.
