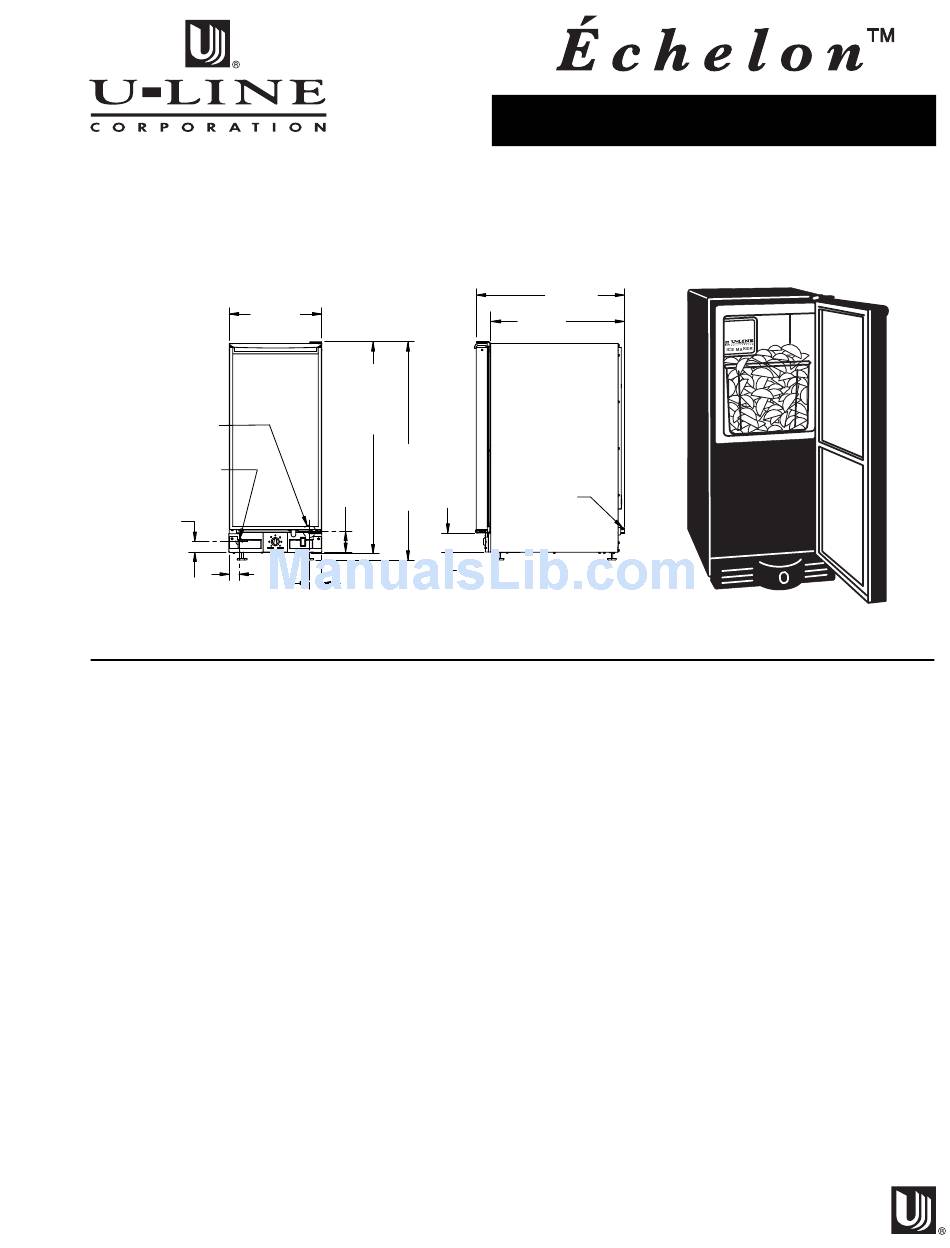

U-Line BI-2015 Specifications

Custom 1/4" Door Panel: 28-5/32" H x 14-1/32" W (71.5 cm x 35.6 cm)
3/4" Full Overlay Panel: 29-7/8" H x 14-3/4" W (75.9 cm x 37.5 cm)
See Overlay Door Panel Preparation Instructions
14-15/16
(37.8)
* WATER VALVE
LOCATION
* POWER CORD
1-3/4
(4.5)
1-5/8
(4.1)
*ON BACK OF UNIT
S U P E R I O R F E A T U R E S O F É C H E L O N ™
1. An EXCLUSIVE FEATURE of the Échelon™ Series
products is the optional full overlay door
capability (panel kit) using a 3/4 inch thick
panel
BENEFIT: Provides a fully integrated appearance
with surrounding cabinets. Overlay panel is easily
attached to the door.
2. Self closing door hinges are engaged when
door is open approximately 8-10 inches
BENEFIT: Ensures a positive door seal and
prevents door bounce back.
3. Standard, all doors (except stainless steel units)
come with a flush mounted door panel and will
accept a 1/4 inch thick panel
BENEFIT: A standard feature to achieve a
custom, built-in look by matching surrounding
cabinets.
4. A slightly contoured, across the top handle
design for black and white units
BENEFIT: The contoured shape maintains the
stylized shape of the Échelon™ series plus permits
full door field reversibility of the door for black and
white units.
Built-in under the counter ice maker that
produces up to twenty-five (25) pounds of
ice per day and stores up to twenty-five (25)
pounds.
34-1/8
(86.7)
FULL
RETRACT
HEIGHT
35-1/8
(89.2)
FULL
3-3/8
EXTEND
(8.6)
HEIGHT
3-3/8
(8.6)
2
(5)
INCHES (CENTIMETERS)
Model BI-2015
23-11/16
(60.2)
21-7/16
(54.5)
WATER
INLET
VALVE
5. "L" shaped door hinges
BENEFIT: This hinge design provides greater
door support thereby permitting larger and heavier
door panels and full overlay doors to be utilized.
6. Flat, recessed, front grille
BENEFIT: Greater toe kick space. Blends with
surrounding cabinets.
7. All stainless steel units have a seamless full
wrap stainless steel cabinet and door with
sculpted, contoured handle.
BENEFIT: This seamless full wrap stainless steel
door with sculpted stainless handle distinguishes the
Échelon™ stainless steel units from other heavier
"commercial" looks. All stainless steel units have a
full stainless cabinet, stainless hinges, and black
grille. All stainless units must be ordered either right
or left hand hinged and are not field reversible.
