Crate KX-220 User's Manual

Crate amplifiers stereo keyboard amplifier user's guide kx-220.


User's Guide
for the
C R AT E
KX-220
Stereo Keyboard Amplifier
Please read this user's
guide before using your
new amplifier!

Summary of Contents

  • Page 1

    User’s Guide for the C R AT E KX-220 Stereo Keyboard Amplifier Please read this user’s guide before using your new amplifier!

  • Page 2

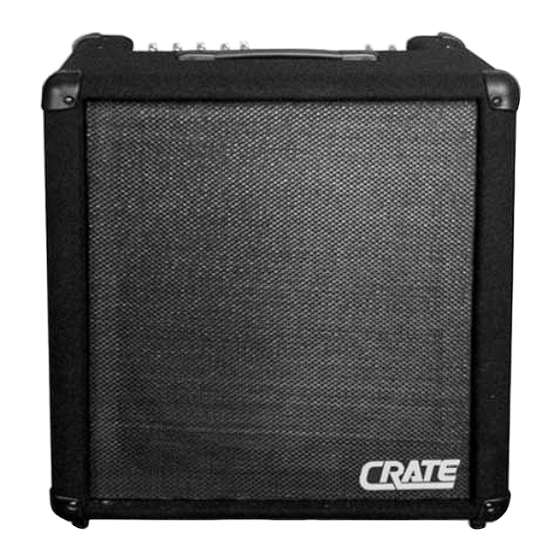

    KX-220 Congratulations! You are now the proud owner of one of the most versatile keyboard amplifiers available, the Crate KX-220 Four Channel Stereo Keyboard Amplifier. This incredible unit features Crate’s legendary performance and high quality construction in a rugged and easy to operate package.

  • Page 3

    KX-220 Features: Below are some of the outstanding features which set the KX-220 in a class by itself. Additional information on these features can be found throughout the remainder of this manual. •Complete stereo circuitry all the way to the internal power amplifier •Four separate input channels, each with its own level, pan and...

  • Page 4

    KX-220 1: Level Control (channel 1–3): Adjust the input level of the sig- nal(s) with this control. Each channel’s level control governs the right/mono and left input jacks simultaneously. 2: Pan Control, (channel 1–3): This control proportions the signal between the left and right outputs. In stereo applications it acts as a left/right balance control.

  • Page 5

    This allows you to achieve a true stereo output if you connect your main KX-220’s left preamp out jack to a second KX-220’s power amp input jack (see #21). 220’s internal power amplifier is possible through this jack.

  • Page 6

    A stereo effects device has been connected to the effects loop, although a mono device can also be used. An additional KX-220 has been connected to the left chan- nel preamp out jack, to achieve a true stereo output.

  • Page 7

    KX-220 System Block Diagram: RIGHT/MONO INPUT LEVEL LEFT INPUT REV/EFF SEND RIGHT/MONO INPUT LEVEL LEFT INPUT REV/EFF SEND RIGHT/MONO INPUT LEVEL LEFT INPUT REV/EFF LINEOUT SEND SELECT +16V PHANTOM POWER GAIN PEAK LED LOW-Z INPUT GAIN HIGH-Z INPUT LOW HIGH...

  • Page 8

    KX-220 Technical Specifications Output Power Rating Maximum Signal Accepted Channels 1,2,&3 Channel 4 Effects Return Nominal Input Impedance Channels 1,2,&3 Channel 4 Gain Channels 1,2,&3 Channel 4 Power Amp Channel 4 EQ Master EQ Line Out/Line In Levels Input Power Requirements...
