Squier Standard Strat LH Specifications

Squier standard strat lh: specifications.

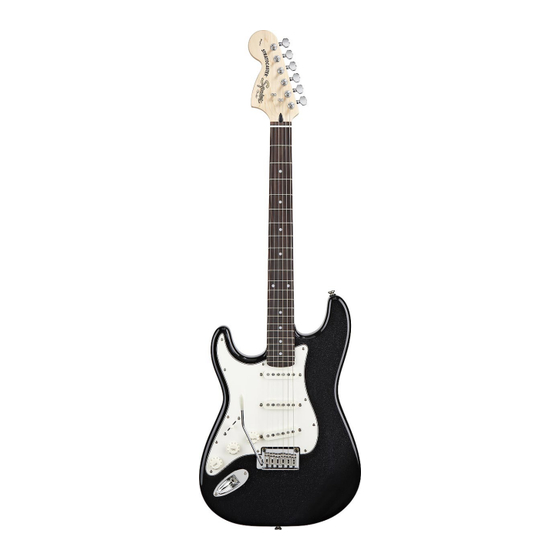

Squier Standard Strat LH
Loc # Description
1
Standard Tuners (set of 6)
2
Bone Nut (blank) (2)
3
Vintage String Guides (pack of 2)
4
Strap Buttons (2)
5
Pickguard (parchment)
5
Pickguard (tortoise shell)
5a
Pickguard Screws (24)
6
Neck Pickup
7
Middle Pickup
8
Bridge Pickup
9
500K Split Shaft Pots
10-11 500K Split Shaft Pots (ea)
9-11a
Volume/Tone Knob Set (white)
12
5 Way Pickup Selector Switch
12a
Switch Tip (2) (white)
13
Output Jack
14
Jack Plate (chrome)
15
Bridge Assembly
15a
Tremolo Arm (white tip)
15b
Tremolo Arm (parch tip)
Rosewood m/n 0321620xxx
Part Number
007-7484-000
099-4920-000
099-4910-000
099-4915-000
007-7485-000
007-7486-000
099-4923-000
005-5381-000
005-5382-000
005-5383-000
006-2383-000
006-2382-000
005-5424-000
005-5412-000
099-4940-000
007-4512-000
007-2893-000
007-7487-000
007-4655-000
007-7488-000
Last Revision Date: 8/28/2008
Page 1 of 3

Summary of Contents

  • Page 1

    Squier Standard Strat LH Rosewood m/n 0321620xxx Loc # Description Standard Tuners (set of 6) Bone Nut (blank) (2) Vintage String Guides (pack of 2) Strap Buttons (2) Pickguard (parchment) Pickguard (tortoise shell) Pickguard Screws (24) Neck Pickup Middle Pickup...

  • Page 2

    Wiring Diagram Last Revision Date: 8/28/2008 Page 2 of 3...

  • Page 3

    Control Function Last Revision Date: 8/28/2008 Page 3 of 3...
