6 3 / " Aluminum Cone Driver w/Rubber Surround
4
1 ohm Voicecoil Matched to Digital Amp
Compact Vent-loaded Enclosure only 16" High
Vertical or Horizontal Mount Bracket Supplied
Preamp and High Level (speaker) Inputs
Speaker Section
Speaker Type Woofer
16 cm (6
Impedance 1 ohm
Power Amplifier Section
Circuit System PWM (pulse width modulation) circuit
Inputs RCA pin jacks; high level input cords
Outputs RCA pin jacks (pass-through)
Maximum Outputs 100 W
Rated Outputs 50 W (1% THD)
Input Level Adj. Range 0.2 - 2.0 V (RCA pin)
0.8 - 8.0 V (High level input)
Cut-off Frequency 50 - 140 Hz
Low Boost 0 - 10 dB (50 Hz)
Power Requirements 12 V DC car battery (negative ground)
Current Drain At rated output: 5A
System Section
Frequency Response 35 Hz - 200 Hz
Mass Approx. 3.6 kg (16 lb. 15 oz.)
Supplied Accessories Parts for installation and connections
(1 set)
Design and specifications subject to change without notice.
42
XS-TL1

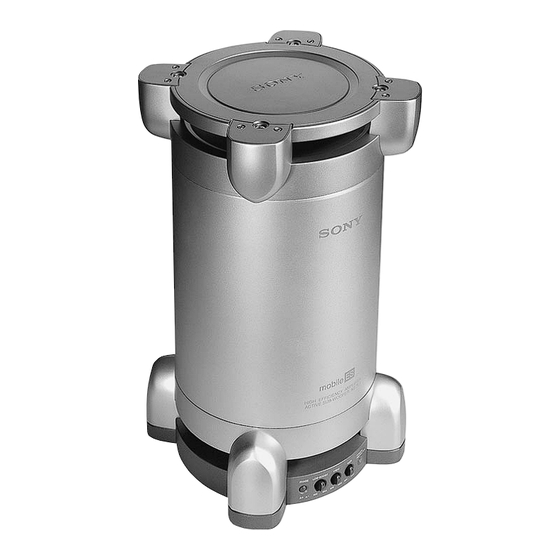

Digitally Powered Subwoofer
1 / "), Aluminum cone type
2
Amplifier Board
High Efficiency Class D PWM Amplifier
50W x 1Ch at 1 ohm
Adjustable 50-180Hz Lo-Pass Filter
Adjustable 50Hz EQ (0 to +10dB)
Adjustable Output Level & Phase
Dimensions
Height: 405 mm (approx 15
Width (Diameter): 200 mm (approx 7
Harness Plug Configuration
Plug Shown With Wires Facing Viewer
Pin Number Wire Color
1 Black
2 Blue
3 Black (RCA)
4 Black (RCA)
5 Black (RCA)
6 Black (RCA)
7 Gray/Black
8 White/Black
9 Black
10 Yellow
11 Red (RCA)
12 White (RCA)
13 Red (RCA)
14 White (RCA)
15 Gray
16 White
15 / in)
16
in)
7 /
8
Description
Ground
Remote Input
Aux Input Right Neg
Aux Input Left Neg
Line Out Right Neg
Line Output Left Neg
Hi-Level-In Right Neg
Hi-Level-In Left Neg
Ground
Battery +
Aux Input Right Pos
Aux Input Left Pos
Line Out Right Pos
Line Output Left Pos
Hi-Level-In Right Pos
Hi-Level-In Left Pos
