Summary of Contents for Samsung MM-N4

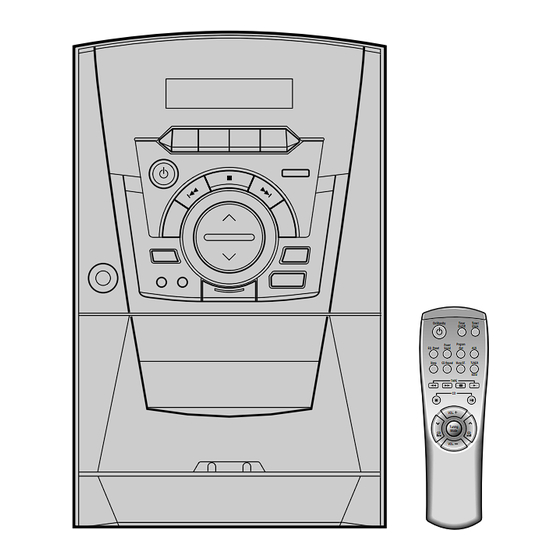

- Page 1 MICRO COMPONENT SYSTEM WITH REMOTE CONTROL MM-N4 Instruction Manual Timer Timer/ On/Standby On/Off Clock Program Power EQ Preset Sound /Set Sleep CD Repeat Mono/ST. TUNER Band TAPE VOL. Tuning Mode VOL.
-
Page 2: Nstalling Our Icro Omponent Ystem Safety Warnings
Safety Warnings CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1 CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER, NO USER SERVICEABLE PARTS INSIDE, REFER SER- VICING TO QUALIFIED SERVICE PERSONNEL. -
Page 3: Table Of Contents
Rear Panel View ... 20 Technical Specifications ... 20 You have just purchased a SAMSUNG micro component system. Please take the time to read these instructions, as they will enable you to set up your player easily and take full advantage of its features. -
Page 4: Where To Install Your Micro Component System
Where to Install Your Micro-Component System To take full advantage of your new MICRO component system, follow these installation instructions before connecting the unit. Install the system on a flat, stable surface. Never place this unit on carpeting. Never locate this unit in an outdoor area. Maintain an open space of approximately 4 inches (10 cm) on the sides and rear of the system, for ventilation purposes. -
Page 5: Connecting An Am(Mw)/Lw Aerial
Connecting the AM(MW)/LW Aerial The AM(MW)/LW aerial (for long and medium waves) can be: Placed on a stable surface Fixed to the wall (you must first remove the base) The AM aerial connector terminals are located on the rear of the system and are marked AM. -
Page 6: Setting The Clock
Setting the Clock Your system is equipped with a clock which allows you to turn your system on and aff automatically. You should set the clock: When you purchase the Micro component system After a power failure After unplugging the unit For each step, you have a few seconds to set the required options. -
Page 7: Precautions When Using Compact Discs
Precautions When Using Compact Discs To guarantee hours of enjoyable listening with your compact discs: Always hold them by the edges to avoid leaving fingerprints on the shiny surface Always replace them in their them Do not fix paper or adhesive tape to the discs and do not write on the label Clean the player with a special cleaning disc CD Repeat Function... -
Page 8: Checking And Changing Programmed Tracks
Checking and Changing Programmed Tracks You can check and change your selection of tracks at any time. You must have selected at least one track. Press STOP ( ) once if you have started listening to the selection. Press Program/Set. Each time you press Program/Set, the next selection is displayed. -
Page 9: Selecting A Stored Station
Searching for and Storing the Radio Stations(continued) Adjust the volume by: Pressing VOLUME on the front panel Pressing the VOL. + or - buttons on the remote control Select the stereo or mono mode by pressing Mono/ST. Result: The MONO indicator is displayed when selected. If you do not want to store the radio station found, revert to Step 4 and search for another station. -
Page 10: Tape Listening To A Cassette
Listening to a Cassette Switch the system on by pressing On/Standby. Select the TAPE function by pressing TAPE on the front panel. Open the cassette deck by pushing on the corner of the cover marked PUSH EJECT until you hear a click and then releasing it. Insert the pre-recorded cassette with the open edge of the tape facing downwards. -
Page 11: Recording A Radio Programme
Recording a Radio Programme You can record a radio programme of your choice and listen to it at a later date. Insert a blank cassette in the cassette deck. Press TUNER/Band to select the radio function. Select the radio station that you wish to records. To start recording, press the REC/Pause button. -
Page 12: Timer Function
Timer Function The timer enables you to switch the system on or off at specific times. Example: You wish to wake up to music every morning. If you no longer want the system to be switched on or off automatically, you must cancel the timer. Before setting the timer, check that the current time is correct. -
Page 13: Sleep Timer
Sleep Timer You can set the system to switch off automatically. Example: You wish to fall a sleep to music. Press Sleep. Result: The following indications are displayed: Press Sleep one or more times to indicate how long the system should continue playing before it switches off: 90 MIN 60 MIN 45 MIN... -
Page 14: About Rds Broadcasting
About RDS broadcasting This unit has the RDS(Radio Data System) function, which enables for the various information such as broadcasting station, radio text, time and 17 types of programs(News, Rock, Classic, etc.) to be received from the FM RDS station together with the normal radio signal. Press the On/Standby button. -
Page 15: Pty(Program Type) Indication And Pty-Search Function
PTY(Program Type) indication and PTY-SEARCH function The PTY information is composed of an identification symbol, which helps the FM radio to recognize the program type of each FM station. The below 17 PTY information is shown on the display by pressing the PTY button. -
Page 16: Power Sound Function
Power sound function This machine is equipped with the function of POWER SOUND, which amplifies bass treble output to twice as much for powerful real surround-sound. Press the Power Sound button on the front panel. Result: P--SOUND is displayed for a few seconds. A more powerful resonant sound is diffused. -
Page 17: Safety Precautions
Your warranty details A clear description of the problem Then contact your local dealer or SAMSUNG after-sales service. Checks/Explanation • T he power cord is not correctly plugged into a wall socket or the wall socket is not switched on . -
Page 18: Front Panel View
Front Panel View 1. Function selection buttons 2. On/Standby button 3. Equalizer preset button 4. Mute button 5. Headphones jack 6. RDS Pty button 7. RDS Display button 8. Power Sound button 9. CD Open button Band TUNER TAPE On/Standby REC/Pause Volume Repeat(A<->B) -
Page 19: Remote Control
Remote Control 1. On/Standby button 2. EQ Preset button 3. Power Sound button 4. Sleep button 5. CD Repeat button 6. Tape rewind and fast-forward buttons 7. CD Stop and cancel button 8. CD Track or radio station search buttons 9. -
Page 20: Rear Panel View
3. AUXILIARY SOURCE CONNECTORS 4. LOUDSPEAKERS CONNECTOR TERMINALS 5. CD DIGITAL OUT JACK Technical Specifications SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice. TUNER... - Page 21 THIS APPLIANCE IS MANUFACTURED BY: ELECTRONICS...
