Samsung SCC-931T Specifications
Samsung SCC-931T Specifications

Samsung SCC-931T Specifications

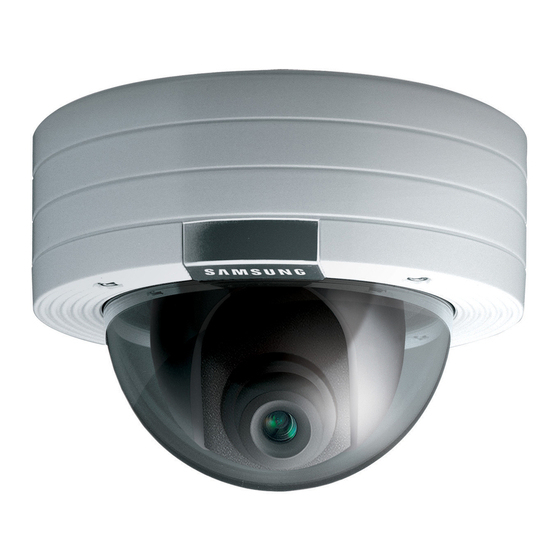

1/4” anti-vandal, color, motorized zoom lens dome camera
Hide thumbs Also See for SCC-931T:

Advertisement

Quick Links

SCC-931T
1/4" Anti-Vandal, Color, Motorized Zoom Lens
Dome Camera
Dimensions (unit : in)
Front/Rear Panel
ø5.19
ø3.7
Summary
SCC-931T is an anti-vandal color dome camera that ensures outstanding
observation with excellent color sensitivity and high resolution. The com-
bination of superior imaging and anti-vandal housing assembly make the
SCC-931T a perfect solution to areas that require additional protection.
Remote control and programming is accomplished via RS-485 communica-
tion (half duplex), which allows all cameras in the high impact series to be
remotely controlled.
Features
• 1/4 Inch IT Super HAD CCD
• 480TV Lines Resolution
• Minimum Scene Illumination: 0.005 Lux @ 15IRE, Sens-Up x128 (F1.6)
• 12X Motorized Optical Zoom with 10X Digital Zoom
• DSP (Digital Signal Processing)
• On Screen Display (OSD)
• Motion Detection
• IP66 Rated
• RS485 Remote Control
• 12VDC/AC24V (60Hz)
• Built-In Ground Fault Isolation Transformer

Recommended Accessories

GV-TRAN-24-20LED, 24VAC, 20VA, Class II plug in transformer
SADT-101WM, Wall Mount for SCC-931T, indoor/outdoor
SSC-2000, System Keyboard w/ touch screen graphic LCD Panel and
DVR Control
*See accessories page for more options
SAMSUNG | GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333
This product specifications and manual are also available in pdf format at www.gviss.com
The information is subject to change without notice • v2.6.09
12x Optical Zoom
The camera uses a 12x optical (3.6 ~ 43.2mm) motorized zoom lens, along with the
10X digital zoom, resulting in 120X zooming capability.
Vandal and Weather Resistant (IP66)
Built for the toughest conditions, the SCC-931T is suited for external installation,
thanks to its special structure that resists water and dust
Weather Resistant
Vandal Resistant
GVI
Security

Advertisement

loading

Summary of Contents for Samsung SCC-931T

  • Page 1: Recommended Accessories

    The camera uses a 12x optical (3.6 ~ 43.2mm) motorized zoom lens, along with the 10X digital zoom, resulting in 120X zooming capability. Vandal and Weather Resistant (IP66) Built for the toughest conditions, the SCC-931T is suited for external installation, thanks to its special structure that resists water and dust Weather Resistant This product specifications and manual are also available in pdf format at www.gviss.com...
  • Page 2: Specifications

    Power Consumption Physical Specification Dimensions (øxH) Weight Certifications UL, FCC SAMSUNG | GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 Anti-Vandal Digital Dome Camera IT Super HAD CCD 1/4“ Total: 811(H) x 508 (V) Effective: 768 (H) x 494 (V)
