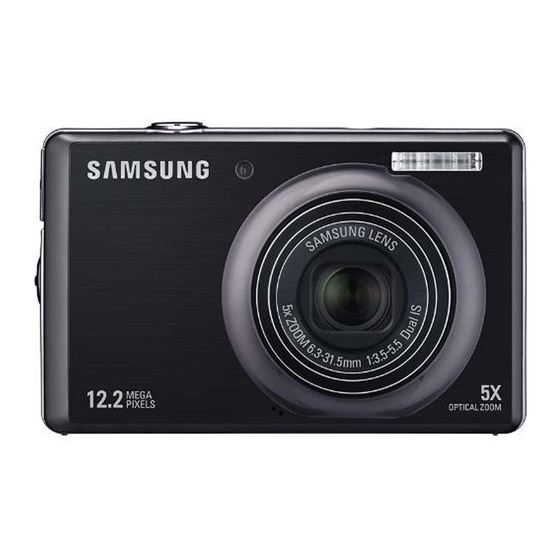

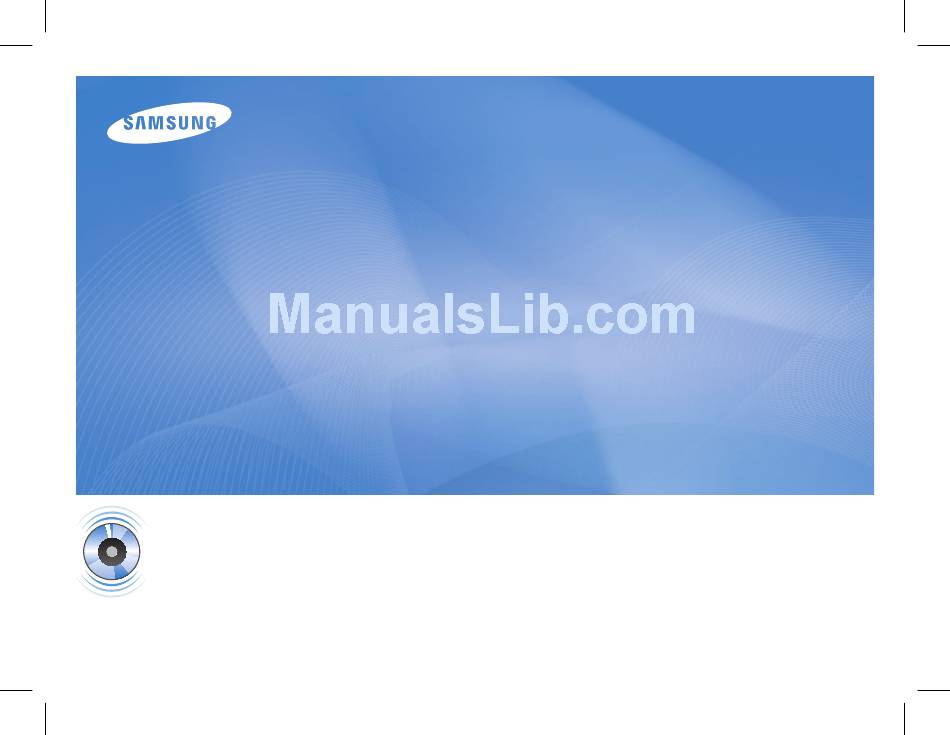

Quick Start Manual FOR TECHNICAL SUPPORT, PLEASE CALL 1-800-SAMSUNG (726-7864) POR FAVOR LLAMAR 1-800-SAMSUNG (726-7864) PARA ASISTENCIA TECNICA For more information, refer to the User Manual included on the supplied CD-ROM. SL620 This Quick Start Manual has been specially designed to guide you through the basic functions and features of your device.
Contents Health and safety information…………………… 2 Camera layout ……………… 4 Setting up your camera …… 5 Unpacking ……………………… 5 Inserting the battery and memory card …………………… 6 Charging the battery …………… 7 Selecting options ……………… 7 Capturing photos or videos Playing files …………………...
Page 3
Handle and dispose of batteries and chargers with care • Use only Samsung-approved batteries and chargers. Incompatible batteries and chargers can cause serious injuries or damage to your camera. • Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators.
Setting up your camera Unpacking Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre. Camera Rechargeable Battery...
Page 6
Setting up your camera Inserting the battery and memory card With the Samsung logo facing down With the gold-coloured contacts facing down Removing the battery Removing the memroy card ▼ ▼ Push gently until the card disengages from the camera...
Charging the battery Indicator light ▪ : Charging ▪ Green : Fully charged Selecting options In Shooting mode, press [ Use the navigation buttons to scroll to an option or menu. Back Move ▪ To move left or right, press [ ] or [ ▪...
4000 x 3000 3984 x 2656 3968 x 2232 3264 x 2448 2592 x 1944 2048 x 1536 1024 x 768 1,095 These figures are measured under Samsung’s standard conditions and may vary depending on shooting conditions and camera settings. Normal 1,232...
Playing files Viewing photos Press [ Press [ ] or [ ] to scroll through files. ▪ Press and hold to view files quickly. Viewing videos Press Press [ Play Capture Use the following buttons to control playback. Scan backward Pause or resume playback Scan forward [Zoom] up or...
Transferring files to a PC (Windows) Insert the installation CD in a CD-ROM drive and follow the onscreen instructions. Connect the camera to the PC with the USB cable. Turn on the camera. My Computer → On your PC, select Removable Disk →...
Effective pixels: approx. 12.2 mega-pixels • Total pixels: approx. 12.4 mega-pixels • Focal length: Samsung lens f = 6.3 - 31.5 mm (35 mm film equivalent: 35 - 175 mm) Lens • F-stop range: F3.5 (W) - F5.5 (T) 3.0” (7.62 cm) 230 K, TFT LCD...
Page 12
Contenido Información sobre salud y seguridad …………………… 2 Diseño de la cámara ……… 4 Configuración de la cámara 5 Desembalaje …………………… 5 Insertar la batería y la tarjeta de memoria ………………………… 6 Cargar la batería ……………… 7 Selección de opciones ………… 7 Captura de fotografías o vídeos ………………………...
Page 13
Utilice y deseche las baterías y los cargadores con cuidado • Utilice únicamente baterías y cargadores aprobados por Samsung. Las baterías y los cargadores incompatibles pueden producirle graves lesiones o causar daños a la cámara. • Nunca coloque las baterías o las cámaras dentro de dispositivos conductores de calor, como hornos de microondas, estufas o radiadores, ni sobre ellos.
Diseño de la cámara Botón del obturador Altavoz Botón de encendido y apagado Flash Objetivo / Tapa del objetivo Micrófono Orificio para el montaje del trípode Cubierta de la cámara de la batería Terminal USB / AV / CC Luz AF auxiliary/luz de temporizador ES-4 ES-4 Luz indicadora de estado...
Revise que estén todos los componentes antes de usar este producto. El contenido puede variar en función de la zona de venta. Para comprar equipos opcionales, diríjase al distribuidor de Samsung o al centro de servicio de Samsung más cercano.
Page 16
Configuración de la cámara Insertar la batería y la tarjeta de memoria Con el logotipo de Samsung hacia Con los contactos de color dorado hacia abajo. ES-6 ES-6 Quitar la batería Quitar la tarjeta de memoria ▼ ▼ Ejerza una leve presión hasta que la tarjeta se desprenda de la cámara y,...
Cargar la batería Luz indicadora ▪ Rojo : cargándose ▪ Verde : completamente cargada Selección de opciones En el modo de disparo, pulse [ Utilice los botones de navegación para desplazarse hacia una opción o hacia un menú. Atrás Mover ▪...
3264 x 2448 2592 x 1944 2048 x 1536 1024 x 768 Estas son medidas tomadas en condiciones estándar, establecidas por Samsung, y pueden variar según las condiciones de disparo y la configuración de la cámara. (para SD de 1GB) Fina Normal...
Reproducción de archivos Ver fotografías Pulse [ Pulse [ ] o [ ] para desplazarse por los archivos. ▪ Mantenga la tecla pulsada para ver los archivos rápidamente. Ver vídeos Pulse [ Pulse [ Reproducir Captura Utilice los siguientes botones para controlar la reproducción.
Transferencia de archivos a un ordenador (para Windows) Inserte el CD de instalación en la unidad de CD-ROM y siga las instrucciones que aparezcan en la pantalla. Conecte la cámara a su PC con el cable USB. Encienda la cámara. En el ordenador, seleccione Mi PC →...
Sensor de imagen • Píxeles totales: aproximadamente 12,4 megapíxeles • Distancia focal: Lente Samsung f = 6,3-31,5 mm (equivalente en película de 35 mm: de 35 a 175 mm) Lente • Rango de apertura del objetivo: F3,5 (W) y F5,5 (T) 3,0"...
Page 24
Please refer to the warranty that came with your product or visit our website http://www.samsung.com for after- sales service or inquiries. AD68-03928A (1.0)
