Page 4: Package Contents
ST80 Navigator Keypad Operation Manual Package Contents 1. Navigator keypad 2. Thumb nuts (2) 3. Threaded fixing studs (2) 4. White sun cover 5. SeaTalk cable 6. Installation template 7. Operation manual 8. Warranty card 9. Operation cue card 10. Keypad installation guide... -
Page 5: Table Of Contents
Chapter 3: Problem Solving & Maintenance ... 6 Chapter 4: EMC & Servicing Guidelines ... 7 Chapter 5: Specification ... 9 ST80 Navigator Keypad Operation Manual Introduction ... 3 2.1 Basic Operation ... 4 2.2 General Operating Information ... 5 3.1 Problem Solving ... -
Page 6: Chapter 1: Introduction

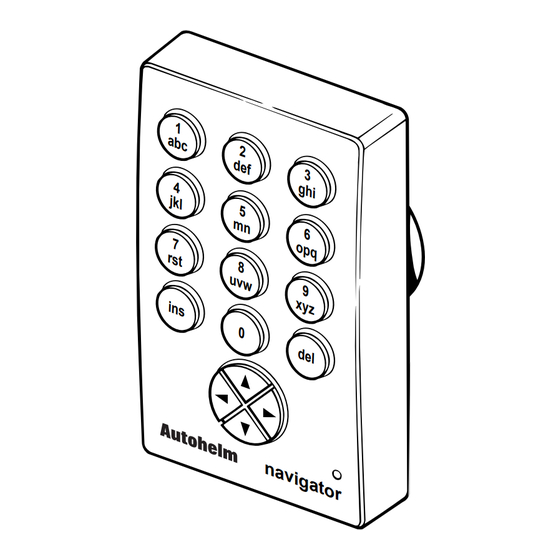

ST80 Navigator Keypad Operation Manual Chapter 1: Introduction Introduction The Navigator is an extension of the ST80 Masterview keypad. The unit consists of a multidirectional cursor control pad and twelve keys dedicated to alphanumeric data entry, insert and delete. These dedicated keys greatly increase the speed at which common navigational tasks, such as waypoint creation using Lat/Lon, ranges and bearings, can be accomplished. -
Page 7: Chapter 2: Operation
The factory default is unlinked. In this mode all Masterview instruments respond to button presses on the Navigator. This mode ensures that a newly installed units operate together as soon as they are powered up. ST80 Navigator Keypad Operation Manual navigator masterview SINGLE WP 020o23.82 ' N... -
Page 8: General Operating Information
ST80 Navigator Keypad Operation Manual For users with more than one Masterview, the Navigator can be configured so that it is dedicated to just one Masterview – this is referred to as linking. For details on how to link Navigator and Masterview modules, please refer to the Masterview setup chapter. -
Page 9: Chapter 3: Problem Solving & Maintenance
• Always fit the protective sun cover when the keypad is not in use. • If the keypad needs to be cleaned, use a moist lint-free cloth. Chemical cleaning agents or abrasive compounds must not to be used. ST80 Navigator Keypad Operation Manual... -
Page 10: Chapter 4: Emc & Servicing Guidelines
ST80 Navigator Keypad Operation Manual Chapter 4: EMC & Servicing Guidelines 4.1 Important information All Autohelm equipment and accessories are designed to the best industry standards for use in the leisure marine environment. Their design and manufacture conforms to the appropriate... -
Page 11: Check Before Going To Sea
• Some products generate high voltages, and so never handle the cables/connectors when power is being supplied to the equipment. • Always report any EMC related problem to your nearest Autohelm dealer. We will use any such information to improve our quality standards. ST80 Navigator Keypad Operation Manual... -
Page 12: Chapter 5: Specification
ST80 Navigator Keypad Operation Manual Chapter 5: Specification Dimensions: Power supply: Current consumption: Operating temperature: Buzzer: 110 x 68 x 17mm (4.33 x 2.67 x 0.66in) 10 to 16V DC 150mA illumination fully on 80mA at courtesy level -10 to 70°C (14 to 158°F) - Page 13 ST80 Navigator Keypad Operation Manual 81041-1...
