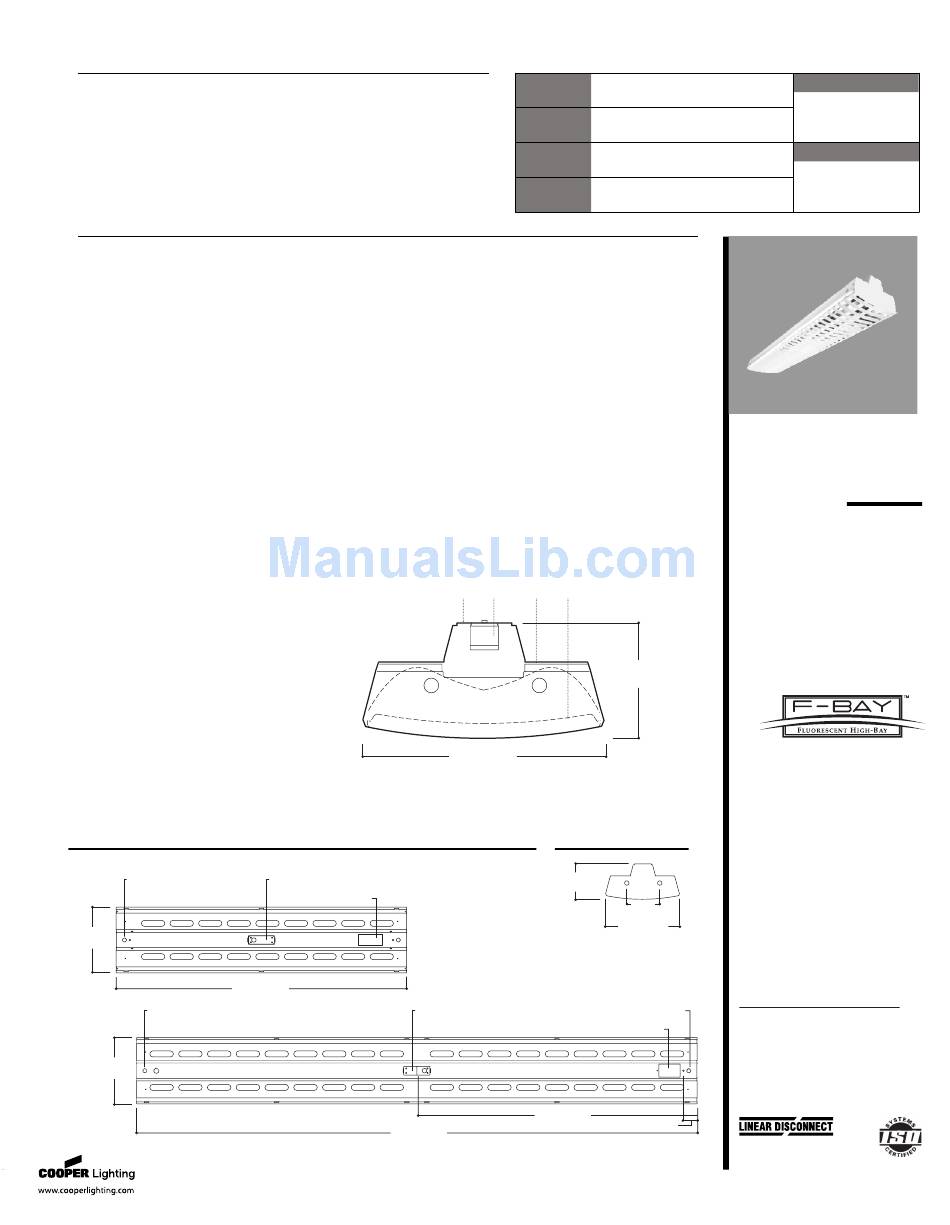

Cooper Lighting METALUX F-BAY I8 Specifications

DESCRIPTION
The F-Bay I8 series is an outstanding solution for high mounting height
industrial or retail applications. The F-Bay I8 optic has been optimized to
provide maximum performance from T8 lamps. Optional uplight component
is provided to enable excellent ceiling uniformity. The I8's high lumen
package allows the benefits of fluorescent to be applied at high mounting
heights that were traditionally exclusive to H.I.D. The primary benefits
include exceptional color rendering, high system efficacy, 95% lumen
maintenance, long lamp life, instant on/instant re-strike, economical
dimming, and uniform brightness control. Primary applications include "big
box" retail, shopping malls, light industrial, school gymnasiums, etc.
SPECIFICATION FEATURES
A ... Construction
Specification grade full body
housing, end plates and socket
tracks are die formed 20 gauge
cold rolled steel in 4' or 8' lengths.
The housing features an integral
ballast channel that adds strength
and provides numerous KOs for
easy installation.
B ... Electrical
Class "P" ballasts are positively
secured by mounting bolts.
Rotor-lock Bi-Pin lampholders and
optional top ballast access plate
enables service from above
without disturbing the internal
optics. Optional modular power
receptacle meets UL2459 and NEC
410.73 and is UL/cUL rated for
make and break under load from
outside the luminaire to speed
maintenance. UL/cUL listed.
Suitable for damp locations.
C ... Finish
Electrostatically applied baked
white enamel finish is preceded by
a multistage cleaning cycle, iron
phosphate coating with rust
inhibitor.
MOUNTING DATA
11/16" [18mm] K.O. (2)
for Cable or Pendant Mounting
11"
[280mm]
48" [1219mm]
11/16" [18mm] K.O.
for Cable or Pendant Mounting
11"
[280mm]
COOPER LIGHTING - METALUX
D ... Downlight/Uplight Optics
Optical modules are fully enclosed
inside housing to protect against
damage. Die formed reflectors are
faceted for efficiency and control
with two optical distributions:
medium and wide. Medium beam
optical modules utilize 95%
specular aluminum finish. Open
downlight design optimizes perfor-
mance with uplight slots available
as an option for nominal 8%
uplight component. An optional
attractive thin blade white baffle
adds longitudinal shielding. A clear
or frosted white acrylic lens is also
available. Optional heavy duty
wireguard can be used with or
without the lens or baffle. Latched
retention of shielding options
(safety leader restraints) allow for
easy access.
Top Connector Box
Mounting
Access Plate
Top Connector Box
Mounting
96" [2438mm]
Specifications and Dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
Mounting
The I8 series is suited for surface,
suspension mounting with
optional wire hook and chain set,
stem or cable mounting. Top
connector box mounting is also
available. Narrow 11" housing
allows mounting within 12"
horizontally from the nearest edge
of the sprinkler deflector.
Options
Integral Occupancy Sensor
available and provides from 600
sq. ft.(MS) up to 1250 sq. ft. (MSO)
of coverage at a maximum
mounting height of 40'.
A B C D
4-15/16"
[126mm]
11" [280mm]
LAMP CONFIGURATIONS
4-15/16"
[126mm]
4-5/8"
[118mm]
11" [280mm]
11/16" [18mm] K.O.
for Cable or Pendant Mounting
Access Plate
48" [1219mm]
2-3/4" [70mm]
®
Type
Date
F-BAY
I8 Series
4' or 8'
2 LAMPS
Retail/Light Industrial
T8 Linear Fluorescent Hi-Bay
Lighting System
E N E R G Y D A T A
EB/Plus Ballast
232 = 73
8T432 = 147
ER Ballast
232 = 57
8T432 = 112
ER/Plus Ballast
232 = 74
8T432 = 144
Luminaire Efficacy Rating
LER =83
Catalog Number: I8-232-UNV-UPL
Yearly Cost of 1000 lumens,
3000 hrs at .08 KWH = $2.90
* Reference the lamp/ballast data in the
Technical Section for specific lamp/ballast
requirements
** Consult Pre Sales Technical Support.
LAMPS CONTAIN MERCURY. DISPOSE ACCORDING
TO LOCAL, STATE OR FEDERAL LAWS
Safe and convenient means of
disconnecting power
