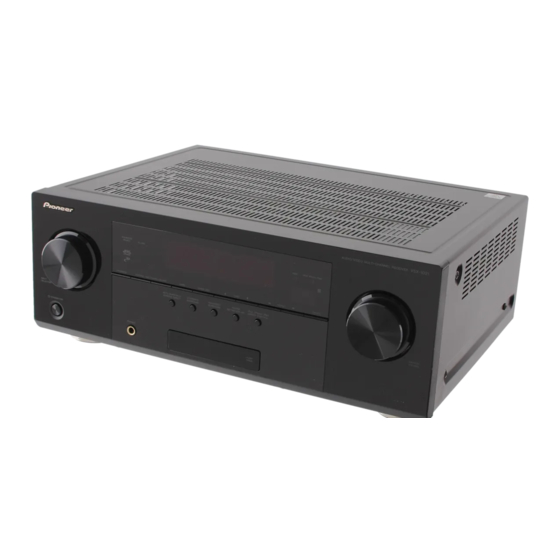

Pioneer VSX-1021-K Specifications

AMPLIFICATION
› 120W x 7 (1 kHz, THD 0.05% @ 8 ohms)
› 90W x 7 (20 Hz – 20 kHz, THD 0.08% @ 8 ohms FTC)

AUDIO FEATURES

› Dolby TrueHD / Dolby Pro Logic IIz / Dolby Digital EX / Dolby Digital Plus
®
› DTS-HD Master Audio / DTS-ES / DTS Neo:6
®
› Digital Core Engine with Texas Instruments Aureus™ DSP
› 192 kHz/24-bit DAC(S)
› 96 kHz / 24-Bit PC Audio playback(FLAC)
› 192 kHz / 24-Bit PC Audio playback(WAV)
› Pioneer Advanced MCACC Room Calibration
• 3D Time Axis Measurement
• Polarity Check
• Automatic Crossover Detection
• Reverb Before and After Calibration Results (OSD or AVNavigator)
• Standing Wave Control
› Pioneer Sound Enhancements
• Phase Control
• Phase Control Plus
• PQLS Bit-stream
• Sound Retriever (Multi-channel)
• Sound Retriever AIR
• Wide Surround Movie & Music
• Front Stage Surround Advance Wide & Focus
• Virtual Height & Surround Back
• Auto Level Control (Multi-channel)
• Advanced Surround (16 + 1 Modes)
• Headphones Surround

VIDEO FEATURES

› HDMI Latest Features
• 3D Ready (Blu-ray Disc
• Audio Return Channel
• Deep Color and x.v.Color
• 1080p Compatible
› Anchor Bay ® 1080p Video Scaler
› Video Conversion to HDMI
› Pioneer Advanced Video Adjust
1 Compatible with iOS 4.2. May not be compatible with future iOS versions.
2 Antenna and subscription required and sold separately
Bold denotes step-up features from VSX-921-K
VSX-1021-K
7.1-Channel A/V Receiver Featuring AirPlay
Processing (3D, ARC) and Compatibility with iPod
® and Broadcast)
®
HOME NETWORK FEATURES
› AirPlay
› DLNA Certified® (1.5)
› Internet Radio with vTuner
› Pioneer iControlAV2
1
• A/V Receiver and Blu-ray Disc player control from iPad, iPhone, iPod touch
• Free via the App Store
sm
› Pioneer Air Jam App. 1
• Connects via Bluetooth to share music and create playlists
• Free via the App Store (Optional AS-BT200 Bluetooth Adapter Required)
› Firmware Upgrade via Ethernet or USB
CONNECTIVITY
› Compatible with iPod, iPhone, iPad Front USB Input
• Charges iPod, iPhone, iPad
• Combination USB / Composite Video Cable Supplied
› HDMI Terminals (5 In / 1 Out)
› Ethernet Port
› Wireless LAN Converter Ready (Optional AS-WL300)
› Front AV Inputs
› Bluetooth ® Port (Optional AS-BT200 or AS-BT100 adapter required)
› Component Video Terminals (2 In / 1 Out)
› Digital Inputs (2 Coaxial, 2 Optical)
› Analog AV Inputs (5 AV, 2 Audio)
› Sirius Satellite ready
2
› Zone 2 AV Outputs
› Subwoofer Pre-Out
› Large Speaker Terminals (FL/FR/C/SR/SL/SBR/SBL)
CONVENIENCE
› AVNavigator System Set-Up CD-ROM
› Full Color Graphic User Interface (GUI)
› Album Art Via USB/Ethernet
› Auto Power Down
› Power Save for HDMI Standby Through
› Sleep Timer
› Learning Remote Control
, HDMI ® 1080p Video
® , iPhone ® , iPad ®
