Cooper Lighting Fail-Safe FWS Specification Sheet

DESCRIPTION

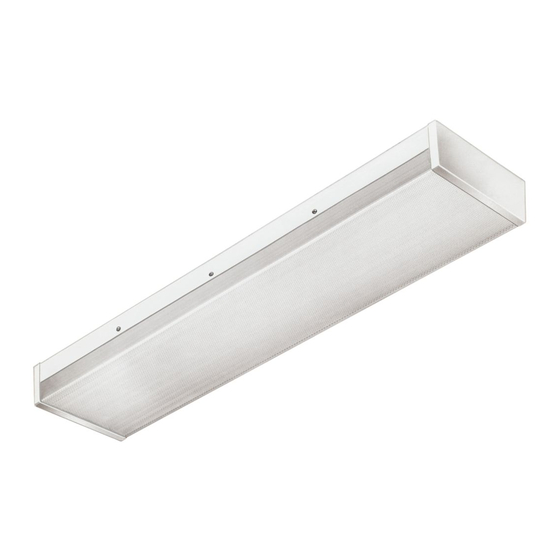

Designed to retain the aesthetics of a commercial wraparound, Fail-Safe's
FWS Series assures owners an unbreakable, maintenance free, one time
installation. Ideally suited for high abuse areas that must maintain a clean,
well lighted appearance, Fail-Safe's FWS comes as ceiling or wall mounted,
one to four lamp units to provide general ambient illumination.
The FWS Series is specifically designed for use in public access areas where
vandalism may occur and for areas that must maintain a clean, well-lighted
appearance. Ideal for schools, dormitories, hallways, locker rooms, shower
facilities, and restrooms.
SPECIFICATION FEATURES
A ... Lens
Nominal .156, UV stabilized, clear
K12, impact resistant, prismatic
polycarbonate refractor for high
efficiency, low surface brightness
and maximum strength.
B ... Fasteners
Captive, stainless steel
tamperproof torxhead screws
prevent unauthorized access.
B C A E
49"
[1245mm]
SIDE DIMENSIONS
3 1/16
[80mm]
9 1/8"
[232mm]
13 1/4"
[337mm]
Specifications and Dimensions subject to change without notice.
C ... Housing
Die-formed 16 ga. CRS with
welded and ground ends and
internal weld bands for added
strength. Standard white high
reflectance polyester powder coat
finish. Gloss: 85%; Reflectance:
93%; Hardness Minimum: 2H; Salt
Spray: 500 hours.
D ... Lamps
(By Others)
G H D F
[232mm]
MOUNTING DIMENSIONS
(4) 3/8" [10mm]
Dia. Mt. Holes
20"
[508mm]
[635mm]
(6) 3/8" [10mm]
Dia. Mt. Holes
[495mm]
22"
[559mm]
(4) 3/8" [10mm]
Dia. Mt. Holes
3 11/32"
[85mm]
17"
[432mm]
25"
[635mm]
(6) 3/8" Dia.
[25mm] Mt. Holes
20 1/2"
[521mm]
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
E ... Lens Retention
Double wall lens channel
captivates lens to prevent
unauthorized fixture penetration.
F ... Gasket
Concealed, polyurethane end
gaskets inhibit the entrance of
environmental contaminants.
G ... Ballast
Copper wound HPF, rapid start,
Class P, CBM/ETL ballast is
standard.
H ... Power Module
Full length, removable, CRS power
module with center "V" facilitates
9 1/8"
maintenance and protects lamps
from shock and impact.
Labels
U.L. listed, C.S.A. certified,
standard wet label.
(3) 7/8" [22mm]
Dia. KO
7" 9 1/8"
[178mm] [232mm]
25"
(5) 7/8" [22mm]
Dia. KO
[178mm]
19 1/2" 19 1/2"
[495mm]
22"
[559mm]
49"
[1244mm]
(3) 7/8" [22mm]
Dia. KO
13 1/4"
7"
[178mm] [337mm]
(5) 7/8" [22mm]
Dia. KO
7"
[178mm]
20 1/2"
[521mm]
49"
[1244mm]
TORX ® is a registered trademark
of Camcar Division of Textron Inc.
FAIL-SAFE
HIGH ABUSE LUMINAIRE
Clear Prismatic or White
7" 9 1/8"
[232mm]
E N E R G Y D AT A
For Energy Management related
technical data to support the
performance of this fixture series,
refer to the ordering information for
input wattage.
13 1/4"
[337mm]
04/17/2007 1:35:33 PM
®
Type
Date
FWS
17W - 160W
Fluorescent
POLYCARBONATE
2 and 4 Lamp
ADC041538
