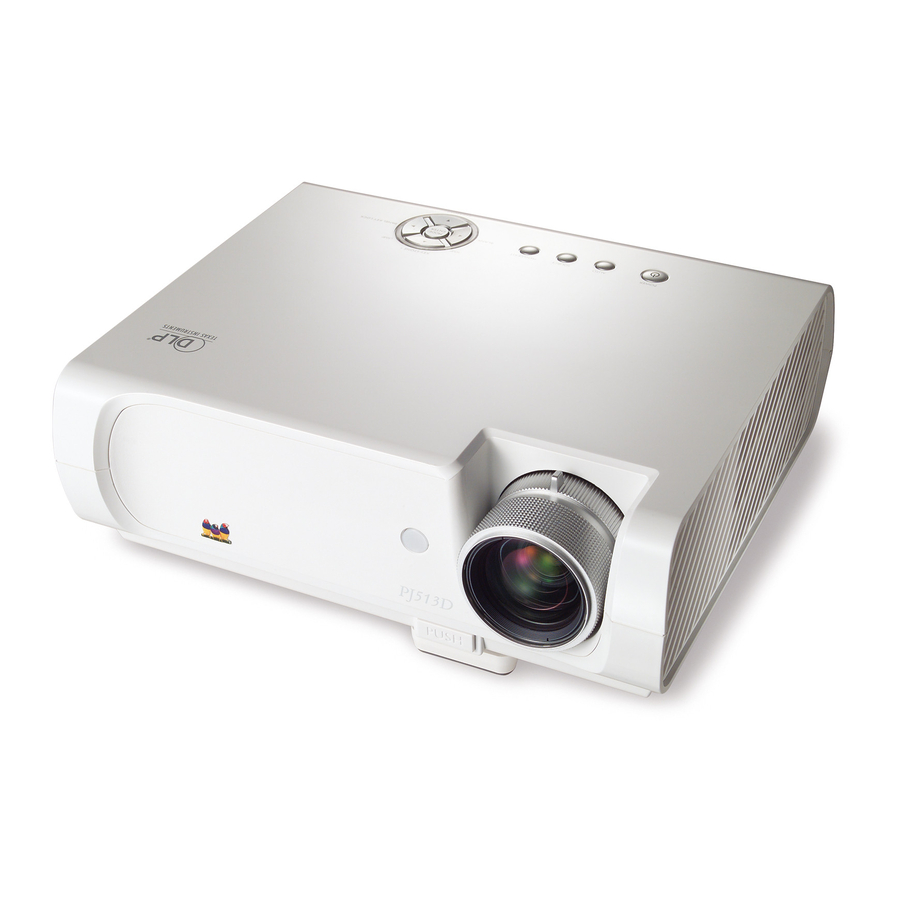

ViewSonic
PJ513D/PJ513DB
DLP Projector
IMPORTANT: Please read this User Guide to obtain important information on
installing and using your product in a safe manner, as well as registering your
product for future service. Warranty information contained in this User Guide will
describe your limited coverage from ViewSonic Corporation, which is also found
on our web site at http://www.viewsonic.com in English, or in specific languages
using the Regional selection box in the upper right corner of our website.
"Antes de operar su equipo lea cuidadosamente las instrucciones en este manual"
®
- User Guide
- Guide de l'utilisateur
- Bedienungsanleitung
- Guía del usuario
- Guida dell'utente
- Guia do usuário
- Användarhandbok
- Käyttöopas
- Руководство пользователя
- 使用手冊 (繁體)
- 使用手冊 (簡體)
- 사용자 안내서
Model No. : VS11959
Advertisement
Table of Contents
Related Manuals for ViewSonic PJ513D
Summary of Contents for ViewSonic PJ513D
- Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website.
-
Page 2: Compliance Information
The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE). The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste, but use the return and collection systems according to local law. ViewSonic PJ513D/PJ513DB... -
Page 3: Important Safety Instructions
ViewSonic PJ513D/PJ513DB... -
Page 4: Declaration Of Rohs Compliance
0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight. ViewSonic Proposed Maximum Actual Concentration Concentration 0.1% 0.1% 0.01% 0.1% 0.1% 0.1% < 0.1% < 0.1% < 0.01% < 0.1% < 0.1% < 0.1% PJ513D/PJ513DB... -
Page 5: Copyright Information
VESA. PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation. Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. -
Page 6: Table Of Contents
Table of Contents Introduction... 1 Projector features ... 1 Shipping contents ... 1 Projector exterior view... 2 Controls and functions ... 3 Positioning your projector... 7 Choosing a location ... 7 Obtaining a preferred projected image size ... 8 Connection ... 11 Connecting a computer or monitor ... -
Page 7: Introduction
Carefully unpack and verify that you have all of the items shown below. If any of these items are missing, please contact your place of purchase. Standard accessories Projector Card type remote control and battery Quick start guide and ViewSonic Wizard CD VGA cable Power cord Optional accessories... -
Page 8: Projector Exterior View
Lens cap Focus ring and Zoom ring Vent (cool air intake) Projection lens RGB (PC)/Component video (YPbPr/ YCbCr) signal input socket S-Video input socket RS232 control port Video input socket Audio socket Quick-release foot Lamp cover Ceiling mounting screw holes PJ513D/PJ513DB... -
Page 9: Controls And Functions
See "Correcting keystone" on page 20 details. Lamp indicator light Indicates the status of the lamp. Lights up or flashes when the lamp has developed a problem. See "Indicators" on page 42 details. PJ513D/PJ513DB / Up,... - Page 10 See mode" on page 22 Enacts the selected On-Screen Display (OSD) menu item. See menus" on page 31 ViewSonic "Using the for details. "Selecting a preset for details. "Using the for details. PJ513D/PJ513DB...
-
Page 11: Remote Control
Displays the source selection bar. Mode/Enter Depending upon which input signal is selected, selects an available picture setup mode. Enacts the selected On-Screen Display (OSD) menu item. See menus" on page 31 / Up, "Locking for details. "Using the for details. PJ513D/PJ513DB... -
Page 12: Remote Control Effective Range
If the battery is dead or if you will not be using the remote control for a long time, remove the battery to prevent damage to the remote control from possible battery leakage. ViewSonic • Operating the projector from the rear PJ513D/PJ513DB... -
Page 13: Positioning Your Projector
Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment. ViewSonic PJ513D/PJ513DB... -
Page 14: Obtaining A Preferred Projected Image Size
The modern digital projector does not project directly forward (like older style reel-to- reel film projectors did). Instead, digital projectors are designed to project at a slightly upward angle above the horizontal plane of the projector. This is so that they can be... - Page 15 10' size screen. The projector can be adjusted (using the zoom control) to display on these different screen sizes at those projection distances. Be aware that these different screens have different vertical offset values. ViewSonic Diagonal". Using this value, look across this row to the right to PJ513D/PJ513DB...
- Page 16 5833 6124 6667 7000 7291 7655 7999 8399 8749 9186 11111 11667 Screen Center of lens Vertical Offset in zoom) 1956 2406 2444 2933 3208 3422 3911 4010 4400 4812 4889 5614 5867 6416 7333 8020 8799 9624 12222 PJ513D/PJ513DB...
-
Page 17: Connection
CRT/LCD or a function key with a monitor symbol on the notebook. Press FN and the labeled function key simultaneously. Refer to your notebook's documentation to find your notebook's key combination. ViewSonic 1). They are commercially available from electronics stores. Laptop or desktop computer Audio cable VGA cable PJ513D/PJ513DB... -
Page 18: Connecting A Monitor
If you wish to use this connection method when the projector is in standby mode, make sure the Active VGA out function is turned on in the SYSTEM SETUP: Advanced menu. "SYSTEM SETUP: Advanced menu" on page 35 ViewSonic Laptop or desktop computer VGA cable VGA cable "Connecting a computer" on page for details. PJ513D/PJ513DB... -
Page 19: Connecting Video Source Devices
Video source device to that sound system, instead of to the mono audio projector. The audio connections illustrated in the following sections are provided for informational purposes only. You need not connect audio to the projector if there is an alternate sound system available, or if audio is not required. ViewSonic PJ513D/PJ513DB... -
Page 20: Connecting A Component Video Source Device
Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly. ViewSonic A/V device • 480p • 576p • 1080i (50/ 60 Hz) "Connecting Audio" on page 13 Audio cable for details. PJ513D/PJ513DB... -
Page 21: Connecting An S-Video Source Device
If you have already made a Component Video connection between the projector and this S-Video source device using Component Video connections, you need not connect to this device using an S-Video connection as this makes an unnecessary second connection of poorer picture quality. ViewSonic A/V device S-Video cable Audio cable PJ513D/PJ513DB... -
Page 22: Connecting A Composite Video Source Device
Also check that the signal cables have been connected correctly. • You need only connect to this device using a composite Video connection if Component Video and S-Video inputs are unavailable for use. ViewSonic A/V device Video cable Audio cable PJ513D/PJ513DB... -
Page 23: Operation
'Out of Range' displayed on a blank screen. Please change to an input signal which is compatible with the projector's resolution or set the input signal to a lower setting. "Timing chart" on page 47 ViewSonic for details. PUSH PJ513D/PJ513DB... -
Page 24: Switching Input Signal
Any other resolutions will be scaled by the projector depending upon the 'aspect ratio' setting, which may cause some image distortion or loss of picture clarity. "Selecting the aspect ratio" on page 21 ViewSonic for details. for details. D-Sub / Comp. Video S-Video "Selecting a PJ513D/PJ513DB... -
Page 25: Adjusting The Projected Image
The screen will be blank while AUTO is functioning. Fine-tuning the image size and clarity Adjust the projected image to the size that you need using the zoom ring. ViewSonic for details. Then sharpen the image by rotating the focus ring. PJ513D/PJ513DB... -
Page 26: Magnifying And Searching For Details On The Projected Picture
Picture > Keystone menu. • Press on the projector or remote control. • Press on the projector or remote control when you are in the Picture > Keystone menu. Keystone Keystone ) on the projector PJ513D/PJ513DB... -
Page 27: Selecting The Aspect Ratio
"Obtaining a preferred projected image size" on page 8 ViewSonic and then press until the to magnify the picture to a desired size. ) on the projector or remote control to "Connecting a Component Video source device" on page DISPLAY menu is highlighted. for details. PJ513D/PJ513DB... -
Page 28: Optimizing The Image
User 1/User 2 Mode: Recalls the settings customized based on the current available preset modes. See ViewSonic to select a desired mode. "Setting the User 1/User 2 mode" on page 23 "Setting the User 1/User 2 mode" on page 23 for details. for details. PJ513D/PJ513DB... -
Page 29: Adjusting Brightness
ViewSonic to select User 1 or User 2 Mode. to select an preset mode that is closest to your need. on the projector or remote control. on the projector or remote control. below for details. PJ513D/PJ513DB . See... -
Page 30: Adjusting Color
A white color with a high color temperature appears to have more blue in it. When Brilliant Color is set to Off, the color temperature adjustment will not function. ViewSonic on the projector or remote control. on the on the PJ513D/PJ513DB... -
Page 31: Hiding The Image
Off. A confirmation message displays. Select Yes to Once BLANK is pressed, the projector lamp enters Economic mode automatically. Do not block the projection lens from projecting as this could cause the blocking object to become heated and deformed or even cause a fire. PJ513D/PJ513DB... -
Page 32: Freezing The Image
ViewSonic on the projector or remote control. A Notice We recommend you use the High Altitude Mode by selecting it whenever your environment is higher than 1500 m. Do you want to turn the High Altitude Mode on? PJ513D/PJ513DB... -
Page 33: Adjusting The Sound
Splash Screen in the SYSTEM SETUP: Basic menu sets a preferred logo screen to be displayed during projector start-up. Use ViewSonic until the SYSTEM SETUP: Advanced to select On. to select a desired sound level. to select a preferred position. to select your language. to select a screen. to select a PJ513D/PJ513DB... -
Page 34: Shutting Down The Projector
Press Power again to start the projector after the fans stop and the Power indicator light turns orange. ViewSonic POWER OFF Press button again to power off Press any button to cancel PJ513D/PJ513DB... -
Page 35: Menu Operation
Brightness Contrast Color Tint Sharpness Brilliant Color Color Temperature Save Settings Quick Auto Search Options 4:3/16:9/Auto/Native PC source: Brightest/ Presentation/Photo/Cinema/User 1/User 2 Video source: Brightest/ Standard/Cinema/User 1/User 2 PC source: Brightest/ Presentation/Photo/Cinema Video source: Brightest/ Standard/Cinema On/Off T1/T2/T3/T4 On/Off PJ513D/PJ513DB... -
Page 36: System Setup
Disable/5 min/10 min/15 min/20 min/25 min/30 min Disable/5 min/10 min/15 min/20 min/25 min/30 min On/Off Disable/30 min/1 hr/2 hr/3 hr/4 hr/8 hr/12 hr VS/Black/Blue On/Off Off/On Off/On Off/On Off/On 5 sec/10 sec/15 sec/20 sec/25 sec/30 sec Center/Top-left/Top-right/ Bottom-right/Bottom-left Normal/Economic PJ513D/PJ513DB... -
Page 37: Using The Menus
Based on the image shape displayed on the screen, press the keystone buttons ( ) to adjust the image to a rectangular or square one. Press MENU/EXIT on the projector or remote control to leave and save the settings. PJ513D/PJ513DB Back... -
Page 38: Display Menu
20 for details. "Setting the User 1/User 2 mode" on page 23 "Adjusting Brightness" on page 23 for details. "Correcting keystone" on "Magnifying and for details. "Selecting a for details. PJ513D/PJ513DB... -
Page 39: Source Menu
"Adjusting Contrast" on page 23 "Adjusting Color" on page 24 for details. for details. "Adjusting Brilliant Color" on page 24 "Switching input signal" on page 18 for details. for details. "Adjusting "Adjusting for details. "Selecting for details. for details. PJ513D/PJ513DB... - Page 40 Three options are available: VS, Black screen, or Blue Screen screen. (VS) ViewSonic on the projector or remote control to select your desired "Choosing a location" on page 7 for details. for details. for details. for details. "Setting Auto Power "Hiding the image" on "Locking control PJ513D/PJ513DB...
- Page 41 This function is only available when a PC source is in use. After enabling DCR, frequent lamp mode switching may shorten lamp "Adjusting the sound" on page 27 Enabling the Active VGA out function increases the standby "Operating in a high for details. for details. PJ513D/PJ513DB...
-
Page 42: Information Menu
Color system Shows input system format, NTSC, PAL, SECAM, or RGB. Equivalent lamp hour Displays the number of hours the lamp has been used. "Setting Lamp Mode as Economic" for details. "Getting to for details on how the total lamp PJ513D/PJ513DB... -
Page 43: Maintenance
Remove the batteries from the remote control. • Pack the projector in its original packing or equivalent. Transporting the projector It is recommended that you ship the projector with its original packing or equivalent. ViewSonic and unplug the power cord. "Specifications" on page 45 PJ513D/PJ513DB... -
Page 44: Lamp Information
If the preset time lengths are not suitable for your presentation, select Disable. The projector will not automatically shut down in a certain time period. ViewSonic below for more information on Economic mode. / . The time period can be set from 5 to 30 minutes in 5-minute PJ513D/PJ513DB... -
Page 45: Warning Message
If the lamp is not replaced beforehand, it must be replaced after 3000 hours usage. The lamp MUST be replaced before the projector will operate normally. "Indicators" on PJ513D/PJ513DB... -
Page 46: Replacing The Lamp
Do not insert your hands into the projector after the lamp is removed. If you touch the optical components inside, it could cause color unevenness and distortion of the projected pictures. PJ513D/PJ513DB... - Page 47 The Lamp Settings page displays. Highlight Reset Lamp Timer. iii. A warning message displays asking if you want to reset the lamp timer. Highlight Reset and press MODE/ENTER. The lamp time will be reset to '0'. Reset lamp timer? Notice Reset Cancel PJ513D/PJ513DB...
-
Page 48: Temperature Information
The projector has shutdown automatically. If you try to re-start the projector, it will shutdown again. Please contact your dealer for assistance. The projector needs 90 seconds to cool down. Or Please contact your dealer for assistance. : Orange light PJ513D/PJ513DB... - Page 49 Light Power Temp Lamp Thermal events ViewSonic Status & Description The projector has shutdown automatically. If you try to re-start the projector, it will shutdown again. Please contact your dealer for assistance. PJ513D/PJ513DB...
-
Page 50: Troubleshooting
Adjust the projection angle and direction as well as the height of the unit if necessary. Open the lens cover. Remedy Replace the batteries with new ones. Remove the obstacle. Stand within 8 meters (26 feet) of the projector. PJ513D/PJ513DB... -
Page 51: Specifications
Environmental Requirements Operating temperature Operating relative humidity 10% ~ 90% (without condensation) Operating altitude ViewSonic Digital Projector PJ513D/PJ513DB 800 x 600 SVGA 1-CHIP DMD 180W lamp AC100–240V, 2.9A, 50–60 Hz (Automatic) 260W (Max) 263 mm (W) x 108 mm (H) x 218 mm (D) 5.7 lbs (2.6 Kg) -
Page 52: Dimensions
Dimensions 263 mm (W) x 108 mm (H) x 218 mm (D) 64.5 66.3 Unit: mm ViewSonic PJ513D/PJ513DB... -
Page 53: Timing Chart
XGA_60 75.000 XGA_70 78.750 XGA_75 94.500 XGA_85 80.768 SXGA_60 83.458 SXGA_60 108.000 SXGA_60 input Vertical Frequency (Hz) 59.94 59.94 50.00 50.00 60.00 50.00 60.00 50.00 Color sub- carrier Frequency (MHz) 3.58 4.43 4.25 or 4.41 3.58 3.58 4.43 4.43 PJ513D/PJ513DB... -
Page 54: Customer Support
Renta y Datos, 29 SUR 721, COL. LA PAZ, 72160 PUEBLA, PUE. Tel: 01.222.891.55.77 CON 10 LINEAS Electroser, Av Reforma No. 403Gx39 y 41, 97000 Merida, Yucatan. Tel: 01.999.925.19.16 Other places please refer to http://www.viewsonic.com/la/soporte/index.htm#Mexico Latin America (Peru) www.viewsonic.com/la/ Macau www.hk.viewsonic.com... -
Page 55: Limited Warranty
Europe: 3 years for all parts excluding the lamp, 3 years for labor, 1 year for the original lamp from the date of the first consumer purchase. Other regions or countries: Please check with your local dealer or local ViewSonic office for the warranty information. - Page 56 Exclusion of damages: ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for: 1. Damage to other property caused by any defects in the product, damages based upon...
-
Page 57: Mexico Limited Warranty
Exclusion of damages: ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for: 1. Damage to other property caused by any defects in the product, damages based upon inconvenience,... - Page 58 Tel: (52) 999-925-1916 E-Mail: rrrb@sureste.com Tijuana: Av Ferrocarril Sonora #3780 L-C Col 20 de Noviembre Tijuana, Mexico 4.3: ViewSonic Mexico Limited Warranty ViewSonic Villahermosa: Compumantenimietnos Garantizados, S.A. de C.V. AV. GREGORIO MENDEZ #1504 COL, FLORIDA C.P. 86040 Tel: 01 (993) 3 52 00 47 / 3522074 / 3 52 20 09 E-Mail: compumantenimientos@prodigy.net.mx...
