Panasonic SH-FX85 Operating Instructions Manual

Wireless sound system
Hide thumbs Also See for SH-FX85:
Table of Contents

Advertisement

Quick Links

See also: Technical Manual
Enlarged version
Designed for Panasonic DVD Home Theater Sound Systems
that are compatible with the SH-FX85.
Dear customer
Thank you for purchasing this product. For optimum performance and safety, please
read these instructions carefully.
Before connecting, operating or adjusting this product, please read the
instructions completely.
Please keep this manual for future reference.

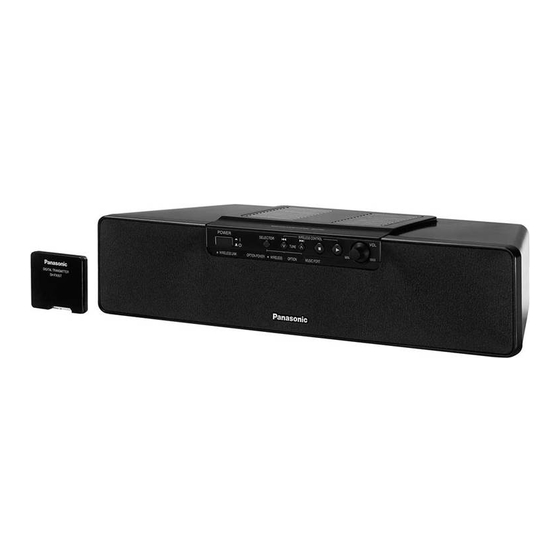

System
Digital transmitter
Wireless sound system
p
P
PC

Table of Contents

Introduction
IMPORTANT SAFETY INSTRUCTIONS.................................................................. 3
Maintenance............................................................................................................. 3
Product Service........................................................................................................ 3
Use
Setup ........................................................................................................................ 4
Connections .......................................................................................................... 4
Control reference guide............................................................................................ 6
Enjoying audio from the home theater unit............................................................... 6
Using this unit as a stand-alone audio amplifier....................................................... 7
To enjoy audio from an external device ................................................................. 7
Reference
Limited Warranty (ONLY FOR U.S.A.)...................................................................... 8
Limited Warranty (ONLY FOR CANADA) ............................................................... 10
Troubleshooting guide ............................................................................................ 11
Specifications ......................................................................................................... 12
Accessory
Please check and identify the supplied accessory. Use number indicated in
parentheses when asking for replacement part. (Product number correct as of January
2007. This may be subject to change.)
For U.S.A.: To order this accessory, refer to "Accessory Purchases" on page 9.
SH-FX85
For Canada: To order this accessory, call the dealer from whom you made your purchase.
SH-FX85T
∏ 1
AC power supply cord (K2CB2CB00018)
SB-FX85
For use with this unit only. Do not use it with other equipment. Also, do not use
cords for other equipment with this unit.
Operating Instructions
Wireless Sound System
Model No.
®
.................................................................................................... 7
SH-FX85
RQTX0051-Y
F0107TM0

Advertisement

Table of Contents
loading

Related Manuals for Panasonic SH-FX85

Summary of Contents for Panasonic SH-FX85

  • Page 1: Table Of Contents

    Designed for Panasonic DVD Home Theater Sound Systems that are compatible with the SH-FX85. Dear customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully. Before connecting, operating or adjusting this product, please read the instructions completely.
  • Page 2 (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Responsible Party: Panasonic Corporation of North America One Panasonic Way Secaucus, NJ 07094 Support Contact: Panasonic Consumer Electronics Company Telephone No.: 1-800-211-7262...

  • Page 3: Important Safety Instructions

    For product information or assistance with product operation: In the U.S.A., refer to “Customer Services Directory” on page 9. In Canada, contact the Panasonic Canada Inc. Customer Care Centre at 1-800-561-5505, or visit the website (www.panasonic.ca), or an authorized Servicentre closest to you.

  • Page 4: Setup

    Setup Preparation ≥ Turn off all equipment before connection and read the appropriate operating instructions. ≥Connect the AC power supply cord after all other connections are complete. ∫ Wireless setup diagram e.g. Main room Home theater unit Wireless sound system Place the wireless sound system within approximately 30 m (98 ft) from the home theater unit.
  • Page 5 ∫ To use your existing Panasonic wireless accessories together with your SH-FX85 You can use your existing Panasonic wireless accessories (not included) together with your SH-FX85 on the same home theater system. e.g. Use only the SH-FX85T transmitter card. The SB-FX85 wireless sound system is originally paired to work with the SH-FX85T transmitter card that comes along with it.

  • Page 6: Control Reference Guide

    Control reference guide The front of the wireless sound system:     POWER SELECTOR TUNE WIRELESS LINK OPTION POWER WIRELESS OPTION 1 WIRELESS LINK indicator Lights when the wireless link is active. 2 Unit on/off button [POWER C I, B Í] Use this button to turn the unit on and off.

  • Page 7: Using This Unit As A Stand-Alone Audio Amplifier

    Adjust the volume of the wireless sound system. To use the iPod ® Connect an optional SH-PD10 Panasonic Universal Dock for iPod to this unit for: – enjoying audio from your iPod or – charging your iPod. ∫ Enjoying audio from the iPod ≥...

  • Page 8: Limited Warranty (Only For U.s.a.)

    Panasonic Audio Products Limited Warranty Limited Warranty Coverage If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company or Panasonic Puerto Rico, Inc. (collectively referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or...
  • Page 9 Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST. For hearing or speech impaired TTY users, TTY: 1-877-833-8855 Accessory Purchases Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at: http://www.pasc.panasonic.com or, send your request by E-mail to: npcparts@us.panasonic.com...

  • Page 10: Limited Warranty (Only For Canada)

    Limited Warranty (ONLY FOR CANADA) Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a period as stated below from the date of original purchase. Technics Audio Product...

  • Page 11: Troubleshooting Guide

    The model number and serial number of this product can be found on either the back or the bottom of the unit. Please note them in the space provided below and keep for future reference. MODEL NUMBER SH-FX85 SERIAL NUMBER...

  • Page 12: Specifications

    Wireless module Frequency range Number of channels Music Port (Rear) Sensitivity Terminal Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America One Panasonic Way Secaucus, New Jersey 07094 http://www.panasonic.com C 2007 Matsushita Electric Industrial Co., Ltd. Printed in Malaysia...
