Before connecting, operating or adjusting this product, please read
these instructions completely.
Please keep this manual for future reference.
Il est recommandé de lire attentivement le présent manuel avant
d'utiliser l'appareil.
Conserver ce manuel.
PP
Speaker System
Enceintes acoustiques
Model No. / Modèle
Contents
Supplied accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . 4
Speaker setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Subwoofer operation (SB-WA70) . . . . . . . . . . . . . . . . . . . . . . . . 9
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Product service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Warranty (U.S.A.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back cover
User memo:
DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS
TELEPHONE NUMBER
The model number and serial number of this product can be found
on either the back or the bottom of the unit.
Please note them in the space provided below and keep for future reference.
MODEL NUMBER
SB-FS70
SB-PC70
SB-WA70
Table des matières
Accessoires fournis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Précautions à prendre . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation des enceintes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Emplacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Raccordements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Remarques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Entretien . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Service après-vente . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Données techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Homologation:
DATE D'ACHAT
DÉTAILLANT
ADRESSE DU DÉTAILLANT
N
O
DE TÉLÉPHONE
Il est recommandé de noter, dans l'espace prévu ci-dessous, le numéro
de modèle et le numéro de série inscrits à l'arrière, ou sous le fond de
l'appareil, et de conserver ce manuel pour référence ultérieure.
NUMÉRO DE MODÈLE
SB-FS70
SB-PC70
SB-WA70
Operating Instructions
Manuel d'utilisation
SB-TP70
SERIAL NUMBER
NUMÉRO DE SÉRIE
RQT7694-1Y

Advertisement

Table of Contents
loading

Summary of Contents for Panasonic SB-TP70

  • Page 1: Table Of Contents

    Il est recommandé de noter, dans l’espace prévu ci-dessous, le numéro de modèle et le numéro de série inscrits à l’arrière, ou sous le fond de l’appareil, et de conserver ce manuel pour référence ultérieure. NUMÉRO DE MODÈLE NUMÉRO DE SÉRIE SB-FS70 SB-PC70 SB-WA70 SB-TP70 RQT7694-1Y...
  • Page 2: Supplied Accessories

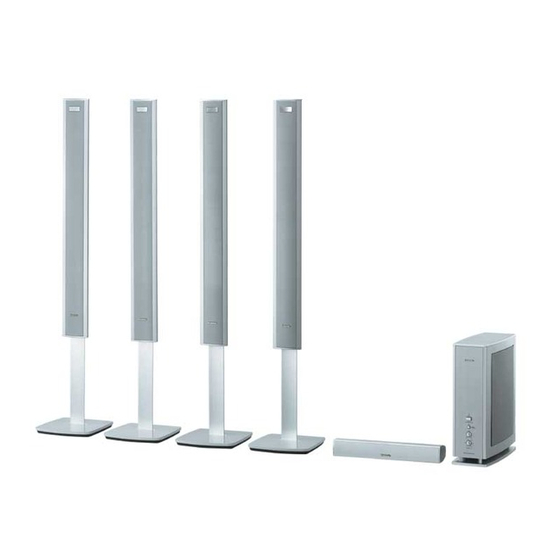

    Dear customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully. Speaker system SB-FS70 Front, Surround Center SB-CW70 Active subwoofer Supplied accessories Please check and identify the supplied accesso- ries. Use numbers indicated in parentheses when ask- ing for replacement parts.
  • Page 3 WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. CAUTION! DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET...
  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read these operating instructions carefully before using the unit. Fol- low the safety instructions on the unit and the applicable safety in- structions listed below. Keep these operating instructions handy for future reference. Read these instructions. Keep these instructions. Heed all warnings.
  • Page 5: Speaker Setup

    270 mm (10-5/8”) (10 5/8 po) Speaker setup Take care not to apply undue pressure to the front nets when han- dling the speakers. Lay the speakers on a flat surface over a soft cloth when working on them. Tighten the screws firmly. Center speaker (SB-PC70) Place above or below the center of the television, on a shelf or rack or attach to the wall.
  • Page 6 Speaker setup Front and surround speakers (SB-FS70) The 4 speakers are the same. Put the front speakers either side of the television. Put the surround speakers to the side of or slightly behind the seating area. Do not attach this speaker to walls or ceilings using methods other than those described here.
  • Page 7: Location

    SB-PC70 SB-FS70 30° SB-FS70 Location Front speaker (Left) (SB-FS70) Center speaker (SB-PC70) Front speaker (Right) (SB-FS70) Surround speaker (Right) (SB-FS70) Surround speaker (Left) (SB-FS70) Active subwoofer (SB-WA70) The front, center, and surround speakers should be placed at ap- proximately the same distance from the listening position. The angles in the diagram are approximate.
  • Page 8: Connections

    SB-PC70 SB-FS70 Connections Connect to a receiver or amplifier center, and surround speakers, and a pin-type output terminal for an active subwoofer. Before connection Turn off the other equipment. Do not connect the AC power supply cord until all other cables and cords are connected.
  • Page 9: Subwoofer Operation (Sb-Wa70)

    Subwoofer operation (SB-WA70) Set [POWER] to “ ON”. The indicator turns green. Output sound from the receiver or am- plifier and adjust the volume to a suit- able level. See the operating instructions for the other equipment for de- tails. Do not adjust the bass as this can cause distortion.
  • Page 10: Notes

    Notes Speaker impedance and allowed input SB-FS70 / SB-PC70 Impedance Input power The only receivers or amplifiers you should connect to these speak- ers are those whose rated output does not exceed the above figures. Using a receiver or amplifier with higher ratings than listed above can cause abnormal sounds to occur because of excessive input, dam- age to the receiver or speakers, and fire.
  • Page 11: Product Service

    Demande d’informations Pour toutes réparations, renseignements ou conseils sur le fonctionnement du produit: Veuillez contacter le service à la clientèle de Panasonic Canada Inc. au 905- 624-5505, son site web (www.panasonic.ca) ou le centre de service agréé le plus proche.
  • Page 12: Limited Warranty

    Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST. For hearing or speech impaired TTY users, TTY: 1-877-833-8855 Accessory Purchases Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at: http://www.pasc.panasonic.comm or, send your request by E-mail to: npcparts@panasonic.com...
