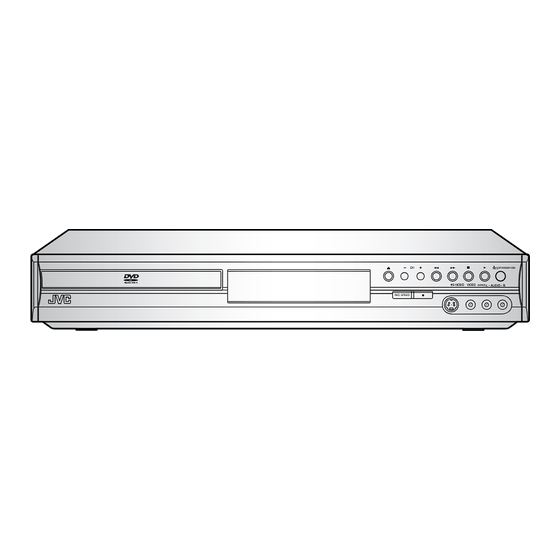

DVD VIDEO RECORDER
DR-M70SU
STANDBY/ON
OPEN/
CLOSE
ON SCREEN
SET UP
REPEAT
.@/:
ABC
DEF
1
2
3
GHI
JKL
MNO
ZOOM
4
5
6
PQRS
TUV
W X YZ
CH
7
8
9
CLEAR
AUDIO
0
PROG
VCR Plus+
TOP MENU
MENU/LIST
ENTER
RETURN
SLOW
PL AY
SLOW
REC
STOP
PAUSE
REC
REC
SPEED
MONITOR
REMOTE CONTROL
RM-SDR053U
DVD RECORDER
INSTRUCTIONS
For Customer Use :
Read carefully the information located at the
back of this unit and enter below the Serial
No.Retain this information for future reference.
Model No.
Serial No.
CH
/ I
STANDBY/ON
S-VIDEO VIDEO
L - AUDIO - R
(MONO)
REC SPEED
VCR Plus+ and PlusCode are registered
trademarks of Gemstar Development
Corporation.The VCR Plus+ system is
manufactured under license from
Gemstar Development Corporation.
EN
LPT1079-001B

Advertisement

Table of Contents
loading

Related Manuals for JVC DR-M70SEK

Summary of Contents for JVC DR-M70SEK

  • Page 1 DVD VIDEO RECORDER DR-M70SU STANDBY/ON OPEN/ CLOSE ON SCREEN SET UP REPEAT .@/: ZOOM PQRS W X YZ CLEAR AUDIO PROG VCR Plus+ TOP MENU MENU/LIST ENTER RETURN SLOW PL AY SLOW STOP PAUSE SPEED MONITOR REMOTE CONTROL RM-SDR053U DVD RECORDER INSTRUCTIONS For Customer Use : STANDBY/ON...

  • Page 2: Before You Start

    WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLI- ANCE TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SER- VICEABLE PARTS INSIDE.

  • Page 3: Important Safeguards

    IMPORTANT SAFEGUARDS 1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated. 2. Retain Instructions- The safety and operating instructions should be retained for future reference. 3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.
  • Page 4 Installation Location For safety and optimum performance of this unit: • Install the unit in a horizontal and stable position. Do not place anything directly on top of the unit. Do not place the unit directly on top of the TV. •...
  • Page 5 Maintenance SERVICING • Please refer to relevant topics on the Troubleshooting on pages 79-82 before returning the product. • If this unit becomes inoperative, do not try to correct the problem by yourself.There are no user-serviceable parts inside.Turn off, unplug the power plug and please call our help line mentioned on the back cover to locate an Authorized Service Center.

  • Page 6: Table Of Contents

    Before you start ....2 Precautions ......2 Table of contents .

  • Page 7: Features

    This unit not only plays back DVDs and CDs but also offers features for you to record on DVD discs and edit them after that.The following features are offered with this unit. Recording This unit is compatible with both DVD-RW, which is rewritable repeatedly, and DVD-R, which is available for one-time recording only.

  • Page 8: Functional Overview

    Front Panel ( * ) The unit can also be turned on by pressing these buttons. Disc tray Place a disc when it is open. Display Shows various information and messages. OPEN/CLOSE A button* Press to open or close the disc tray. CH + / –...
  • Page 9 Functional overview (cont’d) Remote Control STANDBY/ON OPEN/ CLOSE ON SCREEN SET UP REPEAT .@/: ZOOM PQRS W X YZ CLEAR AUDIO PROG VCR Plus+ TOP MENU MENU/LIST ENTER RETURN SLOW PL AY SLOW STOP PAUSE SPEED MONITOR REMOTE CONTROL RM-SDR053U DVD RECORDER ( * ) The unit can also be turned on by pressing these buttons.

  • Page 10: Installing Batteries In The Remote Control

    4. Indicates a title number, chap- ter number and the time elapsed of disc play. 30˚ 30˚ Code: JVC C 5. Each icon means: : Search : Audio : Subtitle : Angle (except VR mode) : Repeat...

  • Page 11: Setting/Disc/Cd Menu

    Functional overview (cont’d) Guide to Displays on-screen menu This unit uses the following on-screen menu for most operations: Easy Setting Menu, Advanced Setting Menu, Title list, Playlist, Original and DISPLAY menu.They allow you to change the playback status of the disc during playback. The DISPLAY menu also gives you information on the playback status of the disc.
  • Page 12 Functional overview (cont’d) Front Panel Display Guide 1. Current status of the unit : Appears when a disc play is paused. : Appears when playing back a disc. : Appears when the timer programming or OTR has been set and is proceed- ing.

  • Page 13: Connections

    Antenna Cable Cable TV signal TV signal (Back of TV) Connect Disconnect Choose one of the following connections, depending on the capabilities of the equipment you possess. Basic Audio Audio cable (supplied) This unit VIDEO OUT COMPONENT VIDEO IN VIDEO OUTPUT VIDEO OUT S-VIDEO ANTENNA...

  • Page 14: Connection To A Cable Box Or Satellite Box

    If your TV is compatible with Progressive Scan (525p / 480p) and you want to enjoy that high quality picture; You must select the connection Method 2 on page 13 and Progressive Scan mode.To set the mode, press [SET UP] and set “Progressive” to “ON” on the Easy Setting Menu, or on the “Playback”...

  • Page 15: Connection To An Audio System

    Connection to an Audio System • When you change the connections, all devices should be turned off. • Refer to the operation manual accompanying external devices for more information. Method Stereo system Analog audio input jacks AUDIO Audio cable (supplied) This unit AUDIO OUT Connections...

  • Page 16: Getting Started

    The following will help you to understand easily how to record to DVD discs. Note: Make sure batteries are in the remote control and you have connected this unit and the TV correctly. Step 1: Choose a disc type There are several types of recordable DVD discs to choose from.

  • Page 17: Recording Speed

    Easy DVD recording (Cont’d) Step 3: Select the Recording speed TOP MENU MENU/LIST ENTER RETURN SLOW PL AY SLOW STOP PAUSE SPEED MONITOR 0:58 Hint 1: Play the recorded contents You can select the title you want to play back from a displayed menu, and immediately start to play back.

  • Page 18: Channel Setting

    Right after the purchase of the unit and whenever you move to a new area, we recommend to pro- gram available channels in your area using “Auto Preset” in the Channel Preset of the Setting menu. Getting channels automatically Press [STANDBY/ON y y /I]. Turn on the TV.

  • Page 19: Adding/Deleting Channels

    Adding/deleting channels The channels you no longer receive or seldom watch can be deleted from the memory.You can also add channels manually into memory. Press [SET UP]. Easy Setting Menu or Advanced Setting Menu will appear. Using [K / L], select “Channel”.

  • Page 20: Guide Channel Setting

    Guide channel setting First, fill in the boxes on this page: Write your local channel numbers in “TV Channel” column, which you can receive in your area by chan- nel preset. Write local TV stations corresponding TV Channel in “Call letters” column, and write guide channel num- bers corresponding call letters in “Guide Channel”...
  • Page 21 Assign channel numbers to the guide channels as neces- sary. Look in your TV guide to see which channel numbers should be assigned to which guide channels. Using [K / L], select a chan- nel number. Press [ENTER]. A cursor will move to a TV chan- nel column.

  • Page 22: Selecting The Tv Stereo Or Sap

    Selecting the TV stereo or SAP You can select an audio channel to output from TV. Press [SET UP]. Easy Setting Menu or Advanced Setting Menu will appear. If Advanced Setting Menu is dis- played, proceed to step 3. Using [K / L], select “Advanced Setting Menu”.

  • Page 23: Setting The Clock

    Set the clock before you try the Timer Recording. If Public Broadcasting Service (PBS) is available in your area, follow the Auto Clock Setting below. If not, follow the Manual Clock Setting on page 24. Auto Clock Setting Make sure: •...

  • Page 24: Manual Clock Setting

    Manual Clock Setting Press [SET UP]. Easy Setting Menu or Advanced Setting Menu will appear. Using [K / L], select “Clock”. Press [ENTER]. When entering from Advanced Setting Menu, Clock menu will appear. When entering from Advanced Setting Menu, using [K / L], select “Clock Setting”.

  • Page 25: Setting The Daylight Saving Time

    Setting the daylight saving time When Daylight Saving Time is ON, the clock will automatically move forward one hour on the first Sunday in April and move back one hour on the last Sunday in October. Press [SET UP]. Easy Setting Menu or Advanced Setting Menu will appear.

  • Page 26: Recording

    • Discs that were tested and proven as compatible with this recorder: Maxell DVD-R TDK DVD-RW 2x MITSUBISHI DVD-R 8x JVC DVD-RW 4x • About Video mode and VR (Video Recording) mode Video mode is the same recording format as DVD-Video discs purchased locally and played back on most DVD players.

  • Page 27: Restrictions On Recording

    Information on DVD recording (cont’d) Restrictions on recording You cannot record copy-protected discs or tapes using this unit. Copy-protected material includes DVD-Video discs and some satellite broadcasts. If copy-protected material is encountered during a recording, recording will be paused or stop automat- ically and an error message will be displayed onscreen.

  • Page 28: Formatting A Disc

    Choosing the recording format of a blank disc Video DVD-RW DVD-RW DVD-RW DVD-RW When inserting a blank disc, the unit starts to initialize it automatically. After that, you can record on the disc with a recording format select- ed in the Setting menu. Press [SET UP].

  • Page 29: Reformatting A Disc

    Reformatting a disc Video DVD-RW DVD-RW DVD-RW DVD-RW Video mode is the default record- ing format for DVD-RW. You can change it to VR mode from the Setting Menu. Press [SET UP]. Easy Setting Menu or Advanced Setting Menu will appear. Using [K / L], select “Disc”.

  • Page 30: Recording Audio Select (Xp)

    Recording Audio Select (XP) Video DVD-R DVD-R DVD-RW DVD-RW DVD-RW DVD-RW You can enjoy high quality sound recording.This function works only when the recording speed is set at XP. Press [SET UP]. Easy Setting Menu or Advanced Setting Menu will appear. If Advanced Setting Menu is dis- played, proceed to STEP 3.

  • Page 31: Basic Recording

    Video DVD-R DVD-R DVD-RW DVD-RW DVD-RW DVD-RW Follow steps below to record TV programs. Turn on the unit. Load a recordable disc. Make sure that the TV input is set on the unit. This operation may take a while to be recognized. Using [REC SPEED], select a recording speed.

  • Page 32: One-Touch Timer Recording

    Video DVD-R DVD-R DVD-RW DVD-RW DVD-RW DVD-RW This is a simple way to set the recording time in blocks of 30 minutes. Check that the disc has enough recordable space for the time you set. After finishing the recording, the recorder automatically goes into standby.

  • Page 33: Timer Recording

    Video DVD-RW DVD-RW DVD-RW DVD-RW DVD-R DVD-R You can program the unit to record up to 8 programs within a month in advance. Daily or weekly program recordings are also available. • Be sure to set the clock before programming a timer recording. •...
  • Page 34 Press [ENTER] when infor- mation is entered. Your program setting will be stored. • To set another program, repeat steps 4 to 9. • To exit, press [SET UP]. • When programs are overlapped, “Overlap” and the overlapped program numbers will appear on the display.
  • Page 35 If the timer program did not complete correctly, the error number appears on the timer pro- gramming list. Timer Programming Date Start Speed JAN/01 12:57AM 1:57AM Each error number means: E1-22 Recording error other than E37-39 below E23-24 Unrecordable disc E25-28 Copy prohibited program Disc protected...

  • Page 36: Hints For Timer Recording

    Hints for Timer Recording • If there is a power failure or this unit has been unplugged for more than 30 seconds, the clock setting and all timer settings will be lost. • If a recordable disc is not on the tray, the indicator appears momentarily around the start point as the unit attempts to record.

  • Page 37: Timer Recording Using The Vcr Plus

    Timer recording using the VCR Plus+ Video DVD-R DVD-R DVD-RW DVD-RW DVD-RW DVD-RW The VCR Plus+ system let you set timer recordings very simply. Just enter the PlusCode number listed in the TV program guide.The date, time and channel for the TV program to record will set auto- matically.

  • Page 38: Settings For An External Source

    Settings for an external source Connection to an external source Video DVD-R DVD-R DVD-RW DVD-RW DVD-RW DVD-RW Connect the external source properly to the unit by using input jacks either LINE2 (Front) or LINE1 (Rear). When connecting an external equipment of monaural output to this unit, use AUDIO L jack of LINE 1 (Rear) or LINE 2 (Front).

  • Page 39: Recording From An External Source

    Settings for an external source (cont’d) Recording from an external source Video DVD-R DVD-R DVD-RW DVD-RW DVD-RW DVD-RW Before recording from an external source, see the instructions for the connection on page 38. Turn on the TV and the unit and be sure to select the input of the TV to which the unit is connected.

  • Page 40: Finalizing The Discs

    Video DVD-R DVD-R DVD-RW DVD-RW DVD-RW DVD-RW You will need to finalize discs recorded in Video mode to play them back on other DVD players. Finalizing may take several minutes up to an hour. (It can take up to minutes for a disc recorded in Video mode and 60 minutes for a disc recorded in VR mode.) A shorter recording period on the...

  • Page 41: Auto Finalize

    Finalizing the discs (cont’d) Auto finalize Video DVD-R DVD-R DVD-RW DVD-RW This function automatically final- izes discs after all Timer Recordings are completed and when the disc space runs out. Press [SET UP]. Easy Setting Menu or Advanced Setting Menu will appear. If Easy Setting Menu is displayed, proceed to step 3.

  • Page 42: Disc Playback

    Information on DVD playback Before you play back DVD discs, read the following information. Playable discs This unit is compatible with the following discs. To play back a DVD, make sure that it meets the requirements for Region Codes and Color Systems as described below.

  • Page 43: Basic Playback

    Playback Video DVD-R DVD-R DVD-RW DVD-RW DVD-RW DVD-RW DVD+R DVD+RW DVD+RW DVD+R Press [STANDBY/ON y y /I]. When you are playing back a DVD, turn on the TV and be sure to select the input to which the unit is con- nected.

  • Page 44: Playing Back Jpeg Disc

    DVD-V DVD-V Press [STANDBY/ON y y /I]. When you are playing back a DVD or an audio CD, turn on the TV and be sure to select the input to which the unit is connected. Press [OPEN/CLOSE A] to open the disc tray. The disc tray will open.

  • Page 45: Playing Back Discs Using The Disc Menu

    Playing back discs using the disc menu DVD-V DVD-V A DVD disc contains a disc menu that describes the contents or allows you to customize the playback. For example, the menu may offer choices for sub- title languages, special features, or chapter selection. Some discs display them automatically when you start playback.

  • Page 46: Playing Back Discs Using The Title Menu

    Playing back discs using the title menu DVD-V DVD-V Some DVDs have a title menu, which lists the titles available on them. It helps you to start play- back at a specific title. Press [TOP MENU]. The title menu will appear. If the feature is not available, may appear on the TV screen.

  • Page 47: Fast Forward / Fast Reverse

    Fast forward / Fast reverse Video DVD-V DVD-V DVD-RW DVD-RW DVD-RW DVD-RW During playback, press [FWD D] or [REW E]. Every time you press [FWD D] or [REW E], approximate speed will be changed as follows. For DVD discs, sound will be output during x1.5 fast for- ward only if you set “Fast Forward with Audio”...

  • Page 48: Step By Step Playback

    Step by step playback Video DVD-V DVD-V DVD-RW DVD-RW DVD-RW DVD-RW DVD-R DVD-R DVD+R DVD+R DVD+RW DVD+RW During playback, press [PAUSE F]. Playback will be paused and sound will be muted. Press [G] repeatedly. The playback will advance one frame (or step) at a time when you press [G].The sound will be muted.

  • Page 49: Marker Setup

    Marker Setup Video DVD-V DVD-V DVD-RW DVD-RW DVD-RW DVD-RW DVD-R DVD-R DVD+R DVD+R DVD+RW DVD+RW without PBC function This function allows you to assign a specific point on a disc to be called back later. During playback, press [ON SCREEN]. The display menu will appear.

  • Page 50: Simultaneous Playback And Recording

    Simultaneous Playback and Recording DVD-RW DVD-RW You can also play back a recorded title during current recording or the Timer Recording on the same disc. During recording, press [ON SCREEN]. The display menu will appear. 0:00:00 DVD-RW VR Original CH 12 Select icon using [{ / B], then press [ENTER].

  • Page 51: Search

    Title/Chapter search Video DVD-V DVD-V DVD-RW DVD-RW DVD-RW DVD-RW Using [H / G] During playback, press [G] to skip the current title or chap- ter and move to the next. To go back to the beginning of the current title or chapter, press [H]. Press it repeatedly to go to the previous titles or chapters.

  • Page 52: Track Search

    Track search without PBC JPEG JPEG JPEG function Using [H / G] During playback, press [G] to skip the current track and move to the next. To go back to the beginning of the current track, press [H]. Press it repeatedly to go to the previous tracks.

  • Page 53: Repeat/Random/Program Playback

    Repeat/Random/Program playback Repeat playback Video DVD-V DVD-V DVD-RW DVD-RW DVD-RW DVD-RW DVD-R DVD-R DVD+RW DVD+RW DVD+R DVD+R without PBC JPEG JPEG JPEG function During playback, press [ON SCREEN]. The display menu will appear. 0:00:00 DVD-Video Using [{ / B], select icon.

  • Page 54: Program Playback

    Repeat/Random/Program playback (cont’d) Program playback without PBC function You can program a playback sequence in your desired order. Press [SET UP]. Easy Setting Menu or Advanced Setting Menu will appear. Using [K / L], select “CD Playback Mode”. Press [ENTER]. CD Playback Mode menu will appear.

  • Page 55: Selecting A Format Of Audio And Video

    Selecting a format of audio and video You can select a desired audio and video format. Selections depend on the contents of the disc you are playing back. Switching subtitles DVD-V DVD-V DVD-RW DVD-RW Many DVD-Video discs have subti- tles in one or more languages – they usually tell you which subtitle languages are available.You can switch subtitle languages anytime...

  • Page 56: Switching Camera Angles

    Selecting a format of audio and video (cont’d) Switching camera angles DVD-V DVD-V Some DVD-Video discs feature scenes shot from two or more angles.The disc package should be marked with an angle icon if it contains multi-angle scenes. During playback, press [ON SCREEN].

  • Page 57: Editing

    Information on disc editing Guide to a title list Title list allows you to check the titles recorded on the disc easily.You can choose a title to play it back from this screen and easily edit the titles as you pre- fer.

  • Page 58: Editing Discs In Video Mode

    Deleting titles Video DVD-R DVD-R DVD-RW DVD-RW You can delete titles which you do not need anymore. Be advised that the titles once deleted cannot be recovered. In Video mode, recordable disc space of DVD-RW disc will increase when the last title on the title list is deleted.

  • Page 59: Putting Names On Titles

    Editing discs in Video mode (cont’d) Putting names on titles Video DVD-R DVD-R DVD-RW DVD-RW You can name titles and change the names from this menu. The names you put on the titles will be displayed on a titlelist. Follow steps 1 to 3 on page 58 to display the Edit menu.

  • Page 60: Setting Or Clearing Chapter Markers

    Editing discs in Video mode (cont’d) Setting or clearing chapter markers Video DVD-RW DVD-RW You can put chapter markers on each title and use them for the chapter search. You can specify time interval for chapter markers for titles last more than 5 minutes.

  • Page 61: Editing Discs In Vr Mode (Original)

    Editing discs in VR mode (Original) Deleting titles DVD-RW DVD-RW When a title is deleted from an original list in VR mode, the recordable disc space will increase. Be advised that the titles once deleted cannot be recovered. Press [SET UP]. Using [K / L], select “Disc”.

  • Page 62: Setting Titles To Protect

    Editing discs in VR mode (Original) (cont’d) Setting titles to protect DVD-RW DVD-RW To prevent accidental editing or title erasing, you can protect the contents in the Original menu. Follow steps 1 to 3 on page 61 to display the Original menu. Using [K / L], select “Protect”.

  • Page 63: Releasing Titles From Protecting

    Editing discs in VR mode (Original) (cont’d) Releasing titles from protecting DVD-RW DVD-RW You can cancel the title-protecting. Follow steps 1 to 3 on page 61 to display the Original menu. A “ ” icon is shown on the protected titles. •...

  • Page 64: Editing Discs In Vr Mode (Playlist)

    Editing discs in VR mode (Playlist) Deleting titles DVD-RW DVD-RW In VR mode, even if a title is deleted from a Playlist, the original title will remain on the Original list, and recordable disc space will not increase. Press [SET UP]. Using [K / L], select “Disc”.

  • Page 65: Deleting Parts Of Titles

    Editing discs in VR mode (Playlist) (cont’d) Deleting parts of titles DVD-RW DVD-RW You can delete a specific part of a title. Even if a part of a title is deleted from the playlist, the original title will remain as it was, and record- able disc space will not increase.

  • Page 66: Putting Names On Titles

    Editing discs in VR mode (Playlist) (cont’d) Putting names on titles DVD-RW DVD-RW You can name titles and change the names in this menu. The names you put on the titles will be displayed on a title list. Follow steps 1 to 3 on page 64 to display the Playlist menu.

  • Page 67: Setting Or Clearing Chapter Markers

    Editing discs in VR mode (Playlist) (cont’d) Setting or clearing chapter markers DVD-RW DVD-RW You can put chapter markers on each title and can use them for the chapter search. You can put a chapter marker anywhere you want until the total number of the markers reaches 999.

  • Page 68: Setting Pictures For Thumbnails

    Editing discs in VR mode (Playlist) (cont’d) Setting pictures for thumbnails DVD-RW DVD-RW You can set an image picture for each title as a thumbnail. It helps you remember the contents of the title during playback.The default setting chooses the first scene of each title as the thumbnail.

  • Page 69: Dividing A Title

    Editing discs in VR mode (Playlist) (cont’d) Dividing a title DVD-RW DVD-RW You can divide a title into two new titles. Follow steps 1 to 3 on page 64 to display the Playlist menu. Use [H / G], [REW E], [FWD D], [PLAY B] and [PAUSE F] to decide the point at which you will divide the title.

  • Page 70: Combining Titles

    Editing discs in VR mode (Playlist) (cont’d) Combining titles DVD-RW DVD-RW You can combine two titles into a single title. Follow steps 1 to 3 on page 64 to display the Playlist menu. Using [K / L], select “Title Combining”. Press [ENTER]. Title Combining setting window will appear.

  • Page 71: Adding Titles To A Playlist

    Editing discs in VR mode (Playlist) (cont’d) Adding titles to a Playlist DVD-RW DVD-RW You can add or delete a title on the Playlist as you prefer. You can add up to 99 titles to a Playlist. Follow steps 1 to 2 on page 64 to display the Playlist.

  • Page 72: Changing The Setting Menu

    Changing the Setting menu The following table shows the items which you can change the setting and their default settings. Refer to the following table for your convenience. Setting menu Items (highlight is the default) 1.Language setting Disc Menu Language Pages 73-74 Audio Language Subtitle Language...

  • Page 73: Language Setting

    Changing the Setting menu Press [STOP C] if you are playing back a disc. Press [SET UP]. Easy Setting Menu or Advanced Setting Menu will appear. If Advanced Setting Menu is displayed, proceed to step 3. Using [K / L], select “Advanced Setting Menu”. Press [ENTER].

  • Page 74: Display Setting

    Changing the Setting menu Subtitle Language (Default : OFF) Set the Subtitle language. Playback TV Aspect 4:3 Letter Box Parental Lock Disc Menu Language English Audio Language Original Subtitle Language Digital Out Dynamic Range Control Fast Forward with Audio Progressive If “Other”...

  • Page 75: Audio Setting

    Changing the Setting menu OSD Language (Default : English) Set the language for OSD. Display OSD Language English FL Dimmer Auto Screen Saver 10 minutes FL Dimmer (Default : Auto) Set the idling time before the screen saver starts. Display OSD Language English FL Dimmer...
  • Page 76 Changing the Setting menu Using [K / L], select “Advanced Setting Menu”. Press [ENTER]. Advanced Setting Menu will appear. Using [K / L], select “Playback”. Press [ENTER]. Option window will appear. Using [K / L], select a desired item. Press [ENTER]. Digital Out Set the digital audio output.

  • Page 77: Settings For Parental Lock Level

    Changing the Setting menu Dynamic Range Control (Default : ON) Set to “ON” to compress the range between soft and loud sounds. Playback TV Aspect 4:3 Letter Box Parental Lock Disc Menu Language English Audio Language Original Subtitle Language Digital Out Dynamic Range Control Fast Forward with Audio Progressive...
  • Page 78 Changing the Setting menu Settings for Parental lock level (cont’d) Parental Lock (Default : All) Set the Parental Lock level. Playback TV Aspect 4:3 Letter Box Parental Lock Disc Menu Language English Audio Language Original Subtitle Language Digital Out Dynamic Range Control Fast Forward with Audio Progressive A password has not been set yet...

  • Page 79: Others

    Before requesting service for this unit, check the table below for a possible cause of the problem you are experiencing. Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper performance. Symptom Power The power does not turn on.
  • Page 80 Symptom Playback The unit does not play back the disc. Playback image freezes for a second. The disc does not start playback from the beginning. The unit starts playing back the disc automatically. Some functions such as Stop, Search, or Slow-motion Play cannot be performed.
  • Page 81 Symptom Others The unit does not operate properly. The disc tray does not open when you press [OPEN/CLOSE A]. "Repairing" appears on the display. • If above remedies do not solve the problem, please call the Service Center for help. Error message Disc Error --- Please eject the disc.
  • Page 82 Error message Recording Error You cannot record more than 99 titles on one disc. (The maximum is 99) Recording Error You cannot record more than 999 chapters on one disc. (The maximum is 999) Recording Error You cannot record on this disc as Control Information is full.

  • Page 83: Glossary

    Analog audio An electrical signal that directly represents sound. In contrast, digi- tal audio which can be an electri- cal signal, but is an indirect repre- sentation of sound. See also Digital audio. Aspect ratio The width of a TV screen relative to its height.

  • Page 84: Language Code

    Language Code Language Abkhazian 4748 French Afar 4747 Frisian Afrikaans 4752 Galician Albanian 6563 Georgian Amharic 4759 German Arabic 4764 Greek Armenian 5471 Greenlandic Assamese 4765 Guarani Aymara 4771 Gujarati Azerbaijani 4772 Hausa Bashkir 4847 Hebrew Basque 5167 Hindi Bengali;Bangla 4860 Hungarian Bhutani...

  • Page 85: Specifications

    General System Power requirements Power consumption Weight Dimensions (width x height x depth) Operating temperature Operating humidity TV format Recording Recording format Recordable discs Video recording format Sampling frequency Compression format Audio recording format Sampling frequency Compression format Tuner Receivable channels CATV Input/Output VHF/UHF antenna input/output terminal...
  • Page 86 Others Memo...
  • Page 88 Printed in China US/UC 0805TNH-FN-FN © 2005 Victor Company of Japan, Limited E6750UD, E6751CD / 1VMN21346 ★★★★...
