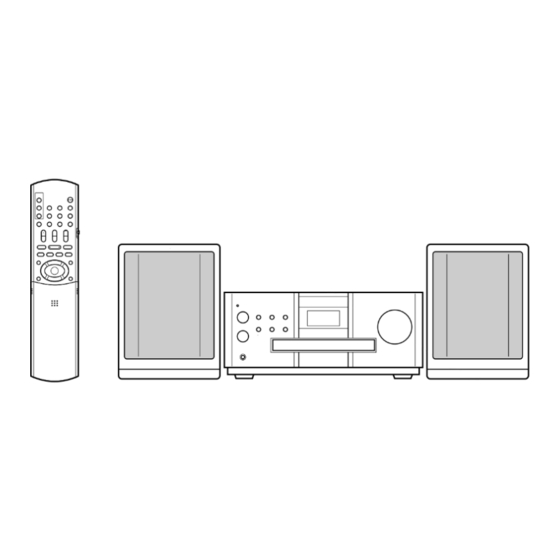

COMPACT COMPONENT SYSTEM
EX-A1
Consists of CA-EXA1 and SP-EXA1
EX-P1
Consists of CA-EXP1 and SP-EXP1
INSTRUCTIONS
For Customer Use:
Enter below the Model No. and Serial No.
which are located either on the rear,
bottom or side of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
LVT1284-002A
[J]
Advertisement
Chapters
Table of Contents
Troubleshooting
Related Manuals for JVC EX-A1EB
Summary of Contents for JVC EX-A1EB
- Page 1 COMPACT COMPONENT SYSTEM EX-A1 Consists of CA-EXA1 and SP-EXA1 EX-P1 Consists of CA-EXP1 and SP-EXP1 INSTRUCTIONS For Customer Use: Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.
-
Page 2: Warnings, Cautions And Others
Warnings, cautions and others CAUTION To reduce the risk of electrical shocks, fire, etc.: 1. Do not remove screws, covers or cabinet. 2. Do not expose this appliance to rain or moisture. CAUTION — F button! Disconnect the mains plug to shut the power off completely (the STANDBY lamp goes off). -
Page 3: Table Of Contents
Table of contents Introduction Warnings, cautions and others...G-1 Special cautions ...2 About discs...3 Description of parts ...5 Getting started Using the remote control ...6 Putting the batteries in the remote control ... 6 Operating the TV using the remote control... 7 Connecting up ...8 Basic operations Playing discs ...12... -
Page 4: Special Cautions
Special cautions Notes on handling 7 Important cautions Installation of the system • Select a place which is level, dry and neither too hot nor too cold; between 5°C and 35°C (between 41°F and 95°F). • Leave sufficient distance between the system and the •... -
Page 5: About Discs
About discs Playable disc types This system has been designed to play back the following discs: DVD VIDEO, DVD AUDIO, VCD, SVCD, CD This system can also play back the following discs: • Finalized DVD-R/RW discs recorded in the DVD VIDEO format. -
Page 6: Disc Structure
About discs (continued) Disc structure DVD VIDEO A DVD VIDEO consists of “titles” and each title may be divided into “chapters”. Title 1 Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 2 DVD AUDIO A DVD AUDIO consists of “groups” and each group may be divided into “tracks”. -
Page 7: Description Of Parts
Description of parts The numbers represent the page numbers. Front panel Play/Pause:12, 14 11,12 STANDBY/ON : 12 Open/Close : 12 PHONES Headphones jack* * Connect a pair of headphones (commercially available) with a stereo mini plug. If the headphones are connected, the speakers and subwoofer will not produce any sound. -
Page 8: Using The Remote Control
Using the remote control The numbers represent the page numbers. 15, 17 14, 32 19, 28 33, 34 Putting the batteries in the remote control One touch replay: 15 Remote control mode selector: 7 14, 32 19, 28 Number buttons: 7, 15 If the range or effectiveness of the remote control decreases, replace the batteries. -
Page 9: Operating The Tv Using The Remote Control
This page is for when operating your TV using the remote control of this product. Operating the TV using the remote control Setting the manufacturer's code Slide the remote control mode selector to the TV side. Keep pressing down F TV. NOTE Keep pressing down F TV until Step 4 is complete. -
Page 10: Connecting Up
Connecting up Connecting antennas Connecting AM loop antenna (supplied) Set up the AM loop antenna. Connect antenna cords. Main unit How to insert antenna cords (rear panel) Connect two antenna cords as described above. If the antenna cord is covered with vinyl on the Black White tip, twist and pull the vinyl... -
Page 11: Connecting Speakers
Connecting up Connecting speakers There is no difference between the left and right speakers. Speaker cord Speaker terminal Speaker cord (supplied) Without black line With black line Main unit (rear panel) Right speaker (rear panel) CAUTION • DO NOT connect more than one speaker to one speaker terminal. -
Page 12: Connecting Other Devices
Connecting up (continued) Connecting other devices This page is for when connecting the main unit with other devices. Connecting subwoofer With an amplifier-built in subwoofer (sold separately), you can enjoy a more dynamic bass sound. Refer to the manual of the subwoofer for details. Amplifier-built-in subwoofer (sold separately) Connecting with other audio device... -
Page 13: Connecting The Power Cord
Connecting up Connecting with TV Supplied composite video cord CAUTION Connect the main unit directly with a TV (or a monitor) without routing through a VCR. Otherwise it may cause picture distortion while playing. Main unit Connecting directly Also, when connecting the main unit to a TV with a VCR built in, there may be picture distortion while playing. -
Page 14: Playing Discs
Playing discs Playback • The power will be turned on when any of on the main unit and on the remote control is pressed while the power is off. If any button other than pressed, the source will also be changed (if there is a disc loaded, playback will start). -
Page 15: To Switch The Display
Display window during disc playback Example: When a DVD VIDEO or DVD AUDIO is played If “BONUS” or “B.S.P.” is displayed during a DVD AUDIO playback, refer to page 27. Example: When a SVCD or VCD is played • PBC (Play Back Control): A signal recorded in a VCD (version 2.0) for controlling playback. -
Page 16: Select What You Want To Play By Using The Number Buttons
Playing discs (continued) Select what you want to play by using the number buttons NOTE • Set the remote control mode selector to AUDIO before using the number buttons. • For a VCD or SVCD, this operation can be carried out when the disc is stopped, or during playback without the PBC function. -
Page 17: Playing Back From A Position 10 Seconds
Playing back from a position 10 seconds before (One Touch Replay) Press during playback. NOTE • This operation may not be carried out for some discs. • It is not possible to go back to the immediately previous title. Slow Motion Playback Press SLOW or SLOW pause. -
Page 18: To Change The Brightness Of The Display Window (Dimmer)
Playing discs (continued) To change the brightness of the display window (DIMMER) Press DIMMER repeatedly. • The modified brightness will be stored even after the power is turned off. The items below can be carried out for all sources. Adjusting the volume Press AUDIO VOL +/–. - Page 19 Playback Display of an MP3 disc is described here as an example. For a JPEG disc, read “track” as “file”. NOTE When playing a disc containing both MP3 and JPEG files, set one of them to be played ( Load a disc. Elapsed time of the track currently being TV screen played (MP3 only).
-
Page 20: Resume Playback
Resume Playback When playback is stopped in the middle, playback can be started from the stopped scene. This is called Resume function. How to suspend playback Perform any of the following operations during playback. Press 7 once.* Press F AUDIO to turn off the power. Change the source to FM/AM or AUX.* * Even if the power is turned off by pressing F AUDIO after this, the position where playback... -
Page 21: Select The Scene To Be Played
Select the scene to be played NOTE Set the remote control mode selector to AUDIO before using the number buttons. Select from the menu Press MENU or TOP MENU while the disc is stopped or during playback • The disc menu screen will be displayed. •... -
Page 22: Program Playback/Random Playback
Program Playback/Random Playback NOTE Set the remote control mode selector to AUDIO before using the number buttons. Play the disc in the desired order (Program Playback) It is possible to program a maximum of 99 tracks or chapters. The same track or chapter can be programmed more than once. -
Page 23: Random Playback
To program on the display window on the main unit, operate as follows. (1) Select a group/title using the number buttons. Display example of the upper display window: T2 C-- (2) Designate a track/chapter number using the number buttons. Display example of the upper display window: T2 C3 •... -
Page 24: Repeat Playback
Repeat Playback Refer to page 17 for Repeat Playback of MP3 and JPEG files. Playing the title/chapter/ group/track/all tracks repeatedly (REPEAT) Press REPEAT during playback. Each time you press the button, the Repeat type will be alternated. Example: TV screen Display window on the main unit CHAP For DVD VIDEO... - Page 25 Playing the designated part repeatedly (A-B Repeat Playback) Press ON SCREEN twice during playback. The menu bar (A page 28) will be displayed. Press cursor2 /3 to select Press ENTER. Press cursor5 // to display Other Repeat modes can be selected here. For other Repeat modes, refer to “Playing the title/chapter/group/track/all tracks repeatedly (REPEAT)”...
-
Page 26: Other Convenient Functions
Other convenient functions Selecting the subtitles (only for moving image) Press SUBTITLE during playback of a disc containing subtitles in several languages. Example: • Each time you press the button, the subtitle will be alternated between ON/OFF. Press cursor5 // to select a subtitle language. -
Page 27: Enlarging The Picture (Zoom)
Enlarging the picture (ZOOM) (only for moving image) Press ZOOM during playback or while paused. • Each time you press the button, the picture magnification will be changed. • (For a JPEG) You cannot change the picture magnification during slide-show playback. -
Page 28: Creating Realistic Sound (Virtual Surround)
Other convenient functions (continued) Creating realistic sound (VIRTUAL SURROUND) The two speakers produce an effect resembling surround-sound. Press VIRTUAL SURROUND during playback. Example: • Each time you press the button, the display toggles as follows. ACTION : Suitable for action movies, sport programs or other lively programs. -
Page 29: Functions Specific To Dvd Audio
Functions specific to DVD AUDIO NOTE Set the remote control mode selector to AUDIO before using the number buttons. Playing the Bonus Group There are some DVD AUDIO discs with a special group, called “Bonus Group”, recorded. NOTE This operation can be carried out when “BONUS” is lit on the display window on the main unit. -
Page 30: Using The Menu Bar
Using the menu bar NOTE • Set the remote control mode selector to AUDIO before using the number buttons. • This operation can be carried out when there is a disc loaded. There are some functions that may not work while the disc is stopped. Press ON SCREEN twice. -
Page 31: Preferences
Preferences The initial settings of the system can be changed according to the environment the system is used NOTE • Set the remote control mode selector to AUDIO before using the number buttons. • The top and bottom of the preference screen may not be displayed on a wide TV. - Page 32 Preferences (continued) AUDIO Items Contents ( DIGITAL Select an output signal type from the AUDIO following in accordance with the device OUTPUT connected to the digital audio output terminal (AV amplifier, etc.). (See the list below for the preference items and output signal.) PCM ONLY: Device corresponding only to linear PCM.
-
Page 33: Country/Area Codes
Country/Area codes Andorra United Arab Emirates Afghanistan Antigua and Barbuda Anguilla Albania Armenia Netherlands Antilles Angola Antarctica Argentina American Samoa Austria Australia Aruba Azerbaijan Bosnia and Herzegovina Barbados Bangladesh Belgium Burkina Faso Bulgaria Bahrain Burundi Benin Bermuda Brunei Darussalam Bolivia Brazil Bahamas Bhutan... -
Page 34: Listening To A Radio Broadcast
Listening to a radio broadcast You can tune in to FM or AM. Selecting a station Press FM/AM. Each time you press the button, the band will be alternated between FM and AM. Example: Press TUNING to select the station (frequency). Automatic tuning: Cursor Hold down TUNING... -
Page 35: Tuning In To A Preset Station
Tuning in to a preset station Presetting stations in the system allows you to easily tune in to a station. NOTE Set the remote control mode selector to AUDIO before using the number buttons. Presetting stations The system stores up to 30 FM stations and up to 15 AM stations. -
Page 36: Listening To The Sound Of Other Audio Device
Listening to the sound of other audio device Connect the other audio device to this system in advance (A page 10). Press AUX. The source changes to AUX. Play the other audio device. For details, refer to the manual of the device connected. -
Page 37: Sleep Timer
Sleep Timer When the time you specify elapses, the system will be turned off by itself. Press SLEEP. Each time you press the button, the time indicated on the display window on the main unit changes (in minutes). Example: When Sleep Timer is set to 60 minutes (Blinking) Sleep Timer will be automatically set in a few... -
Page 38: Using Av Compu Link
Using AV COMPU LINK When the TV set or device to be connected is a JVC product equipped with the AV COMPU LINK- II or -III jack, connecting them to the AV COMPU LINK jack on the system will allow you to control the other devices by operating one device. -
Page 39: Troubleshooting
Troubleshooting When you encounter a problem that seems to be a fault, check the following points before contacting your JVC service center: Power source 7 Power does not come on. • The power cord is not connected to the main unit or an AC outlet. -
Page 40: Language Codes
Troubleshooting (continued) Others 7 It is not possible to switch audio or subtitles between languages. • The disc does not contain 2 or more languages. → If only a single language is recorded on the disc, switching to another language is impossible. -
Page 41: Specifications
Specifications General Ó Power source: AC 120 V Power consumption: 24 W (in operation) 0.8 W (on standby) Weight: 3.0 kg (6.7 lbs) External dimensions 232 mm M 100 mm M 269 mm (W M H M D): inches inches DVD player Playable discs: DVD VIDEO, DVD AUDIO, VCD, Super VCD, CD, CD-R/RW (CD,... - Page 42 To prevent electrical shock, do not open the cabinet. There are no user serviceable parts inside. Please refer to qualified service personnel for repairs. Accessories To purchase accessories for your JVC product, please call toll free: 1 (800)882-2345 or on the web at www.JVC.com...
- Page 43 BT-51005-5 (0301)
- Page 44 2004 Victor Company of Japan, Limited 1004SKMMODJSC...
- Page 45 COMPACT COMPONENT SYSTEM SYSTEME DE COMPOSANTS COMPACT EX-A1 Consists of CA-EXA1 and SP-EXA1 Se compose de CA-EXA1 et SP-EXA1 INSTRUCTIONS MANUEL D’INSTRUCTIONS LVT1284-003A...
- Page 46 Warnings, cautions and others / Mises en garde, précautions et indications diverses CAUTION To reduce the risk of electrical shocks, fire, etc.: 1. Do not remove screws, covers or cabinet. 2. Do not expose this appliance to rain or moisture. ATTENTION Afin d’éviter tout risque d’électrocution, d’incendie, etc.: 1.
- Page 47 IMPORTANT FOR LASER PRODUCTS / IMPORTANT POUR PRODUITS LASER 1. CLASS 1 LASER PRODUCT 2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel. 3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated.
- Page 48 Warnings, cautions and others (continued) / Mises en garde, précautions et indications diverses (suite) For Canada/pour le Canada CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND.
- Page 49 Table of contents Introduction Warnings, cautions and others...G-1 Special cautions ...2 About discs...3 Description of parts ...5 Getting started Using the remote control ...6 Putting the batteries in the remote control ... 6 Operating the TV using the remote control... 7 Connecting up ...8 Basic operations Playing discs ...12...
-
Page 50: Special Cautions
Special cautions Notes on handling 7 Important cautions Installation of the system • Select a place which is level, dry and neither too hot nor too cold; between 5°C and 35°C. • Leave sufficient distance between the system and the •... -
Page 51: About Discs
About discs Playable disc types This system has been designed to play back the following discs: DVD VIDEO, DVD AUDIO, VCD, SVCD, CD This system can also play back the following discs: • Finalized DVD-R/RW discs recorded in the DVD VIDEO format. - Page 52 About discs (continued) Disc structure DVD VIDEO A DVD VIDEO consists of “titles” and each title may be divided into “chapters”. Title 1 Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 2 DVD AUDIO A DVD AUDIO consists of “groups” and each group may be divided into “tracks”.
-
Page 53: Description Of Parts
Description of parts The numbers represent the page numbers. Front panel Play/Pause:12, 14 11,12 STANDBY/ON : 12 Open/Close : 12 PHONES Headphones jack* * Connect a pair of headphones (commercially available) with a stereo mini plug. If the headphones are connected, the speakers and subwoofer will not produce any sound. -
Page 54: Using The Remote Control
Using the remote control The numbers represent the page numbers. 15, 17 14, 32 19, 28 33, 34 Putting the batteries in the remote control One touch replay: 15 Remote control mode selector: 7 14, 32 19, 28 Number buttons: 7, 15 If the range or effectiveness of the remote control decreases, replace the batteries. -
Page 55: Operating The Tv Using The Remote Control
This page is for when operating your TV using the remote control of this product. Operating the TV using the remote control Setting the manufacturer's code Slide the remote control mode selector to the TV side. Keep pressing down F TV. NOTE Keep pressing down F TV until Step 4 is complete. -
Page 56: Connecting Up
Connecting up Connecting antennas Connecting AM loop antenna (supplied) Set up the AM loop antenna. Connect antenna cords. Main unit How to insert antenna cords (rear panel) Connect two antenna cords as described above. If the antenna cord is covered with vinyl on the Black White tip, twist and pull the vinyl... - Page 57 Connecting up Connecting speakers There is no difference between the left and right speakers. Speaker cord Speaker terminal Speaker cord (supplied) Without black line With black line Main unit (rear panel) Right speaker (rear panel) CAUTION • DO NOT connect more than one speaker to one speaker terminal.
- Page 58 Connecting up (continued) Connecting other devices This page is for when connecting the main unit with other devices. Connecting subwoofer With an amplifier-built in subwoofer (sold separately), you can enjoy a more dynamic bass sound. Refer to the manual of the subwoofer for details. Amplifier-built-in subwoofer (sold separately) Connecting with other audio device...
- Page 59 Connecting up Connecting with TV Supplied composite video cord CAUTION Connect the main unit directly with a TV (or a monitor) without routing through a VCR. Otherwise it may cause picture distortion while playing. Main unit Connecting directly Also, when connecting the main unit to a TV with a VCR built in, there may be picture distortion while playing.
-
Page 60: Playing Discs
Playing discs Playback • The power will be turned on when any of on the main unit and on the remote control is pressed while the power is off. If any button other than pressed, the source will also be changed (if there is a disc loaded, playback will start). -
Page 61: To Switch The Display
Display window during disc playback Example: When a DVD VIDEO or DVD AUDIO is played If “BONUS” or “B.S.P.” is displayed during a DVD AUDIO playback, refer to page 27. Example: When a SVCD or VCD is played • PBC (Play Back Control): A signal recorded in a VCD (version 2.0) for controlling playback. -
Page 62: Select What You Want To Play By Using The Number Buttons
Playing discs (continued) Select what you want to play by using the number buttons NOTE • Set the remote control mode selector to AUDIO before using the number buttons. • For a VCD or SVCD, this operation can be carried out when the disc is stopped, or during playback without the PBC function. -
Page 63: Playing Back From A Position 10 Seconds Before (One Touch Replay)
Playing back from a position 10 seconds before (One Touch Replay) Press during playback. NOTE • This operation may not be carried out for some discs. • It is not possible to go back to the immediately previous title. Slow Motion Playback Press SLOW or SLOW pause. -
Page 64: To Change The Brightness Of The Display Window (Dimmer)
Playing discs (continued) To change the brightness of the display window (DIMMER) Press DIMMER repeatedly. • The modified brightness will be stored even after the power is turned off. The items below can be carried out for all sources. Adjusting the volume Press AUDIO VOL +/–. - Page 65 Playback Display of an MP3 disc is described here as an example. For a JPEG disc, read “track” as “file”. NOTE When playing a disc containing both MP3 and JPEG files, set one of them to be played ( Load a disc. Elapsed time of the track currently being TV screen played (MP3 only).
-
Page 66: Resume Playback
Resume Playback When playback is stopped in the middle, playback can be started from the stopped scene. This is called Resume function. How to suspend playback Perform any of the following operations during playback. Press 7 once.* Press F AUDIO to turn off the power. Change the source to FM/AM or AUX.* * Even if the power is turned off by pressing F AUDIO after this, the position where playback... -
Page 67: Select The Scene To Be Played
Select the scene to be played NOTE Set the remote control mode selector to AUDIO before using the number buttons. Select from the menu Press MENU or TOP MENU while the disc is stopped or during playback • The disc menu screen will be displayed. •... -
Page 68: Program Playback/Random Playback
Program Playback/Random Playback NOTE Set the remote control mode selector to AUDIO before using the number buttons. Play the disc in the desired order (Program Playback) It is possible to program a maximum of 99 tracks or chapters. The same track or chapter can be programmed more than once. - Page 69 To program on the display window on the main unit, operate as follows. (1) Select a group/title using the number buttons. Display example of the upper display window: T2 C-- (2) Designate a track/chapter number using the number buttons. Display example of the upper display window: T2 C3 •...
-
Page 70: Repeat Playback
Repeat Playback Refer to page 17 for Repeat Playback of MP3 and JPEG files. Playing the title/chapter/ group/track/all tracks repeatedly (REPEAT) Press REPEAT during playback. Each time you press the button, the Repeat type will be alternated. Example: Display window on the main unit TV screen CHAP For DVD VIDEO... - Page 71 Playing the designated part repeatedly (A-B Repeat Playback) Press ON SCREEN twice during playback. The menu bar (A page 28) will be displayed. Press cursor2 /3 to select Press ENTER. Press cursor5 // to display Other Repeat modes can be selected here. For other Repeat modes, refer to “Playing the title/chapter/group/track/all tracks repeatedly (REPEAT)”...
-
Page 72: Other Convenient Functions
Other convenient functions Selecting the subtitles (only for moving image) Press SUBTITLE during playback of a disc containing subtitles in several languages. Example: • Each time you press the button, the subtitle will be alternated between ON/OFF. Press cursor5 // to select a subtitle language. -
Page 73: Enlarging The Picture (Zoom)
Enlarging the picture (ZOOM) (only for moving image) Press ZOOM during playback or while paused. • Each time you press the button, the picture magnification will be changed. • (For a JPEG) You cannot change the picture magnification during slide-show playback. -
Page 74: Creating Realistic Sound (Virtual Surround)
Other convenient functions (continued) Creating realistic sound (VIRTUAL SURROUND) The two speakers produce an effect resembling surround-sound. Press VIRTUAL SURROUND during playback. Example: • Each time you press the button, the display toggles as follows. ACTION : Suitable for action movies, sport programs or other lively programs. -
Page 75: Functions Specific To Dvd Audio
Functions specific to DVD AUDIO NOTE Set the remote control mode selector to AUDIO before using the number buttons. Playing the Bonus Group There are some DVD AUDIO discs with a special group, called “Bonus Group”, recorded. NOTE This operation can be carried out when “BONUS” is lit on the display window on the main unit. -
Page 76: Using The Menu Bar
Using the menu bar NOTE • Set the remote control mode selector to AUDIO before using the number buttons. • This operation can be carried out when there is a disc loaded. There are some functions that may not work while the disc is stopped. Press ON SCREEN twice. -
Page 77: Preferences
Preferences The initial settings of the system can be changed according to the environment the system is used NOTE • Set the remote control mode selector to AUDIO before using the number buttons. • The top and bottom of the preference screen may not be displayed on a wide TV. - Page 78 Preferences (continued) AUDIO Items Contents ( DIGITAL Select an output signal type from the AUDIO following in accordance with the device OUTPUT connected to the digital audio output terminal (AV amplifier, etc.). (See the list below for the preference items and output signal.) PCM ONLY: Device corresponding only to linear PCM.
-
Page 79: Country/Area Codes
Country/Area codes Andorra United Arab Emirates Afghanistan Antigua and Barbuda Anguilla Albania Armenia Netherlands Antilles Angola Antarctica Argentina American Samoa Austria Australia Aruba Azerbaijan Bosnia and Herzegovina Barbados Bangladesh Belgium Burkina Faso Bulgaria Bahrain Burundi Benin Bermuda Brunei Darussalam Bolivia Brazil Bahamas Bhutan... -
Page 80: Listening To A Radio Broadcast
Listening to a radio broadcast You can tune in to FM or AM. Selecting a station Press FM/AM. Each time you press the button, the band will be alternated between FM and AM. Example: Press TUNING to select the station (frequency). Automatic tuning: Cursor Hold down TUNING... -
Page 81: Tuning In To A Preset Station
Tuning in to a preset station Presetting stations in the system allows you to easily tune in to a station. NOTE Set the remote control mode selector to AUDIO before using the number buttons. Presetting stations The system stores up to 30 FM stations and up to 15 AM stations. -
Page 82: Listening To The Sound Of Other Audio Device
Listening to the sound of other audio device Connect the other audio device to this system in advance (A page 10). Press AUX. The source changes to AUX. Play the other audio device. For details, refer to the manual of the device connected. -
Page 83: Sleep Timer
Sleep Timer When the time you specify elapses, the system will be turned off by itself. Press SLEEP. Each time you press the button, the time indicated on the display window on the main unit changes (in minutes). Example: When Sleep Timer is set to 60 minutes (Blinking) Sleep Timer will be automatically set in a few... -
Page 84: Using Av Compu Link
Using AV COMPU LINK When the TV set or device to be connected is a JVC product equipped with the AV COMPU LINK- II or -III jack, connecting them to the AV COMPU LINK jack on the system will allow you to control the other devices by operating one device. -
Page 85: Troubleshooting
Troubleshooting When you encounter a problem that seems to be a fault, check the following points before contacting your JVC service center: Power source 7 Power does not come on. • The power cord is not connected to the main unit or an AC outlet. -
Page 86: Language Codes
Troubleshooting (continued) Others 7 It is not possible to switch audio or subtitles between languages. • The disc does not contain 2 or more languages. → If only a single language is recorded on the disc, switching to another language is impossible. -
Page 87: Specifications
Specifications General Ó Power source: AC 120 V 60 Hz Power consumption: 24 W (in operation) 0.8 W (on standby) Weight: 3.0 kg External dimensions (W M H M D): 232 mm M 100 mm M 269 mm DVD player Playable discs: DVD VIDEO, DVD AUDIO, VCD, Super VCD, CD, CD-R/RW (CD, VCD, MP3, JPEG format), DVD-R/... - Page 88 EN, FR 2004 Victor Company of Japan, Limited 1004SKMMODJSC...
