Clarion am/fm cd/mp3/wma player built-in dsp/eq with touch panel owner's manual (59 pages)
Summary of Contents for Clarion DXZ938R

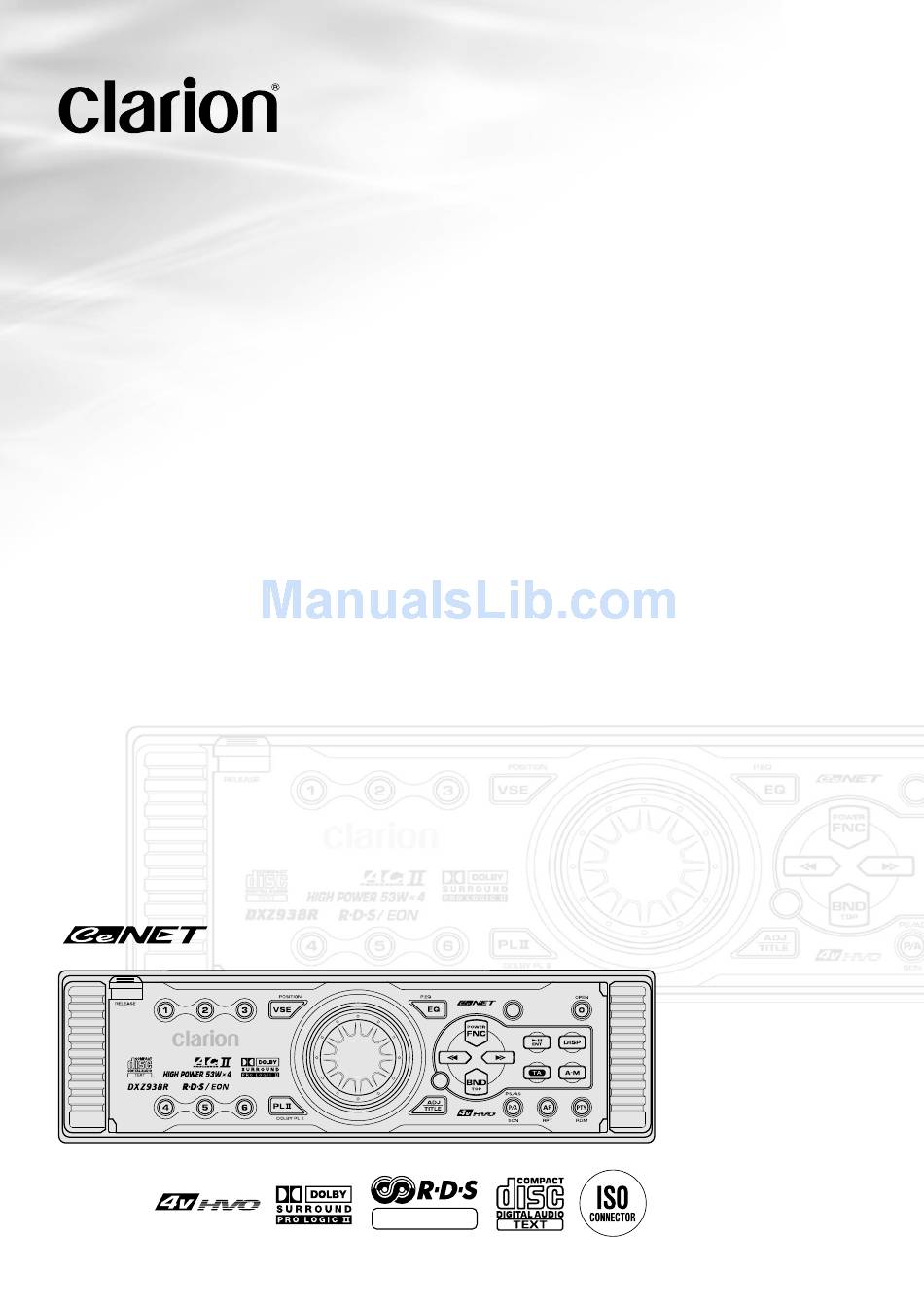

Page 1
Owner’s manual / Mode d’emploi Bedienungsanleitung / Istruzioni per l’uso Gebruiksaanwijzing / Manual de instrucciones Bruksanvisning / Manual de instruções DXZ938R HIGH END RDS-EON AM/FM RADIO CD-PLAYER COMBINATION • COMBINE RADIO AM/FM RDS-EON-LECTEUR CD HAUT DE GAMME • VIELSEITIGE RDS-EON AM/UKW-CD-SPIELER- KOMBINATION •...
Page 2
Thank you for purchasing this Clarion product. Please read this owner’s manual in its entirety before operating this equipment. After reading this manual, be sure to keep it in a handy place (e.g., glove compartment). Check the contents of the enclosed warranty card and keep it carefully with this manual.
To correct this play, with the power on for the unit, press the [O] button to close the DUAL ACTION. Handling Compact Discs back out of the CD player or it may damage Use only compact discs bearing the the CD player. mark.
Observera: Vik ut denna sida för att kunna se figurerna över bilstereons framsida medan du läser de olika kapitlen. Nota: Certifique-se de abrir esta página e consulte os diagramas frontais conforme realiza a leitura de cada capítulo. DXZ938R 3. NOMENCLATURE Note: •...
• The DCP may jump out of the DCP case hous- ing the DCP when the case is opened ener- getically. Note: • If the DCP is dirty, wipe off the dirt with a soft, dry cloth only. DXZ938R...
Some of the corresponding buttons on the main unit and remote control unit have different functions. Loading Batteries 1. Open the battery cover. 2. Insert the supplied lithium battery (CR2032) with the plus + symbol facing up and close the battery cover. DXZ938R Volume control Search BND (Band) button Top button...
Attachment to a right hand drive car Attachment to a right hand drive car Attachment to a right hand drive car Align Holder Holder Clearance Holder Steering wheel remote control unit Holder Screw with washer (2.6 Steering wheel remote control unit DXZ938R...
AUX mode Radio mode... External equipment not connected with CeNET is not displayed. DXZ938R Note:Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 5 (unfold). Adjusting the volume Turning the [ROTARY] knob clockwise increases the volume;...
Page 9
If a CT data is not being received, “CT––:––” ap- pears in the display. Note: • CT data is not transmitted in some countries and by some broadcast stations. Also, in some areas, the CT may not display accurately. DXZ938R...
Dolby Pro Logic II effect. Also press the [VSE] button or [EQ] button to turn off the Dolby Pro II. DXZ938R Adjusting Dolby Pro Logic II Operation 1. Select Dolby Pro Logic II mode and press and hold the [TITLE] button for 1 second or longer to enter “ADJ”...
Page 11
1. Press the [VSE] button to enter POSITION mode. 2. Press the Band button to select “POS BASIC”. 3. Press the [DIRECT] button to select VSE menu as below. 1.FRONT-L 2.FRONT-R 3.FRONT 4.REAR 5.FULL SEAT 4. Press the [VSE] button to return to the previ- ous mode. DXZ938R...
Page 12
6. Press the [TITLE] button to return to the pre- vious mode. Factory default setting is P.EQ DXZ938R Operation P.EQ A full range of frequency level can be minutely corrected with a smooth curve by frequency cor- rection in accordance with car models. Six kinds of P.EQ basic menus have been pre-stored in...
Manual memory 1. Select the desired station with seek tuning, manual tuning or preset tuning. 2. Press and hold one of the [DIRECT] buttons for 2 seconds or longer to store the current station into preset memory. DXZ938R...
• Be careful not to press and hold the [P/A] button for 2 seconds or longer, otherwise the auto store function is engaged and the unit starts storing stations. DXZ938R RDS Operations RDS (Radio Data System) This unit has a built-in RDS decoder system that supports broadcast stations transmitting RDS data.
Page 15
With “TA” lit in the display, press and hold the [P/A] button for 2 seconds or longer. The TP stations with the good reception sensitivity are stored into preset memory. Even if you select FM1 or FM2, a TP station is stored into memory for FM3. DXZ938R...
2. Select PTY. 3. Press the [a] or [d] button. If you press the [d] button, the unit seeks a PTY broad- DXZ938R cast moving up the frequencies; if you press the [a] button, it seeks moving down the frequencies.
Play starts automatically. If no CD is loaded in the unit, “NO DISC” appears in the display. Pausing play 1. Press the [ ] button to pause play. “PAUSE” appears in the display. 2. To resume CD play, press the [ again. mark and ] button DXZ938R...
Page 18
Press and hold the [a] button for 1 second or longer. DXZ938R Top function The top function resets the CD player to the first track of the disc. Press the [BND] button to play the first track (track No. 1) on the disc. Scan play The scan play locates and plays the first 10 sec- onds of each track on a disc automatically.
1. Press the [TITLE] button for 1 second or longer to enter ADJ mode. 2. Press the [a] or [d] button to select the “CONTRAST”. Small letters Numbers Umlaut Capital letter… ] button for 2 ] button for 1 sec- DXZ938R...
Page 20
This system has an external RCA input so you can listen to sounds and music from external devices connected to this unit. DXZ938R Selecting AUX IN sensitivity Make the following settings to select the sensi- tivity when sounds from external devices con- nected to this unit are difficult to hear even after adjusting the volume.
Page 21
2. Press the [a] or [d] button to select “TEL- SWITCH”. 3. Turn the [ROTARY] knob clockwise or coun- terclockwise to select the setting. Each time you turn the [ROTARY] knob, the setting changes in the following order: DXZ938R...
Page 22
• When installing this device or transferring it into another vehicle, for the sake of safety, always have this work done by the store of purchase or your nearest Clarion dealer. Installation requires specialized techniques and experience. DXZ938R Setting Auto Volume sensitivity 1.
1. Press the [P/A] button to start track scan- ning. “SCN” lights in the display. 2. To cancel the scan play, press the [P/A] but- ton again. “SCN” goes off from the display and the current track continues to play. DXZ938R...
2. To cancel random play, press the [PTY] but- ton again. “RDM” goes off from the display and normal play resumes. DXZ938R Disc random play The disc random play selects and plays indi- vidual tracks or discs automatically in no par- ticular order.
If there are not 6 stations with good reception, stations previously stored in memory remain and only the strong stations are stored into memory. 1. Press the [BND] button and select the de- sired TV band (TV1 or TV2). DXZ938R...
Page 26
OFF: Sets the diver setting to OFF. 4. Press the [TITLE] button to return to the pre- vious mode. DXZ938R Digital Radio / DAB Operations DAB control function When a CeNET cable is used to connect a DAB (DAH913 or DAH9500z) (sold separetely), all functions can be operated.
Page 27
• “TP” may be lit in the display when a TP broad- cast is transmitted from an RDS station. In this case, press the [TA] button to perform TP seek tuning. Press the [TA] button again to return to the previous mode. DXZ938R...
Page 28
SPECIAL TRAVEL 4. Perform the following operation depending on the connected model. DXZ938R Turn the [ROTARY] knob clockwise or counterclock wise to set the information item for ON or OFF. 5. Press the [TITLE] button to return to the pre- vious display.
Hold down the [d] button for 1 second or longer to fast forward. Press the [a] button for 1 second or shorter to decrement chapters. Hold down the [a] button for 1 second or longer to fast backward. DXZ938R...
Poor sound quality The equalizer levels are too high. DXZ938R Cause Replace with a fuse of the same amperage. If the fuse blows again, consult your store of pur- chase. Consult your store of purchase.
MD changer. This is a failure of MD changer’s mechanism and consult your store of purchase. Replace with a non-scratched, non-warped disc. Eject the disc then reload it properly. Load a pre-recorded MD in the MD changer. Measure DXZ938R...
Page 32
If an error display other than the ones described above appears, press the reset button. If the problem persists, turn off the power and consult your store of purchase. DXZ938R Cause This is a failure of dvd mechanism and con- sult your store of purchase.
Plage dynamique: 96 dB (1 kHz) Distorsion: 0,01% Remarque: • La conception et les caractéristiques techniques sont sujettes à modification sans préavis pour des raisons d’amélioration. DXZ938R General Output Power: 4 31 W (DIN 45324, +B=14.4V) Power Supply Voltage: 14.4 V DC (10.8 to 15.6 V allowable),...
