Summary of Contents for iHome iH36

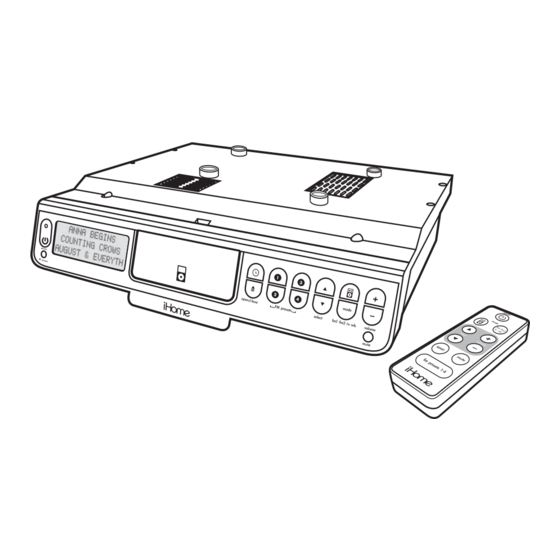

- Page 1 Model iH36...
-
Page 3: Table Of Contents
Caution Information... 3 A Consumer Guide to Product Safety ... 4-6 Safety Instructions FCC Information iH36 Mounting / Installation Instruction... 7-9 Getting Started ... 10-11 Install AC Power Install iPod Insert Install/Replace Backup Battery Batteries information Install/Replace the Remote Control Battery To check for iPod compatibility Controls and Indicators... -
Page 4: Caution Information
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user of the presence of uninsulated “dangerous voltage”... -
Page 5: A Consumer Guide To Product Safety
A Consumer Guide to Product Safety When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. - Page 6 A Consumer Guide to Product Safety 8. Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled into any openings or vents located on the product. 9. Attachments – Do not use attachments not recommended by the product manufacturer. 10.
-
Page 7: Fcc Information
A Consumer Guide to Product Safety This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 8: Ih36 Mounting / Installation Instruction
Select a convenient kitchen cabinet with adequate clearance near a working 120 volt electrical outlet. Make sure the power cord reaches the outlet easily, with some extra. Empty the cabinet completely before attempting to install the iH36, and thoroughly clean (remove any grease, etc. from) the cabinet. - Page 9 Mounting/Installation Instructions Step 1. Measure the overhang height Use a ruler or tape measure to determine the exact amount of overhang, if any. Measure from the front inside bottom edge of the cabinet bottom straight down to the end of the overhang (see figure 1) to determine the height of the overhang.
- Page 10 4 screws through any spacers into the mounting holes on the unit. Make sure the unit is supported until the screws are tightened. NOTE: For secure mounting, the screws must go into the iH36 at least 3/8". OPTION: You may prefer to countersink the drilled holes from inside the cabinet if you have the correct countersink attachment for your drill.
-
Page 11: Getting Started
Install iPod Insert Your iH36 comes with 3 removable inserts and a rubber pad to ensure your iPod fits properly in the iPod drawer. Please see below table to insert/replace rubber pad to fit your iPod. -
Page 12: Install/Replace Backup Battery
To check for iPod compatibility iH36 is an advanced system and supports most updated iPod features. To make sure your iPod works properly with iH36, please update your iPod firmware with the latest version. Please check Apple’s website for the same. -
Page 13: Controls And Indicators
Controls and Indicators Manual Dock Release Tab Power On LED Power On/Off Button Select Up/FF Button Timer Button µ iPod Play/Pause Button Dock Open/Close Button Preset Button Select Down/Rew Button Volume + Button Radio Mode Button Mute Button Volume – Button Power On/Off Button Play/Pause Button Radio Mode Button... -
Page 14: Maintenance
Note: Please make sure you are using the correct insert for your iPod (see Install iPod Insert on page 10) and that it is . Failure to do so may damage your iPod. properly docked into the iH36 1. Press the Dock Open/Close Button to open the iPod dock then dock your iPod into it. -
Page 15: Listening To Ipod
1. Dock the already playing iPod. The iH36 will automatically turn on and you will hear the music playing from your iPod. Note: If the playing song/ music loudness on the iPod itself is too low, the iH36 may not detect that the iPod is in play mode. -
Page 16: Listening To Fm Radio, Tv And Weather Band
Listening to FM Radio, TV and Weather Note: Extend FM wire antenna fully for best reception. 1. Press the Radio Mode Button on the main unit or the remote control to play the radio. The radio frequency/channel will appear on the lower part of the display. 2. -
Page 17: Operating The Cooking Timer
The cooking timer can be set at one minute intervals between 1-120 minutes. 1. Press the Timer Button once to activate the cooking timer. 2. You will see "60" on the display (meaning the cooking timer will sound after 60 minutes). To adjust the timer, press and hold the Timer Button until the display flashes. -
Page 18: Trouble Shooting
On/Off button), and try getting closer to (within 10 feet of) the unit. Pull Manual Dock Release Tab (located center top of unit) Press play on your Shuffle, then the iPod button on the iH36 Either let the 5G iPod remain idle for up to 90 seconds until the... - Page 19 Síntoma La unidad no La unidad se encuentra desconectado del funciona (no circula tomacorrientes corriente eléctrica) El tomacorriente no funciona El iPod no encastra No ha colocado el encastre del iPod, o está utilizando el encastre incorrecto. correctamente El iPod no encastra correctamente El ícono de batería Las baterías están gastadas baja está...
- Page 20 Tire de la lengüeta de destrabe (en la parte superior de la unidad) Oprima play en el Shuffle, luego el botón iPod en el iH36 Deje el iPod 5G sin usar por 90 segundos hasta que se desbloquee, o reajustelo oprimiendo el botones MENU y el centro SELECT por 6-10 segundos hasta que el logotipo de Apple aparezca.
-
Page 21: Warranty Information
Limited 90-Day Warranty Information iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI Technologies), warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of 90 days from the date of original purchase.
