Page 1: Precautions

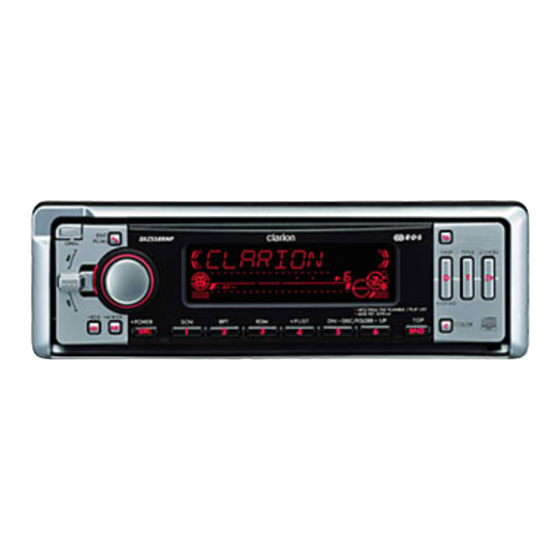

Owner’s manual / Mode d’emploi Bedienungsanleitung / Istruzioni per l’uso Gebruiksaanwijzing / Manual de instrucciones Bruksanvisning / Manual de instruções DXZ558RMP CD/MP3/WMA Receiver / CeNET Control • Récepteur CD/MP3/WMA: commande CeNET • CD/MP3/WMA Empfänger/CeNET-Steuerung • Lettore CD/MP3/WMA con ricevitore/Controllo CeNET •... -
Page 2: Handling Compact Discs
Thank you for purchasing this Clarion product. ∗ Please read this owner’s manual in its entirety before operating this equipment. ∗ After reading this manual, be sure to keep it in a handy place (e.g., glove compartment). ∗ Check the contents of the enclosed warranty card and keep it carefully with this manual. -
Page 3: Table Of Contents
Bitte ausbreiten und die nächste Seite lesen. / Volgende pagina uitvouwen en doorlezen a.u.b. / Glöm inte att vika ut och läsa nästa sida. / DXZ558RMP • Do not use commercially available CD protection sheets or discs equipped with stabilizers, etc. These may damage the disc or cause breakdown of the internal mechanism. -
Page 4: Nomenclature
Observera: Vik ut denna sida för att kunna se figurerna över bilstereons framsida medan du läser de olika kapitlen. Nota: Certifique-se de abrir esta página e consulte os diagramas frontais conforme realiza a leitura de cada capítulo. DXZ558RMP 3. NOMENCLATURE Note: •... -
Page 5: Major Button Operations When External Equipment Is Connected To This Unit
• Store a station into memory or recall it directly. [ADJ] buttons • Press and hold the [ADJ] button for 1 second or longer to switch to the TV picture mode or VTR (external) picture mode. [a, d] lever • Select a station. DXZ558RMP... -
Page 6: Display Items
LCD Screen In extreme cold, the screen movement may slow down and the screen may darken, but this is normal. The screen will recover when it returns to normal temperature. DXZ558RMP Operation status indication Titles, PS names, CT(clock), etc. are displayed. -
Page 7: Dcp
DCP is an extremely important part. Be careful not to damage it by pressing on it with fingernails, screwdrivers, etc. Note: • If the DCP is dirty, wipe off the dirt with a soft, dry cloth only. DXZ558RMP... -
Page 8: Remote Control
• Do not subject battery to heat, or dispose of in fire or water. Do not attempt to disassemble the battery. • Dispose of used batteries properly. DXZ558RMP Signal transmitter [ BND ] [ a ], [ d ]... -
Page 9: Functions Of Remote Control Unit Buttons
MP3/WMA mode. Switches reception band. Moves preset channels up and down. No function. Preset scan. When pressed and held for 2 seconds or longer: Auto store. No function. Switches between TV and VTR. DXZ558RMP... -
Page 10: Operations
∗ External equipment not connected with CeNET is not displayed. ∗ If AUX is set in AUX/TEL, AUX mode can be selected. DXZ558RMP Note:Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 5 (unfold). Adjusting the volume 1. - Page 11 3. When the adjustment is complete, press the [A-M] button several times until the function mode is reached. Note: • During A-M adjustment mode, if no operation is performed for more than 7 seconds, this mode can be cancelled and return to previous mode. DXZ558RMP...
-
Page 12: Radio Operations
• CT data is not transmitted in some countries and by some broadcast stations. Also, in some areas, the CT may not display accurately. DXZ558RMP Radio Operations Listening to the radio 1. Press the [SRC] button and select the radio mode. -
Page 13: Radio Operations
] button again to continue receiving that station. Note: • Be careful not to press and hold the [ for 2 seconds or longer, otherwise the auto store function is engaged and the unit starts storing stations. DXZ558RMP ] button... -
Page 14: Rds Operations
“AF” in the display goes off and AF function turns off. 4. Press the [ADJ] button to return to the previous mode. DXZ558RMP ∗ If the reception of the current broadcast station deteriorates, “PI SEARCH” appears in the display and the radio searches for the same programme on another frequency. - Page 15 1. Press and hold the [ADJ] button for 1 second or longer to switch to the RDS adjustment selection display. 2. Press the [a, d] lever upward or downward to select “PTY-SEL <E>”. 3. Press the [ ] button. DXZ558RMP...
- Page 16 The 29 types of PTY below can be selected. 5. If you press and hold any one of the [DIRECT] buttons for 2 seconds or longer, the selected PTY is stored into that preset channel memory. DXZ558RMP PTY item ENGLISH Contents News...
-
Page 17: Cd/Mp3/Wma Operations
1. Always add a file extension “.MP3” or “.WMA” to MP3 or WMA file by using single byte letters. If you add a file extension other than specified or forget to add the file extension , the file cannot be played. DXZ558RMP... - Page 18 CD type track only Play CD MP3/WMA type track only Play MP3/WMA DXZ558RMP 2. After making these settings, remove the disc and then reinsert it. 3. When a mixed mode CD is loaded and CD is set, the track to be played first is MP3/WMA file data and no sound is heard.
-
Page 19: Selecting A Track
∗ Press the [UP] button while in the final folder to shift to the first folder. ∗ Folder without an MP3/WMA file is not selectable. 2. To select a track, press the [a, d] lever upward or downward . Root folder DXZ558RMP... - Page 20 This function allows you to play all the tracks of all the folders recorded on an MP3/WMA disc in a random order. DXZ558RMP 1. Press and hold the [RDM] button for 1 second or longer to perform folder random play.
-
Page 21: Operations Common To Each Mode
Message up to 30 characters long can be stored in memory and displayed as a type of screen saver setting. ∗ The factory default setting is “Welcome to Clarion”. 2-1. Select “MSG INP <E>”. 3-1. Press the [ ] button. -
Page 22: Operations Common To Each Mode
∗ The factory default setting is “AUX MID”. 2-1. Select “AUX SENSE”. 3-1. Turn the [ROTARY] knob to select “AUX LOW”, “AUX MID” or “AUX HIGH”. DXZ558RMP Setting the car speaker output for the cellular phone (Optional TEL-002) ∗ The factory default setting is “RIGHT”. -
Page 23: Clearing Titles
5. Press and hold the [ seconds or longer to clear the title and cancel title input mode. 50 titles 20 titles 100 titles 100 titles Numbers Symbols Capital letters... ] button for 2 ] button for 2 DXZ558RMP... -
Page 24: Operations Of Accessories
User title (disc) CD-text title (disc) name CD-text title (track) (disc)… DXZ558RMP Notes: • If the CD playing is not a CD-text CD or no user title has been input, “NO TITLE” appears in the display. • If a CD-text CD is not input its disc title or a track title, “NO TITLE”... -
Page 25: Tv Operations
“TV AREA <E>”. 3. Press the [ ] button. 4. Turn the [ROTARY] knob to select the reception area. 5. Press the [ ] button. 6. Press the [ADJ] button to return to the previous mode. DXZ558RMP... -
Page 26: Digital Radio/Dab Operations
OFF: Sets the diver setting to OFF. 4. Press the [ADJ] button to return to the previous mode. DXZ558RMP Digital Radio / DAB Operations DAB control function When a CeNET cable is used to connect a DAB (DAH913 or DAH923) (sold separately), all functions can be operated. - Page 27 Weather Area weather flash Event Event announcement Special Special event 1. Perform the following operation depending on the connected model. Press and hold the [ADJ] button for 1 second or longer to switch to the RDS adjustment selection display. DXZ558RMP...
-
Page 28: In Case Of Difficulty
DCP or main unit connectors are dirty. No sound heard. The speaker protection circuit is operating. DXZ558RMP For the following items, see “RDS Operations” (page 16) AF function ∗ If the reception of the current broadcast station deteriorates, “SEARCHING” appears in the display and the radio searches for the same programme on another frequency. -
Page 29: Specifications
Main unit: 1.3 kg Remote control unit: 40 g (including battery) Dimensions: Main unit : 178 (W) Remote control unit : 44 (W) Measure 25 W (DIN 45324, +B=14.4V) 50 (H) 157 (D) mm 110 (H) 11 (D) mm DXZ558RMP... -
Page 30: Error Displays
