Harman Kardon AVR 7200 Quick Start Manual

Thank you for purchasing a Harman Kardon AVR 7200. This Quick-Start
Guide will help you with a basic system installation. For detailed information
on any step, please refer to the Owner's Manual pages referenced in this
guide. We strongly recommend that you read the Owner's Manual for
complete details on how to install, configure and operate the AVR 7200,
as well as for the important safety information it contains.

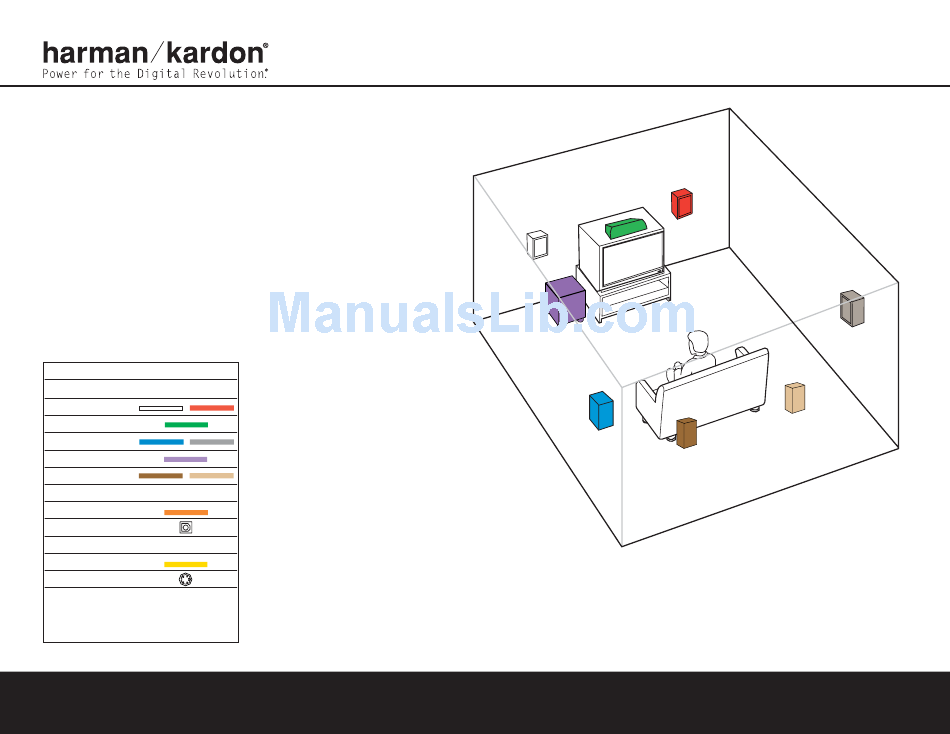

Figure 1 – Speaker Placement
The colors shown for each speaker correspond to
the matching output terminal connection on the
back of the AVR 7200 (see page 8).
Connections Color Guide
Audio Connections Left Right
Front
Center
Surround
Subwoofer
Surround Back
Digital Audio Connections
Coax
Optical
Video Connections
Composite
S-Video
Match the colored jacks on the AVR 7200 to the
appropriate jacks on your source equipment or speakers.
The colors are standardized, but not all equipment or
connectors use them.
AVR 7200 QUICK-START GUIDE
FRONT
RIGHT
SPEAKER
CENTER
SPEAKER
(Green)
FRONT
LEFT
SPEAKER
(Red)
(White)
SUBWOOFER
(Purple)
SURROUND
LEFT
SPEAKER
(Blue)
SURROUND
BACK
LEFT
SPEAKER
(Brown)
SURROUND
RIGHT
SPEAKER
(Gray)
SURROUND
BACK
RIGHT
SPEAKER
(Tan)
Step 1. Place your speakers in the listening room
(see page 18).
SPEAKER PLACEMENT
