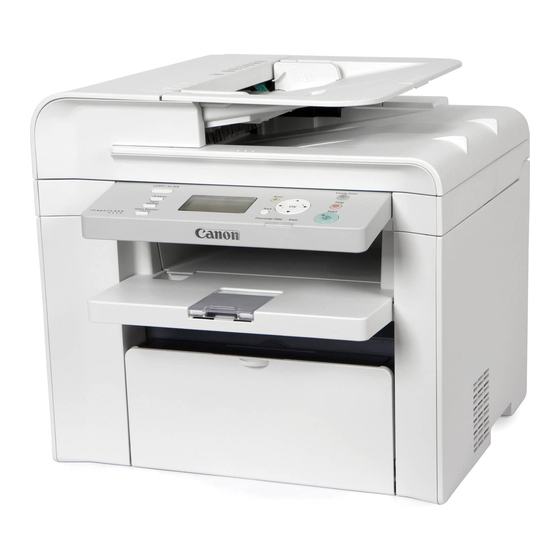

Canon imageCLASS D550 Starter Manual
Black & white laser multifunction
Hide thumbs
Also See for imageCLASS D550:
- Starter manual (37 pages) ,
- Basic operation manual (116 pages) ,
- Basic operation manual (164 pages)
Table of Contents
Advertisement
Starter Guide
Read this guide first.
Please read this guide before operating this
product.
The remarks for important safety
instructions are described in "Basic
Operation Guide." Read the guide also.
After you finish reading this guide, store it in
a safe place for future reference.
1
2
3
Preface
Next Page
Installing the Machine
P. 6
Connecting to a Computer
and Installing the Drivers
P. 14
Appendix
P. A-1
Advertisement
Table of Contents
Related Manuals for Canon imageCLASS D550
Summary of Contents for Canon imageCLASS D550
- Page 1 Starter Guide Read this guide first. Please read this guide before operating this product. The remarks for important safety instructions are described in "Basic Operation Guide." Read the guide also. After you finish reading this guide, store it in a safe place for future reference. Preface Installing the Machine Connecting to a Computer...
- Page 2 Setting Up the Machine to Suit Your Needs Determine which machine functions (Copy, Print, Scan) you intend to use, and make settings according to the flowchart below. Carrying the Machine to the Installation Site and Removing the Packing Materials Loading Paper P.
-
Page 3: Supplied Toner Cartridge
The average yield of the replacement toner cartridge differs from which of the supplied toner cartridge. To purchase replacement toner cartridges, see "About Replacement Toner Cartridge" in the Connecting the Machine To a Computer If an item is missing or damaged, please contact our Canon Authorized Service Facilities or the Canon Customer Care Center. - Page 4 User Software CD-ROM About the Drivers and Software The drivers and software included in the CD-ROM supplied with this machine are as follows. MF Drivers Printer driver You can print from an application using the machine by installing the printer driver on your computer.
-
Page 5: Basic Operation Guide
Preface Installing the Machine About the Supplied Manuals Read this manual first. This manual describes the settings for setting up the machine and installing the software. Be sure to read this manual before using the machine. Read this manual next. This manual describes the basic use of the machine. -
Page 6: Remove The Packing Materials
Carr ying the Machine to the Installation Site and Removing the Packing Materials Carry the machine to the installation site. Hold the grips. Remove the packing materials. Remove the packing materials. Remove the tape while opening the paper cassette. Carry the machine. * The packing materials may be changed in form or placement, or may be added or removed without notice. -
Page 7: Preparing The Toner Cartridges
Preface Installing the Machine Remove the packing materials with tape. Check! Did you remove all the packing materials? Tape Packing materials with tape Packing material Preparing the Toner Cartridges Lift the scanning platform. Hold the operation panel. Connecting the Machine To a Computer Close the feeder. - Page 8 Open the toner cover. Hold the grip on the left front side of toner cover. Remove the packing materials from the toner cartridge, and then distribute the toner. Turn the sheet to the back. Remove the packing material. This part (a plastic part attached to the end of paper) is also a packing material.
- Page 9 Preface Installing the Machine Remove the packing material. Insert the toner cartridge. Fit the protrusions on each side of the toner cartridge into the guides located on each side of the machine, and then slide the toner cartridge into the machine. Protrusion Close the toner cover, and then lower the scanning platform.
-
Page 10: Loading Paper
Loading Paper Lift the dust cover. Load the paper, and then adjust the paper guides. Spread the paper guides. Spread the paper guides a little wider than the paper size. When changing the size of the paper to be loaded Be sure to set the paper size. -
Page 11: Connecting The Power Cord
Preface Installing the Machine Close the dust cover. Additional preparations for printing Connecting the Power Cord Ensure that the machine is off. O F F Do not connect the USB cable. Connect the USB cable when installing the software. Connecting the Machine To a Computer Pull out the output tray extension. -
Page 12: Turn On The Machine
Turning the Power ON and Specifying the Initial Settings Turn ON the machine. Specify initial settings. Press [ ] or [ ] to select, and then press [OK]. Language English French Portuguese Spanish Check and press [OK]. Open toner cover;see if orange packing material is removed. -
Page 13: Setting A Paper Size And Type
Preface Installing the Machine Setting a Paper Size and Type Press [ (Paper Settings). Press [ ] or [ ] to select, and then press [OK]. Paper Type Plain (16 lb Bond-24 Plain L (16 lb Bond Recycled Color Connecting the Machine To a Computer Press [ ] or [ ] to select, and... -
Page 14: Connecting The Machine To A Computer
Connecting the Machine To a Computer You can connect the machine to a computer via the USB connection. • For Windows Installing with USB Connection P. 15 Installing with USB Connection Connect the USB cable after installing the software. ... -
Page 15: For Windows
Preface Installing the Machine Installing with USB Connection Read the contents of the License Agreement. Click. Click. Click. Connecting the Machine To a Computer Click. Next, installation of MF Toolbox starts. * In Windows 2000 Server/Server 2003/2008, MF Toolbox is not installed. Proceed to Step Ensure that [ ] is added. -
Page 16: Connect The Usb Cable
Connect the USB cable. Remove cap plug. Remove by pulling the string. Connect the cable. • Flat end (A): Connect to the USB port on the computer. • Square end (B): Connect to the USB port on the machine. When a dialog box is displayed Follow the on-screen instructions and complete the installation. - Page 17 Preface Installing the Machine Checking the Installation Results Ensure that the MF Drivers and MF Toolbox are installed correctly. Ensure that the icons for the installed software are added as follows. Software Location Printer folder Windows 2000 From the [Start] menu, select [Settings] → [Printers]. ...
-
Page 18: Installing The Software
Installing the Software The scanning function can be used only with a USB connection. (It cannot be used with a network connection.) Connect the USB cable after installing the software. The installation screen varies depending on the version of MAC OS X. Close all applications Insert the CD-ROM. -
Page 19: Connecting A Usb Cable
Preface Installing the Machine Connecting a USB Cable Perform the following procedure only when connecting this machine to Macintosh with a USB cable. Remove the cap plug. Remove by pulling the string. Connecting the Machine To a Computer (For Macintosh) Connect the cable. -
Page 20: Registering The Printer
You can use the drivers when the registration of this machine is completed. The computer is connected with the scanner. Open the Image Capture application of your Mac OS X. When [Canon D500 Series] appears in the following locations, the installation of the driver was successful. • Mac OS X 10.4.x/10.5.x The pull-down menu displayed by clicking [Devices] in the menu bar. - Page 21 Preface Installing the Machine Using the e -Manual Page configuration of the e-Manual When you start the e-Manual, the screen below is displayed. Click to refer to the contents, glossary, and how to use the e-Manual. Click a button for the function which you want to use or desired information.
- Page 22 For Macintosh Installing the e-Manual on your computer Insert the User Software CD-ROM in your computer. Open the [Manuals] folder. Drag and drop the [MF Guide] folder into a location where you want to save it. When displaying the installed e-Manual, double-click [index.html] in the saved [MF Guide] folder. Displaying the e-Manual directly from the CD-ROM Insert the User Software CD-ROM in your computer.
-
Page 23: If You Want To Uninstall The Installed Software
You have closed all applications on your computer Delete the software. For Windows For the printer/scanner driver From the [Start] menu, click [(All) Programs] → [Canon] → [D500 Series] → [Uninstall Drivers]. Click. For MF Toolbox From the [Start] menu, click [(All) Programs] →... - Page 24 /Library/Printers/Canon/ /Library/LaunchAgents/ • When using Mac OS X 10.4.x: Printer Driver /Library/Printers/PPDs/Contents/Resources/en.Iproj/ • When using Mac OS X 10.5 or later: /Library/Printers/PPDs/Contents/Resources/ /Applications/Canon MF Utilities/ /Library/Application Support/Canon/ /Library/Application Support/Canon/ Scanner Driver / /Library/Application Support/Canon/ MF Toolbox /Library/Image Capture/Devices/* /Library/Image Capture/TWAIN Data Sources/ * Only when using Mac OS X 10.6...
- Page 25 Canon Inc. Trademarks Canon, the Canon logo, and imageCLASS are registered trademarks of Canon Inc. in the United States and may also be trademarks or registered trademarks in other countries. Apple, Mac OS, and Macintosh are trademarks or registered trademarks of Apple Inc. in the U.S. and/or other countries.
