Product End-of-Life Disassembly Instructions
Product Category: Personal Computers
Marketing Name / Model
[List multiple models if applicable.]

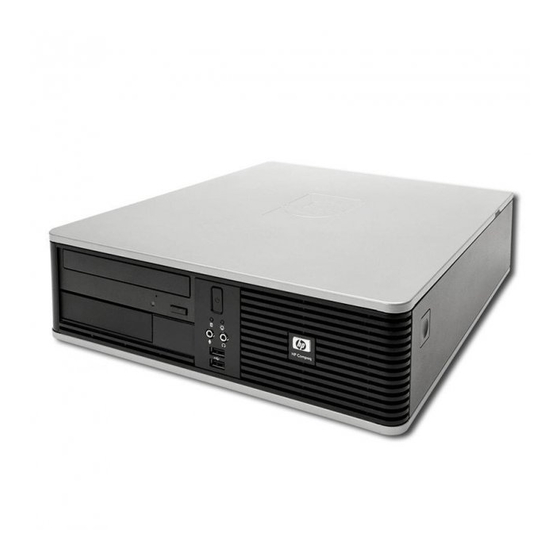

Name / Model #1: HP Compaq dc5800 Small Form Factor Business PC
Name / Model #2
Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions
for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU
directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).
1.0 Items Requiring Selective Treatment
1.1 Items listed below are classified as requiring selective treatment.
1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as
applicable.
Item Description
Printed Circuit Boards (PCB) or Printed Circuit
Assemblies (PCA)
Batteries
Mercury-containing components
Liquid Crystal Displays (LCD) with a surface greater
than 100 sq cm
Cathode Ray Tubes (CRT)
Capacitors / condensers (Containing PCB/PCT)
Electrolytic Capacitors / Condensers measuring
greater than 2.5 cm in diameter or height
External electrical cables and cords
Gas Discharge Lamps
Plastics containing Brominated Flame Retardants
Components and parts containing toner and ink,
including liquids, semi-liquids (gel/paste) and toner
Components and waste containing asbestos
Components, parts and materials containing
refractory ceramic fibers
Components, parts and materials containing
radioactive substances
EL-MF877-00
Template Revision A
Notes
With a surface greater than 10 sq cm
All types including standard alkaline and lithium coin
or button style batteries
For example, mercury in lamps, display backlights,
scanner lamps, switches, batteries
Includes background illuminated displays with gas
discharge lamps
Include the cartridges, print heads, tubes, vent
chambers, and service stations.
Quantity
of items
included
in product
2 or 3 (1
sys board,
1 or 2 P/S
PCAs
1
2, 4, or 5
Page 1

Advertisement

loading

Summary of Contents for HP Compaq dc5800

  • Page 1 Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).
  • Page 2 (2). HP uses seven different power supply vendors. The power supply cover is removed using the same procedure for each power supply; however, the internal components differ for all of the power supplies. To remove the power supply cover: a.
  • Page 3 POWER SUPPLY 1: 1. Using dikes, cut all wires connected to the PCA in the power supply. 2. Remove the three screws that secure the power supply PCA to the chassis (see Figure 11). 3. Remove the power supply PCA from the power supply chassis. 4.
  • Page 4 3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items contained in the product that require selective treatment (with descriptions and arrows identifying locations). FIGURE 1: Removing the access panel. FIGURE 2: Removing the front bezel FIGURE 3: Type 1 battery holder EL-MF877-00 Template Revision A...
  • Page 5 FIGURE 4: Type 2 battery holder FIGURE 5: Type 3 battery holder FIGURE 6: Removing the system board – screw locations EL-MF877-00 Template Revision A Page 5...
  • Page 6 FIGURE 7: Removing the power supply FIGURE 8: Power supply cover screw locations (top) FIGURE 9: Power supply cover screw locations and plastic tie locations EL-MF877-00 Template Revision A Page 6...
  • Page 7 FIGURE 10: Power supply cover screw locations FIGURE 11: POWER SUPPLY 1: PCA screw locations and capacitors (2) to cut FIGURE 12: POWER SUPPLY 2: PCA screw locations; Capacitors (4) to cut EL-MF877-00 Template Revision A Page 7...
  • Page 8 FIGURE 13: POWER SUPPLY 3: Large PCA screw locations; Capacitors (5) and small PCA to cut FIGURE 14: POWER SUPPLY 4: PCA screw locations; Capacitors (5) to cut EL-MF877-00 Template Revision A Page 8...
  • Page 9 FIGURE 15: POWER SUPPLY 5: PCA screw locations; Capacitors (5) to cut FIGURE 16: POWER SUPPLY 6: PCA screw locations; Capacitors (4) to cut EL-MF877-00 Template Revision A Page 9...
  • Page 10 FIGURE 17: POWER SUPPLY 7: Large PCA screw locations; Capacitors (4) and small PCA to cut EL-MF877-00 Page 10 Template Revision A...
