HP Compaq dc5700 MT Supplementary Manual

Illustrated Parts & Service Map

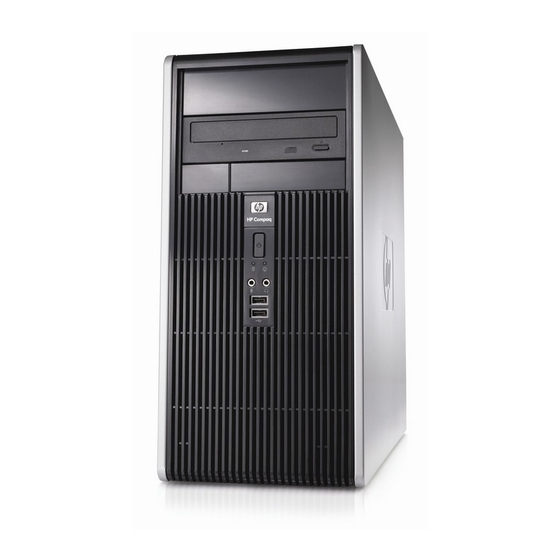

HP Compaq dc5700 Microtower
Business PC
©
2006 Hewlett-Packard Development Company, L.P. The information con-
tained herein is subject to change without notice. HP shall not be liable for
technical or editorial errors or omissions contained herein. Intel, Pentium,
Intel Inside, and the Intel logo are trademarks or registered trademarks of the
Intel Corporation and its subsidiaries in the U. S. and other countries.
Document Number 439125-002
Key Specifications
Processor Type: Intel Celeron D, Pentium 4 HT, Intel Core 2 Duo, or
Pentium Core 2 Duo
RAM Type: DDR PC2-5300 non-ECC
Maximum RAM Supported: 4 GB
Expansion Bus: PCI 2.3 (2), PCI-E x1 (1), and PCI-E x16 for SDVO
graphics (1)
Graphics Adapter Integrated controller. SDVO support on PCI-E x16 slot.
Hard drive interface: SATA 3.0 Gb/s
I/O Interfaces: Serial (1 std + 1 optional), parallel (1), USB 2.0 (8), RJ-
45 (1), front and rear audio jacks (2 each)

Spare Parts

System Unit
1 Chassis
2 Front bezel assembly with 3.5-in. bezel blank (not
shown) and 5.25 in. bezel blank (item 5)
3 Access panel
4 Power supply, 300W
5 5.25-in bezel blank
* Not shown
dc5700 Illustrated Parts & Service Map, MT Chassis
2nd Edition November 2006.
not spared
432864-001
433124-001
434795-001
335937-005
Cables
1 SATA HDD cable, 18-in. lg (1 straight, 1 angle end) 393958-001
2 SATA HDD cable, 19-in. lg (2 straight ends)
* Diskette drive cable
3 Front I/O with USB, audio cables, power/LED
cable, switch and switch holder
* DMS-59 to dual VGA cable adapter
*Not shown
Keyboards (not illustrated)
PS/2, Basic
PS/2, Basic, 105 key
USB, Basic
USB, Basic, BG1650
USB SmartCard
USB, SmartCard, 105 key
USB, Basic, 105 key
[2]
Arabic
[3]
Belgian
[4]
BHCSY
[4]
Brazilian Portuguese
[4]
Czech
[3]
Danish
[4]
Finnish
[5]
French
[1]
French Arabic
[1]
French Canadian
[5]
German
[6]
Greek
[1]
Hebrew
[4]
Hungarian
[5]
International
[3]
Italian
[1]
Japanese
[8]
Kazakh
[1]
only for 382925-xxx, 382926-xxx, 382926-xxx, and 393670-xxx
[2]
only for 396215-xxx, 396216-xxx, and 396219-xxx
[3]
only for 396215-xxx, 396216-xxx, 393670-xxx, and 382927-xxx
[4]
only for 396215-xxx, 382726-xxx, and 393670-xxx
[5]
only for 396215-xxx, 382926-xxx, 382927-xxx, and 393670-xxx
[6]
only for 382925-xxx, 396217-xxx, and 396219-xxx
[7]
only for 382925-xxx, 382926-xxx, and 393670-xxx
[8]
only for 396215-xxx and 382926-xxx
[9]
only for 382925-xxx, and 382926-xxx
439125-002
391739-001
439216-001
432862-001
339257-001
382925-xxx
396215-xxx
382926-xxx
382927-xxx
393670-xxx
396219-xxx
396217-xxx
-171 [1] AD1
Korean (Hangul)
-181 [7] -161
LA Spanish
-B41 [8] -331
Netherlands
-201 [1] -091
Norwegian
-221 [1] -AA1
PRC
-081 [1] -131
Portuguese
-351 [8] -271
Romanian
-051 [2] -251
Russian
-DE1 [4] -231
Slovakian
-121 [1] -071
Spanish
-041 [5] -101
Swedish
-151 [3] -111
Swiss
-BB1 [1] -AB1
Taiwanese
-211 [4] -281
Thai
-B31 [1] -141
Turkish
-061 [1] -001
U.S.
-291 [9] -BD1
Ukranian
-DF1 -031
[1]
U.K.
page 1
