Hardware Reference Guide

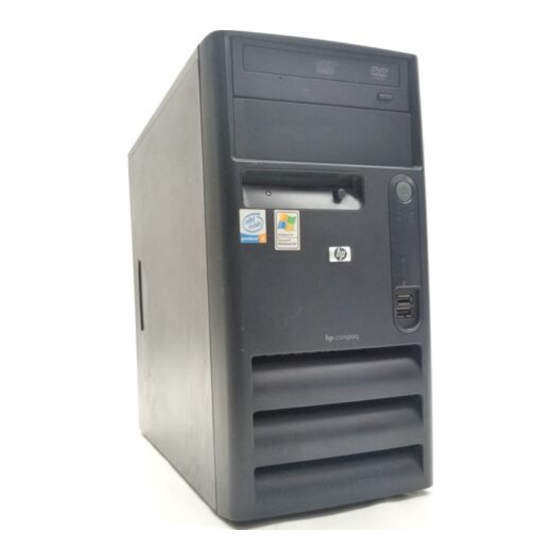

HP Compaq d220 and d230 Microtower
Document Part Number: 326324-002
June 2003
This guide provides basic information about upgrading this series of
computers.

Advertisement

Table of Contents
loading

Summary of Contents for HP Compaq d220 MT

  • Page 1 Hardware Reference Guide HP Compaq d220 and d230 Microtower Document Part Number: 326324-002 June 2003 This guide provides basic information about upgrading this series of computers.
  • Page 2 The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty.
  • Page 3: Table Of Contents

    1 Hardware Upgrades Serviceability Features ..........1–1 Warnings and Cautions .
  • Page 4 Contents Grounding Methods........... . 4–2 Index Hardware Reference Guide...
  • Page 5: Hardware Upgrades

    HP Compaq d220 and d230 Microtower Serviceability Features The Microtower computer includes features that make it easy to upgrade and service. No tools are needed for most of the installation procedures described in this chapter. Hardware Reference Guide Hardware Upgrades...
  • Page 6: Warnings And Cautions

    Hardware Upgrades Warnings and Cautions Before performing upgrades be sure to carefully read all of the applicable instructions, cautions, and warnings in this guide. Å WARNING: To reduce the risk of personal injury from electrical shock and/or hot surfaces, be sure to disconnect the power cord from the wall outlet and allow the internal system components to cool before touching.
  • Page 7 Hardware Upgrades 4. Slide the access panel back about 1 inch (2.5 cm), then lift it away from and off the unit. Removing the Access Panels To replace the access panel, reverse the removal steps. ✎ The two access panels are physically identical. One access panel has captive thumbscrews that may be removed by unscrewing them.
  • Page 8 Hardware Upgrades 5. To remove the front bezel, grasp the bottom of the front panel Removing the Front Bezel To install the front bezel, insert the top two latches into their respective holes in the chassis and push the bezel in until it is fully seated.
  • Page 9: Removing Front Drive Bezels

    Removing Front Drive Bezels 1. Turn off the computer properly through the operating system and 2. Disconnect the power cord from the power outlet and the 3. Remove the access panel. 4. Remove the front bezel. 5.25” Drive Bezel Blank Press one of the retaining tabs on the inside of the large bezel towards the outer edge of the bezel to release the bezel blank.
  • Page 10: Diskette Drive Bezel

    Hardware Upgrades Diskette Drive Bezel Pull the right retaining tab towards the center of the main bezel. At the same time, pull the bezel inwards to remove it from the main bezel. Removing the Bezel Blank To install a diskette drive bezel, reverse the removal procedure. Installing Additional Memory The computer comes with Double Data Rate-Synchronous Dynamic Random Access Memory (DDR-SDRAM) Dual Inline Memory...
  • Page 11: Installing Memory Modules

    For proper system operation, if the system supports DDR-SDRAM DIMMs, the DIMMs must be industry-standard 184-pin, unbuffered PC 2100 266 MHz-compliant CAS Latency 2 or 2.5 (CL = 2 or CL = 2.5), or PC 2700 333 MHz-compliant CAS Latency 2.5 (CL = 2.5) 2.5 volt DDR-SDRAM DIMMs.
  • Page 12 Hardware Upgrades 5. Open both latches of the memory module socket 1, and insert the Installing a Memory Module ✎ A memory module can be installed in only one way. Match the notch on the module with the tab on the memory socket. 6.
  • Page 13: Installing An Expansion Card

    Installing an Expansion Card 1. Turn off the computer properly through the operating system and 2. Disconnect the power cord from the power outlet and the 3. Remove the right access panel. 4. Lay the computer down on its side to make it easier to work on. If installing an expansion card in an empty slot, skip to step 10.
  • Page 14: Replacing Or Upgrading A Drive

    Hardware Upgrades Installing an Expansion Card ✎ When you install an expansion card, make sure you press firmly on the card so that the entire connector seats properly in the expansion card socket. 12. Install the screw at the top of the expansion slot to further secure 13.
  • Page 15: Drive Positions

    Ä CAUTION: Make sure personal files on the hard drive are backed up to an external storage device before removing the hard drive. Failure to do so will result in data loss. After replacing the primary hard drive, you will need to run the Restore Plus! CD to load the Compaq factory-installed files.
  • Page 16: Removing A 5.25" Drive

    Hardware Upgrades Removing a 5.25” Drive 1. Turn off the computer properly through the operating system and 2. Disconnect the power cord from the power outlet and the 3. Remove both the right and left access panels. 4. Remove the front bezel. 5.
  • Page 17: Removing A Diskette Drive

    To install a drive, reverse the removal procedure. ✎ If you are installing a 5.25” drive for the first time into bay 2 you must first remove the drive from bay 1 and then knock or pry out the metal shield that covers the front of bay 2.
  • Page 18: Removing The Lower Drive Cage

    Hardware Upgrades 6. Remove the four screws, two from each side, that secure the drive 7. Slide the drive out of the front of the chassis 2. Removing a Diskette Drive To replace the diskette drive, reverse removal procedure. Removing the Lower Drive Cage 1.
  • Page 19 7. Remove the four screws that secure the drive cage to the front of 8. Slide the lower drive cage back about 1/2 inch to release it from Removing the Lower Drive Cage To install the lower drive cage, reverse the removal procedure. Ä...
  • Page 20: Removing A 3.5" Hard Drive

    Hardware Upgrades Removing a 3.5” Hard Drive 1. Turn off the computer properly through the operating system and 2. Disconnect the power cord from the power outlet and the 3. Remove both the right and left access panels. 4. Remove the front bezel. 5.
  • Page 21: Battery Replacement

    Do not attempt to recharge the battery. Do not expose to temperatures higher than 140°F (60°C) Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water. Replace the battery only with the HP/Compaq spare designated for this product. 2–1...
  • Page 22 In order to forward them to recycling or proper disposal, please use the public collection system or return them to HP/Compaq, their authorized partners, or their agents. Ä CAUTION: Static electricity can damage the electronic components of the computer or optional equipment.
  • Page 23 Battery Replacement 6. When the battery pops up, lift it out. Removing the Battery Hardware Reference Guide 2–3...
  • Page 24 Battery Replacement 7. To insert the new battery, slide one edge of the replacement Inserting the Battery ✎ After the battery has been replaced, use the following steps to complete this procedure. 8. Replace the computer cover or access panel. 9.
  • Page 25: Routine Care & Shipping Information

    Routine Care & Shipping Information Routine Care Follow these suggestions to take care of your personal computer and monitor: ■ ■ ■ ■ ■ ■ ■ Hardware Reference Guide Operate the personal computer on a sturdy, level surface. Leave a 3-inch (7.6-cm) clearance at the back of the system unit and above the monitor to permit the required airflow.
  • Page 26: Cd-Rom Drive Precautions

    ■ ■ Safety If any object or liquid falls into the drive, immediately unplug the personal computer and have it checked by an authorized HP service provider. 3–2 Do not move the drive during operation. This may cause it to malfunction during reading.
  • Page 27: Shipping Preparation

    Shipping Preparation Follow these suggestions when preparing to ship your personal computer: 1. Back up the hard drive files onto the network or removable ✎ The hard drive locks automatically when the system power is turned off. 2. Remove and store separately any removable media and MultiBay 3.
  • Page 28 Routine Care & Shipping Information 3–4 Hardware Reference Guide...
  • Page 29: Electrostatic Discharge

    A discharge of static electricity from a finger or other conductor may damage system boards or other static-sensitive devices. This type of damage may reduce the life expectancy of the device. Preventing Electrostatic Damage To prevent electrostatic damage, observe the following precautions: ■...
  • Page 30: Grounding Methods

    If you do not have any of the suggested equipment for proper grounding, contact your HP authorized dealer, reseller, or service provider. ✎ For more information on static electricity, contact your HP authorized dealer, reseller, or service provider. 4–2 Use a wrist strap connected by a ground cord to a grounded workstation or computer chassis.
  • Page 31 battery microtower type 2 removal and replacement 2–1 care of equipment 3–1 CD-ROM drive cleaning and safety 3–2 drive microtower type 2 removal and replacement 1–12 microtower type 2, 3.5" drive removal 1–16 drive positions microtower type 2 1–11 electrostatic discharge grounding methods 4–2 preventing damage 4–1 Hardware Reference Guide...
  • Page 32 Index Index–2 Hardware Reference Guide...
