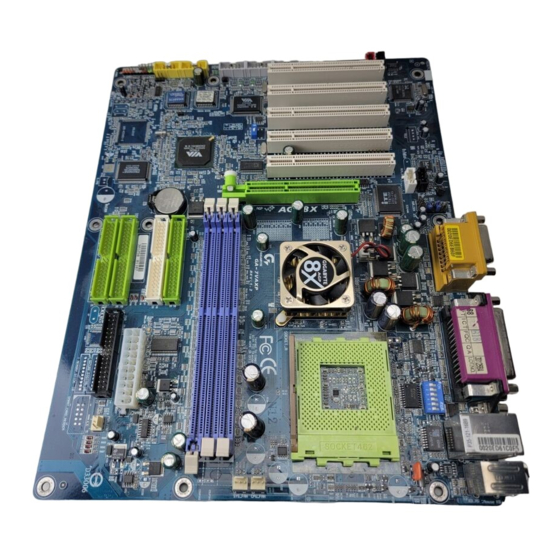

Gigabyte GA-7VAX User Manual

Kt400 series amd socket a processor motherboard
Hide thumbs Also See for GA-7VAX:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Enlarged version
When you installing AGP card, please make sure the following
notice is fully understood and practiced. If your AGP card has
"AGP 4X/8X(1.5V) notch"(show below), please make sure your AGP
card is AGP 4X/8X(1.5V).
AGP 4X/8X notch
Caution: AGP 2X(3.3V) card is not supported by VIA
KT400. You
®
might experience system unable to boot up normally. Please insert
an AGP 4X/8X(1.5V) card
Example 1: Diamond Vipper V770 golden finger is compatible with
2X/4X mode AGP slot. It can be switched between AGP 2X(3.3V) or 4X
(1.5V) mode by adjusting the jumper. The factory default for this card is
2X(3.3V).
The GA-7VAX / GA-7VAX1394 / GA-7VAXP / GA-7VAXP Ultra
(or any AGP 4X only) motherboards might not function properly, if you
install this card without switching the jumper to 4X(1.5) mode in it.
Example 2: Some ATi Rage 128 Pro graphics cards made by " Power
Color", the graphics card manufacturer & some SiS 305 cards, their
golden finger is compatible with 2X(3.3V)/4X(1.5V) mode AGP slot, but
they support 2X(3.3V) only. The GA-7VAX / GA-7VAX1394 / GA-7VAXP
/ GA-7VAXP Ultra (or any AGP 4X only) motherboards might not function
properly, If you install this card in it.
Note : Although Gigabyte's AG32S(G) graphics card is based on
ATi Rage 128 Pro chip, the design of AG32S(G) is compliance
with AGP 4X(1.5V) specification. Therefore, AG32S (G)will work
fine with VIA
KT400 based motherboards.
®
Before you install PCI cards, please remove the Dual BIOS
label from PCI slots if there is one.
