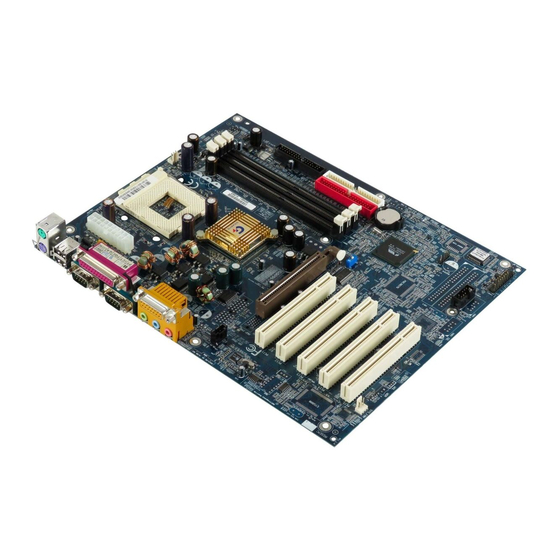

Amd athlontm/athlontm xp/durontm socket a processor motherboard
Hide thumbs Also See for GA-7DXE:

Advertisement

DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2. 1077(a)
Responsible Party Name: G.B.T. INC. (U.S.A.)
Address: 17358 Railroad Street
City of Industry, CA91748
Phone/Fax No: (818) 854-9338/ (818) 854-9339
hereby declares that the product
Product Name:
Mother Board
GA-7DXE
Model Number:
Conforms to the following specifications:
FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109(a),
Class B Digital Device
Supplementary Information:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1)
This device may not cause harmful
and
(2)
this device must accept any inference received, including
that may cause undesired operation.
Representative Person's Name:
ERIC LU
Eric Lu
Signature:
Date:
Mar. 22, 2002
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna
-Move the equipment away from the receiver
-Plug the equipment into an outlet on a circuit different from that to which
the receiver is connected
-Consult the dealer or an experienced radio/television technician for
additional suggestions
You are cautioned that any change or modifications to the equipment not
expressly approve by the party responsible for compliance could void Your
authority to operate such equipment.
This device complies with Part 15 of the FCC Rules. Operation is subjected to
the following two conditions 1) this device may not cause harmful interference
and 2) this device must accept any interference received, including interference
that may cause undesired operation.
FCC Compliance Statement:
This equipment has been tested and found to
comply with limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These
limits are designed to provide reasonable
protection
against
residential
installations.
generates,
uses,
frequency energy, and if not installed and used
in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause interference to radio or
television equipment reception, which can be
harmful
interference
This
equipment
and
can
radiate
in
radio

Advertisement

Table of Contents
loading

Summary of Contents for Gigabyte GA-7DXE

  • Page 1 City of Industry, CA91748 Phone/Fax No: (818) 854-9338/ (818) 854-9339 hereby declares that the product Product Name: Mother Board GA-7DXE Model Number: Conforms to the following specifications: FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109(a), Class B Digital Device Supplementary Information: This device complies with part 15 of the FCC Rules.
  • Page 2: Declaration Of Conformity

    Safety of household and similar electrical appliances (Stamp) Declaration of Conformity We, Manufacturer/Importer (full address) G.B.T. Technology Träding GMbH declare that the product Mother Board GA-7DXE is in conformity with EN 61000-3-2* EN60555-2 EN61000-3-3* EN60555-3 EN 50081-1 EN 50082-1 EN 55081-2...
  • Page 3 7DXE AMD Athlon /Athlon XP/Duron Socket A Processor Motherboard USER'S MANUAL AMD Athlon /Athlon XP/Duron Socket A Processor Motherboard REV. 3101 12ME-7DXE-3101...
  • Page 5 How This Manual Is Organized This manual is divided into the following sections: 1) Revision List 2) Item Checklist 3) Features 4) Installation Guide 5) Block Diagram 6) Suspend to RAM & Q-Flash 7) @BIOS & Easy Tune ™ 8) BIOS Setup 9) Technical Support/RMA Sheet 10) Appendix Manual revision information...
  • Page 6: Table Of Contents

    Revision History Item Checklist Feature Summary 7DXE Motherboard Layout Installation Guide Page Index for Connectors / Panel and Jumper Definition Block Diagram Suspend to RAM Installation Q-Flash Introduction @BIOS Introduction Easy Tune 4 Introduction Page Index for BIOS Setup Technical Support / RMA Sheet Appendix Table Of Content P.
  • Page 7: Revision History

    7DXE Motherboard Revision History Revision Revision Note Initial release of the 7DXE motherboard user’s manual. The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a commitment to update the information contained herein. Third-party brands and names are the property of their respective owners.
  • Page 8: Item Checklist

    Item Checklist Item Checklist The 7DXE Motherboard IDE cable x 1 Floppy cable x 1 CD for motherboard utilities 7DXE User’s Manual Quick PC Installation Guide...
  • Page 9: Feature Summary

    7DXE Motherboard Features Summary Form Factor Chipset 7DXE, consisting of: Memory I/O Control Slots On-Board IDE On-Board Peripherals 30.5 cm x 24.5 cm ATX size form factor, 4 layers PCB. Socket A processor AMD Athlon /Athlon XP/Duron 128K L1 & 256K/64K L2 cache on die Supports 1.4GHz and faster 200/266MHz FSB and DDR bus speeds (PCI 33MHz) AMD 761 Memory/PCI/AGP Controller...
  • Page 10: Mouse Interface

    Hardware Monitor On-Board Sound PS/2 Connector BIOS Additional Features CPU/System fan revolution detect CPU/System temperature detect System voltage detect CODEC Audio Line In/Line Out/Mic In/CD_In/Game Port  PS/2 Keyboard interface and PS/2 Licensed AWARD BIOS, 2M bit flash ROM Support External Modem Ring On Support USB &...
  • Page 11: 7Dxe Motherboard Layout

    7DXE Motherboard 7DXE Motherboard Layout Motherboard Ver: 2.0 KB_MS CD_IN PCI1 PCI2 PCI3 PCI4 PCI5 SYS_FAN CPU_FAN Socket A AMD 761 7DXE VT82C686B BAT1 Main BIOS USB2 F_PANEL...
  • Page 12: Dxe Motherboard Layout

    7DXE Motherboard Layout Motherboard Ver: 3.1 CPU_FAN KB_MS Socket A AMD 761 7DXE CD_IN BAT1 CLK_SW PCI1 VT82C686B PCI2 PCI3 Main PCI4 BIOS PCI5 USB2 F_PANEL SYS_FAN...
  • Page 13: Installation Guide

    Installation Guide Getting Started WARNING! Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To protect them against damage from static electricity, you should follow some precautions whenever you work on your computer. Unplug your computer when working on the inside.
  • Page 14 To set up your computer, you must complete the following steps: Step 1 - Set system jumpers Step 2- Install the Central Processing Unit (CPU) Step 3-Install memory modules Step 4-Install expansion cards Step 5-Connect ribbon cables, cabinet wires, and power supply Step 6-Set up BIOS software Step 7-Install supporting software tools Step 2...
  • Page 15 7DXE Motherboard CPU Speed Setup The system bus speed is selectable at 100/133MHz. The user can select the system bus speed by DIP switch SW1* or jumper CLK_SW**(For 100MHz or 133MHz). (The frequency ratio depend on CPU) SW1: CPU FREQ.* CLK_SW: CPU FREQ.** Please depend on your CPU frequency to setup.
  • Page 16 CPU Installation Please make sure the CPU should be supported to the motherboard. CPU Top View Socket Actuation Lever 1. Pull up the CPU socket lever and up to 90-degree angle. CPU Heat Sink Installation: Beware: Please check that the heat sink is in good contact with the CPU before you turn on your system.
  • Page 17 7DXE Motherboard 3.Align CPU and insert it 4.Use compliant fan approved by AMD. (Please refer to your heatsink installation manual for application of thermal grease to provide better heat conduction between your CPU and heatsink.) 5.Hook one end of the cooler bracket to the CPU socket. 6.
  • Page 18: Memory Installation

    Memory Installation The motherboard has 3 dual inline memory module (DIMM) sockets. The BIOS will automatically detects memory type and size. To install the memory module, just push it vertically into the DIMM Slot .The DIMM module can only fit in one direction due to the notch. Memory size can vary between sockets.
  • Page 19 7DXE Motherboard Total Memory Sizes With Unbuffered DDR DIMM Devices used on 1 DIMM DIMM x64/x72 64 Mbit 128 MBytes (2Mx8x4 banks) 64 Mbit 64 MBytes (1Mx16x4 banks) 128 Mbit 256 MBytes (4Mx8x4 banks) 128 Mbit 128 MBytes (2Mx16x4 banks) 256 Mbit 512 MBytes (8Mx8x4 banks)
  • Page 20: Ddr Introduction

    DDR Introduction Established on the existing SDRAM industry infrastructure, DDR (Double Data Rate) memory is a high performance and cost-effective solution that allows easy adoption for memory vendors, OEMs and system integrators. DDR memory is a sensible evolutionary solution for the PC industry that builds on the existing SDRAM infrastructure, yet makes awesome advances in solving the system performance bottleneck by doubling the memory bandwidth.
  • Page 21: Page Index For Connectors / Panel And Jumper Definition

    7DXE Motherboard Page Index for Connectors/Panel and Jumper Definition Connectors ATX Power COM A / COM B / LPT Port CD_IN (CD Audio Line In) CPU_FAN (CPU Fan) Floppy Port Game & Audio Port IDE 1 (Primary) / IDE 2 (Secondary) Port IR (IR Header) PS/2 Keyboard &...
  • Page 22: Connectors

    Connectors ATX Power Please note: AC power cord should only be inserted to your power supply unit after ATX power cable and other related devices are firmly connected to the mainboard. COM A / COM B / LPT Port Please note: This mainboard supports 2 standard COM ports and 1 LPT port.
  • Page 23: Usb Power

    7DXE Motherboard PS/2 Keyboard & PS/2 Mouse Connector Please note: This mainboard supports standard PS/2 keyboard and PS/2 mouse interface commector. USB1: Rear USB Connector Please note: Before you connect your device(s) into USB connector(s), please make sure your device(s) has a standard USB interface like, USB keyboard, mouse, scanner, zip, speaker…...
  • Page 24: Floppy Port

    USB2: USB Connector Please note: Be careful with the polarity of the front panel USB connector. Check the pin assignment while you connect the front panel USB cable. Please contact your nearest dealer for optional front panel USB cable. Floppy Port Pin No.
  • Page 25: Game & Audio Port

    7DXE Motherboard Game & Audio Port Please note: This motherboard supports standard audio port and game port. After install onboard audio driver. you may connector speaker to line out jack, micro phone to MIC in jack Device like CD-ROM , walkman etc can be connected to line-in jack. IDE1 (Primary), IDE2 (Secondary) Port Line Out 1 MIC In...
  • Page 26 CD_IN: CD Audio Line In CPU_FAN: CPU Fan Please note: A proper installation of the CPU cooler is essential to prevent the CPU from running under abnormal condition or damaged by overheating. Pin No. Definition CD-L CD-R Pin No. Definition Control +12V SENSE...
  • Page 27: Ir: Ir Header

    7DXE Motherboard SYS_FAN: System Fan IR: IR Header Please note: Be careful with the polarity of the IR connector while you connect the IR. Please contact you nearest dealer for optional IR device. Pin No. Definition Control +12V SENSE Pin No. Definition VCC (+5V) IR Data Input...
  • Page 28: Panel And Jumper Definition

    Panel And Jumper Definition F_PANEL: For 2X11 Pins Jumper GN (Green Switch) GD (Green LED) HD (IDE Hard Disk Active LED) SPK (Speaker Connector) RE (Reset Switch) P+P−P−(Power LED) PW (Soft Power Connector) Please note: Please connect the power LED, PC speaker, reset switch and power switch etc of your chassis front panel to the front panel jumper according to the pin assignment above.
  • Page 29: Bat1: Battery

    7DXE Motherboard BAT1: Battery CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.
  • Page 30: Block Diagram

    Block Diagram 2X/4X AGPCLK (66MHz) PCI Bus 33MHz AC-Link AC97 CODEC 5 PCI PCI (33MHz) Game Port AGPCLK (66MHz) PCI (33MHz) 48MHz 14.318MHz 33MHz CPUCLK (100/133MHz) AMD-K7 System Bus 100/133MHz 100/133MHz NPCLK (33MHz) AGPCLK (66MHz) 33MHz 14.318MHz 48MHz VT82C 686B Floppy LPT Port PS/2...
  • Page 31: Suspend To Ram Installation

    7DXE Motherboard Suspend To RAM Installation A.1 Introduce STR function: Suspend-to-RAM (STR) is a Windows 98/ME/2000 ACPI sleep mode function. When recovering from STR (S3) sleep mode, the system is able, in just a few seconds, to retrieve the last “state” of the system before it went to sleep and recover to that state. The “state” is stored in memory (RAM) before the system goes to sleep.
  • Page 32 Step 2: Power on the computer and as soon as memory counting starts, press <Del>. You will enter BIOS Setup. Select the item “POWER MANAGEMENT SETUP”, then select “ Type : S3(STR)”. Remember to save the settings by pressing "ESC" and choose the “SAVE &...
  • Page 33 7DXE Motherboard Define the system ”power on” button to initiate STR sleep mode: A. Double click “My Computer” and then “Control Panel” B. Double click the “ Power Management” item.
  • Page 34 C. Select the “Advanced” tab and “Standby” mode in Power Buttons. D. Restart your computer to complete setup. Now when you want to enter STR sleep mode, just momentarily press the “Power on” button. A.4 How to recover from the STR sleep mode? There are four ways to “wake up”...
  • Page 35 7DXE Motherboard A.5 Notices: In order for STR to function properly, several hardware and software requirements must be satisfied: Your ATX power supply must comply with the ATX 2.01 specification (provide more than 720 mA 5V Stand-By current). Your DDR SDRAM must be DDR-200 or DDR-266 compliant.
  • Page 36: Q-Flash Introduction

    Q-Flash Introduction What is Q-Flash Utility? Q-Flash utility is a pre-O.S. BIOS flash utility enables users to update its BIOS within BIOS mode, no more fooling around any OS. How to use Q-Flash? a. After power on the computer, pressing <Del> immediately during POST (Power On Self Test) it will allow you to enter AWARD BIOS CMOS SETUP, then press <F8>...
  • Page 37 7DXE Motherboard Load BIOS From Floppy In the A:drive, insert the “BIOS” diskette, then Press Enter to Run. XXXX.XX Total Size: 1.39M F5: Refresh Where XXXX.XX is name of the BIOS file. Press Enter to Run. Load XXX.XX Are you sure to update BIOS? [Enter] to Continue Or [Esc] to abort.
  • Page 38: Bios Tm Introduction

    Or you may want to keep a backup for your current BIOS, just choose “Save Current BIOS” to save it first. You make a wise choice to use Gigabyte, and @BIOS your BIOS smartly. You are now worry free from updating wrong BIOS, and capable to maintain and manage your BIOS easily.
  • Page 39: Easy Tune Tm 4 Introduction

    EasyTune 4, user can "Save" this setting and "Load" it in next time. Obviously, Gigabyte EasyTune 4 has already turned the "Overclock" technology toward to a newer generation. This wonderful software is now free bundled in Gigabyte motherboard attached in driver CD. Users may make a test drive of "EasyTune 4" to “Overclock"...
  • Page 40 4 Introduction find out more amazing features by themselves. *Some Gigabyte products are not fully supported by EasyTune 4. Please find the products supported list in the web site. *Any "Overclocking action" is at user's risk, Gigabyte Technology will not be responsible for any damage or instability to your processor, motherboard, or any other components.
  • Page 41: Page Index For Bios Setup

    7DXE Motherboard Page Index for BIOS Setup The Main Menu Standard CMOS Features Advanced BIOS Features Integrated Peripherals Power Management Setup PnP / PCI Configurations PC Health Status Frequency / Voltage Control Top Performance Load Fail-Safe Defaults Load Optimized Defaults Set Supervisor / User Password Save &...
  • Page 42: Entering Setup

    BIOS Setup BIOS Setup is an overview of the BIOS Setup Interface. The interface allows users to modify the basic system configuration, which is stored in battery-backed CMOS RAM so that the Setup information can be retained when the power is turned off. ENTERING SETUP Powering ON the computer and pressing <Del>...
  • Page 43: The Main Menu

    7DXE Motherboard GETTING HELP Main Menu The on-line description of the highlighted setup function is displayed at the bottom of the screen. Status Page Setup Menu / Option Page Setup Menu Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item.
  • Page 44 • Standard CMOS Features This setup page includes all the adjustable items in standard compatible BIOS. • Advanced BIOS Features This setup page includes all the adjustable items of Award special enhanced features. • Integrated Peripherals This setup page includes all onboard peripherals. •...
  • Page 45: Set User Password

    7DXE Motherboard • Set User Password Set Change or disable password. It allows you to limit access to the system. • Save & Exit Setup Save CMOS value settings to CMOS and exit setup. • Exit Without Saving Abandon all CMOS value changes and exit setup.
  • Page 46: Standard Cmos Features

    Standard CMOS Features The items in Standard CMOS Setup Menu (Figure 2) are divided into 9 categories. Each category includes none, one or more than one setup items. Use the arrows to highlight the item and then use the <PgUp> or <PgDn> keys to select the value in each item. CMOS Setup Utility-Copyright( C ) 1984-2002 Award Software Date (mm:dd:yy) Time (hh:mm:ss)
  • Page 47 7DXE Motherboard • Time The times format in <hour> <minute> <second>. The time is calculated based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. • IDE Primary Master / Slave, Secondary Master / Slave The category identifies the type of hard disk from drive C to F that has been installed in the computer.
  • Page 48 • Floppy 3 Mode Support (for Japan Area) Disabled Normal Floppy Drive. (Default value) Drive A Drive A is 3 mode Floppy Drive. Drive B Drive B is 3 mode Floppy Drive. Both Drive A & B are 3 mode Floppy Drives. •...
  • Page 49: Advanced Bios Features

    7DXE Motherboard Advanced BIOS Features CMOS Setup Utility-Copyright( C ) 1984-2002 Award Software First Boot Device Second Boot Device Third Boot Device Boot Up Floppy Seek VGA Boot from Figure 3: Advanced BIOS Features • First / Second / Third Boot Device Floppy Set your boot device priority to Floppy.
  • Page 50: Boot Up Floppy Seek

    • Boot Up Floppy Seek During POST, BIOS will determine if the floppy disk drive installed is 40 or 80 tracks. 360 type is 40 tracks while 720, 1.2 and 1.44 are all 80 tracks. Enabled BIOS searches for floppy disk drive to determine if it is 40 or 80 tracks.
  • Page 51: Integrated Peripherals

    7DXE Motherboard Integrated Peripherals CMOS Setup Utility-Copyright( C ) 1984-2002 Award Software IDE1 Conductor Cable IDE2 Conductor Cable OnBoard IDE1 OnBoard IDE2 USB Controller 1 USB Controller 2 USB Legacy Support AC97 Audio Enhance ATAPI Performance Onboard Serial Port A Onboard Serial Port B Serial Port B Mode Duplex Mode...
  • Page 52 • IDE2 Conductor Cable Auto Will be automatically detected by BIOS. (Default Value) ATA66/100 Set IDE2 Conductor Cable to ATA66/100 (Please make sure your IDE device and cable is compatible with ATA66/100). ATA33 Set IDE2 Conductor Cable to ATA33 (Please make sure your IDE device and cable is compatible with ATA33).
  • Page 53: Onboard Parallel Port

    7DXE Motherboard • Enhance ATAPI Performance If you wish to maximize the performance of your ATAPI devices , set “Enhance ATAPI Performance” as “Enabled” . Please note, enabling this function may cause your ATAPI devices become unstable. For power End-User use only. Disabled Disable Enhance ATAPI Performance.
  • Page 54: Ecp Mode Use Dma

    Disabled Disable onboard LPT port. 3BC/IRQ7 Enable onboard LPT port and address is 3BC/IRQ7. • Onboard Parallel Mode Normal Normal Operation. Using Parallel port as Enhanced Parallel Port. Using Parallel port as Extended Capabilities Port. (Default value) ECP/EPP Using Parallel port as ECP & EPP mode. •...
  • Page 55: Power Management Setup

    7DXE Motherboard Power Management Setup CMOS Setup Utility-Copyright( C ) 1984-2002 Award Software ACPI Sleep Type Suspend Time Out (Minute) Soft-Off by PBTN System after AC Back PME Event Wake Up ModemRingOn/WakeOnLan Resume by RTC Alarm X Date (of Month) Alarm X Time (hh:mm:ss) Alarm ↑↓→...
  • Page 56 • System After AC Back Last State When AC-power back to the system, the system will return to the Last state before AC-power off. When AC-power back to the system, the system will be in “Off” state. (Default Value) When AC-power back to the system, the system will be in ”On” state.
  • Page 57: Pnp/Pci Configurations

    7DXE Motherboard PnP/PCI Configurations CMOS Setup Utility-Copyright( C ) 1984-2002 Award Software PCI 4 IRQ Assignment PCI 1/5 IRQ Assignment PCI 2 IRQ Assignment PCI 3 IRQ Assignment ↑↓→ ←: Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults •...
  • Page 58: Pc Health Status

    PC Health Status CMOS Setup Utility-Copyright( C ) 1984-2002 Award Software CPU Fan Warning System Fan Warning Shutdown Temperature Current CPU Temp. Current System Temp. Current CPU Fan Speed Current System Fan Speed Vcore 3.3V ↑↓→ ←: Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults •...
  • Page 59 7DXE Motherboard 85°C / 185°F Set Shutdown Temperature to 85°C / 185°F. 90°C / 194°F Set Shutdown Temperature to 90°C / 194°F. 95°C / 203°F Set Shutdown Temperature to 95°C / 203°F. 100°C / 212°F Set Shutdown Temperature to 100°C / 212°F. 105°C / 221°F Set Shutdown Temperature to105°C / 221°F.
  • Page 60: Frequency/Voltage Control

    Frequency/Voltage Control CMOS Setup Utility-Copyright( C ) 1984-2002 Award Software CPU Frequency Control X CPU Clock ↑↓→ ←: Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults Figure 8: Frequency/Voltage Control • CPU Frequency Control Disabled Disable this function. (Default value) Enabled Enable this function to setup your CPU clock.
  • Page 61: Top Performance

    7DXE Motherboard Top Performance CMOS Setup Utility-Copyright( C ) 1984-2002 Award Software 4Standard CMOS Features 4Advanced BIOS Features 4 Integrated Peripherals Top Performance 4Power Management Setup 4PnP/PCI Configurations Disabled……..[■] Enabled……..[ 4PC Health Status 4 Frequency/Voltage Control ESC:Quit F8: Q-Flash ↑↓ : Move ESC: Abort •...
  • Page 62: Load Fail-Safe Defaults

    Load Fail-Safe Defaults CMOS Setup Utility-Copyright( C ) 1984-2002 Award Software 4Standard CMOS Features 4Advanced BIOS Features 4 Integrated Peripherals 4Power Management Setup Load Fail-Safe Defaults (Y/N)? N 4PnP/PCI Configurations 4PC Health Status 4 Frequency/Voltage Control ESC:Quit F8: Q-Flash Figure 10: Load Fail-Safe Defaults •...
  • Page 63: Load Optimized Defaults

    7DXE Motherboard Load Optimized Defaults CMOS Setup Utility-Copyright( C ) 1984-2002 Award Software 4Standard CMOS Features 4 Advanced BIOS Features 4Integrated Peripherals 4 Power Management Setup Load Optimized Defaults (Y/N)? N 4PnP/PCI Configurations 4 PC Health Status 4Frequency/Voltage Control ESC:Quit F8: Q-Flash Figure 11: Load Optimized Defaults •...
  • Page 64: Set Supervisor / User Password

    Set Supervisor / User Password When you select this function, the following message will appear at the center of the screen to assist you in creating a password. CMOS Setup Utility-Copyright( C ) 1984-2002 Award Software 4Standard CMOS Features 4Advanced BIOS Features 4 Integrated Peripherals 4Power Management Setup Enter Password:...
  • Page 65: Save & Exit Setup

    7DXE Motherboard Save & Exit Setup CMOS Setup Utility-Copyright( C ) 1984-2002 Award Software 4Standard CMOS Features 4Advanced BIOS Features 4 Integrated Peripherals 4Power Management Setup SAVE to CMOS and EXIT (Y/N)? Y 4PnP/PCI Configurations 4PC Health Status 4 Frequency/Voltage Control ESC:Quit F8: Q-Flash Type "Y"...
  • Page 66: Exit Without Saving

    Exit Without Saving CMOS Setup Utility-Copyright( C ) 1984-2002 Award Software 4Standard CMOS Features 4Advanced BIOS Features 4 Integrated Peripherals 4Power Management Setup Quit Without Saving (Y/N)? N 4PnP/PCI Configurations 4PC Health Status 4 Frequency/Voltage Control ESC:Quit F8: Q-Flash Type "Y" will quit the Setup Utility without saving to RTC CMOS. Type "N"...
  • Page 67: Technical Support / Rma Sheet

    7DXE Motherboard Technical Support / RMA Sheet Customer/Country: Contact Person: Model name/Lot Number: BIOS version: Hardware Mfs. Model name Size: Configuration Memory Brand Video Card Audio Card CD-ROM / DVD-ROM Modem Network AMR / CNR Keyboard Mouse Power supply Other Device Problem Description: Company: E-mail Add.
  • Page 68: Appendix

    Appendix Picture below are shown in Windows XP (TUCD driver version 2.1) Appendix A: AMD 761_VIA 686A/B Chipsets Driver Installation A.USB Patch Driver: Enable S3 for USB Device Setup is preparing the InstallShield(R) Wizard which will guide you through the setup process. Insert the driver CD-title that came with your motherboard into your CD-ROM driver, the driver CD-title will auto start and show the installation guide.
  • Page 69 7DXE Motherboard Appendix B: VIA AC’97 Audio Driver Installation Insert the driver CD-title that came with your motherboard into your CD-ROM driver, the driver CD-title will auto start and show the installation guide. If not, please double click the CD-ROM device icon in "My computer", and execute the setup.exe.
  • Page 70 CD-title will auto start and show the installation guide. If not, please double click the CD-ROM device icon in "My computer", and execute the setup.exe. Press “Tools” icon. 1.Click “Gigabyte Utilities”. 3.Click “Next”. 2.Click "Easy Tune 4 Trial Version". 4.Click “Next”.
  • Page 71 7DXE Motherboard Appendix D: BIOS Flash Procedure BIOS update procedure: Method 1: If you don’t have DOS boot disk, we recommend that you used Gigabyte @BIOS flash BIOS. Press “Tools” icon. 1.Click “Gigabyte Utilities”. 3.Click “ ”. 4.Click Here. Methods and steps: I.
  • Page 72 In method I, if the BIOS file you need cannot be found in @BIOS onto Gigabyte's web site for downloading and updating it according to method II. d. Please note that any interruption during updating will cause system unbooted...
  • Page 73 7DXE Motherboard Method 2: We use GA-7VTX motherboard and Flash841 BIOS flash utility as example. Please flash the BIOS according to the following procedures if you are now under the DOS mode. Flash BIOS Procedure: STEP 1: (1) Please make sure your system has installed the extraction utility such as winzip or pkunzip. Firstly you have to install the extraction utility such as winzip or pkunzip for unzip the files.
  • Page 74 Appendix (2) Select the "Quick (erase)" for Format Type, and pick both "Display summary when finished" and "Copy system files", after that press "Start". That will format the floppy and transfer the needed system files to it. Beware: This procedure will erase all the prior data on that floppy, so please proceed accordingly.
  • Page 75 7DXE Motherboard STEP 3: Download BIOS and BIOS utility program. (1) Please go to Gigabyte website http://www.gigabyte.com.tw/index.html, and click "Support". (2) From Support zone, click the "Motherboards BIOS & Drivers".
  • Page 76 Appendix (3) We use GA-7VTX motherboard as example. Please select GA-7VTX by Model or Chipset optional menu to obtain BIOS flash files. (4) Select an appropriate BIOS version (For example: F4), and click to download the file. It will pop up a file download screen, then select the "Open this file from its current location" and press "OK".
  • Page 77 7DXE Motherboard (5) At this time the screen shows the following picture, please click "Extract" button to unzip the files. (6) Please extract the download files into the clean bootable floppy disk A mentioned in STEP 2, and press "Extract".
  • Page 78 STEP 4: Make sure the system will boot from the floppy disk. (1) Insert the floppy disk (contains bootable program and unzip file) into the floppy drive A. Then, restart the system. The system will boot from the floppy disk. Please press <DEL> key to enter BIOS setup main menu when system is boot up.
  • Page 79 7DXE Motherboard (3) Press "Enter" to enter "BIOS FEATURES SETUP" menu. Use the arrows to highlight the item "1st Boot Device", and then use the "Page Up" or "Page Down" keys to select "Floppy". AMIBIOS SETUP – BIOS FEATURES CMOS SETUP ( C ) 1999 American Megatrends, Inc.
  • Page 80 STEP 5: BIOS flashing. (1) After the system boot from floppy disk, type "A:\> dir/w" and press "Enter" to check the entire files in floppy A. Then type the "BIOS flash utility" and "BIOS file" after A:\>. In this case you have to type "A:\>...
  • Page 81 7DXE Motherboard (3) It will pop up a screen and asks "Are you sure to flash the BIOS?" Press [Enter] to continue the procedure, or press [ESC] to quit. Beware: Please do not turn off the system while you are upgrading BIOS. It will render your BIOS corrupted and system totally inoperative.
  • Page 82 STEP 6: Load BIOS defaults. Normally the system redetects all devices after BIOS has been upgraded. Therefore, we highly recommend reloading the BIOS defaults after BIOS has been upgraded. This important step resets everything after the flash. (1) Take out the floppy diskette from floppy drive, and then restart the system. The boot up screen will indicate your motherboard model and current BIOS version.
  • Page 83 7DXE Motherboard (3) Use the arrows to highlight the item "SAVE & EXIT SETUP" and press "Enter". System will ask "SAVE to CMOS and EXIT (Y/N)?" Press "Y" and "Enter" keys to confirm. Now the system will reboot automatically, the new BIOS setting will be taken effect next boot-up. AMIBIOS SIMPLE SETUP UTILITY-VERSION 1.24b ( C ) 1999 American Megatrends, Inc.
  • Page 84 Appendix E: Acronyms Acronyms Meaning ACPI Advanced Configuration and Power Interface Advanced Power Management Accelerated Graphics Port Audio Modem Riser Advanced Communications Riser BIOS Basic Input / Output System Central Processing Unit CMOS Complementary Metal Oxide Semiconductor CRIMM Continuity RIMM Communication and Networking Riser Direct Memory Access Desktop Management Interface...
  • Page 85 7DXE Motherboard Acronyms Meaning Original Equipment Manufacturer PCI A.G.P. Controller POST Power-On Self Test Peripheral Component Interconnect RIMM Rambus in-line Memory Module Special Circumstance Instructions SECC Single Edge Contact Cartridge SRAM Static Random Access Memory Symmetric Multi-Processing System Management Interrupt Universal Serial Bus Voltage ID...
