NEOX400-112T
OWNER'S MANUAL
CONGRATULATIONS !

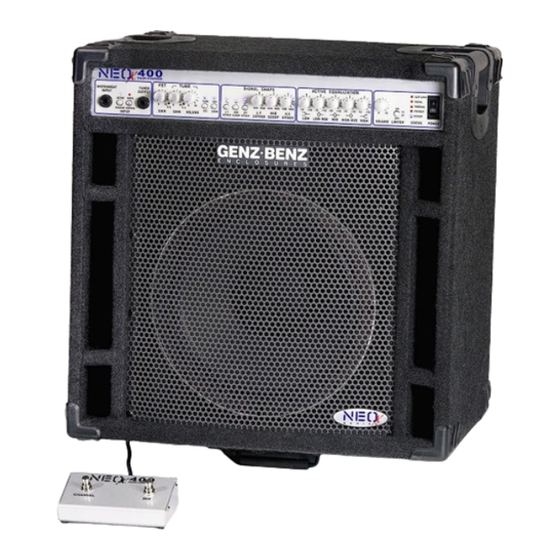

Your new NEOX400-112T Combo is designed with the power, features and performance that today's
professional bassists desire.
The solid yet lightweight cabinet construction and powerful Neodymium 12", 300 watt loudspeaker
provide a solid platform for the versatile, compact NEOX400 amplifier. The circuit design, features and
physical layout have been carefully calculated to deliver the best performance and value in bass guitar
amplification.
The NEOX400-112T features sturdy jacks and controls, 12AX7 tube and solid state FET preamps,
footswitchable channels, tone shaping filters, 5-band active EQ, a balanced direct output and an
industrial duty bipolar power amplifier with Toroidal power transformer, providing the tools and versatility
to sound your very best on stage.
- 1 -

Advertisement

loading

Related Manuals for Genz Benz NEOX400-112T

Summary of Contents for Genz Benz NEOX400-112T

  • Page 1 NEOX400-112T OWNER’S MANUAL CONGRATULATIONS ! Your new NEOX400-112T Combo is designed with the power, features and performance that today’s professional bassists desire. The solid yet lightweight cabinet construction and powerful Neodymium 12”, 300 watt loudspeaker provide a solid platform for the versatile, compact NEOX400 amplifier. The circuit design, features and physical layout have been carefully calculated to deliver the best performance and value in bass guitar amplification.

  • Page 2: Technical Information

    TECHNICAL INFORMATION The first stage of the NEOX400-112T preamp uses a low noise bi-fet linear scaling amplifier with a 2 pole low cut point at 23 Hz to prevent excessive speaker cone excursion and intermodulation distortion. Additional bandwidth roll-off is provided at 20 kHz for RFI suppression. The variable gain stages are a feedback-divider type control, one of which is all solid state and the other utilizing a cathode follower (tube), each providing a maximum gain of about 30 dB.
  • Page 3 Input Signal Mute Switch — The input on the NEOX400-112T bass amplifier includes an “input mute” switch. With this switch, you can place the amplifier (and the direct output) in standby mode between sets without having to change any of your volume settings.

  • Page 4: Rear Panel

    for this LED to glow while continuing to monitor the internal conditions for about 3 seconds after the protection relay has closed. It will also illuminate during any internal fault condition. If this happens, turn the amp off and consult a repair technician. The “thermal LED”...

  • Page 5: Cabinet Features

    The “mute switch” will shut this output down when engaged. Foot Switches — The NEOX400-112T is fitted with jacks for two different types of footswitch. The 2-button footswitch (included) controls “channel switch” and “channel mix” functions. Any standard latching 2-button footswitch with TIP-RING-SLEEVE connector will work, provided there are no LEDs in the switching path.
  • Page 6 Only persons familiar with the operation of high-powered audio equipment should attempt to operate this device. In addition, by the use of this device, user agrees to hold both GENZ BENZ ENCLOSURES, INC and its designers, sales agents and all other affiliates and related parties harmless in the event of any accident, injury, damage or loss resulting from such use.
