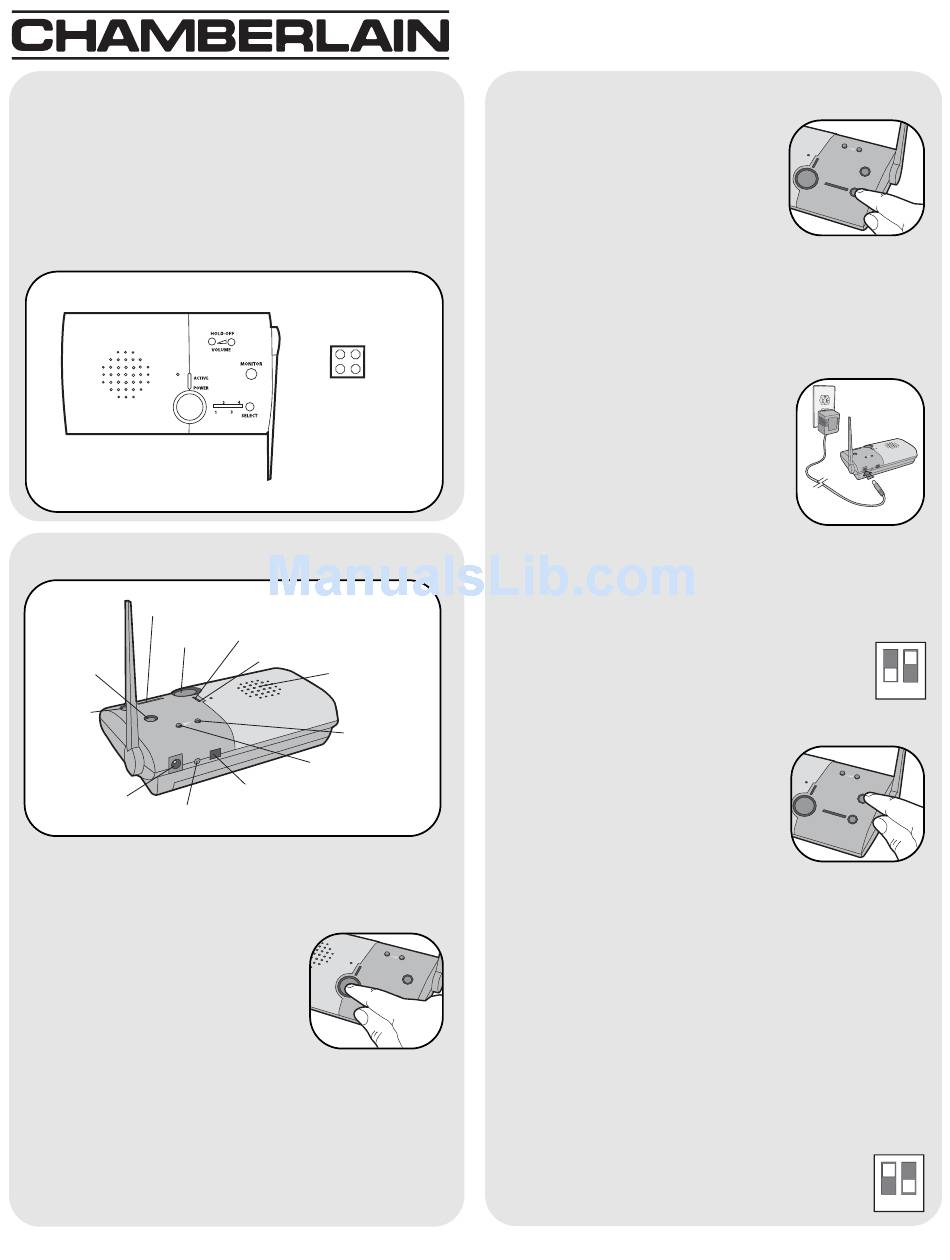

Overview
The Intercom has up to a 1000' range and allows
multiple simultaneous conversations, using a
900 Mhz secure digital radio link. The intercoms form
an exclusive network and respond only to other
intercoms in the network.
Carton Inventory
Rubber Pads
(2 in Model LSIS)
Intercom (2 in Model LSIS)
Operation & Features
Channel Lights
Power Light
Talk Button
Active Light
Monitor Button
Speaker
Channel
Select
Button
Volume DOWN
Button
Volume UP
Button
Dipswitch #1
AC Adapter
Dipswitch #2
Learn Button
On/Off: To turn intercom ON, press Talk button.To
turn intercom OFF, hold down the Volume DOWN
button for 5 seconds.
Talk Button: To talk, hold down the
Talk button. All intercoms in the
network that are on the same
channel will receive the signal.
Release the Talk button when done
talking and within 10-15 seconds
press and hold the Talk button of a different intercom
to make a secure channel between the two. Once the
channel is made the other intercoms in the network
cannot hear the conversation.
Volume: Pressing the Volume DOWN button will
lower the volume and pressing the Volume UP button
will increase the volume.
Model LSIA & LSIS
Wireless Portable Intercom - Extreme Range
Channel Select Button: Press the
Channel Select button to set
intercom to one of four secure
channels or the paging channel.
The default channel for the
intercom is the paging channel
where all four channel lights are lit. An intercom on a
channel can only hear an intercom on the same
channel or on the paging channel.
Battery: The AA Alkaline batteries (not provided) will
last up to a year depending on use (Lithium batteries
recommended for colder
environments). When batteries are
low intercom will emit two beeps
every ten minutes.
An AC Adapter (not provided) can
also be used to power the intercom.
In this case, both the power and
OPTIONAL
channel lights will remain on.
Conference Mode: Conference Mode allows multiple
intercoms to participate in a conversation compared
to Normal Mode in which only two intercoms can
communicate. All intercoms must be set to the same
channel or the paging channel to be in
Conference Mode. To put intercom in
Conference Mode set Dipswitch #2 to UP
1
2
position.
Monitor Mode: Monitor Mode is
used to monitor the noise in a
specific room. Place the intercom in
the room that is to be monitored
and press the Monitor button until a
tone is heard. The Active Light will
be lit while the intercom is in Monitor
Mode. Any other networked intercom can listen to
that room. If a specific channel is selected for Monitor
Mode then only other intercoms on that channel or on
the paging channel can listen. Press the Monitor
button again to exit Monitor Mode. A tone will be
heard indicating Monitor Mode is no longer active.
Voice Activation Mode (VOX): Voice Activation
Mode (VOX) allows a call to be answered without
pressing the Talk button. Once a call is heard on an
intercom which has been set to VOX, a response can
be given by speaking loudly into the intercom. There
will be a slight delay when VOX is first activated by a
voice, but will continue to transmit audio until
the speaking stops. To put intercom into VOX,
place Dipswitch #1 to the UP position.
1
2
Page 1
Advertisement
Related Manuals for Chamberlain LSIA
Summary of Contents for Chamberlain LSIA
- Page 1 VOX is first activated by a voice, but will continue to transmit audio until the speaking stops. To put intercom into VOX, place Dipswitch #1 to the UP position. Model LSIA & LSIS OPTIONAL...
- Page 2 Assemble Intercom Step 1 Install 4 AA Alkaline batteries (not provided). (Lithium batteries recommended for colder environments.) Step 2 Adhere rubber pads to bottom. Repeat Steps 1 and 2 for any additional intercoms. Programming Intercom The intercom must be programmed to at least one other intercom to become a network or it can be programmed into an existing network.
-
Page 3: Troubleshooting
Troubleshooting Intercom does not function. Check batteries in intercom. If using an AC Adapter ensure that it is plugged in. Ensure intercom is connected to a network. See Programming Intercom. Ensure that intercoms are on the same channel. See Operation & Features. Intercom is not getting expected transmission range. - Page 4 Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. © 2008, The Chamberlain Group Inc. 114A3576 All Rights Reserved...
