Page 1: User Manual
RFG295 ** Refrigerator user manual English imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register... -
Page 2: Water Filtration System
Features of your new Refrigerator KEy FEatuREs oF youR nEw REFRiGERatoR Your Samsung French Door Refrigerator comes equipped with various innovative storage and energy-efficient features. • twin Cooling system The Refrigerator and Freezer have separate evaporators. Due to this independent cooling system, the Freezer and Refrigerator cool more efficiently. -
Page 3: Safety Information
Safety Information saFEty inFoRMation Before using your new Samsung French Door Refrigerator, please read this manual thoroughly to ensure that you know how to safely and efficiently operate the features and functions that your new appliance offers. Because the following instruction covers various models, the characteristics of your Refrigerator may differ slightly from the Refrigerator described in this manual. - Page 4 Safety Information Do not put undue stress on the power cord or place heavy articles on it. • Placing heavy articles on the power cord may create the risk of explosion or fire. Do not insert the power plug with wet hands. • It may cause electric shock.
- Page 5 Do not allow children to climb into the freezer basket. if you notice a chemical or burning plastic smell or see smoke, unplug the Refrigerator immediately and contact your samsung Electronics service Center. after your Refrigerator is in operation, do not touch the cold surfaces in the Freezer compartment.
- Page 6 Modification • Any changes or modifications performed by a 3rd party on this finished appliance is not covered under Samsung warranty service, nor can Samsung be responsible for safety issues that result from 3rd party modifications. Children can get trapped inside Refrigerators.
-
Page 7: Table Of Contents
Contents SETTING UP YOUR FRENCH DOOR REFRIGERATOR OPERATING YOUR SAMSUNG FRENCH DOOR REFRIGERATOR TROUBLESHOOTING 08 Getting ready to install the refrigerator 09 Removing the refrigerator doors 11 Disassemble the freezer drawer 12 Reattaching the refrigerator doors 13 Using the doors 14 Assemble the freezer drawer 15 Adjusting the doors... -
Page 8: Setting Up Your French Door Refrigerator
First thing! Make sure that you can easily move your Refrigerator to its final location by measuring doorways (both width and height), thresholds, ceilings, stairways, etc. The following chart details the exact height and depth of Samsung French Door Refrigerator. MoDEL... -
Page 9: Setting Up The Refrigerator
sEttinG uP tHE REFRiGERatoR Now that you have your new Refrigerator installed in place, you are ready to set up and enjoy the features and functions of the appliance. By completing the following steps, your Refrigerator should be fully operational. 1. - Page 10 Setting up your French Door Refrigerator 2. Disconnect two connectors ( at each side of the top cap and the one connector ( ) on left side door. Remove the tube ( ) with pressing the dark gray color part ( line coupler.
-
Page 11: Disassemble The Freezer Drawer
DisassEMBLE tHE FREEzER DRawER 1. Take out the upper drawer by lifting it up. 2. Remove the tilting pocket( ) by pulling on both brackets( upward at the same time. 3. Take out the lower basket( ) by lifting the basket up from the rail system. -
Page 12: Reattaching The Refrigerator Doors
Setting up your French Door Refrigerator REattaCHinG tHE REFRiGERatoR DooRs assemble the Refrigerator doors 1. Reattach the lower left and right door hinges( With a Philips head screwdriver, insert and tighten the screw ( ) into the lower left and right door hinges. With a wrench(13/16”), insert and tighten the 2 hex head bolts ( ) into the lower left and right door hinges. -
Page 13: Using The Doors
REattaCHinG tHE REFRiGERatoR DooRs 4. Connect the water line ( ) and then insert a clip on the coupler with pulling tube. Connect the one connector( ) on left side door and two connectors ) at each side of the top cap. The clip is enveloped inside of the top cap. -
Page 14: Assemble The Freezer Drawer
Setting up your French Door Refrigerator assEMBLE tHE FREEzER DRawER 1. Pull out the rails fully on each side of the cabinet. 2. Attach the freezer door front onto the open slots on the sides. 3. Tighten 4 hex head bolts completely with a socket wrench(7/16inch). 4. -
Page 15: Adjusting The Doors
aDJustinG tHE DooRs Now that the doors are back on the Refrigerator, you want to make sure the Refrigerator is level so that you can make final adjustments. If the Refrigerator is not level, it will not be possible to get the doors perfectly even. when the Left door is lower than the Right door. -
Page 16: Making Minor Adjustments Between Doors
Setting up your French Door Refrigerator MaKinG MinoR aDJustMEnts BEtwEEn DooRs Remember a level Refrigerator is necessary for getting the doors perfectly even. If you need help, review the previous section on leveling the Refrigerator. When the left door is lower than the right door. -
Page 17: Adjusting The Freezer Drawer Level
aDJustinG tHE FREEzER DRawER LEVEL Adjustment part 1. Locate the height-adjuster ( Unscrew the four Phillips screws ( 2. Loosen the controller screw( screwdriver. 3. Find the best level to align the door slope. After adjustment, first tighten screw( ) in the freezer drawer. ) slightly to loosen the door. -
Page 18: Checking The Water Dispenser Line
CHECKinG tHE watER DisPEnsER LinE A water dispenser is one of the helpful features on your new Samsung Refrigerator. To help promote better health, the Samsung water filter removes unwanted particles from your water. However, it does not sterilize or destroy microorganisms. -
Page 19: Installing The Water Line
instaLLinG tHE watER LinE Connecting the water line to the Refrigerator. There are several items that you need to purchase to complete this connection. You may find these items sold as a kit at your local hardware store. 1/4” compression nut copper tubing plastic tubing ferrule... -
Page 20: Installing The Water Filter
Setting up your French Door Refrigerator 4. Remove the filter cap and insert the filter into the filter housing. 5. Slowly turn the water filter 90º clockwise to align with the printing mark on the cover, locking the filter in position. Make sure to align the water filter label mark with center of cover filter printing as illustrated. -
Page 21: Operating Your Samsung
Operating your SAMSUNG French Door Refrigerator usinG tHE ContRoL PanEL For better energy efficiency, press the Energy Saver button. If condensation occurs on the doors, turn the Energy Saver function off. ) Energy Saver Button Press the Freezer/Hold 3 sec for Power Freeze button to set the Freezer to your desired temperature. -

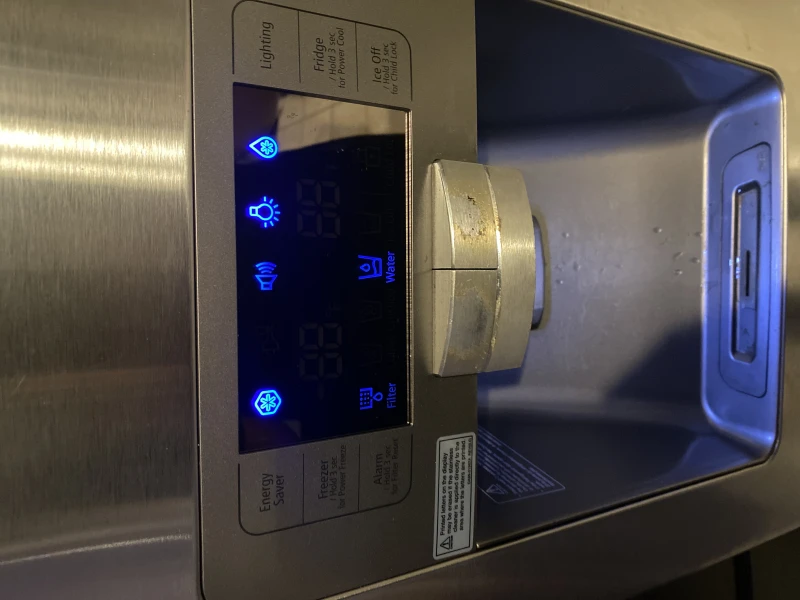

Page 22: Using The Digital Display
Operating your SAMSUNG French Door Refrigerator usinG tHE DiGitaL DisPLay “Freezer Temp” indicates the current Freezer temperature. “Fridge Temp” indicates the current Refrigerator temperature. When not in use the Display will turn off not in use, this is normal. Power Freeze This icon will light up when you activate the “Power Freeze”... -
Page 23: Energy Saver
- If communication between Display and Main Controller errors, Pantry Display light may blink. Once the communication return to their normal set temperatures, the blinking will stop. If the blinking continues for a long period of time, please contact to Samsung Electronics Service Center. Operating _23... -
Page 24: Using The Cold Water Dispenser
Operating your SAMSUNG French Door Refrigerator usinG tHE CoLD watER DisPEnsER Press the ice / water button to select the type of you want using the ice Dispenser Place a glass underneath the ice dispenser and push gently against the dispenser lever with your glass. -
Page 25: Parts And Features
Operating your SAMSUNG French Door Refrigerator PaRts anD FEatuREs Use this page to become more familiar with the parts and features of the Refrigerator. Ice-Maker Vertical Hinged Section Deli Drawer Vegetable & Fruit Drawers Tilting Pocket When closing the door, make sure the Vertical Hinged Section is in the correct position to avoid scratching the other door. -
Page 26: Storing Food In The Refrigerator
Operating your SAMSUNG French Door Refrigerator stoRinG FooD in tHE REFRiGERatoR Can be used to store small dairy items like butter or margarine, ) DAIRY yogurt or cream cheese bricks COMPARTMENT Designed to handle large, bulky items such as gallons of milk or ) DOOR BINS other large bottles and containers. -
Page 27: Removing The Refrigerator Accessories
REMoVinG tHE REFRiGERatoR aCCEssoRiEs 1. Door Bins & Dairy Compartment To remove - Simply lift the bin up and pull straight out. To relocate - Slide it in above the desired location and push down until it stops. Injury may occur if the door bins are not firmly assembled. Do not allow children to play with bins. -
Page 28: Removing The Freezer Accessories
Operating your SAMSUNG French Door Refrigerator REMoVinG tHE FREEzER aCCEssoRiEs 1. tilting Pocket To remove - Pull the brackets( clicking sound and remove the pocket To replace - Hook the ends of the pocket into both brackets ) and push down until it locks into place. -
Page 29: Cleaning The Refrigerator
CLEaninG tHE REFRiGERatoR Caring for your Samsung French Door Refrigerator prolongs the life of your appliance and helps keep the refrigerator free of odor and germs. Cleaning the interior Clean the inside walls and accessories with a mild detergent and then wipe dry with a soft cloth. -
Page 30: Changing The Water Filter
WARNING SAMSUNG will not be legally responsible for any damage, including, but not limited to property damage caused by water leakage from use of a generic water filter. SAMSUNG Refrigerators are designed to work ONLY WITH SAMSUNG WATER Filter. The “Filter Indicator” light lets you know when it is time to change your water filter cartridge. To give you preparation time to get a new filter, the red light will come on just before the capacity of the current filter runs out. - Page 31 Filter For replacement waster filter you can visit your local service center or contact the Samsung Parts distributor. Be sure the replacement water filter has the SAMSUNG logo on the box and the water filter.
-
Page 32: Water Filter Chart
Operating your SAMSUNG French Door Refrigerator watER FiLtER CHaRt Performance Data Sheet For Samsung Model DA97-06317A Using Replacement Cartridge DA29-00003G This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specifi ed in NSF/ANSI 42 and 53. -
Page 33: Water Filter Certification
Operating your SAMSUNG French Door Refrigerator watER FiLtER CERtiFiCation Operating _33... -
Page 34: Food Storage Tips
Operating your SAMSUNG French Door Refrigerator FooD stoRaGE tiPs Foods Refrigerator DAIRY PRODUCTS Butter 2-3 Weeks Milk 1-2 Weeks Cream Cheese, 2-4 Weeks cheese food, and cheese spread Hard Cheese(unopened) 3-4 Months Hard Cheese(opened) 2 Months Cottage Cheese 10-15 Days... - Page 35 Operating your SAMSUNG French Door Refrigerator FooD stoRaGE tiPs Foods Refrigerator FISH AND SHELLFISH Fish Fatty Fish (mackerel, 1-2 Days trout,salmon) Lean Fish (cod, 1-2 Days flounder, etc) Frozen or Breaded Shellfish Shrimp (uncooked) 1-2 Days Crab 3-5 Days Cooked Fish or...
-
Page 36: Troubleshooting
Troubleshooting PRoBLEM The Refrigerator does not work at all or it does not chill sufficiently. The food in the Refrigerator is frozen. You hear unusual noise or sounds. The front corners and vertical hinged section of the appliance are hot and condensation is occurring. -
Page 37: Warranty
Samsung or Samsung authorized service center. Samsung will repair or replace any part found to be defective, at our option and at no charge as stipulated herein, with new or reconditioned parts during the limited warranty period specified above. All replaced parts and products become the property of Samsung and must be returned to Samsung. - Page 38 (800-726-7864) 800-SAMSUNG CANADA (800-726-7864) In an effort to promote recycling this user manual is printed on recycled paper. OR VISIT US ONLINE AT Samsung Electronics America, Inc. 85 Challenger www.samsung.com Samsung Electronics Canada Inc. Customer www.samsung.com/ca Service, 55 Standish Court Mississauga, Ontario WRITE Road Ridgefield Park, NJ 07660...
