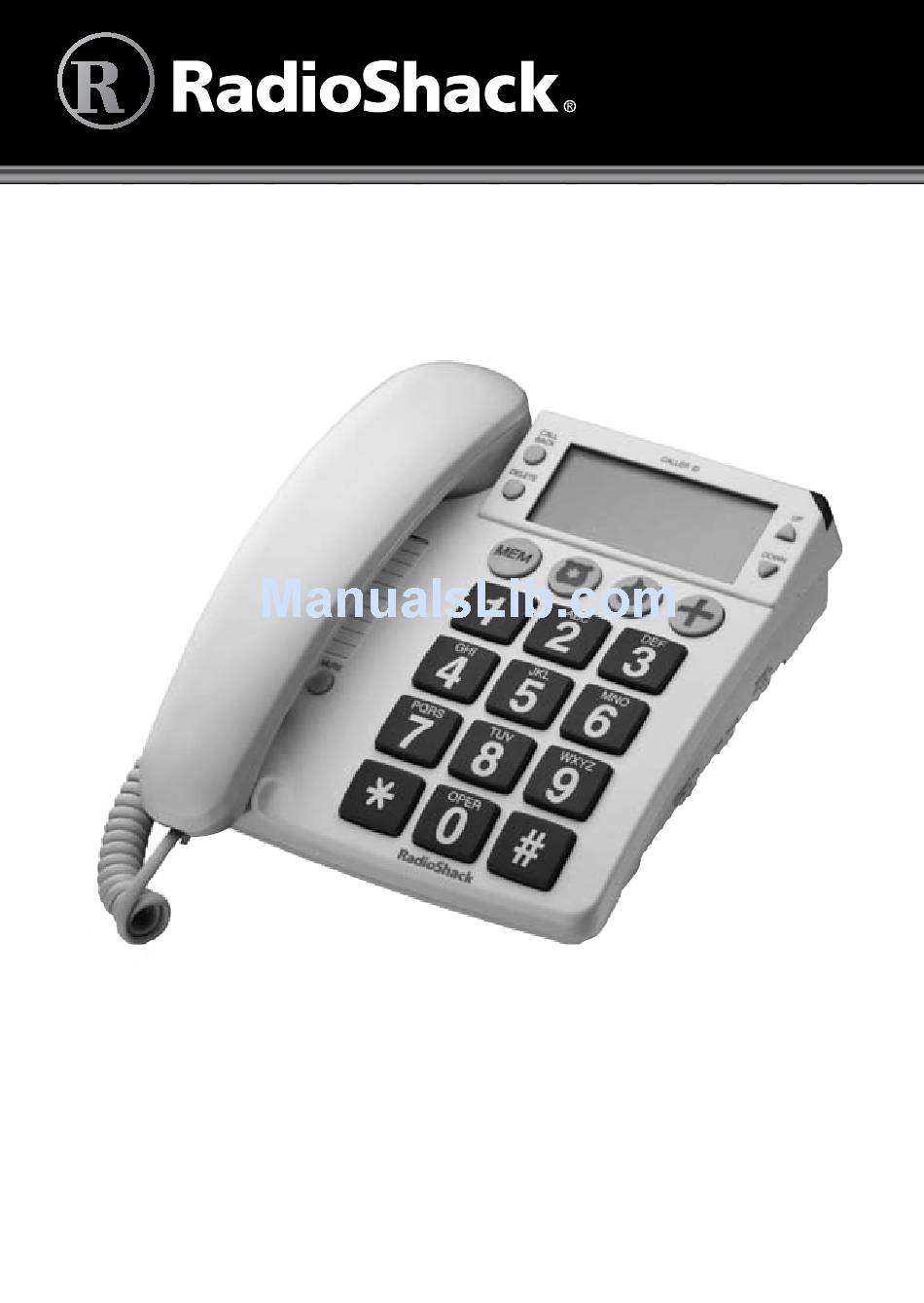

- Page 1 43-3901 User’s Guide Big Button Phone with Caller ID Thank you for purchasing your new Big Button Phone with Caller ID from RadioShack. Please read this user’s guide before installing, setting up, and using your new phone.
-
Page 2: Package Contents
Package contents • Big button Phone • Long Phone Cord • Coiled Cord • Quick Start Features • Caller ID memory keeps information for up to 64 calls. • Caller ID display shows who’s calling so you know if you want to pick up the phone. • Stores up to 10 numbers for convenient access. • Three programmable one-touch emergency numbers. • Oversized buttons make it easy to accurately dial. • Hearing-aid compatible IMPORTANT SAFETY INFORMATION When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1. Do not use this product near water—for example, near a bathtub, kitchen sink, laundry tub, swimming pool, in a wet basement, etc. 2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 3. Do not use the telephone to report a gas leak in the vicinity of the leak. - Page 3 CALL BACK Call the number displayed on Caller ID. DELETE • Delete call records. • Press to confirm phone settings. REDIAL/PAUSE • Redial the last dialed number. • Press when dialing or storing a number to insert a 4-second pause. Displays Caller ID, the time, and the number dialed. New Call Indicator UP/DOWN • Scroll through Caller ID records. • Navigate menu options. Dial a number stored in memory. Emergency Buttons Program to dial emergency service numbers. FLASH Answer a second incoming call (if you subscribe to Call Waiting). STORE Store a number in memory. MUTE Hold down to temporarily mute the microphone.
-
Page 4: Install Batteries
Install batteries 1. Use a flat-blade screwdriver to open the battery compartment cover. 2. Insert four AA batteries into the compartment according to the polarity symbols (+ and –) marked inside. 3. Replace the battery compartment cover. Battery Notes: • When ( appears or the display dims, replace the batteries. • During battery replacement, keep the line cord plugged in and replace the batteries promptly to maintain Caller ID memory. • Dispose of old batteries promptly and properly. • Do not burn or bury batteries. • Use only fresh batteries of the required size and type. -
Page 5: Mounting Bracket
Mounting the phone on a wallplate: 1. Press and lift out the handset tab. Rotate it 180°, and snap it back into place so it will hold the handset in place when the phone is mounted on the wall. 2. Insert the mounting bracket’s two tabs into the matching slots on the bottom of the phone base. Press down and slide the bracket upward until the tabs snap into place. 3. Plug one end of the supplied short phone cord into the LINE jack on the back of the phone base. 4. Plug the cord’s other end into the wall plate jack. 5. Align the base’s keyhole slots with the wall plate studs and slide the phone downward to secure it. Mounting the phone directly on a wall: To mount the phone directly on a wall, in addition to the wallplate steps, you need two screws (not supplied) with heads that fit into the keyhole slot on the bottom of the base. 1. Drill two holes 3 thread a screw into each hole, letting the heads extend about inch (6 mm) from the wall. 2. Place the keyhole slots over the screws, then slide the base down until it is secure. -
Page 6: Connect The Handset
Connect the handset Plug one end of the supplied coiled cord into the handset’s modular jack. Connect the other end to the base. Note: Your local RadioShack store sells a variety of longer coiled handset cords. Phone Settings 1. Press and hold both UP and DOWN for about four seconds until ENTER LANGUAGE displays 2. ENG ESP FRA appears, with ENG flashing. Press UP or DOWN to select the desired language, then press DELETE to confirm. 3. LCD CONTRAST and 1 2 3 4 5 appear on the display, with 3 flashing. Press UP or DOWN to select the contrast level (1-5), and press DELETE to confirm. 4. ENTER AREA CODE appears, then _ _ _ appears, with the first _ flashing. Press UP or DOWN to select the first number of your area code, and press DELETE to confirm the selection. - Page 7 HANDSET VOL NORM/HI Dial Mode Slide TONE/PULSE to the type of dialing service you have. If you are not sure which type you have, do this simple test: 1. Slide TONE/PULSE to TONE. Lift the handset and listen for a dial tone. 2. Press any number except 0. (If your setup requires that you dial an access code, usually 9, do not press the access code.) • If the dial tone stops, you have touchtone service. Keep the switch on TONE. • If the dial tone continues, you have pulse service. Set the switch to PULSE. Using Special Tone Services Some computer services require touchtone signals for communications. If you have pulse service, you can temporarily switch to tone signals by following these steps. 1. Connect to the special service using pulse dialing. 2. When the special service answers, press dialing. 3. When you hang up, the setting changes back to PULSE. RINGER TONE/PULSE OFF/LO/HI to switch to tone...
-
Page 8: Phone Operation
Phone Operation Making a Call 1. Pick up the handset and wait for a dial tone. 2. Use the keypad to enter the number you wish to dial. The number appears on the display. 3. When you complete your call, hang up the handset. A few seconds later, the number disappears, and the display returns to normal. Note: If you dial a number over 16 digits, only the last 14 digits appear on the display. Receiving a Call When you receive a call, the phone rings and the NEW CALL indicator flashes. CALL# and the caller’s number appear on the display (if you subscribe to a Caller ID service from your phone company). To answer the call, pick up the handset. Note: The NEW CALL indicator continues to flash until you have reviewed all calls. -
Page 9: Adjusting The Handset Volume
Adjusting the Handset Volume To adjust the handset volume before or during a call, set HANDSET VOL to NORM or HI for a comfortable listening level. Using Mute To say something without the caller hearing, hold down MUTE. Release MUTE to resume your conversation. Using Flash If you subscribe to Call Waiting through your telephone service, press FLASH to answer an incoming call without disconnecting the current call. Press FLASH again to return to the first call. Note: If you do not have Call Waiting, pressing FLASH might disconnect the current call. Using Redial To redial the last number you called, pick up the handset and press REDIAL/PAUSE when you hear a dial tone. The number scrolls across the display, and the phone automatically dials it. Note: The redial memory redial long distance as well as local phone numbers. Using Pause When you manually dial a number, or when you store a number in memory, you can have your telephone pause anywhere... -
Page 10: Memory Operation
Memory Operation Storing a Number in Memory The telephone can store up to 13 phone numbers in memory (3 emergency numbers, and 10 standard memory numbers). 1. Lift the handset. 2. Press STORE, STORE appears on the display. 3. Enter the number to be stored. The number appears on the display. 4. Press STORE again. STORE and MEM appear on the display. 5. Enter the desired memory location for the number. To store the number in an emergency memory location, press an emergency memory button. To store the number in a standard memory location, press a number key (0 to 9). Copying a Number from Caller ID into Memory 1. Lift the handset. 2. Press UP or DOWN until the desired number appears. 3. Press STORE twice. STORE and MEM appear on the display. 4. Press a memory location (0 to 9 on the keypad) to store the number in standard memory, or press any one of the three emergency memory buttons. -
Page 11: Caller Id Operation
Caller ID Operation If you subscribe to Caller ID service, the phone automatically displays incoming call information and stores the information in Caller ID memory. The system can store up to 99 incoming phone numbers or 64 incoming names and phone numbers. The phone company also sends the correct time between the first and second rings to update your system’s display. Reviewing Call Records Repeatedly press UP or DOWN to review the new calls. After all new calls have been reviewed, END OF NEW CALL appears. To review all the records from oldest to newest, press UP. To review the records from newest to oldest, press DOWN. After reviewing all records in memory, END OF LIST appears. • If an incorrect, invalid, or incomplete Caller ID signal is received, LINE ERROR appears on the display. • If the name and number are not available due to the caller’s restriction, PRIVATE CALL appears on the display. • If the name and number are not available, --UNAVAILABLE-- appears on the display. • RPT appears with a number if you have received a call from the same phone number more than once. • If you do not press a button within about 15 seconds, the system automatically returns to the normal display. - Page 12 Option 2 1. Lift the handset. 2. Press UP or DOWN to find the number to be dialed. 3. Press CALL BACK twice. The number is dialed automatically. Calling Back Long Distance Numbers When the Caller ID phone number has a different area code from the preset area code, 1 + the three digit area code will be inserted automatically during Caller ID memory call back. 1. Press CALL BACK. The 11-digit number will flash. 2. Press CALL BACK again to confirm and dial the 11-digit number. When the Caller ID phone number has the same area code as the preset, the initial digit 1 and the three digit area code will not be added during the Caller ID memory call back. 1. Press CALL BACK. The seven-digit number flashes. 2. Press CALL BACK again to confirm and dial the seven-digit number. Changing the Call Back Number Format Your telephone company may require a different format for making calls than the format provided by your phone. To change the call back number format:...
- Page 13 Option 3 Option 4 4. Press CALL BACK again to confirm. 5. Pick up the handset, and the selected number is dialed automatically. Delete Call Records You can select and delete an individual call record, or all call records stored in the system. • To delete a single call record, press UP or DOWN until the call record you want to delete appears. When the phone displays the call record, press DELETE twice quickly. The phone deletes the call record, and automatically renumbers the remaining call records. • To delete all call records after all new calls have been reviewed, hold down DELETE for about three seconds. ERASE ALL CALLS appears. Press DELETE. The system deletes all call records. NO CALLS appears, and then TOTAL: 00 NEW: 00 appears. Notes: • When the phone’s memory is full, it automatically replaces the oldest call record with the newest incoming call. • If you do not press any button within about 15 seconds while ERASE ALL CALLS appears on the display, the phone returns to normal display and the records are not deleted.
-
Page 14: Service And Repair
Service and Repair If your telephone is not performing as it should, take it to your local RadioShack store for assistance. To locate your nearest RadioShack, use the store locator feature on Radioshack’s website (www.radioshack.com), or call 1-800-THE SHACK (843- 7422) and follow the menu options. Modifying or tampering with the telephone’s internal components can cause a malfunction and might invalidate its warranty and void your FCC authorization to operate it. Your telephone connects directly to a modular telephone line jack. If your telephone wiring does not have a modular jack, you can update the wiring yourself using jacks and adapters (available at your local RadioShack store), or have the telephone company update the wiring for you. You must use compatible modular jacks that are compliant with Part 68 of FCC Rules and the requirements adopted by the ACTA. The telephone cord and modular plug provided is Part 68 compliant for connecting to the telephone company network. FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult your local RadioShack store or an experienced radio/TV technician for help. Changes or modifications not expressly approved by RadioShack may cause interference and void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired... -
