Panasonic digital imaging systems operating instructions model no. dp-6530/8130
Table of Contents

Advertisement

Quick Links

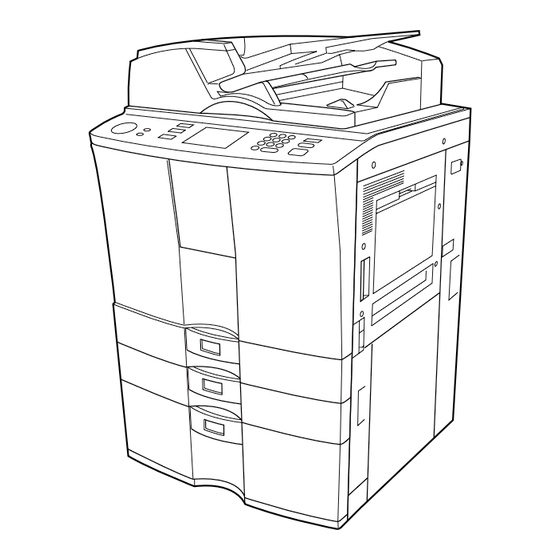

Digital Imaging Systems

Operating Instructions

(For Copy Functions)
DP-6530/8130
Model No.
Before operating this equipment, please read these instructions completely
and keep these operating instructions for future reference.
English

Advertisement

Table of Contents
loading

Summary of Contents for Panasonic DP-6530

  • Page 1: Operating Instructions

    Digital Imaging Systems Operating Instructions (For Copy Functions) DP-6530/8130 Model No. Before operating this equipment, please read these instructions completely and keep these operating instructions for future reference. English...
  • Page 2 Because of the extreme variances in composition and quality of paper from various manufacturers, consumers should ensure the recycled paper they use is suitable for the machine. In accordance with the EPA Energy Star Program guidelines, Panasonic recommends the following recycled papers for use in the machine -...
  • Page 3 'Off Mode' Default Time- The default time for the 'Off Mode' is 90 minutes. 'Automatic Energy Save'- The machine consumes less than 255 watts (DP-6530)/ 316 watts (DP-8130) while in Energy Save Mode. 'Automatic Energy Save' Default Time- The default time before switching to 'Automatic Energy Save Mode' is 15 minutes.
  • Page 4: Preface

    To ensure that clean copies are made at all times and to keep your Digital Imaging System in optimum working order, this Operating Instructions should be readily available for future reference. To ensure correct and safe use of the Digital Imaging System DP-6530/8130, this Operating Instructions describes safety precautions according to the following three levels of warning: Before reading this Operating Instructions, you should fully understand the meaning and importance of these signal words.
  • Page 5: Features Of The Dp-6530/8130

    The DP-6530/8130 also has the following convenient features, functions and options. The copying speed is 65 copies (LT) per minute for the DP-6530 and 81 copies (LT) per minute for the DP-8130.
  • Page 6: Table Of Contents

    TABLE OF CONTENTS Energy Star ... 1 PREFACE ... 2 Features of the DP-6530/8130 ... 3 TABLE OF CONTENTS ... 4 DISCLAIMER NOTICE ... 7 PRECAUTIONS ... 8 1. Installation ... 8 2. General Precautions ... 9 1. BEFORE MAKING COPIES ... 1-1 1.
  • Page 7: Table Of Contents

    TABLE OF CONTENTS (Cont.) 4. USING THE EDITING FUNCTIONS ... 4-1 1. IMAGE SHIFT ... 4-2 2. EDGE ERASE ... 4-4 3. DUAL-PAGE ... 4-5 4. X-Y ZOOM ... 4-7 5. IMAGE EDITING ... 4-8 Trimming/Masking ... 4-8 Mirror Image ... 4-10 Negative/Positive Reversal ...
  • Page 8 8. MAINTENANCE ... 8-1 1. DAILY INSPECTION ... 8-2 2. SIMPLE TROUBLESHOOTING ... 8-3 9. SPECIFICATIONS &OPTIONS ... 9-1 1. DP-6530/8130 SPECIFICATIONS ... 9-2 2. SPECIFICATIONS OF OPTIONS ... 9-4 3. PACKING LIST ... 9-6 4. INDEX ... 9-7 SYMBOL ... 7-6 SYMBOL ...
  • Page 9: Disclaimer Notice

    2. All warranties, conditions and other terms implied by law are, to the fullest extent permitted by law, excluded and no such implied warranties are given or apply in relation to the Products. 3. Panasonic shall not be liable for any loss, cost, expense, claim or damage whatsoever caused by any of the following:...
  • Page 10: Precautions

    4. The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed near the equipment and easily accessible. After a suitable place has been selected for installation of the DP-6530/8130, please do not change it. Avoid excessive heat, dust, vibration and direct sunlight.
  • Page 11: General Precautions

    • If the machine has been exposed to rain or liquid. It is recommended that only supplies made or designated by Panasonic be used for the DP-6530/8130 in order to optimize copy quality. All supplies should be stored in a cool, dry area.
  • Page 12 Explanatory Label CLASS 1 LASER PRODUCT APPAREIL A LASER DE CLASSE 1 LASER KLASSE 1 PRODUCTO DE LASER DE CLASE 1 Certification Label PRODUCT IS CERTIFIED MANUFACTURER TO COMPLY WITH DHHS RULE 21 CFR SUBCHAPTER J APPL I CABLE AT THE DATE OF MANUFACTURE. MANUFACTURED: Warning Label >...
  • Page 13 PRECAUTIONS (Cont.) 2. General Precautions (Cont.) Fixing the adjusters (stoppers) There are four adjusters (stoppers) located in front and rear bottom (two adjusters each) of the machine. After moving/installing the machine, be sure to turn the adjusters clockwise to fix them firmly on the ground.
  • Page 15: Before Making Copies

    1. BEFORE MAKING COPIES 1. DESCRIPTION OF THE DIGITAL IMAGING SYSTEM - Main Components ... 1-2 - Optional Equipment ... 1-3 - Control Panel ... 1-4 - Touch Panel ... 1-6 2. TURNING ON THE POWER SWITCH ... 1-8 - Turning ON the Power Switch/Auto Job Start ... 1-8 - Controlling the Use of the Machine with Department Codes ...
  • Page 16: Description Of The Digital Imaging Systemand The Optional Equipment

    1. DESCRIPTION OF THE DIGITAL IMAGING SYSTEM AND THE OPTIONAL EQUIPMENT Main Components Original Scales Control Panel Drawers Paper Size Indicator Operating Instructions Pocket (Back Side) Power Switch Exit Cover Toner Bottle BEFORE MAKING COPIES Reversing Automatic Document Feeder Front Cover Transfer Unit Original Glass Bypass Cover...
  • Page 17: Optional Equipment

    Hole punch unit (DA-SP81) Makes punching holes on copies for binding in notebooks. External LCF (Large Capacity Feeder) (DA-MA810) Feeds up to 4000 sheets of LT-sized paper (20 lb Bond) (recommended by Panasonic) continuously. Optional Equipment Configuration Finisher Hole Punch Unit...
  • Page 18: Control Panel

    1. DESCRIPTION OF THE DIGITAL IMAGING SYSTEM AND THE OPTIONAL EQUIPMENT (Cont.) Control Panel Total Counter Shows the total of copied paper since the set up of the machine. HELP key When this key is pressed, the appropriate operation procedures are displayed. PRINTER/NETWORK key Press this key to switch between the printer and the network (optional) functions.
  • Page 19 FUNCTION CLEAR key When this key is pressed, all selected copy modes are cleared to default settings. * Automatic Function Clear Right bottom of this page STOP key Use this key to stop an ongoing scan and copy operation. START key Press this key to start copying.
  • Page 20: Touch Panel

    1. DESCRIPTION OF THE DIGITAL IMAGING SYSTEM AND THE OPTIONAL EQUIPMENT (Cont.) Touch Panel When the power is turned on, and ‘READY’ is displayed, the following basic screen is shown on the touch panel. On the screen, currently set functions, selected functions and the machine status are shown using messages and illustrations.
  • Page 21 - SETTINGS (set functions confirmation) key This key allows you to confirm the functions that have been set. (The display shown on the right is an example.) The icons displayed on the screen are as follows (some icons may not appear on the screen): Clearing the Functions Selected If you press any key that is half-tone shaded, the function selected is cleared.
  • Page 22: Turning On The Power Switch

    2. TURNING ON THE POWER SWITCH Turning ON the Power Switch/Auto Job Start Turning ON the Power Switch Turn ON the power switch. - This message appears on the message panel of the Basic Screen: Wait Warming Up - Time of warming up: Approx.
  • Page 23: Controlling The Use Of The Machine With Department Codes

    Controlling the Use of the Machine with Department Codes With the use of department codes, you can restrict machine users as well as manage copy volumes made by individual groups or departments of your company. * Registering, changing and deleting a department code * The department codes and the key copy counters ( When the department code function is in use, the screen shown on the right appears immediately...
  • Page 25: How To Make Copies

    2. HOW TO MAKE COPIES 1. GENERAL COPYING PROCEDURES ... 2-2 2. SETTING COPY PAPER ... 2-4 - Acceptable Copy Paper Types and Sizes ... 2-4 - Handling and Storing Paper ... 2-5 - Changing the Paper Size of the Drawer/ 3.
  • Page 26: General Copying Procedures

    1. GENERAL COPYING PROCEDURES After placing, or confirming that there is, paper in the drawers, place the originals. When the key is pressed with any settings unchanged, copies are made in the initial (default) settings * make copies as desired by setting different copy modes. The initial (default) settings of the machine at the time of installation are as shown below.
  • Page 27: Exiting Copy Papers

    Once the final original has been scanned, press the FINISHED key. - When the reversing automatic document feeder is used, and the single-feed mode is selected, the procedure is slightly different from the above. Procedure of using the single-feed mode Page 5-3 - After starting copying, press the JOB STATUS key on the control panel, then press the STATUS key on the touch panel to indicate which drawer is in use.
  • Page 28: Setting Copy Paper

    - The following sizes of paper can be used for hole punch: LG, LT-R (2 holes, 0.315” diameter), LD, LT ( 3 holes, 0.315” diameter) - “Maximum capacity” refers to the number of sheets when the paper recommended by Panasonic is set. HOW TO MAKE COPIES...
  • Page 29: Handling And Storing Paper

    Handling and Storing Paper Pay attention to the following points: - Avoid using paper that is specially treated or paper that was printed on another machine, and also avoid performing double copying on the same side of paper; this may cause a malfunction. - Do not use paper with creases, wrinkles, curled paper, paper prone to curling, smooth paper, or tough paper;...
  • Page 30: Changing The Paper Size Of The Drawer/Setting The Drawer For Special Uses

    2. SETTING COPY PAPER (Cont.) Changing the Paper Size of the Drawer/Setting the Drawer for Special Uses The paper size of the drawers of the machine can be changed to desired size. The drawers can also be set for cover sheet, insertion, tab paper, thick paper and special sheets. Changing the Paper Size of the Drawer Pull out the drawer toward you.
  • Page 31: Setting The Drawer For Special Uses

    Press the JOB STATUS key on the control panel, then the CASSETTE key on the touch panel. Press the drawer key corresponding to that in which the paper size has been changed, then press the key of the paper size newly set. - Chinese paper sizes (16K, 8K and 16K-R) can be selected on the screen which appears when the Next key is pressed once.
  • Page 32 2. SETTING COPY PAPER (Cont.) Changing the Paper Size of the Drawer/Setting the Drawer for Special Uses (Cont.) Press the drawer key corresponding to that in which the paper has been set, then press the key of the paper type newly set. - If you want to select the COVER , INSERT or TAB PAPER, make sure that paper with the same size as that for the COVER, INSERT, or TAB PAPER is set in the other drawer...
  • Page 33: Acceptable Original Types And Sizes

    3. SETTING ORIGINALS Acceptable Original Types and Sizes Setting place Types of originals Glass Sheets Three-dimensional objects Books Reversing automatic Plain paper, recycled paper: document feeder 13.3 - 33.8 lb (1-Sided Original) 13.3 - 27.7 lb (2-Sided Original) *1: Do not place any heavy object (8.82 lb or over) on the glass. *2: Even listed under “Types of originals”, some of the originals may not be used depending on paper quality.
  • Page 34: When Placing An Original On The Glass

    3. SETTING ORIGINALS (Cont.) When Placing an Original on the Glass Sheet Originals When using the non sorting and non staple mode, the paper exits face up. Raising the reversing automatic document feeder, place the original face down on the glass. Align the original against the left inner corner of the glass.
  • Page 35: When Using The Reversing Automatic Document Feeder

    When Using the Reversing Automatic Document Feeder Precautions for Using the Reversing Automatic Document Feeder Do not use the following types of originals as they tend to misfeed or become damaged: (1) Badly wrinkled or folded originals; in particular, originals whose leading edge is curled may fail to be correctly fed.
  • Page 36 3. SETTING ORIGINALS (Cont.) When Using the Reversing Automatic Document Feeder (Cont.) In the Continuous Feed Mode - Be sure to set only originals with the same size. Mixed-sized originals After aligning the edges of originals well, place them face up and align the slides to the width of the originals.
  • Page 37: Auto Job Start (Job Preset)

    4. AUTO JOB START (JOB PRESET) While multi-copying is in process, you can reserve the next copy. Place the original(s). Page 2-9 Select copy modes as required. Press the START key. - Up to 5 jobs including the current printing job can be stored in the memory.
  • Page 38: Interrupt Copying

    5. INTERRUPT COPYING While multicopying is in progress, you can interrupt it and make copies from different originals. * The following modes cannot be used with interrupt copying. - Cover sheet copying Press the INTERRUPT key. - This message appears: Job interrupted job 1 saved - Interrupt copying is available while copying is in progress.
  • Page 39: Stopping The Copy Operation

    6. STOPPING THE COPY OPERATION If you want to stop the operation during scanning or multicopying, use the Stopping the Scanning of the Original Press the control panel STOP key on the operational panel during the scanning. If the screen on the right appears, press the MEMORY CLEAR key.
  • Page 40: Deleting Or Changing Order Of Pending Jobs

    7. DELETING OR CHANGING ORDER OF PENDING JOBS If data is waiting to be printed, you can delete them, or change the printing order. Deleting the Job In the following procedure, you can delete the multicopying operation as well. Press the JOB STATUS key on the control panel, then the JOB LIST key on the touch panel.
  • Page 41 Changing the Printing Order Press the JOB STATUS key on the control panel, then the JOB LIST key on the touch panel. Select the job you want to move. Press the MOVE key, then press the position where the selected job is to move to. - The job to be moved will be shifted next to new priority.
  • Page 42 2-18 HOW TO MAKE COPIES...
  • Page 43 3. SETTING OF BASIC COPY 1. PAPER SELECTION ... 3-2 - Automatic Paper Selection (APS) ... 3-2 - Manual Paper Selection ... 3-3 2. REDUCTION AND ENLARGEMENT COPYING ... 3-4 3. DUPLEX COPYING (1-SIDED, 2-SIDED, BOOK-TYPE) ... 3-7 4. COPY DENSITY ADJUSTMENT ... 3-11 5.
  • Page 44: Setting Of Basic Copy Modes

    1. PAPER SELECTION Automatic Paper Selection (APS) When you place regular-sized originals on the glass or in the reversing automatic document feeder, the built-in sensors automatically work to detect the size of the originals, helping the machine select and copy on paper that is the same size as the original.
  • Page 45: Manual Paper Selection

    Manual Paper Selection It may not be possible for the device to perform Automatic Paper Selection with highly transparent originals such as OHP films and tracing paper, wholly dark originals or originals with dark borders, or irregular sized originals such as newspapers and magazines. For these types of originals, use manual paper selection.
  • Page 46: Reduction And Enlargement Copying

    2. REDUCTION AND ENLARGEMENT COPYING When placing originals on the glass, you can copy them at the reducing and enlarging rate of 25 to 400%. For the reversing automatic document feeder, you can make the copy at the reducing and enlarging rate of 25 to 200%.
  • Page 47 Specifying both Original Size and Copy Size Place paper in the drawer(s). Place the original(s). Press the desired drawer, then the ZOOM··· key. - The copy paper size is selectable on the screen in step 4 as well. Press the key corresponding to the original size. - Using the original size and copy size, the correct reproduction ratio is computed and displayed on the screen.
  • Page 48 2. REDUCTION AND ENLARGEMENT COPYING (Cont.) Using the Reduction / Enlargement Zoom Keys or One-touch Zoom Keys Place paper in the drawer(s). Place the original(s). Press the drawer icon representing the desired copy paper size, then press the ZOOM···· key. - The copy paper size is selectable on the screen in step 4 as well.
  • Page 49: Duplex Copying (1-Sided, 2-Sided, Book-Type)

    3. DUPLEX COPYING (1-SIDED, 2-SIDED, BOOK-TYPE) This function allows you to set the type of originals (1-sided, 2-sided or book-type) and the desired type of copying (1-sided or 2-sided). -12- cannot be used by OHP film. Original Copy -15- -12- -13- -13- -15-...
  • Page 50 3. DUPLEX COPYING (1-SIDED, 2-SIDED, BOOK-TYPE) (Cont.) Place paper in the drawer(s). - When using the mode of 1-Sided Originals to 2-Sided Copies and 2-Sided Originals to 2-Sided Copies in bypass copying, be sure to specify the paper size. Place the original(s). Press the key (shaded) on the right basic screen.
  • Page 51 Press the BOOK 2 key. Select the book copying type. - Press the RIGHT RIGHT key if copying should start at a right-hand page and end at a right-hand page. By the same token, you can choose from among the RIGHT LEFT LEFT and LEFT Select LT copy size.
  • Page 52 3. DUPLEX COPYING (1-SIDED, 2-SIDED, BOOK-TYPE) (Cont.) Turn to the next page, set the book again and press START key. - Repeat the procedure above until all your originals have been scanned. After all your originals have been scanned, press the FINISHED key.
  • Page 53: Copy Density Adjustment

    4. COPY DENSITY ADJUSTMENT There are two types of image density adjustments: automatic mode (default setting) and manual mode. In the automatic mode, the sensors automatically detect the density of each original and select the optimum image density. In the manual mode, you can select the desired level of image density. It is recommended that lighter-density original be coped in the manual copy density mode.
  • Page 54 4. COPY DENSITY ADJUSTMENT (Cont.) Manual Copy Density Mode Place paper in the drawer(s). Place the original(s). Press AUTO on the basic screen. Press either to the desired level. - Each time you press the become lighter or darker, respectively. - When the DENSITY LEVEL key is shown on the lower left of the screen, you can adjust the density manually on the basic screen.
  • Page 55: Selecting Original Mode

    5. SELECTING ORIGINAL MODE According to the type of your originals, you can choose among the three image types: Photo, Text or Text/ Photo (default setting). The Photo mode is suitable for copying photo originals whereas the Text mode is preferable for copying originals containing text only (or text and line artwork only).
  • Page 56: Quick Access Menu

    6. QUICK ACCESS MENU Finishing copy and duplex modes can be performed at the same time on one display by pressing the QUICK button. The character and button sizes are enlarged, and the white characters are displayed on the black background in order that you can easily operate the machine. “Quick menu Display”...
  • Page 57 4. USING THE EDITING 1. IMAGE SHIFT ... 4-2 2. EDGE ERASE ... 4-4 3. DUAL-PAGE ... 4-5 4. X-Y ZOOM ... 4-7 5. IMAGE EDITING ... 4-8 - Trimming/Masking ... 4-8 - Mirror Image ... 4-10 - Negative/Positive Reversal ... 4-11 6.
  • Page 58: Using The Editing Functions

    1. IMAGE SHIFT A margin for binding is created by shifting the original image to either the right or left side. You can also create binding margins in the center (inner margin) when using Book-Type Originals to 2-sided copies Page 3-8). Providing Right or Left Margin Place paper in the drawer(s).
  • Page 59 Adjust the width of the binding margin, then press the SET key. - The default width of the margin is 7mm (0.276”). - To adjust the width, press the select the desired number, then press the SET key. - In duplex copying, margins on the back are created on the other side of those in the front.
  • Page 60: Edge Erase

    2. EDGE ERASE If your original has a dirty or torn edge, it may be reproduced as a black mark on the copy. In that case, use Edge Erase Copying. A white border is created along the edges of the copy, eliminating those black marks.
  • Page 61: Dual-Page

    3. DUAL-PAGE Utilizing this feature allows the facing pages of a book or magazine to be copied page by page onto two separate sheets of paper or duplex-copied on one sheet. There is no need to move the original on the glass.
  • Page 62 3. DUAL PAGE (Cont.) Place the first page(s) to be copied on the glass, and press the - If you do not copy your originals from the first page, the copies will not be arranged in the same order as the original. - Center the book on the yellow indicator line with the bottom toward you.
  • Page 63: X-Y Zoom

    4. X-Y ZOOM You can make copies with different reproduction ratios set for the X (horizontal) and Y (vertical) directions, respectively. 100% Place paper in the drawer(s). Place the original(s). Press the EDIT key to enter the edit menu, and press the XY ZOOM key.
  • Page 64: Image Editing

    5. IMAGE EDITING Trimming/Masking You can select an area on an original and copy it with the area trimmed (only the inside of the area copied) or masked (only the outside of the area copied). Four rectangular areas can be specified on an original.
  • Page 65 Place an original on the glass to specify the area. - Set the original face up with the bottom toward you, fit its top left corner against the top left corner of the glass, and align it with the original scale. Using the original scale on the left and the inner (top) scale, read the position of the desired area as follows:...
  • Page 66: Mirror Image

    5. IMAGE EDITING (Cont.) Mirror Image Copies are made with images completely reversed in terms of right and left. Place paper in the drawer(s). - When using this mode in bypass copying , be sure to specify the paper size. Place the original(s).
  • Page 67: Negative/Positive Reversal

    Negative/Positive Reversal The white area of originals copying black, and the black area of originals copying white. Place paper in the drawer(s). Place the original(s). Press the EDIT key to enter the edit menu, and press the EDITING key. Press the NEG/POS key. Select other copy modes as required.
  • Page 68: In 1 / 4 In 1

    6. 2 IN 1 / 4 IN 1 This feature allows multiple originals to be reduced and copied onto a single sheet which size is the same size as the original. There are two modes: 2 IN 1 copying, where two originals are reduced and copied onto a single sheet, and 4 IN 1 copying, where four originals are reduced and copied onto a single sheet.
  • Page 69 Place paper in the drawer(s). - When using this mode in bypass copying, be sure to specify the paper size. Page 5-10, 5-11 To make copies onto paper which is not the same size as originals, press the ZOOM... key to enter the right menu, and press the size you desire.
  • Page 70: Copying With Annotation

    7. COPYING WITH ANNOTATION Copies are made with the current date and time, at which they are made, printed on the copy. 11.15. 2002 14:54 Date and time printed at the bottom of the portrait copy Place paper in the drawer(s). Place the original(s).
  • Page 71: Page Numbering Copying

    8. PAGE NUMBERING COPYING This feature allows numbers to be added at specified position to copies. Page number printed at the bottom center on the portrait copy. Place paper in the drawer(s). Place the original(s). Press the EDIT key to enter the edit menu, and press the PAGE NUMBER key.
  • Page 72: Magazine Sort (From The Editing Menu)

    9. MAGAZINE SORT (FROM THE EDITING MENU) The magazine sort mode allows 1-sided originals to be copied and sorted so that they can be folded and bound along a center line like typical magazines or booklets. Example of copying a 12-page document •...
  • Page 73 Adjust the binding margin and press the SET key. - The default width of the margin is 2 mm (0.08’’). - To adjust the width, press the select the desired number, then press the SET key. - If the optional saddle stitch finisher (MJ-1018, MJ-1021) is installed, copies can be automatically stapled along their center line.
  • Page 74: Cover Copying

    10. COVER COPYING A top cover and/or back cover (special sheets, e.g. colored paper) can be added to each set of copies. - Adding a blank cover - Adding a copied cover - Adding a blank cover and a blank back cover - Adding a copied cover and blank back cover Example of adding a blank cover TOP BLANK...
  • Page 75 Press the EDIT key to enter the edit menu, and press the COVER SHEET key. - If the desired function keys are not displayed, press the Next or Pre key to change the menu screen. Select the desired cover sheet key: To add a blank top cover: TOP BLANK To add a copied top cover: TOP COPIED...
  • Page 76: Tab Paper Mode

    11. TAB PAPER MODE Tab paper copy and insertion are available. Copy on Tab: Copying on tab paper Blank Tab Insert: Inserting blank tab paper prior to a selected page Copied Tab Insert: Combination of copying on tab paper and inserting tab paper - To copy on tab paper, adjust the tab width.
  • Page 77 Setting Tab Paper in the Bypass Guide Align the tab paper with the original. Originals Place the tab paper with face up on the bypass guide. Perform step 3 and 4 on page 5-9. - Be sure to select ‘Tab Paper’ for the paper type. Tab Width Adjustment To copy on tab paper, adjust both the tab width and the shift width for the drawer and the bypass guide respectively.
  • Page 78 11. TAB PAPER MODE (Cont.) Press the TAB EXTENSION key. Press the CASSETTE key (or the BYPASS FEED key), then adjust the tab extension (tab width) and the shift width then press the SET key. - Adjust the tab width and the shift width by means of 0mm key and the 30mm The initial settings are set to 13mm (0.51”) for the tab width and the shift width.
  • Page 79 Tab Paper Copying Copying on tab paper at the value in the tab width set mode ( Place tab paper in the drawer or the bypass guide. - For placing it in the drawer - For placing it in the bypass guide Place the original(s).
  • Page 80 11. TAB PAPER MODE (Cont.) Tab Paper Insertion Tab paper (blank) is inserted into selected pages. Up to 15 sheets of tab paper can be inserted. Place tab paper in the drawer or the bypass guide. - For placing it in the drawer - For placing it in the bypass guide Place the original(s).
  • Page 81 Tab Paper Insertion and Copying Copied tab paper is inserted prior to the selected pages. Up to 15 sheets of tab paper can be inserted. Place tab paper in the drawer or the bypass guide. - For placing it in the drawer - For placing it in the bypass guide Place the original(s).
  • Page 82: Document Storage

    12. DOCUMENT STORAGE This feature allows images of the originals to be stored on the hard disk of the machine, and copies can be made from the hard disk later. This copying method consists of the following two modes: MEMORIZE mode : Stores original images at the specified location of the hard disk. PRINT mode : Prints the originals stored in the Memorize Mode in * Originals can be stored in up to 24 locations.
  • Page 83 Press the START key. - The memorization process starts automatically. - To change the file name, select the ID you want to change in the list on the display, press the file name column, delete the file name already entered with the B Space key in the letter entry screen, then enter a new file name, and press the SET key.
  • Page 84: Overlay

    13. OVERLAY This function stores the images that you frequently use and makes copies by overlaying onto the copied originals. - 24 different images can be stored. * The stored image cannot be printed with reduction and enlargement. However, the original can be overlaid with reduction and enlargement by adjusting it to the size of stored image.
  • Page 85 Input the file name with the screen for entering letters and press the SET key. - Entering letters. Page 5-29 (Max. 36 characters) Press the START key. - The original starts scanning to memorize the image. The form will be stored as shown on the right. (Maximum of 13 characters can be displayed for the file name.) Confirming Stored Image (Test Print)
  • Page 86 13. OVERLAY (Cont.) Overlaying Originals with Stored Image Place paper in the drawer(s). Place the original(s). Press the EDIT key to enter the edit menu, and press the OVERLAY key. - If the desired function keys are not displayed, press the Next key to change the menu screen.
  • Page 87: Sharpness Adjustment

    14. SHARPNESS ADJUSTMENT This function allows you to emphasize the letters and edges of images. Place paper in the drawer(s). Place the original(s). Press the EDIT key to enter the edit menu, and press the SHARPNESS key. - If the desired function keys are not displayed, press the Next key to change the menu screen.
  • Page 88: Direction Of Duplex Copy Images (Rotation)

    15. DIRECTION OF DUPLEX COPY IMAGES (Rotation) When lengthLD (Ledger) paper is copied under the mode of 1-Sided Originals to 2-Sided Copies, 2-Sided Originals to 1-Sided Copies, this function allows you to adjust the direction for ‘side-by-side’ opening. * This function is not necessary for copying in the direction of ‘vertical’ opening. You can change the initial setting (default setting) of “Image Direction”...
  • Page 89 5. USING SPECIAL 1. CONTINUOUS ORIGINAL FEEDING / SINGLE ORIGINAL FEEDING ... 5-2 2. MIXED-SIZED ORIGINALS ... 5-4 3. JOB MEMORY ... 5-5 4. BYPASS COPYING ... 5-8 - Bypass Copying on Standard Size Paper ... 5-10 - Bypass Copying on Non-Standard Size Paper ... 5-11 5.
  • Page 90: Continuous Original Feeding / Single Original Feeding

    1. CONTINUOUS ORIGINAL FEEDING / SINGLE ORIGINAL FEEDING When using the reversing automatic document feeder, you can select the continuous feed mode (default setting) where multiple (or single) originals are continuously fed in one by one, or the single-feed mode where if you insert an original, it is automatically pulled in and starts being copied.
  • Page 91 Single-feed Mode Place paper in the drawer(s). Press the PROGRAM key to enter the program menu, and press the ADF key. Press the SADF key. Select other copy modes as required. Place an original. Page 2-9 - The original is automatically pulled in and the screen changes as shown on the right.
  • Page 92: Mixed-Sized Originals

    2. MIXED-SIZED ORIGINALS When placing the different-sized originals in the reversing automatic document feeder, you can make copies by setting MIXED-SIZED ORIGINALS. The available combination of mixed-sized originals are as follows: - LD (Ledger), LG (Legal), LT (Letter), LT-R (Letter-R) * The image may be copied out of position depending on the combination.
  • Page 93: Job Memory

    3. JOB MEMORY You can store and recall a combination of frequently used copy jobs at anytime. Up to four such combinations of jobs can be stored. * You cannot delete the copy modes that have already been stored in the memory, but you can rewrite new jobs on the memory key in which some copy modes have already been stored.
  • Page 94 3. JOB MEMORY (Cont.) Recalling a Stored Combination of Copy Job Settings to Make Copies Place paper in the drawer(s). Place the original(s). Press the PROGRAM key to enter the program menu, and press the JOB MEMORY key. Press the RECALL key. Press the Memory Number key where the desired combination of copy job settings are stored.
  • Page 95 Confirming Stored Copy Jobs To confirm the copy modes stored in the Memory Number key, perform steps 3 to 5 on the previous page, then press the SETTINGS key. - The screen on the right is an example of jobs that have been stored in “MEMORY 2”.
  • Page 96: Bypass Copying

    4. BYPASS COPYING When you want to make copies on thick paper, OHP film, tab paper, tracing paper, sticker labels, use the sheet bypass. (Only thick and tab papers can be set in the drawer. If the desired size of paper (standard size) is not set in any of the drawers, or if you want to make copies on non-standard size, make bypass copies.
  • Page 97 Place the original(s). If the paper other than standard type has been set, press the PROGRAM key to enter the program menu, and press BYPASS FEED key. - If the standard size paper has been set, you do not have to perform steps 3 to 4.
  • Page 98: Bypass Copying On Standard Size Paper

    4. BYPASS COPYING (cont.) Bypass Copying on Standard Size Paper perform steps 1 to 2 on pages 5-8, 5-9. -Set the "OTHER" size key as necessary. If the paper that has been set is a standard size other than LD, LG, LT or ST, you will select the OTHER key in step 2.
  • Page 99: Bypass Copying On Non-Standard Size Paper

    Bypass Copying on Non-Standard Size Paper The size of non-standard paper is within the following ranges: Length: 100 - 297mm (3.94” - 11.69”) Width: 148 - 432mm (5.83” - 17.01”) Perform steps 1 to 3 on page 5-10. Press the NON-STANDARD key. Key in each dimension (length and width), or recall the data stored in the MEMORY.
  • Page 100 4. BYPASS COPYING (cont.) Bypass Copying on Non-Standard Size Paper (cont.) Storing a Non-Standard Size in the MEMORY It is convenient if a frequently used non-standard size of paper is stored in the memory. Perform steps 1 to 3 on page 5-10. Press the NON-STANDARD key.
  • Page 101: Weekly Timer

    5. WEEKLY TIMER Using the built-in weekly timer, you can have the machine automatically turned ON and OFF at specified times. For instance, you can set the timer for the starting time and closing time of your office so that the machine will automatically turn itself ON and OFF at those specified times.
  • Page 102: Setting The "Other" Size Key

    6. SETTING THE “OTHER” SIZE KEY When original or paper size is required to be specified and you need to specify it to ‘OTHER’ size (except for non-standard size), this function should be used. - This function allows the OTHER key on the screen on the right to recognize the size that will be used.
  • Page 103: Setting The Date And Time

    7. SETTING THE DATE AND TIME The clock built in to the machine can be set by entering the date, day of the week and time using the digital keys. Also, you can easily change the clock to and from the daylight saving time system at the touch of a key.
  • Page 104: Setting The Automatic Energy Save Mode

    8. SETTING THE AUTOMATIC ENERGY SAVE MODE This function allows the machine automatically to go into the energy saving mode (unnecessary electricity is cut off at standby) if it is left inactive for a certain period of time. ENERGY SAVER key Press the PROGRAM key to enter the program menu, and press the ENERGY SAVE key.
  • Page 105: Setting The Automatic Off-Mode

    9. SETTING THE AUTOMATIC OFF-MODE When the power of the optional printer controller is ON, the machine goes into the sleep mode which stands by with the minimum power consumption. Press the PROGRAM key to enter the program menu, and press the AUTO SHUT OFF key. - If the desired function keys are not displayed, press the Next key to change the menu screen.
  • Page 106: Switching Languages

    10. SWITCHING LANGUAGES The language used on the touch panel can be changed to a different one. Press the PROGRAM key to enter the program menu, and press the CHANGE LANGUAGES key. - If the desired function keys are not displayed, press the Next key to change the menu screen.
  • Page 107: User Selection (Initial Settings)

    11. USER SELECTION (Initial settings) You can change the initial setting (default setting) of each mode displayed on the User Selection screen. After changing the setting, there are two procedures as follows. Mode that is automatically reflected in the default setting after changing the setting - Hole Punch the tab paper Mode that is automatically reflected in “when automatic function clear mode works”...
  • Page 108: Department Codes

    12. DEPARTMENT CODES You can administer the copy quantity of each group by setting a department code for each purpose (machine and printer ). Up to 500 codes can be set. * You need a master Code to be Registered when you use this function for the first time. Master Code Registration Press the PROGRAM key to enter the program menu, and press the DEPARTMENT CODES key.
  • Page 109 Input the master code name, and press the SET key. - Entering letters Page 5-29 (Max. 36 characters) Key in the desired master code (the same number) both for “NEW CODE” and for “RETYPE NEW CODE”, and press the SET key. - The master code is 5 digits (“00000”...
  • Page 110 12. DEPARTMENT CODES (Cont.) Key in the master code or the department code (5 digits), then press SET key. - Registration of Department Code Input the master code for using “SET DEPARTMENT CODES” and “RESET ALL COUNTERS”. The department code menu is displayed. - The screen when the master code is entered.
  • Page 111 Press the ENABLE key, then SET key. Press the department number where you want to register the department code, and press the CHANGE key. Input the department name and press the SET key. - Entering letters Page 5-29 Key in the desired department code (the same number) both for “NEW CODE”...
  • Page 112 12. DEPARTMENT CODES (Cont.) Changing a Specific Department Code Press the SET DEPARTMENT CODES key in the department menu. Press the ENABLE key, then SET key. Press the department number where you want to change the department code, and press CHANGE key.
  • Page 113 Input the department name you want to register, and press the SET key. - Entering letters Page 5-29 (Max. 36 characters) Key in the former department code for “CURRENT CODE” and the new department code both for “NEW CODE” and “RETYPE NEW CODE”, and press the lower SET key.
  • Page 114 12. DEPARTMENT CODES (Cont.) Press the department number where you want to delete the department code, and press the DELETE key. Press the YES key. - Deleting of the selected department code is completed. Clearing a Specific Department Counter Press the SET DEPARTMENT CODES key in the department code menu.
  • Page 115 Press the department number you want to clear the counter, and press the RESET COUNTERS key. Press the YES key. - The counter reset is completed. Disabling a Department Code Press the SET DEPARTMENT CODES key in the department code menu. Press the DISABLE key, then the SET key.
  • Page 116 12. DEPARTMENT CODES (Cont.) Print out Department Code *This function prints out the number of copies output for each department. Press the PRINT OUT DEPARTMENT CODES key in the department code menu. - Printing starts. Clearing All Counters This function clears all counters to “000000”. * Available only when the master code is entered.
  • Page 117: Entering Letters

    13. ENTERING LETTERS The following screen is provided for entering letters. * To enter numbers, use the digital keys on the control panel. The following keys are used to enter letters. - Caps Lock ... Press this key to switch capital letters and small letters. - B Space ...
  • Page 118 13. ENTERING LETTERS (Cont.) Press the E , T , I , N and G keys. Press the SET key to fix the entered letters. Correcting Entered Letters Example: Correct “Meeting” to “MEETING”. Press the B Space key to delete “Meeting”. Press the Caps Lock key to enter the capital letters.
  • Page 119 Press the E , E , T , I , M and G keys. Press the key to move the cursor to (under) “G”. Press the B Space key to delete “M”. Press the N key to enter “N”, then the SET key to fix the entered characters.
  • Page 120 5-32 USING THE SPECIAL FUNCTIONS...
  • Page 121: (Using The Optional Finishers)

    6. SELECTING FINISHING (USING THE OPTIONAL FINISHERS) 1. FINISHING MODES AND FINISHERS (OPTIONAL)... 6-2 2. SORT/GROUP COPYING... 6-3 3. STAPLE SORTING (OPTIONAL) ... 6-4 4. MAGAZINE SORT & SADDLE STITCH MODE (BOOKLET MODE) ... 6-6 5. HOLE PUNCH MODE (OPTIONAL) ... 6-8 MODES...
  • Page 122: Finishing Modes And Finishers (Optional)

    1. FINISHING MODES AND FINISHERS (OPTIONAL) There are 2 types of optional finishers (2-Bin Finisher/DA-FS810 and 2-Bin Saddle-Stitch Finisher/DA-FS815). Functions available differ depending on whether a finisher is installed and which type of finisher it is. - Press the key on the basic screen on the right (shaded), and confirm the finishing modes on the panel.
  • Page 123: Sort/Group Copying

    2. SORT/GROUP COPYING To make multiple copies, you can select the sort mode or group mode as necessary. The paper sizes available for sort/group copying are LD (Ledger), LG (Legal), LT (Letter) and LT-R (Letter-R). Example of making 5 sets of copies from 5-page originals - Sort copying Place paper in the drawer(s).
  • Page 124: Staple Sorting (Optional)

    3. STAPLE SORTING (OPTIONAL) When the optional finisher is installed, you can use the function that performs automatic stapling at one of the following three positions. * The paper weight should be in the range of 16 lb Bond - 28 lb Bond. Special paper such as OHP films or labels is excluded.
  • Page 125 Press the SINGLE STAPLE-1 (or DOUBLE STAPLE , SINGLE STAPLE-2 ) key. Select other copy modes as required. Press the START key. - If the paper quantity exceeds the maximum number of sheets that can be stapled, the finisher automatically enters the sort mode.
  • Page 126: Magazine Sort & Saddle Stitch Mode (Booklet Mode)

    4. MAGAZINE SORT & SADDLE STITCH MODE (BOOKLET MODE) When the Magazine Sort mode is selected, 1-sided originals can be copied and bound like magazines or booklets. When a 2-Bin Saddle-Stitch Finisher (DA-FS815) is installed, you can select the saddle stitch mode which will automatically staple in the center of the document.
  • Page 127 Press the key on the basic screen as shown on the right (shaded). Press the MAGAZINE SORT ( or MAGAZINE SORT & SADDLE STITCH or SADDLE STITCH ) key. - If the desired function keys are not displayed, press the Next key to change the menu screen.
  • Page 128: Hole Punch Mode (Optional)

    5. HOLE PUNCH MODE (OPTIONAL) With the optional hole punch unit (DA-SP81) attached to the optional finisher (DA-FS810/FS815), you can have your copies punched with holes. * The paper weight should be in the range of 17 lb. Bond - 140 lb. Index. Special paper such as OHP films or labels is excluded.
  • Page 129: When The Graphic Symbols Flash On The Touch Panel

    7. WHEN THE GRAPHIC SYMBOLS FLASH ON THE TOUCH PANEL 1. DESCRIPTION OF THE FLASHING GRAPHIC SYMBOLS ... 7-2 2. ADD PAPER SYMBOL ... 7-3 - Adding Paper to the Drawers ... 7-3 - Adding Paper to the Tandem LCF (Large Capacity Feeder) ... 7-4 - Adding Paper to the External LCF (Large Capacity Feeder) (optional) ...
  • Page 130: Description Of The Flashing Graphic Symbols

    1. DESCRIPTION OF THE FLASHING GRAPHIC SYMBOLS The graphic display on the touch panel shows the status of the machine. When one of the graphic symbols flashes, take the appropriate action referring to the page shown. When one of the graphic symbols flashes, press HELP key to display the guidance.
  • Page 131: Add Paper Symbol

    2. ADD PAPER SYMBOL Adding Paper to the Drawers When the paper supply in the selected drawer or Tandem LCF (Large Capacity Feeder) runs out, the drawer or External LCF (Large Capacity Feeder) (optional) shown on the display flashes, and the following message appears: Add paper Add paper as follows.
  • Page 132: Adding Paper To The Tandem Lcf (Large Capacity Feeder)

    2. ADD PAPER SYMBOL (Cont.) Adding Paper to the Tandem LCF (Large Capacity Feeder) Pull the tandem LCF out carefully until it comes to a stop. - Be careful not to touch the drawer slide rail. Open some packages of paper, take out entire reams of paper and set them aligned in tray - When setting the paper, set the paper for side, and set it for...
  • Page 133: Adding Paper To The External Lcf (Large Capacity Feeder) (Optional)

    Adding Paper to the External LCF (Large Capacity Feeder) (optional) Pull the external LCF out carefully until it comes to a stop. - Be careful not to touch the drawer slide rail. Place the paper on the elevator tray. - Place the paper face up. - Maximum number of sheets that can be set - Fan the paper well, then place it on the elevator tray, aligning it on the rear guide tray.
  • Page 134: Replace Toner Bottle Symbol

    This message will appear on the screen. Here at Panasonic dependable high quality image output is what we do. By using genuine Panasonic toner you can ensure that you are not only receiving quality output but also output that is friendly to mother earth and human beings.
  • Page 135 Rotate the left end of the holder, then pull out the empty toner bottle with both hands as shown on the right. Return used toner bottles to your service technician. Shake the new toner bottle well to loosen the toner inside. Holding the new toner bottle as shown on the right, pull out the seal in the direction of the arrow.
  • Page 136 3. REPLACE TONER BOTTLE Additional Explanation The life of the toner bottle (number of copies) varies depending on the following conditions. Coverage of originals (printing ration of copies) varies depending on the following conditions: 1. Size and density of originals 2.
  • Page 137: Clear Paper Symbol

    4. CLEAR PAPER When a paper misfeed occurs in the machine, the paper is misfed. In that case, remove the misfed paper using the following procedure referring to the illustration below. SYMBOL symbol flashes in the positions where the Reversing Automatic Document Feeder Inside of the Machine Bypass Guide External LCF (Optional)
  • Page 138 4. CLEAR PAPER Paper Misfeed in the Reversing Automatic Document Feeder Push the button on the reversing automatic document feeder to open the cover. Rotate the blue knob to remove any misfed originals. Lift the blue handle (first) as shown on the right. - If there are any misfed originals, remove them.
  • Page 139 Lift the blue handle (second) as shown on the right. - If there are any misfed originals, remove them. Lift the original feeding tray and remove any misfed originals. Open the original exit tray and remove any misfed originals. Lifting the handle in the direction of the arrow, pull it toward you.
  • Page 140 4. CLEAR PAPER Paper Misfeed inside of the Machine Open the paper feed cover. - When installing the external LCF (Optional), open the paper cover after doing step 1 of page 7-15. Remove any misfed paper. Open the bypass cover. Remove any misfed paper.
  • Page 141 Open the exit cover. - For how to connect or separate the optional finisher. Page 7-9 Remove any misfed paper. - If any paper is misfed in the cover, pull it out. Caution Do not touch the metal area of guide plate in the automatic duplexer.
  • Page 142 4. CLEAR PAPER Pull the transfer unit out until it comes to a stop. - If a sheet of paper is misfed on the transfer belt, remove it. - Do not put some objects on the transfer belt or do not touch - When a sheet of paper is caught in fuser unit, do not pull out directly but remove based on step 9.
  • Page 143 Paper Misfeed on the Bypass Guide Pull up the misfed paper slowly on the bypass guide. Paper Misfeed in the External LCF (Large Capacity Feeder) (Optional) Pull the external LCF away from the machine slowly while pressing the release lever. Remove any misfed paper by turning the blue knob in the direction of the arrow.
  • Page 144 4. CLEAR PAPER Open the cover of the external LCF and remove any misfed paper. - Be careful not to touch the drawer slide rail. Be careful not to let your fingers be caught when closing the drawer. Return the external LCF to its original position. - As shown in the figure on the right, place your hands on B to enable you to slowly reconnect it to the machine while maintaining both machines parallel to one another.
  • Page 145 Paper Misfeed in the Finisher (Optional) Open the upper cover of the finisher. Lift knob (See the upper right figure), then remove any misfed paper. - For the paper misfed in the position shown on the right, pull the knob in the direction of the arrow, then remove it. Lift knob and then remove any misfed paper.
  • Page 146 4. CLEAR PAPER Remove any misfed paper from the paper exit area. Paper Misfeed in the Saddle Stitch Unit (Optional) * Only when the saddle stitch finisher (DA-FS815) is installed. Open the entrance cover of the saddle stitch unit. Remove any misfed paper. Open the lower cover of the finisher.
  • Page 147: Saddle Stitch Unit (Optional)

    Turn the right-hand knob push the left-hand knob Remove any paper misfed on the exit side of the saddle stitch unit. Open the exit cover of the saddle stitch unit and remove any misfed paper. counter clockwise. Then, and turn it clockwise. 7-19...
  • Page 148: Adding Staples (Optional)

    5. ADDING STAPLES (OPTIONAL) When the staple cartridge runs out of staples, if the optional finisher is installed, the following message appears: Set staple cartridge Add staples to the cartridge according to the procedure below. Finisher (DA-FS810/FS815) Open the front cover of the finisher. Lower the blue lever in the stapler and slide out the staple cartridge.
  • Page 149 5. ADDING STAPLES (OPTIONAL) (Cont.) Pull out the seal holding the staples straight upward. Return the staple cartridge to its original position. - Insert the cartridge until it is caught by the claw and fixed with a click sound. Close the front cover of the finisher. If the following message remains displayed, repeat the above procedure from Set staple cartridge...
  • Page 150 5. ADDING STAPLES (OPTIONAL) (Cont.) Saddle Stitch Unit * Only when the Saddle-Stitich Finer (DA-FS815) is installed. Open the lower cover of the saddle stitch finisher. Slide out the saddle stitch unit carefully toward the front. Pull out the grip of the saddle staple holder toward you and turn it direction of the arrow.
  • Page 151 Make sure that the finisher is attached to the machine firmly and that LD, LT-R size paper is set in the machine. - If one of the above paper sizes is not set, test stapling cannot be performed. Close the lower cover of the finisher. Test stapling is then automatically performed on a blank sheet.
  • Page 152: Removing Jammed Staples (Optional)

    6. REMOVING JAMMED STAPLES (OPTIONAL) When copies have not been stapled in the staple mode, the following message may be shown on the display: Examine stapler This means that staples have become jammed. Remove them as described below. Perform steps 1 to 2 on page 7-21. Holding the knob, lower part Caution Do not touch the stapling area.
  • Page 153 Return the staple case to its original position. - Insert the cartridge until it is caught by the claw and fixed with a click sound. Close the front cover of the finisher. Saddle Stitch Unit Perform steps 1 to 3 of the procedure for “...
  • Page 154 6. REMOVING JAMMED STAPLES (OPTIONAL) (cont.) Remove any jammed staples, and then return knob to its original position. Return the staple case to its original position. 7-26 WHEN THE GRAPHIC SYMBOLS FLASH ON THE TOUCH PANEL Stapler Jammed staples...
  • Page 155: Disposing Of Accumulated Punched Paper Bits (Optional)

    7. DISPOSING OF ACCUMULATED PUNCHED PAPER BITS (OPTIONAL) When paper bits punched from copies have accumulated to a certain level, the following message appears. Please Dispose of Hole Punch Dust Dispose of the paper bits as described below. Open the cover of the hole punch unit. Holding the black handle, slide out the case containing the paper bits, and dispose of them properly.
  • Page 156: Call Service Symbol / Periodic Maintenance Message

    8. CALL SERVICE SYMBOL / PERIODIC MAINTENANCE MESSAGE CALL SERVICE SYMBOL When the CALL SERVICE longer possible. Call your service technician. Call for service When the CALL SERVICE the digital key 8 together before you turn off the power, the corresponding error code will appear on the copy quantity display only while both keys are held down.
  • Page 157: Maintenance

    8. MAINTENANCE 1. DAILY INSPECTION ... 8-2 2. SIMPLE TROUBLESHOOTING ... 8-3...
  • Page 158: Daily Inspection

    1. DAILY INSPECTION Items for Daily Check Power switch ON/OFF status We recommend turning the power switch ON at the startup everyday so that copies can be made whenever you want. Also, be sure to turn the power switch OFF when you leave the office. In the following cases, do not turn the power switch OFF.
  • Page 159: Simple Troubleshooting

    2. SIMPLE TROUBLESHOOTING Check the following items, and if the problem still occurs, call service for assistance. Machine does not start Items to be checked Is the power cord plug firmly inserted in the outlet? Is the front cover, the side cover and the large capacity feeder (optional) firmly closed? Display does not change when keys or icons are pressed...
  • Page 160 2. SIMPLE TROUBLESHOOTING (Cont.) Copy density is too high Is the copy density adjustment set darker than is standard? Copies are stained Is the reversing automatic document feeder firmly closed? Is the original cover or the transport belt of the reversing automatic document feeder dirty? Is the scanning area dirty?
  • Page 161 9. SPECIFICATIONS 1. DP-6530/8130 SPECIFICATIONS ... 9-2 2. SPECIFICATIONS OF OPTIONS ... 9-4 3. PACKING LIST ... 9-6 4. INDEX ... 9-7 & OPTIONS...
  • Page 162: Specifications &Options

    1. DP-6530/8130 SPECIFICATIONS Model Name Type Original Glass Copying System Developing System Fixing method Photoconductor Type Original Scanning System Resolution Acceptable Originals Acceptable Original Size Acceptable Original Paper Weight Acceptable Copy Paper Size Acceptable Paper Weight Warm-up Time First Copy Time (LT)
  • Page 163 * The bypass copying speed is as listed above when specifying the paper size, however when the paper size is not specified, the copy speed of all sizes is on ‘*2’. * Only LT-sized paper can be set in tandem LCF. * This specification varies depending on copying condition and environment. DP-6530 Feeder Face up Face down...
  • Page 164: Specifications Of Options

    LT-R (Letter-R) Rear, Front, Front diagonal, Double 20 lb Bond 15 sheets Optional Supplied from the DP-6530/8130 24.2”(29.1” *) (W) x 24.8”(D) x 40.28”(H) Approx. 92.59 lb 170 W max. Values in parentheses = the number of 20 lb Bond sheets...
  • Page 165 Power Source Dimensions Weight * The paper mentioned above is Panasonic-recommended paper. Specifications and appearance are subject to change without notice in the interest of product improvement. Paper Weight: 16 lb Bond - 140 lb Index 2 holes: LG (Legal), LT-R (Letter-R)
  • Page 166: Packing List

    3. PACKING LIST Packing List SPECIFICATIONS & OPTIONS Set-up Instructions Set-up Report Photoconductive Drum Photoconductive Drum Cover Operating Instructions Pocket Tray Spacer of Reversing Automatic Document Feeder Back Guide for Tab Paper...
  • Page 167: Index

    4. INDEX Numbers 2 IN 1 ... 4-12 2 IN 1 DUPLEX ... 4-12 2 IN 1/4 IN 1 ... 4-12 4 IN 1 ... 4-12 4 IN 1 DUPLEX ... 4-12 Acceptable Copy Paper Types and Sizes ... 2-4 Acceptable Original Types and Size ...
  • Page 168 Duplex Copying ... 3-7 Edge Erase ... 4-4 Energey Saver ... 1 ENERGY SAVER key ... 1-5 Entering Letters ... 5-29 DP-6530/8130 Specifications ... 9-2 Exit Cover ... 1-2 Exiting Copy Papers ... 2-3 Exiting Originals ... 2-11 External LCF ... 9-5 Feed Side Cover ...
  • Page 169: Replace Toner Bottle Symbol

    Power Switch ... 1-2 Precautions ... 9 Precautions for Using the Reversing Automatic Document Feeder ... 2-11 Print out Department Code ... 5-28 PRINTER/NETWORK key ... 1-4 Procedure to display the department code menu 5-21 Providing a Bookbinding Margin ... 4-3 Providing Right or Left Margin ...
  • Page 170 memo...
  • Page 172 PANASONIC MACHINE, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. PANASONIC DIGITAL DOCUMENT COMPANY ASSUMES NO RISK AND SHALL NOT BE SUBJECT TO LIABILITY FOR ANY DAMAGE, INCLUDING, BUT NOT LIMITED TO DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS OF PROFITS SUSTAINED BY THE CUSTOMER IN CONNECTION WITH THE USE OR APPLICATION OF THIS PANASONIC MACHINE.
