Alto EZ-8 Operator's Manual

Alto detail sander operator's manual 07057a 07058a 07059a 07060a.


IVIE Enterprises
www.ivie-ent.com
Ph:(918)254-5161 or (888)262-5161 Fax:(918)250-4807
EZ-8
Operator's
Manual
Sander
READ THIS BOOK
This book has important information for the use and safe operation of this machine. Failure to read
this book prior to operating or attempting any service or maintenance procedure to your American
Sanders Technology machine could result in injury to you or to other personnel; damage to the
machine or to other property could occur as well. You must have training in the operation of this
machine before using it. If your operator(s) cannot read this manual, have it explained fully before
attempting to operate this machine.
Si Ud. o sus operadores no pueden leer el Inglés, se hagan explicar este manual completamente antes
de tratar el manejo o servicio de esta máquina.
All directions given in this book are as seen from the operator's position at the rear of the machine.
For new books write to: ALTO U.S. Inc., 2100 Highway 265, Springdale, Arkansas 72764.
Form No. 78425B
10/01
AMERICAN SANDERS TECHNOLOGY
Printed in the U.S.A.

Summary of Contents

  • Page 1

    IVIE Enterprises www.ivie-ent.com Ph:(918)254-5161 or (888)262-5161 Fax:(918)250-4807 EZ-8 Operator's Manual Sander READ THIS BOOK This book has important information for the use and safe operation of this machine. Failure to read this book prior to operating or attempting any service or maintenance procedure to your American Sanders Technology machine could result in injury to you or to other personnel;...

  • Page 2: Table Of Contents

    Assembly Drawing #1 ... 14 Assembly Parts List #1 ... 15 Assembly Drawing #2 ... 16 Assembly Parts List #2 ... 17 Wiring Diagram ... 18 IVIE Enterprises www.ivie-ent.com Ph:(918)254-5161 or (888)262-5161 Fax:(918)250-4807 Page 2 AMERICAN SANDERS TECHNOLOGY EZ - 8 Sander Operator's Manual...

  • Page 3: Operator Safety Instructions

    Moving parts of this machine can cause severe injury. Keep hands, feet and loose clothing away from all moving parts of the sander. Disconnect machine from power source before accessing the sanding drum, drive belts, or fan chamber. Do not operate unless drum cover, belt guard, and dust pipe are in place.

  • Page 4

    Electrocution could occur if maintenance or repairs are performed on a machine that has not been disconnected from the power source. Always unplug machine before servicing. WARNING: Sanding dust can be airborne and can be breathed in while operating a sander. Always wear a dust mask while operating sanding equipment. WARNING: Injury to the eyes and/or body can occur if protective clothing and/or equipment is not worn while sanding.

  • Page 5: Introduction And Machine Specifications

    Your equipment may be inappropriate on some installations. Always consult with the flooring manufacturer on the proper installation, preparation, and finishing of their product. Determine suitability of your equipment in preparing the product. (3/95) AMERICAN SANDERS TECHNOLOGY EZ - 8 Sander Operator's Manual Control Switch Transport Handle 07057A...

  • Page 6: How To Transport The Machine

    7. Secure chassis to prevent movement in cargo area. Place handle and dust pipe in cargo area. Figure # 4 www.ivie-ent.com Page 6 IVIE Enterprises Ph:(918)254-5161 or (888)262-5161 Fax:(918)250-4807 AMERICAN SANDERS TECHNOLOGY EZ - 8 Sander Operator's Manual Figure # 1 Figure # 2 Figure # 3...

  • Page 7: Machine Set-up, How To Operate The Machine

    (power supply). Press the selector switch to the start (S) position. Once started, allow switch to return to run (R) position. AMERICAN SANDERS TECHNOLOGY EZ - 8 Sander Operator's Manual Figure # 5 Figure # 6 Figure # 7...

  • Page 8

    Sanding dust can spontaneously ignite and cause a fire or explosion. Empty dust into a metal container clear of any combustible mate- rial. www.ivie-ent.com Page 8 IVIE Enterprises Ph:(918)254-5161 or (888)262-5161 Fax:(918)250-4807 AMERICAN SANDERS TECHNOLOGY EZ - 8 Sander Operator's Manual Figure 9...

  • Page 9: Sanding Cuts And Sandpaper

    (50 grit). 100 grit For final sanding of certain hardwoods and conifers where a smooth surface is desired. www.ivie-ent.com AMERICAN SANDERS TECHNOLOGY EZ - 8 Sander Operator's Manual 8 x 18 Part No./ Cnt. 945390/25 945391/25...

  • Page 10: Sander Adjustment Procedures

    3. Loosen the leveling screw (relax the leveling spring) to sand heavier on the side opposite the drive belts. www.ivie-ent.com Page 10 IVIE Enterprises Ph:(918)254-5161 or (888)262-5161 Fax:(918)250-4807 AMERICAN SANDERS TECHNOLOGY EZ - 8 Sander Operator's Manual Figure # 10 Figure # 11...

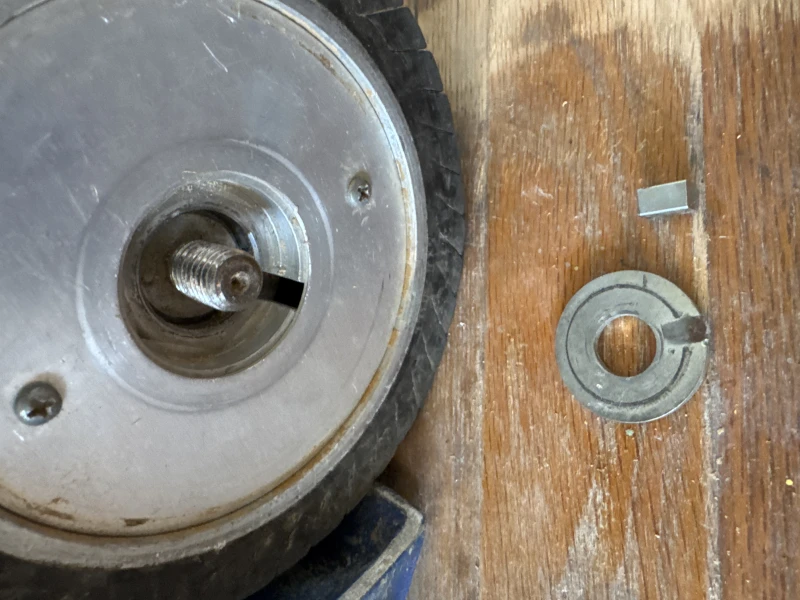

  • Page 11: Routine Maintenance

    Routine Maintenance The following items need to be periodically inspected and maintained to keep your sander in good working condition. Sanding Chamber Periodically blow out the sanding chamber to prevent large accumulations of debris which could interfere with the performance of the dust recovery system.

  • Page 12: Troubleshooting

    Leveling out of adjustment. Dull abrasive. Too fine of an abrasive. Debris on wheels. Flat spot on tire(s). AMERICAN SANDERS TECHNOLOGY EZ - 8 Sander Operator's Manual Action Replace belt. Tension drive belt. Align Pulley. Remove drive belts, rotate arbor motor and fan shafts to locate dragging or rough bearing.
