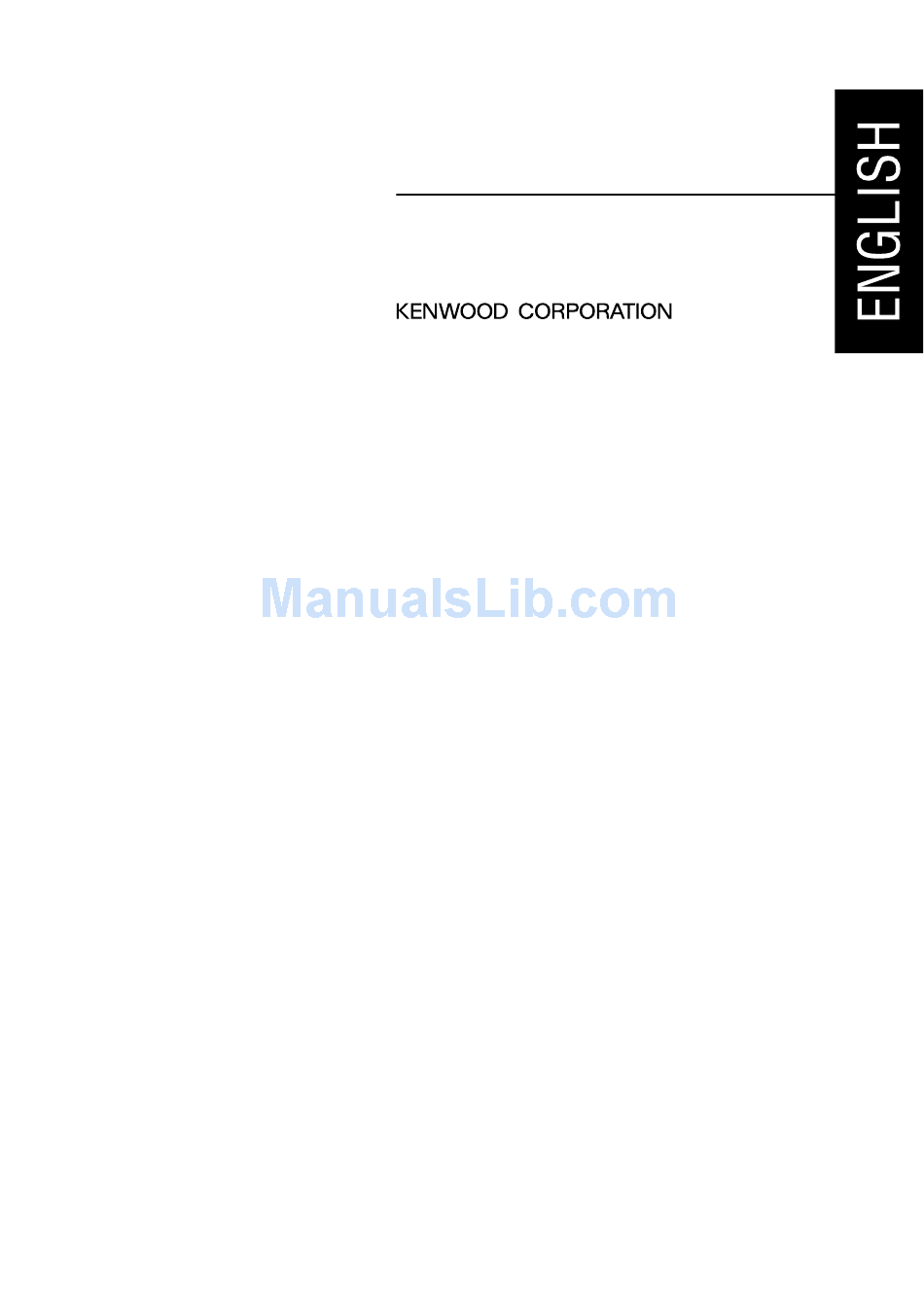

FM TRANSCEIVER
UBZ-LJ8
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Kenwood UBZ-LJ8

Summary of Contents for Kenwood UBZ-LJ8

  • Page 1 FM TRANSCEIVER UBZ-LJ8 INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    SMC-34 SPEAKER-MICROPHONE ... 25 ... 25 ONITOR DDITIONAL UNCTIONS SPECIFICATIONS ... 26 RANSCEIVER PECIFICATIONS HANNEL REQUENCY ROUP UMBERS TK-3101 / UBZ-LJ8 C TROUBLESHOOTING GUIDE ... 28 CONTENTS ... 1 ... 3 ... 5 ATTERIES ... 6 ... 7 PTIONAL CCESSORIES ... 13 ATTERY ...

  • Page 3: Introduction

    NTRODUCTION Thank you for purchasing this KENWOOD Private Mobile Radio 446 (PMR446). This KENWOOD product is a precision device. Treat it with care, and you will enjoy years of reliable operation. PMR446 refers to personal short range Private Mobile Radios for family and friends to keep in touch without the need for a licence, radio knowledge, or monthly charges.

  • Page 4: Precautions

    • Do not operate your transceiver or charge your battery pack in an explosive atmosphere (gases, dust, fumes, etc.). • If an abnormal odor or smoke is detected coming from the transceiver, immediately switch OFF the power and remove the batteries. Contact your KENWOOD dealer.

  • Page 5: Orientation

    Antenna Display PTT switch ▲ key ▼ key Speaker ONTROL UNCTIONS PTT (Push-to Talk) switch: Press this switch then speak into the microphone to make a call. Release the switch to receive. ▲ key: Press to increase the channel or group mode number, and to turn selected functions ON or OFF.

  • Page 6: Display

    ISPLAY v i t v i t v i t “ ( n i l e l i e l i o i t e l i t t i e l i e l i ) ” n i l v i t e l i i f i l...

  • Page 7: Preparation

    NSTALLING EMOVING This transceiver requires 3 LR6 (AA) batteries. Use high quality alkaline batteries to enjoy longer periods of battery life. You can also use an optional UPB-1 NiCd battery pack. When using an optional battery pack, be sure to set the battery indicator type to battery pack, from its default setting of alkaline batteries.

  • Page 8: Setting The Antenna

    Battery installation 3 Align the battery cover tabs with the slots on the transceiver, hold the cover in place, then latch it with the battery cover lock. Note: ◆ Do not mix old and new batteries or batteries of different types. ◆...

  • Page 9: Installing / Removing The Belt Clip

    NSTALLING EMOVING THE 1 To install the belt clip, align the clip with the guides on the rear of the transceiver, then slide the belt clip up until it latches in place. 2 To remove the belt clip, press the locking latch in then slide the belt clip down before pulling it away from the transceiver.

  • Page 10: Installing / Removing Optional Accessories

    NSTALLING EMOVING Note: Always switch OFF the transceiver power when installing or removing the optional accessories. The following accessories can be used with this transceiver: • EMC-3 Clip Microphone and Earphone • HMC-3 VOX/PTT Headset • KHS-21 Headset • SMC-32 Speaker-Microphone •...

  • Page 11: Getting Started

    GETTING STARTED q q q q q Switch the Power ON by pressing and holding the switch for approximately 1 second. • A confirmation tone sounds. To switch the transceiver power OFF, press and hold the 1 second. w w w w w Adjust the Volume by rotating the VOL control.

  • Page 12: Group Mode

    Group Mode is a function which allows you to reject signals from undesired parties that are using the same channel as you. You will hear audio from the speaker only when you receive a signal that matches your Group Mode number. Likewise, when you transmit on a channel set up with a Group Mode number, the receiving station must have a matching Group Mode number in order to hear your call.

  • Page 13: Secret Mode

    Whereas the Group Mode function (page 10) allows you to ignore unwanted calls, Secret Mode allows you to hold a conversation in complete privacy. When activated, any other party listening in on your channel will be unable to understand your conversation. The transceiver scrambles your voice so that anybody listening in on your conversation will not be able to understand what you are saying.

  • Page 14: Menu Settings

    Your transceiver has a hidden setting menu which allows you to adjust a variety of features to your desired settings. To enter Menu Setting: 1 Press and hold the ▲ key while turning the transceiver power ON. 2 To view the various settings, press the ▲ or ▼ key. Following are a list of the settings available: •...

  • Page 15: Battery Indicator / Battery Type

    3 Press the PTT switch or turn the transceiver power OFF to confirm your setting. ATTERY NDICATOR The battery indicator on the display lets you know approxi- mately how much battery life is remaining. When the battery voltage becomes too low while transmitting, the transceiver stops transmitting and a tone sounds until you release the PTT switch.

  • Page 16: Auto Power Off (Apo)

    OWER Auto Power Off is useful when you unintentionally leave the transceiver power ON. This function saves battery consump- tion. After two hours elapse with no controls adjusted or activated and no calls received, APO turns the transceiver power OFF. One minute before power is turned OFF, a warning tone sounds (even if the beep tone has been turned OFF).
  • Page 17 Before you can use the Auto Channel Select function, ensure that it is activated. You can add or remove this function to/ from your transceiver using the Menu Settings: 1 Enter the Menu Settings (page 12) and press the ▲ or ▼ key until you reach the “SCAN”...

  • Page 18: Voice Activated Control (Vox)

    4 To end the scan at any time, press the ▲, ▼, or key. OICE CTIVATED Using the VOX feature, you can operate the transceiver hands-free. For best operating conditions, we recommend you use an optional headset with both an ear piece and a microphone on a boom that rests in front of your mouth.
  • Page 19 When operating VOX, if you find that the transceiver returns to receive mode too quickly after you stop speaking, the end of your message may not be transmitted. To avoid this, select an appropriate delay time to allow your entire message to be transmitted.

  • Page 20: Calling Alert Tones

    ALLING LERT ONES Calling Alert Tones are used to identify yourself to your party members. You can set up a Calling Alert Tone to one of ten types. If each party member uses a different tone, it is easy to know who is making the call.

  • Page 21: Squelch

    QUELCH When no signals are present, the squelch on the transceiver automatically mutes the speaker so you will not hear background noise. You can however, deactivate the squelch. This feature is useful for a variety of reasons: • It allows you to confirm the channel activity so that you don’t make a call while another party is using the same channel.

  • Page 22: Operating Features

    OPERATING FEATURES You can lock the ▲, ▼, and changing the channel and channel settings. Additionally, while the transceiver is locked, you cannot enter the Menu Settings (page 12). Press and hold the lock or unlock the transceiver keys. • The icon appears on the display when the transceiver keys are locked.

  • Page 23: Transmit Power Saver

    RANSMIT OWER AVER The purpose of the Transmit Power Saver is to prevent you from transmitting continuously for a long time. This function is useful, for example, when you accidentally keep the PTT switch pressed. If you continuously transmit for 3 minutes, the transceiver will stop transmitting and a tone will sound.

  • Page 24: Loudness

    OUDNESS This transceiver has a built in booster amplifier. You can control the volume level by rotating the VOL control. However, if you are in an environment with excessive ambient noise, you may find that it is difficult to hear the audio from the transceiver, even with the volume increased to its maximum value.

  • Page 25: Resetting The Tranceiver

    RESETTING THE TRANSCEIVER At some point in time, you may desire to reset the transceiver settings to their default values. The default values of all the menus and channel settings are listed in the table below. To reset the transceiver: 1 Turn the transceiver power OFF.

  • Page 26: Optional Accessories

    OPTIONAL ACCESSORIES EMC-3 Clip Microphone HMC-3 VOX/PTT KHS-21 Headset and Earphone Headset VO LU ME MI N SMC-32 Speaker- SMC-33 Speaker- SMC-34 Speaker- Microphone Microphone Microphone UBC-2 Twin UPB-1 UBC-4 Battery USC-3 charger Rechargable charger Carrying case NiCd battery pack...

  • Page 27: Smc-34 Speaker-Microphone

    SMC-34 SPEAKER-MICROPHONE The SMC-34 speaker-microphone provides you with the following additional functions and features. • Remote VOLUME control. • Remote PTT switch. • Remote speaker-microphone. PTT switch Speaker/ microphone Earphone jack ONITOR Monitor operates similar to the transceiver’s squelch function, but can be used momentarily, at short notice.

  • Page 28: Specifications

    RANSCEIVER PECIFICATIONS l i b y t i HANNEL REQUENCY SPECIFICATIONS HART / t i...

  • Page 29: Group Mode Numbers

    ROUP UMBERS TK-3101 / UBZ-LJ8 C OMPATIBILITIES...

  • Page 30: Troubleshooting Guide

    TROUBLESHOOTING GUIDE y l t ) ’ • • . y l l l a • . t i • • s ’ • • l l a • e l l...
