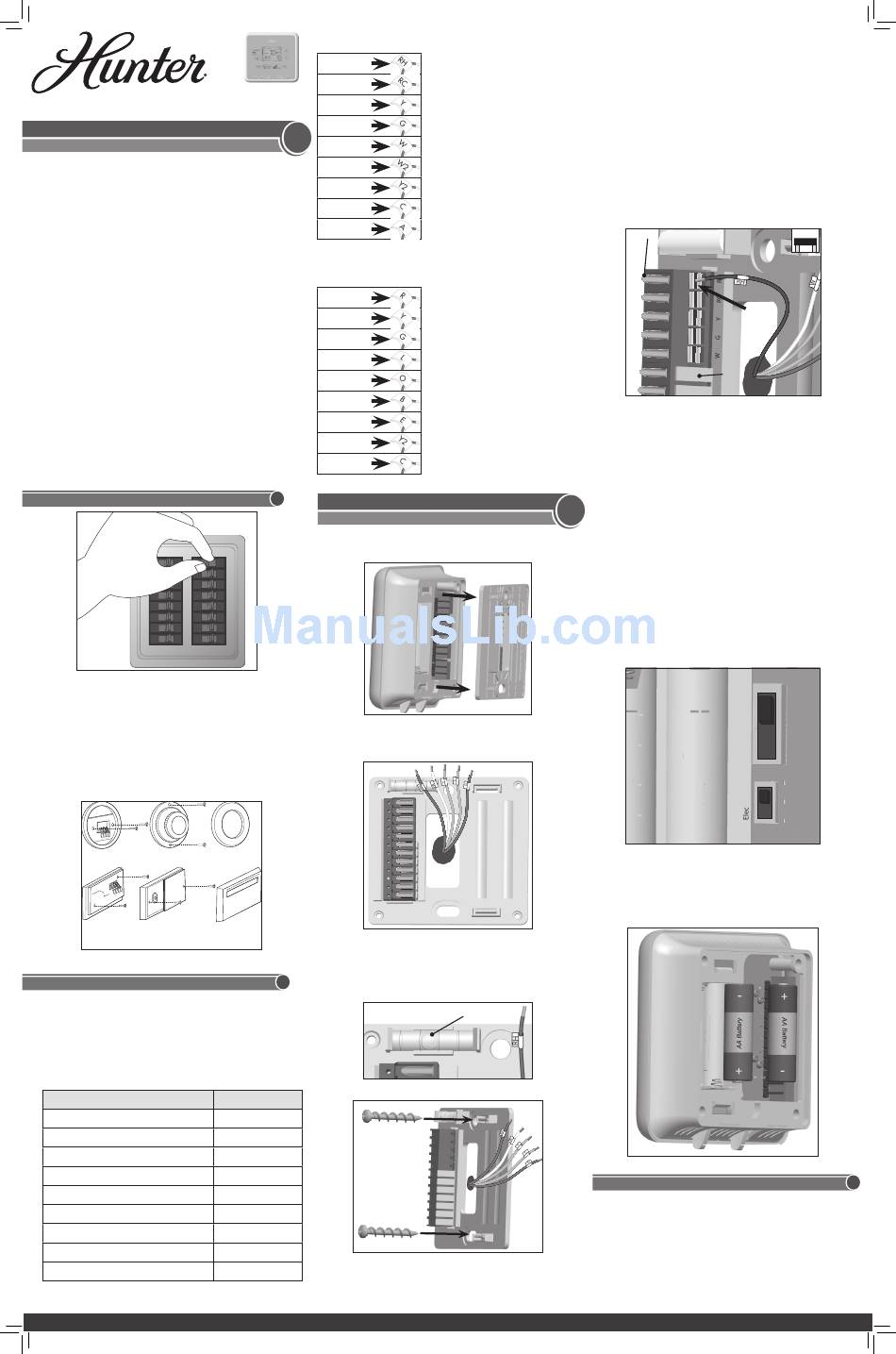

Hunter 44127 Installation Sheet

44127, 44132 Programmable Thermostat

Installation Sheet
Preparation
Gathering Tools and Warnings
This thermostat is compatible with most conventional oil, gas,
electric, hot water systems, single stage, and multi-stage heat
pumps. This thermostat will not control line voltage systems.
You will need the following tools to complete your installation:
• Phillips Screwdriver (#2)
• Two 1.5V (AA) size alkaline batteries
Take note of these warnings and cautions before
proceeding:
• Read all installation instructions before beginning installation!
If you still need assistance after reading this manual, call our
Technical Support at 1-888-830-1326.
• Do not disconnect the wires from your old
thermostat until all wires have been properly
labeled. You must label all wires properly because
wire color may not indicate the function of the wire.
• All wiring must be done in accordance with local code and
ordinances.
• Always turn power off to your furnace/compressor before the
installation process. Failure to do so could result in damage to
your thermostat and/or your heating and cooling system. Do not
restore power until your installation is complete.
• This thermostat is designed for use with 24V AC/millivolt systems
with a maximum of 1 amp. Higher amp or line voltage systems
will cause damage to your system and increase the risk of fire.
Old Thermostat Removal
1. Turn off power to your compressor and furnace.
2. Remove the cover to your existing thermostat. Some thermostats
may have screws or other locking devices that must first be
removed. Once the wallplate is exposed, locate the wire
terminals and try to identify the wire designations. If the wire
terminals are not visible, they may be connected to the back of
the wallplate. Look for any additional screws, tabs, or locking
devices to remove the wallplate. See Figure 1. If you are still
unable to find the terminals for the wires, it may be necessary
to contact the manufacturer of the original thermostat.
Thermostat
Wallplate
Thermostat
Wallplate
Figure 1.
Labeling Your Wires
Use the table in Figure 2. to write down your wire colors and
the letter designations on the old thermostat. This will allow you
to keep a record of your old thermostat's wiring configuration
should you need to refer to it at a later time. This will also help our
Technical Support Department determine your system type and
proper wiring, should you need to contact them. Wire color does
not indicate the function of the wire, this is being used only to help
determine which wire has what letter designation.
Wire Color
Figure 2.
©2010 Hunter Fan Company
Conventional
1
RH
RC, R
Y, Y1
G, F
1
W, W1
W2
Y2
C
A
Figure 3a.
Heat Pump
R, V
Y, Y1, M
G, F
L, F, X
O, R
B
W2, E, X,
Aux
Y2
C, X, X1, B
Figure 3b.
Installation
Mounting the Wallplate
1. Remove the mounting plate by pulling it straight off the back of
the Thermostat. Figure 5.
2. Pull the wires through the back of the mounting plate, ensuring
none of the wire labels are removed. Figure 6.
Cover
Cover
3. Using a Phillips Screwdriver, Partially install 1 screw into the
top hole of the thermostat. Ensure the thermostat is level using
the bubble level on the mounting plate Figure 7., then install
the other screw. Tighten both screws until secure. Figure 8.
Wire letter
4. Check the charts on the back of this sheet and identify your
After writing down the wire colors
and letters, use the terminal stickers
to label the wires. Figures 3a and 3b
will help you depending on system
5. Raise all of the levers on the terminals you will be using. Heat
type; Conventional or Heat Pump.
Not all terminals will be used, this will
be determined by your system type.
To ensure wires do not fall back into
the wall hole, you may tape them
to the wall, or wrap them around a
6. If one of the terminals you need has a tab in front of it, use
pencil.
Figure 4. may assist you if your old
Note:
thermostat is a heat pump from one
of the listed Manufacturers and your check your wiring configuration and make sure you are familiar
with the terminals you will be using.
wire labels do not match. It is located
on the back of this sheet. These tips
will also help you in wiring:
• Only 1 reversing valve is needed
to run a heat pump. If both "O"
and "B" are present, "B" may be a
common wire.
• Often, 2-wire heat only systems do
not have terminal labels. Connect 1
wire to the Rh terminal and the other
to W.
• If you have a 3-wire hot water
system, the damper valve control
wire will be labeled and attached to
the "A" terminal.
• If you need further assistance
7. Insert the bare end of each wire all the way into the appropriate
with wiring, or determining your
system type, you can contact our
Technical Support Department. See
the "Technical Support" section for
information.
Note:
mounting block. The wires should be inserted into the front close
2 to the hole in the mounting plate. See Figure 8.
8. Before mounting the thermostat onto the mounting plate, turn it
9. Set the system switch to "Conv" if you have a conventional
Note:
conditioning and a separate furnace for heat. Heat pump systems
use the compressor for both heating and cooling.
Figure 5.
10. Lay the ribbon across the battery compartment and install 2
Figure 6.
bubble level
Figure 7.
If you have any additional questions or problems with your Hunter
thermostat, please call:
Figure 8.
Hours of operation are from 7:00 am to 7:00 pm Monday - Friday
and 8:00 am to 5:00 pm on Saturday, Central Time. You may also
contact us over the Internet at www.hunterfan.com.
system type. They are divided by Conventional and Heat Pump
installations.
Pump Installation labels are located on the left of the terminal
blocks on the mounting plate and Conventional labels are
on the right. If your installation does not call for the jumper,
remove it now. It is located underneath the wire holes, between
the RH and RC terminals on the conventional side. Figure 9.
your finger to break the tab away. Figure 9.
Only break tabs you know you will be using. Double
Levers
Insert
Wires
Tabs
Figure 9.
hole in the terminal block that matches the wire label then
lower the lever. This will lock each of the wires in place. Tuck
excess wire back into wall after they have been locked in the
mounting plate.
Do not insert the wires into the holes in the top of the
over and find the 2 switches located on the circuit board next
to the battery compartment.
HVAC system or "HP" if you have a heat pump system. Set the
furnace type to "Elc" if you have an electric convention system
or a heat pump. "Gas/Oil" will be used if you have gas or oil
based conventional system. Figure 10.
Conventional systems use the compressor for air
Gas
Oil
Elc
H.P.
Cnv.
Figure 10.
(AA) Batteries into the back of the thermostat over it, Figure
10., and snap the thermostat on to the mounting plate. Refer to
"Setup" on page 10 of your owner's manual to continue setup,
scheduling, and daily use.
Figure 11.
Technical Support
USA: 1-888-830-1326
Canada: 1-866-268-1936
Jumper
