Delta Electronics Brake Modules BUE Series Instruction Sheet

2007-11-07
5011642602-BU02
BUE Series
Brake Modules
Instruction Sheet
Preface
Congratulations on your purchase of DELTA's brake module. BUE brake
units are applied to absorb the motor regenerative energy when 3-phase
induction motor stops by deceleration. With BUE brake unit, the
regenerative energy is dissipated in the brake resistors. To prevent
mechanical or human injury, please read this instruction sheet thoroughly
before wiring.
BUE brake units are suitable for VFD-E/VFD-EL Series. BUE brake units
need to be used in conjunction with BR series brake resistors to provide the
optimum brake characteristics.
BUE brake units (20015 and 40015) are approved by Underwriters
Laboratories, Inc. (UL) and Canadian Underwriters Laboratories (cUL). The
content of this instruction sheet may be revised without prior notice, please
consult our distributors or download the most updated version at
http://www.delta.com.tw/industrialautomation.

Specifications

115/230V Series 460V Series
BUE-20015 BUE-20037 BUE-40015 BUE-40037
Max. Motor Capacity (KW) 1.5 3.7 1.5
Max. Peak Discharge
3.6 16 1.8
Current (A) 10%ED
Brake Start-up
328/345/362/380/400±3V 656/690/725/760/800±6V
Voltage (DC)
DC Voltage 200~400VDC 400~800VDC
Heat Sink Overheat Temperature over +100°C
Power Charge
Blackout until bus (+~-) voltage below 50VDC
Display
Installation Location Indoor (no corrosive gases, metallic dust)
Operating
-10℃~+50℃
Temperature
Storage Temperature -20℃~+60℃
Humidity 90%R.H., Non-condensing
2
9.8m/s (1G) under 20Hz
Vibration
2
2m/s (0.2G) at 20~50Hz
Mechanical Configuration Wall-mounted enclosed type IP20
Dimensions and Installations
3.1 Brake resistor
TYPE L1 L2 H D W
BR080W200 140 125 20 5.3 60
BR080W750 140 125 20 5.3 60
BR300W400 215 200 30 5.3 60
3.2 Brake unit
3.3 DIN Rail Installation
Outline and Wire Gauge
3.7

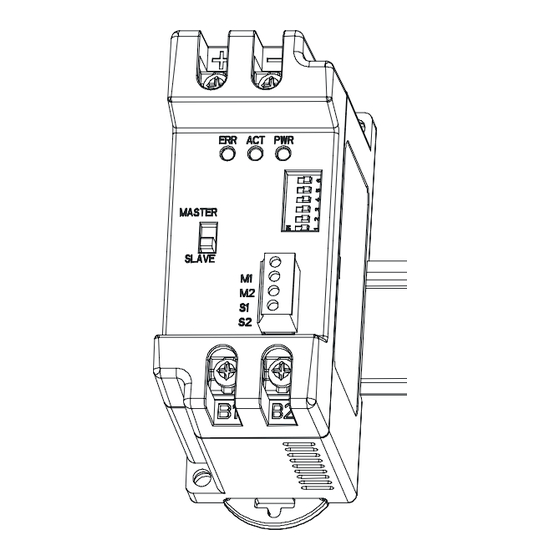

4.1 Outline
8
2 40 23 0 22 0 2 10 2 0019 0
MASTER/SLAVE
ON OFF
Switch
4.2 Wire Gauge for Terminals
Terminal Wire Gauge
Circuit
Symbol AWG/mm
Power Input
+(P), -(N) 20~22AWG/0.5~0.3mm
Circuit
Brake Resistor B1, B2 20~22AWG/0.5~0.3mm
24AWG/0.2mm
M1, M2
SLAVE Circuit M1, M2, S1, S2 with shielded
S1, S2
Basic Wiring Diagram
NFB
MC
R/L1 R/L1
U/T1
S/L2 S/L2
V/T2
T/L3 T/L3
W/T3
VFD-E/VFD-EL
O.L.
Series
MC
MAX.
Thermal +/B1 P ( )
WEIGHT(g) SA
Overload
- N ( )
Relay Surge
160
Absorber
160
750
Note1: When the AC drive uses with DC reactor, please refer to the wiring diagram in the
VFD-E/EL user manual for wiring terminal +(P) of brake unit.
Note2: DO NOT wire terminal -(N) to neutral point of power system.
NOTE
For safety consideration, install an overload relay between the
brake unit and the brake resistor. In conjunction with the magnetic
contactor (MC) prior to the drive, it can perform complete protection
against abnormality.
The purpose of installing the thermal overload relay is to protect the
brake resistor from damage due to frequent brake, or due to brake
unit keeping operating resulted from unusual high input voltage.
Under such circumstance, just turn off the power to avoid
damaging the brake resistor.
Please refer to "7 Brake Resistor/Units for the AC Drives" for the
specification of the thermal overload relay.
Wiring Warnings
Do not proceed with wiring while power is applied to the circuit.
The wiring gauge and distance must comply with the local
regulations.
The +(P), -(N) terminals of the AC motor drive (VFD-E/VFD-EL
Series), connected to the brake unit (BUE), must be confirmed for
correct polarity lest the drive and the brake unit be damaged when
power on.
When the brake unit performs brake, the wires connected to +(P),
-(N), B1 and B2 would generate a powerful electromagnetic field
for a moment due to high current passing through. These wires
should be wired separately from other low voltage control circuits
lest they make interference or mis-operation
Wiring distance
VFD-E/VFD-EL
series
0.2~1.5kW
115V/230/460V
AC Motor Drive
Inflammable solids, gases or liquids must be avoided at the location
Power Input Terminal
where the brake resistor is installed. The brake resistor had better
be installed in individual metallic box with forced air-cooling.
Power lamp
Connect the ground terminal to the Earth Ground. The ground lead
Brake lamp
must be at least the same gauge wire as leads +(P), -(N).
Fault lamp
Please install the brake resistor with forced air-cooling or the
equivalent when frequent deceleration brake is performed (over
Dip Switch
for Input Voltage Setting 10%ED).
To avoid personal injury, do not connect/disconnect wires or
regulate the setting of the brake unit while power on. Do not touch
Slave output/input
the terminals of related wiring and any component on PCB lest
Terminals
users be damaged by extreme dangerous DC high voltage
M1 SLAVE output signal +
：
M2 ： SLAVE output signal -
We suggest to use ring terminals for main circuit wiring. Make sure
S1 ： SLAVE input signal +
the terminals are fastened before power on.
S2 ： SLAVE input signal -
Brake Resistors/Units for Delta VFD
Brake Resistor Terminal
AC Motor Drives Series
Terminal
2
Applicable
2 Equivalent
M4 Screw
Motor Full-load
brake
2
M4 Screw output
resistor for
2 torque
HP kW each AC
KG-M
M2 Screw
drive
wires
1/4 0.2 0.110
200W 250Ω
1/2 0.4 0.216
200W 250Ω
1 0.75 0.427
200W 150Ω
2 1.5 0.849 300W100Ω
3 2.2 1.262
600W 50Ω
IM
MOTOR
5 3.7 2.080
900W 30Ω
Thermal Overload
Relay
B1
O.L.
+ P ( )
1/2 0.4 0.216
BUE 300W 400Ω
Brake BR
- N ( )
Unit
1 0.75 0.427
300W 400Ω
B2
Brake Resistor
2 1.5 0.849
400W 300Ω
3 2.2 1.262
300W 400Ω
5 3.7 2.080
900W 120Ω
Definition for the Brake Usage ED%
100%
20015
The definition of the brake usage ED(%) is to assure having enough time
20037
BUE-
BR
40015 for the brake unit and brake resistor to dissipate the heat generated by
Max. 2M 40037 Max. 1M
brake. When the brake resistor heats up, the resistance would increase
Brake Resistor
with temperature, and brake torque would decrease accordingly.
Brake Unit
The Voltage Settings
The power source of the brake unit is the DC power from the + (P) and - (N)
terminals of the AC motor drive. Therefore, it is an important step to set the
voltage by the input voltage of the AC motor drive before operation. This
setting will affect the voltage level of the brake unit.
Table 1: The voltage selection and operation level of the PN DC voltage
Min.
Typical
Brake Equivalent
Brake Unit Brake Resistor Thermal
Torque Resistor
Model and Model and Overload
10% Value for
Quantity Quantity Relay
ED% Each AC
Value
Drive
BUE20015 1 1 320 200Ω 2A
BR200W250
BUE20015 1 1 170 100Ω 3A
BR200W250
BUE20015 1 1 140 80Ω 4A
BR200W150
BUE20015 1 BR300W100 1 107 80Ω 4A
BUE20037 1 2 150 25Ω 12A
BR300W100
BUE20037 1 - - 150 25Ω 12A
BUE40015 1 1 400 400Ω 2A
BR300W400
BUE40015 1 1 200 200Ω 3A
BR300W400
BUE40015 1 1 140 160Ω 4A
BR200W150
BUE40037 1 2 150 100Ω 6A
BR300W400
BUE40037 1 - - 150 100Ω 6A
NOTE
"-" means no Delta product. Please use the brake unit according to
the Equivalent Resistor Value.
The cycle time of brake usage ED% in the above table is 10
seconds.
For the detail applicable models, refer to the following list:
A. BUE20015 is used for
VFD002E11A/11P/11C/21A/21P/21C/23A/23P/23C,
VFD004E11A/11P/11C/21A/21P/21C/23A/23P/23C,
VFD007E21A/21P/21C/23A/23P/23C, VD015E23A/23P/23C,
VFD002EL11A/21A/23A, VFD004EL11A/21A/23A,
VFD007EL11A/21A/23A, VFD015EL21A/23A
B. BUE20037 is used for VFD022EL21A/23A, VFD037EL23A
C. BUE40015 is used for VFD004E43A/43P/43C,
VFD007E43A/43P/43C, VFD015E43A/43C, VFD004EL43A,
VFD007EL43A, VFD015EL43A
D. BUE40037 is used for VFD022EL43A, VFD037EL43A
T1
ED% = T1/T0x100(%)
Brake Time
T0
Cycle Time
115V/230V Brake Start-up
460V Model Brake Start-up voltage
Model voltage
AC Power DC Bus (+(P), -(N))
AC Power DC Bus (+(P), -(N))
Voltage Voltage
Voltage Voltage
190Vac 330Vdc 380Vac 660Vdc
200Vac 345Vdc 400Vac 690Vdc
210Vac 360Vdc 420Vac 725Vdc
220Vac 380Vdc 440Vac 760Vdc
230Vac 400Vdc 460Vac 800Vdc
NOTE: Input Power With Tolerance ±10%
240230 220 210200190
For BUE-20015 Series/
BUE-20037 Series
Factory setting: 190V
24 02 30 220 21 02 0019 0
ON OFF
ON OFF
480460 440 420400380
For BUE-40015 Series/
BUE-40037 Series
Factory setting: 380V
ON OFF
NOTE
Before setting the voltage, make sure the power has been turned
off.
Please set power voltage as the possible highest voltage for
unstable power system. Take 380VAC power system for example.
If the voltage may be up to 410VAC, 415VAC should be selected.
For VFD-E/VFD-EL Series, please set parameter Pr06.00=0 (Over
Voltage Stall Prevention) to disable over-voltage stall prevention, to
ensure stable deceleration characteristic.
