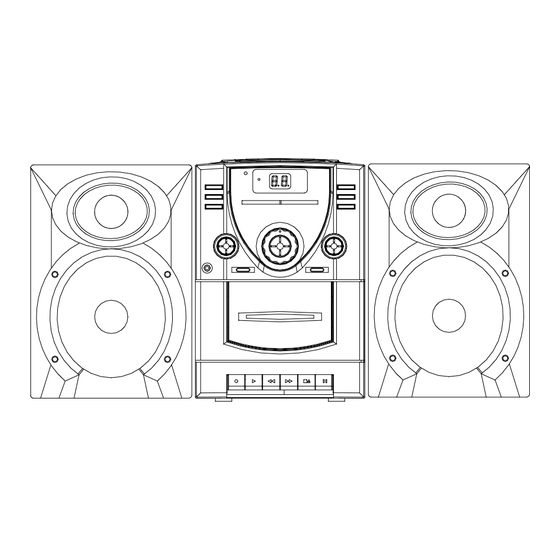

- Page 1 COBY OPERATION MANUAL CX-CD400 MINI PORTABLE CD STEREO SYSTEM WITH AM/FM TUNER...
-
Page 2: Location Of Controls
LOCATION OF CONTROLS Front View 18 17 13 12 Side View Rear View... - Page 3 LOCATION OF CONTROLS (Cont.) PAUSE BUTTON STOP/EJECT BUTTON FAST FORWARD BUTTON REWIND BUTTON PLAY BUTTON RECORD BUTTON CASSETTE COMPARTMENT BAND SWITCH TUNING KNOB 10. FM STEREO INDICATOR 11. REPEAT BUTTON 12. CD FORWARD SKIP/SEARCH BUTTON 13. CD PLAY / PAUSE BUTTON 14.
-
Page 4: General Operation
GENERAL OPERATION POWER SOURCES Before connecting the Unit to an AC outlet, check that the operating voltage of the Unit is identical with the voltage of your local power supply. Connect the supplied AC power cord to the AC in jack. BATTERY OPERATION Switch the AC/DC selector to DC position. -
Page 5: Stereo Headphone Jack
STEREO HEADPHONE JACK For private listening, insert the plug of a Stereo Headphone into the Stereo Headphone JACK and adjust Volume Control Knobs, accordingly. During the use of headphone, the External Speakers are automatically disconnected. CASSETTE OPERATION Tape A playback only. Depress the Stop/Eject Button to open the cassette door, insert a cassette into the door and push the cassette door to close. - Page 6 RECORDING A. RECORDING FROM THE BUILT-IN RADIO 1. Tune into the desired station. 2. Load a cassette into the TAPE b cassette compartment 3. Press the PAUSE button of TAPE B 4. Press the RECORD button of TAPE B, which also engages the PLAY button. 5.
-
Page 7: To Interrupt Playback
CD PLAYBACK 1. Slide the FUNCTION switch to CD position. 2. Press the CD Open/Close button to open the CD compartment. 3. Place a CD on the spindle, label side up. 4. Close the CD compartment. The total number of tracks will be displayed. If the compartment is not close or there is no disc, “- -”... -
Page 8: Maintenance
WARNING TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE THE APPLIANCE TO RAIN OR MOISTURE. DO NOT REMOVE COVER. PILOT LAMPS SOLDERED IN PLACE. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONEL. MAINTENANCE CLEANING THE TAPE HEADS Clean the heads frequently to remove dust and tape residue. - Page 9 COBY ® 90 DAYS LIMITED WARRANTY COBY ELECTRONICS CORP (“COBY”) warrants this product to the original purchaser to be free from defects in material or workmanship under normal use for 90 DAYS from the date of original purchase. COBY agree under this warranty, to repair or replace it with a new or reconditioned product at no additional charge.
- Page 10 COBY CX-CD400 (CD-200) RATING LABEL SIZE: 47.3 X 25.3 MM COBY MINI PORTABLE CD STEREO SYSTEM WITH AM/FM TUNER AM 530 - 1710 KHz FM 88 - 108 MHz AC 110 / 220V ~ 60Hz / 50Hz COBY ELECTRONICS CORP., U.S.A. 55-56 RUST STREET, MASPETH, NY 11378 MADE IN CHINA CX-CD400...
