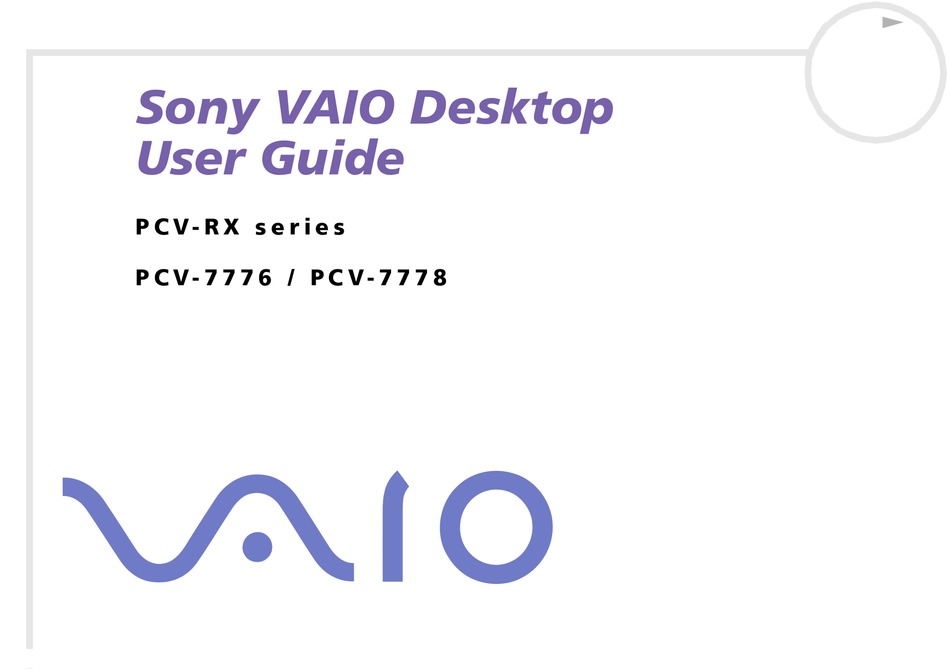

- Page 1 Sony VAIO Desktop User Guide P C V - R X s e r i e s P C V - 7 7 7 6 / P C V - 7 7 7 8...
-
Page 2: Read This First
Macrovision Corporation. Reverse engineering or disassembly is prohibited. Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user licence agreement. - Page 3 Read this first Trademarks Sony, DVgate, i.LINK and the i.LINK logo, MovieShaker, Network Smart Capture, PictureGear Studio, SonicStage, Sony Style Imaging, UI Design Selector, VAIO Action Setup, VAIO Edit Components, VAIO System Information, Memory Stick and the Memory Stick logo, VAIO and the VAIO logo are trademarks of Sony Corporation.
-
Page 4: Environmental Information
® NERGY ® As an E Partner, Sony has determined that this product meets the E NERGY International Energy Star computers and their office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted products are office equipment such as computers, displays, printers, facsimiles and copiers. -
Page 5: Safety Information
Read this first Safety information Warnings General ❑ Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. ❑ Opening the unit, for whatever reason, could lead to damages that are not covered by the guarantee. ❑... - Page 6 There is visible and invisible radiation when the optical disc drive is open: avoid direct exposure to the laser beam. The optical disc drives are classified as CLASS 1 LASER PRODUCTS and comply with the Laser Product Safety Standard EN 60825-1. Repair and maintenance only by authorised Sony technicians. Improper repairs and use can create safety hazards. CLASS 1...
-
Page 7: Regulatory Information
Read this first Regulatory information Sony hereby declares that this product is in compliance with the essential requirements and other relevant provisions of European Directive 1999/5/EC (radio equipment and telecommunications terminal equipment Directive). Declaration of Conformity The European Union is targeting the free movement of goods for the internal market and to prevent technical barriers to trade. This effort has resulted in several EU Directives asking that manufacturers make their products comply with essential standards. - Page 8 Disposing of the internal memory backup battery Your Sony VAIO desktop is equipped with an internal back-up memory battery that should not have to be replaced during the lifetime of the product. If you want to replace the battery, please contact VAIO-Link: http://www.vaio-link.com...
- Page 9 ❑ Multimedia features – Enjoy audio and video CDs and DVDs. ❑ Sony Memory Stick™ slot – The next generation in digital storage allows you to easily transfer images, sounds, data and text between cameras, computers, and more. ❑ VAIO keyboard - Featuring power-on capabilities and shortcut keys to launch your favourite applications within seconds.
- Page 10 ❑ An Application CD Guide, which explains the purpose and use of the final system recovery disc. Use this when (re)installing bundled software. ❑ Your Sony Guarantee conditions; ❑ A Safety Regulations Guide for your information; ❑ A Modem Regulations leaflet applying to the modem.
- Page 11 About the Software is a short description of the features of the software delivered with your system. ❑ Using Video software explains how to use Sony video software: DVgate, MovieShaker and Network Smart Capture. ❑ Managing audio files with SonicStage describes how to convert your existing MP3, WMA and WAV format audio files into ATRAC3 format.
- Page 12 Welcome ❑ Managing drivers describes how to install, update or uninstall a driver. ❑ Using the Product Recovery disc(s) explains how to perform a system and application recovery. In the Customer Service Guide, you will find all the information you need relating to VAIO-Link, including contact numbers for each country.
- Page 13 Welcome Your Sony VAIO desktop and its accessories The following hardware items are in the box: main unit VAIO keyboard with palmrest power cable phone cable phone plug adapter (country-specific) ✍ The phone cable is used to connect the internal modem.
-
Page 14: Ergonomic Considerations
Welcome Ergonomic considerations Whenever possible, try and take into account the following ergonomic considerations when using your new computer, whether at home or in the office:... - Page 15 Welcome ❑ Position of the keyboard and mouse – Place the keyboard directly in front of you (1). Keep your forearms horizontal, with your wrists in a neutral, comfortable position (2) while using the keyboard or mouse – not at an angle. Let your upper arms hang naturally at your sides. Use the palm rest only briefly, to relax your wrists when you are not typing.
-
Page 16: Table Of Contents
Using your VAIO desktop Using your VAIO desktop This section describes how to start using your computer and how to use your computer’s internal and external devices. ❑ Locating connectors ❑ Starting your computer ❑ Shutting down your computer ❑ Using the keyboard ❑... -
Page 17: Starting Your Computer
Using your VAIO desktop Starting your computer Once you have all the components set up as described in the Getting Started guide, you can begin to use your computer. To start up your computer, proceed as follows: Press the power button on your monitor to turn the display on (1). Press the power button on the system unit until the blue power indicator light turns on (2). -
Page 18: Shutting Down Your Computer
Using your VAIO desktop Shutting down your computer It is important that you shut down your computer properly so you do not lose unsaved data. To shut down your computer, proceed as follows: Click the Start button. Click Turn Off Computer. The Turn off computer screen appears. -
Page 19: Using The Keyboard
Using your VAIO desktop Using the keyboard This section describes the features of the VAIO keyboard. ★ Tip: Your keyboard has an ergonomic design. You can put it in an upward position on its backside to save space on your desk. ¬... - Page 20 Using your VAIO desktop Keys Escape key (1) Function keys (2) Correction keys (3) Lock keys (4) Print Screen key (5) Numeric keypad area (6) Navigation keys (7) Application key Operator keys (9) ® Windows (10) Shortcut keys (S Keys) (11) Indicator LEDs (12) Standby button (13) Descriptions...
- Page 21 Using your VAIO desktop Keys <Fn> combination keys (14) <Fn> key (15) Combinations and functions with the Windows Combinations +< F1> + <Tab> + <D> + <E> + <F> + <Ctrl> + <F> + <M> <Shift> + + <M> + <R> + <U>...
- Page 22 Using your VAIO desktop Combinations and functions with the <Fn> key Combinations/ Feature PgUp <Fn> + PgDn <Fn> + Home <Fn> + <Fn> + ScrLk <Fn> + Indicators Light Num Lock Caps Lock Scroll Lock Functions Moves the view to the next page up. Moves the view to the next page down.
-
Page 23: Using The Shortcut Keys
Using your VAIO desktop Using the shortcut keys Press a shortcut key (<S> Key) to start your favourite software without having to click the shortcut icon on the desktop. Use an <S> Key simply by pressing it. If you want to, you can use VAIO Action Setup to change the functions of the <S> Keys. All six buttons are reprogrammable. -
Page 24: Setting Up The Monitor
Using your VAIO desktop Setting up the monitor If your VAIO desktop is delivered with a monitor, it may be delivered with a digital 15" or 17'' LCD (XGA TFT) monitor or with a common analogue CRT monitor, depending on your model and vendor. For more information on how to use your delivered monitor, refer to the user manual that came with it. -
Page 25: Using The Mouse
Using your VAIO desktop Using the mouse The VAIO wheel mouse allows you to control the cursor in a number of ways. You can point to, select, drag, and scroll objects on the screen using the buttons and the wheel. Function Action point... -
Page 26: Using The Cd And Dvd Drives
Using your VAIO desktop Using the CD and DVD drives Your computer is equipped with both a DVD±RW or DVD-ROM and a CD-RW or CD-ROM drive. The combination depends on the model you have purchased, see the Specifications sheet. ❑ The DVD±RW drive reads data from and writes data onto DVD. - Page 27 Using your VAIO desktop What (re)writable DVD formats can I use? Recordable and rewritable DVD formats include: DVD-R, DVD-RW, DVD+R and DVD+RW. DVD-RW and DVD+RW discs can be written to up to 1,000 times, whereas DVD-R/+R can only be written to once.
- Page 28 Using your VAIO desktop Writing CDs and DVDs To achieve optimum performance when writing data on to disc (also called ’burning’), follow these recommendations: ❑ Only use circular discs. Do not use discs with any other shape (star, heart, card, etc.), as this may damage the disc drive.
- Page 29 Using your VAIO desktop Playing DVDs To achieve optimum performance when playing DVD-ROMs, you should follow these recommendations: ❑ You can play DVDs in the DVD±RW or DVD-ROM drive, with the software PowerDVD for VAIO. ❑ Close all open applications before playing a DVD-ROM movie. ❑...
- Page 30 Using your VAIO desktop Click the GeForce4 Ti 4600 or Ti 4200 tab. Click nView Display Mode on the left. Select the Clone mode check box. Click Apply. The image appears on both the computer and the TV display. Click Overlay Controls on the left. Under Full screen device, make sure Secondary Display is selected.
-
Page 31: Using The Floppy Disk Drive
Using your VAIO desktop Using the floppy disk drive Your VAIO desktop is equipped with a floppy disk drive. Inserting a floppy disk To insert a floppy disk, proceed as follows: Open the cover showing the Memory Stick™ icon on the front. Hold the floppy disk with the label side facing up. -
Page 32: Using The Modem
Using your VAIO desktop Using the modem Your VAIO desktop is equipped with an internal modem. You need to connect a phone line to take advantage of online services and the Internet, to register your computer and software online, and to contact VAIO-Link. -
Page 33: Expansion Capabilities
The empty slots allow you the choice of adding to the expansion capabilities of your computer. See Upgrading your VAIO computer You are strongly advised not to add hardware yourself. Please contact your local Sony dealer for advice on changing the internal hardware components. -
Page 34: Using The Memory Stick
There are currently two different types of Memory Stick™: ❑ The generic Memory Stick™, coloured blue. ❑ The MagicGate Memory Stick™, coloured white. ✍ You can purchase Memory Sticks™ from the Sony Style website (http://www.sonystyle-europe.com), or from your local Sony dealer. - Page 35 Using your VAIO desktop Why Memory Stick™? Sony's vision is to expand the world of communication, promoting the portability of digital data. The Memory Stick™ is the resulting medium, through which digital devices can be instantly connected. With it, you can download data from any compatible device, then transfer it to another in a single and instant transfer.
- Page 36 Using your VAIO desktop Generic Memory Stick™ The original Memory Stick™, blue in colour, can be used to record image data taken with digital still cameras, etc. or data from the PC. With it, you can record, play back and transfer various kinds of data at any given time.
- Page 37 Using your VAIO desktop MagicGate Memory Stick™ As the MagicGate Memory Stick™ is not supported on your model, the following is for your information only. If you want to be able to use the MagicGate Memory Stick™ technology, you can buy our external accessory MSGC-US10.
- Page 38 Since it is compatible with MagicGate, you can use OpenMG/SonicStage to transfer music that you have downloaded onto your PC to your MG Memory Stick™, and playback on other MagicGate-equipped devices and media. logo printed on it logo indicates the copyright protection system devised by Sony. It is not meant to guarantee compatibility with...
- Page 39 (SDMI) to study technology for protecting copyrights during the electronic distribution of music. Sony offers the MagicGate Memory Stick™ and Memory Stick™ Walkman with a copyright protection function that complies with SDMI standards, thereby providing an environment where individuals can record and enjoy third-party music data without worrying about copyright infringement.
- Page 40 There are nearly 80 Memory Stick™-enabled products on the market or announced for introduction world- wide, ranging from camcorders and portable music players to voice recorders and many other electronic devices. You can currently use Memory Sticks™ with the following Sony products: Visual: ❑...
- Page 41 Using your VAIO desktop Write-protecting a Memory Stick™ Memory Sticks™ are designed with an erasure prevention switch to protect valuable data from accidental erasure or overwriting. Move the tab to the right or left* to set or release write-protection. When the erasure prevention switch is off, data can be saved on the Memory Stick™.
- Page 42 Using your VAIO desktop Inserting a Memory Stick™ To insert a Memory Stick™, proceed as follows: Open the cover showing the Memory Stick™ icon on the front. Insert the Memory Stick™ into the Memory Stick™ slot with the connectors pointing to the right. The Memory Stick™...
- Page 43 Using your VAIO desktop Removing a Memory Stick™ To remove a Memory Stick™, proceed as follows: Make sure the indicator light is not on. Push the Memory Stick™ in to release it, and then pull it out. DRIVE while reading and writing data from Close the cover flap.
-
Page 44: Using Power Saving Modes
Using your VAIO desktop Using power saving modes The colour of the power indicator light on the main unit tells you which mode the computer is in. Colour Mode Blue Computer is in Normal mode Umber Computer is in Standby mode No colour Computer is turned off or in Hibernate mode Using Standby mode... -
Page 45: Using Hibernate Mode
Using your VAIO desktop To return to Normal mode, choose from the following: ❑ Press any key on the keyboard. ❑ Press the Standby button again. ❑ Press one of the <S> Keys on the keyboard. ❑ Quickly press the power button on your computer. ✍... - Page 46 Using your VAIO desktop To activate Hibernate mode manually, use one of these two methods: ® Use the Windows Save your work. From the Start menu on the Windows Alternatively, press <Alt>+<F4> until the Turn Off Computer screen is displayed. In the Turn Off Computer screen, hold down the <Shift>...
-
Page 47: Connecting Peripheral Devices
Connecting peripheral devices Connecting peripheral devices You can add functionality to your computer by connecting any of the following peripherals, and more. Before you connect a peripheral, turn off both the computer and the peripheral. Connect the power cord only after connecting all cables. Turn on the computer only after turning on all peripherals. -
Page 48: Notes On Connecting Universal Serial Bus (Usb) Devices
Connecting peripheral devices Notes on connecting Universal Serial Bus (USB) devices You can connect a USB device, for example, a scanner or a printer, to your VAIO desktop. Your computer features the latest USB technology, having been upgraded to USB Specification version 2.0. USB Specification version 2.0 increases device data throughout up to 480Mbps, 40 times faster than USB 1.1 devices. -
Page 49: Connecting An External Display
Connecting peripheral devices Connecting an external display You can connect multiple displays to your desktop, each using a different port on the back of your computer: ❑ an LCD screen using the DVI connector, ❑ a CRT or LCD screen using the VGA connector, ❑... - Page 50 Connecting peripheral devices Click the GeForce4 Ti 4600 or Ti 4200 tab. Click nView Display Mode on the left. Select the Device Settings button. Click Select Output Device... and select the desired display. Click OK. If you reboot after changing the settings as above, the default setting returns and the image is shown on the VGA screen again.
-
Page 51: Connecting A Projector
Connecting peripheral devices Connecting a projector You can connect a projector (such as the Sony LCD projector) directly to your computer. To connect a projector to your VAIO desktop, proceed as follows: Plug one end of the VGA cable (not supplied) into the VGA connector on the back of your computer, and the other end into the projector you want to use (1). -
Page 52: Connecting A Tv
Connecting peripheral devices Connecting a TV You can connect a TV directly to your computer. See also Using two screens while watching a DVD film (page 28). In order to be able to use a TV screen, you also have to enable the TV-Out function. Your VAIO desktop is delivered with a TV-Out cable (or ’converter cable’), which is for use with TV sets without an S-Video port. - Page 53 Connecting peripheral devices Connecting a TV that has a Video-S port To connect a TV to your VAIO desktop with an S-Video cable (not supplied), proceed as follows: Plug one end of the S-Video cable into the TV Out port on the back of your computer. Plug the other end of the S-Video cable into your TV’s S-Video port.
-
Page 54: Connecting An External Microphone
Connecting peripheral devices Connecting an external microphone Your VAIO desktop does not contain an internal microphone. If you need to use a sound input device, for example to chat on the Internet, you need to plug in an external microphone. To connect an external microphone, plug the microphone cable (1) into the microphone connector (2) identified by the symbol ✍... -
Page 55: Connecting A Printer
Connecting peripheral devices Connecting a printer To connect a printer, proceed as follows: Plug the printer cable into the printer connector on your computer. Plug the printer power cord into an AC outlet. -
Page 56: Connecting A Usb Printer
Connecting peripheral devices Connecting a USB printer To connect a USB printer, simply plug the printer's USB cable into one of the USB ports on your VAIO desktop. There are USB ports at the front and/or at the back of your computer. ✍... -
Page 57: Connecting An I.link™ Device
An i.LINK™ connection with other compatible devices is not fully guaranteed. You are strongly advised to use only Sony i.LINK™ cables, as using other brands may cause problems with the i.LINK™ devices. The i.LINK™ connection varies depending on the software applications, operating system and i.LINK™ compatible devices you use. Refer to the documentation that came with your software for more information. -
Page 58: Connecting A Digital Video Camera Recorder
On Sony digital video cameras, connectors labelled DV Out, DV In/Out or i.LINK™ are i.LINK™-compatible. The Sony digital video camera recorder is an example; your digital video camera recorder may need to be connected differently. If your digital video camera recorder includes a Memory Stick™ slot, you canuse it to copy images from the camera to your computer. To do so, simply... -
Page 59: Connecting Two Vaio Computers
Connecting peripheral devices Connecting two VAIO computers If you have adminstrator rights on your computer, you can connect your VAIO desktop to another VAIO computer using an i.LINK™ cable (not supplied). With the software delivered with your VAIO desktop, you can copy, edit or delete files on another VAIO computer that also has Windows You can also print a document on a printer connected to another VAIO computer. -
Page 60: Connecting To A Network
Connecting peripheral devices Connecting to a network Your computer comes with a preinstalled Ethernet interface. To connect to a network, proceed as follows: Connect your 10BASE-T/100BASE-TX Ethernet cable (not supplied) to the Ethernet port on the back of the computer. If there is a sticker covering the Ethernet port, this is to remind customers in Germany not to insert an ISDN cable (see caution below). - Page 61 Connecting peripheral devices Connect only 10BASE-T/100BASE-TX cables to the Ethernet port. Using other cables or a telephone cable may cause a malfunction, excessive heat or even fire in the port. If using this computer in Germany, please make sure you do not use an ISDN cable. It is physically very similar, but its higher voltage of 12V may destroy the motherboard inside the computer.
-
Page 62: Getting Help
Getting help Getting help This section describes how to get help and support from Sony, as well as troubleshooting tips for your computer. Sony provides several support options for your computer. Sony's support options Sony documentation Please see the section Documentation pack delivered with your computer. -
Page 63: Troubleshooting
This section describes how to solve common problems you might encounter when using your VAIO desktop. Many problems have simple solutions. Please try these suggestions before contacting VAIO-Link or your local Sony dealer. You are recommended to print out this section and keep it for future reference. -
Page 64: About The Computer And Software
Turn off the computer. Remove any peripheral devices connected to the computer. Turn on the computer and press <F2> when the Sony logo appears. The BIOS setup menu screen appears. Use the keyboard‘s arrow keys to select the Exit menu. - Page 65 Getting help Press <F10> to exit, or use the arrow keys to select Save and Exit. The message Save configuration changes and exit now? appears. Make sure that Yes is selected and then press <Enter>. My computer does not shut down It is recommended that you shut down your computer using the Turn Off Computer command on the ®...
- Page 66 Getting help My computer locks up ❑ If you suspect an application is locking your system, you can try to stop it. To do this, press <Ctrl>+<Alt>+<Delete> once. If you have not changed the default settings, you will enter the Task Manager.
- Page 67 The Turn off computer box appears. Select Restart. Make sure the software you are using is compatible with your equipment and operating system. If these options fail, try re-installing the software. For bundled Sony software, see the printed Application CD Guide for installation details. ✍...
-
Page 68: About The Display
Getting help About the display My monitor does not display anything ❑ Check that the computer is plugged into a power source and that it is turned on. ❑ Check that the monitor is plugged into the computer and to a power source, and turned on. ❑... -
Page 69: About Cds And Floppy Disks
Getting help I want to change the resolution of my display To change the resolution of your display, proceed as follows: From the Start menu, select the Control Panel. Click Appearance and Themes, then the Display icon. The Display Properties dialog box appears. Select the Settings tab. - Page 70 Getting help I cannot play a CD ❑ After inserting the CD, wait for a few seconds for the system to detect it before you try to access it. ❑ Make sure the label of the disc is facing upwards. ❑...
- Page 71 Getting help ❑ A dirty or damaged disc may cause the computer to 'hang' while it tries to read the disc. If necessary, reboot the computer, remove the disc and then check that it is not dirty or damaged. ✍ On your computer, the default DVD region code is 2, which is the region code for European DVDs.
- Page 72 Getting help Select the Recordings tab. Under Desktop CD recording, change the current writing speed to 4x or 2x. Click OK. The speed is changed and recording should run smoothly. The recording and reading speed of CD-RWs or DVD+/-RWs is slow Generally, the speed of a CD-RW or DVD+/-RW is slower than that of a CD/DVD-ROM, CD-R or DVD+/-R.
-
Page 73: About Sound
Getting help About sound My speakers are not producing any sound ❑ If you are using an application that has its own volume control, check that the volume is turned up. ❑ Check the volume controls in Windows ❑ Check that the speakers are connected correctly and turned on, and that the AC adapter is plugged into the mains (see the printed Getting Started brochure or the back of the Specifications sheet for connection details). -
Page 74: About The Modem
Getting help In the Options menu, select Advanced Controls, and then click the Advanced button under Microphone - Balance. The Advanced Controls for Microphone dialog box appears. Deselect the Microphone Boost check box, and then click Close. Close the Recording Control dialog box. The unwanted noise should now be cleared. - Page 75 Getting help My modem connection is slow Many factors influence modem connection speed, including telephone line noise or compatibility with telephone equipment (such as fax machines or other modems). If you think your modem is not connecting properly to other PC-based modems, fax machines, or your Internet Service Provider, check the following: ❑...
-
Page 76: About Peripherals
Getting help About peripherals My mouse does not work Check that the mouse is plugged into the mouse connector on the back of the unit. There may be dust or dirt inside the mouse mechanism. To clean the mouse, proceed as follows: Turn off the computer and turn the mouse upside down. - Page 77 If this is the case, turn off all connected devices and disconnect unused devices. Check the connection and then turn on the power again. ❑ You are strongly advised to use only Sony i.LINK™ cables, as using other brands may cause problems with the i.LINK™ devices. How do I install a printer? Always check the printer manufacturer’s website for the latest drivers for Windows...
- Page 78 The default setting for the printer port mode is correct for most printers, but you can try to change the printer port mode, as follows: Turn on the computer and press <F2> when the Sony logo appears. The BIOS setup menu screen appears.
-
Page 79: About Digital Video Captures And Dvgate
Getting help Press <F10> to exit, or use the arrow keys to select Save and Exit.. The message Save configuration changes and exit now? appears. Make sure that Yes is selected and then press <Enter>. Your computer restarts. When I remove a Memory Stick™, an error message appears Insert the Memory Stick™... - Page 80 The connected i.LINK™ device is not recognised Disconnect the i.LINK™ device, then connect it again. You are strongly advised to use only Sony i.LINK™ cables, as using other brands may cause problems with the i.LINK™ devices. I cannot establish an i.LINK™ connection between two VAIO computers ❑...
-
Page 81: Upgrading Your Vaio Computer
To avoid the invalidation of your guarantee by mishandling, it is recommended that: You contact your local Sony dealer to install any new internal hardware components. You do not install memory modules yourself, if you are not familiar with upgrading memory on a computer. - Page 82 Upgrading your VAIO computer Opening the side cover To remove the side panel from the main unit, proceed as follows: Shut down your computer and disconnect all peripheral devices. Unplug the computer from the mains. Wait until the computer cools down. The inside of the main unit becomes very hot during operation.
-
Page 83: Inserting A Pci Add-On Board
Upgrading your VAIO computer Inserting a PCI add-on board Your computer has open PCI expansion slots. These slots enable you to install add-on boards to expand the functionality of your system. Add-on board configuration can vary. To insert an add-on board, proceed as follows: Shut down your computer and turn off all peripheral devices, such as your printer. -
Page 84: Upgrading Memory
Upgrading your VAIO computer Upgrading memory In the future, you may want to upgrade the memory installed on your VAIO by replacing / adding memory modules. However, we recommend that you do not install them yourself unless you are familiar with upgrading memory on a computer. -
Page 85: Adding / Replacing A Memory Module
Upgrading your VAIO computer ✍ Do not place the memory module in places subject to: - Heat sources such as radiators or air ducts, - Direct sunlight, - Excessive dust, - Mechanical vibration or shock, - Strong magnets or speakers that are not magnetically shielded, - Ambient temperature of more than +35°C or less than +5°C, - High humidity. - Page 86 Upgrading your VAIO computer Press evenly against the memory module's upper corners. The end latches snap into position automatically, as shown (3): Reinstall any add-on cards or components you removed. Replace the side cover as described in Closing the side cover ✍...
-
Page 87: Closing The Side Cover
Upgrading your VAIO computer Viewing the amount of memory To view the amount of memory, proceed as follows: Turn on the computer. Click the Start button, point to All Programs, then VAIO System Information, and click VAIO System Information again. You can view the amount of installed memory here. -
Page 88: On Handling The Hard Disk
Precautions Precautions This section describes safety guidelines and precautions to help you protect your computer from potential damage. Please contact VAIO-Link if you need assistance. ❑ On handling the hard disk ❑ On using the power source ❑ On handling your computer ❑... -
Page 89: On Using The Power Source
Precautions ❑ Do not use your computer in a place subject to extreme changes in temperature. ✍ If the hard disk is damaged, the data cannot be restored. On using the power source ❑ Your computer operates on 220-240V AC50/60Hz. ❑... - Page 90 Precautions ❑ Moisture or rain ❑ Mechanical vibration or shock ❑ Strong magnets or speakers that are not magnetically shielded ❑ An ambient temperature of more than 35ºC or less than 10ºC ❑ High humidity. ❑ Do not place electronic equipment near your computer. The electromagnetic field of your computer may cause a malfunction.
-
Page 91: On Handling Floppy Disks
Precautions On handling the LCD screen (if applicable) ❑ Do not leave the LCD facing the sun as it can damage the LCD. Be careful when using the computer near a window. ❑ Do not scratch the LCD or exert pressure on it. This could cause malfunction. ❑... -
Page 92: On Handling Compact Discs
Precautions On handling compact discs ❑ Do not touch the surface of the disc. ❑ Do not drop or bend the disc. ❑ Fingerprints and dust on the surface of a disc may cause reading errors. Always hold the disc by its edge and central hole, as shown. -
Page 93: On Handling Memory Sticks
Precautions On handling Memory Sticks™ ❑ Do not touch the Memory Stick™ connector with your finger or metallic objects. ❑ Use only the label supplied with the Memory Stick™ as a label. ❑ Do not bend, drop, or apply heavy shock to the Memory Stick™. ❑... - Page 94 Glossary Glossary This section refers to terms used in this manual and elsewhere in the VAIO world. These terms and definitions have been compiled to provide you with a better understanding of your VAIO computer. Term <F1> key 10BASE-T/100BASE-TX ACPI Application recovery Application recovery disc BIOS...
- Page 95 DVD disc. By comparison, a DVD-R can only be written to once. A slightly different rewritable DVD format, DVD+RW is backed by a group of companies known as the DVD+RW Consortium, which includes Sony. Its advantages include high- compatibility, high-capacity and easy-to-use functionality.
- Page 96 They contain specific information on the software in use and can be used together with the descriptions in your online Sony Software Guide. i.LINK™ is Sony’s version of the IEEE 1394 standard for high-speed digital serial interface. The standard is regarded in the audio/video and IT industries as the most suitable interface for connecting computers and digital audio/video devices (such as digital cameras etc.).
- Page 97 Glossary MAPI maximum RAM Motherboard MPEG Operating system Partition Short for Liquid Crystal Display. Flat display technology using liquid crystals (and light polarisation) to provide sharp, flicker-free images on a screen comprised of millions of tiny cells. Colour can be produced by two basic techniques. Passive matrix is the less expensive of the two technologies.
- Page 98 Glossary PC Card PCMCIA Pixel Processor Product recovery discs PS/2 PSTN A PBX (Private Branch Exchange) is a private telephone network within an enterprise. Under this system, the calls between the enterprise members are local and the phone numbers are made up of 3 or 4 digits.
- Page 99 Glossary Resolution RGB signal cable Service pack 1 S-video SDRAM Standard RAM System recovery System recovery disc The degree of sharpness and clarity of an image. Resolution is expressed in pixels. Frequent computer screen resolutions are 640 x 480 pixels (VGA resolution; appropriate for a 14-inch screen), 800 x 600 (appropriate for a 15-inch screen), 1,024 by 768 (appropriate for a 17-inch screen), and 1,280 by 1,024.
- Page 100 You can connect up to 127 devices to a USB port. The USB standard is Hot Plug and Play. Short for Video Audio Integrated Operation. Brand name covering Sony's PC products, peripherals, accessories and software. VAIO-branded items are all designed to make the best use of Sony's Audio-Video (AV) and Information Technology (IT) skills.
