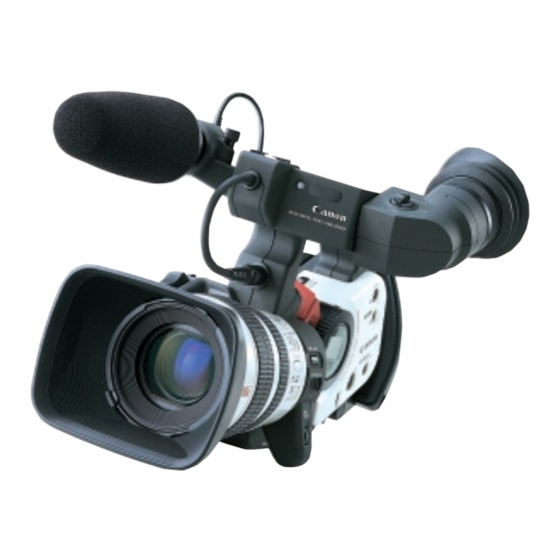

Canon 3CCD User Manual

Canon digital video camcorder 3ccd user guide.


3CCD
DIGITAL VIDEO
CAMCORDER
The Essence of Professionalism
The Essence of Professionalism
www.canondv.com
Next page ->

Summary of Contents

  • Page 1

    3CCD DIGITAL VIDEO CAMCORDER The Essence of Professionalism The Essence of Professionalism www.canondv.com...

  • Page 2

    Internet, or post them on your Web site. Also, you can print them out on a Canon color printer, transfer them back to your Canon camcorder and archive them on a Mini DV cassette, or create a dubbing master.

  • Page 3

    – wide dynamic range, low color noise, natural color resolution and low aliasing. Pixel Shift Canon solves common shooting dilemmas by using a signal processing technique called Pixel Shift, which has been used in professional grade video cameras for many years.

  • Page 4

    XL mount system for a focal range from 24 to 2160mm. This unbeatable range is made possible though the use of Canon's XL and EF 35mm camera lenses. 3X Extra Wide-Angle Zoom Lens The 3X zoom lens...

  • Page 5

    This greatly improves performance for low frequency vibration, resulting in the most advanced optical image stabilization available today. This feature is found only on Canon's optical Image Stabilized 16X zoom lens. Image stabilizer ON Image stabilizer OFF Adapter...

  • Page 6

    Normal Movie Mode By merging Canon’s superior lens quality with 3 CCDs, the XL1 delivers stunning resolution and color reproduction - some of the best images outside of a TV studio.

  • Page 7

    The Tv and Av modes permit easy operation while retaining the creative image controls commonly found on Canon's 35mm SLR cameras. In the Tv mode, you select the shutter speed from 1/60 to 1/15000 of a second and the XL1...

  • Page 8

    S-Video cable. The same video terminals also accept video signals for recording from external sources such as a TV, VCR or another camcorder. The MA- 200 adaptor has a BNC connector for connection to professional equipment. XLR Audio Inputs...

  • Page 9

    (3 zoom speeds). SLR-Style Flash Photography Attach a Canon Speedlite E-TTL flash (420EX or 550EX) using the optional FA- 200 Flash Adapter to use the XL1 flash photography, just like you would with an SLR camera.

  • Page 10

    Nomenclature Stereo microphone Zooming ring Viewfinder focusing ring Auto/Manual Focus switch Viewfinder PUSH AF button Eye cup EXP. LOCK button Shoulder strap IRIS/SELECT dial attachment bar LENS RELEASE switch ND FILTER switch MENU button STABILIZER switch LIGHT button AUDIO MONITOR button POWER dial EJECT button...

  • Page 11

    Remote sensor 3CCD XL Lens Mount AV INSERT button Electronic Contacts CUSTOM key 1 PLAY/PAUSE USER PRESET (SELECT) button STOP CUSTOM key 2 AUDIO 2 RCA jack (R) USER PRESET (ON/OFF) button AUDIO 2 RCA jack (L) L/R dials (AUDIO 2)

  • Page 12

    CANON CANADA INC. Consumer Information Center toll-free at 1-800-828-4040 (in Canada) 6390 Dixie Road, Mississauga, Ontario L5T 1P7 CANADA MEXICO CANON MEXICANA, S. DE R. L. DE C. V. Periferico Sur No.4124 Col. CENTROY Ex-Rancho de Anzaldo C.P. 01900 Mexico, D.F.
