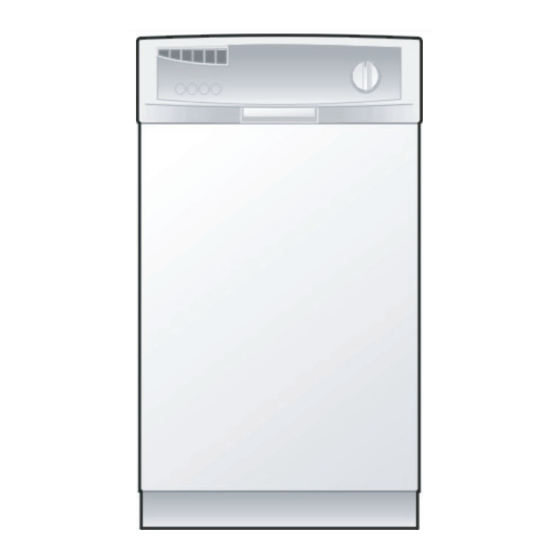

Frigidaire FMB330RG Use And Care Manual
18" built-in and portable
Hide thumbs
Also See for FMB330RG:
- Features & dimensions (2 pages) ,
- Installation instructions manual (13 pages) ,
- Factory parts catalog (9 pages)
Table of Contents
Advertisement
Dishwasher
Use & Care Manual
18" Built-In and Portable
Record All Information For
Future Reference
Brand:
Model #:
Serial #:
(see Features page for location)
1-800-944-9044
Questions?
1-866-213-9397
Visit our Web Site at
www.frigidaire.com
READ AND SAVE THESE INSTRUCTIONS
Purchase Date:
(United States)
(Canada)
Product Registration Card
Please fill in completely, sign and return promptly!
Safety
Instructions ........................
Features ..............................
Instructions ........................
Loading Dishes ...............
and Detergents ................
Performance .......................
Cleaning ..........................
Dishwasher .......................
Troubleshooting ...............
Consumer Services
Warranty & Service ............................... 14
Versión en español
Si desea obtener una copia en español de este Manual del
Usuario, sírvase escribir a la dirección que se incluye a
continuación. Solicite la P/N 154637703, Spanish Use &
Care Manual, Electrolux Home Products North America,
P.O. Box 212378, Augusta, GA 30917.
2
3
4
5-6
7-8
8
9-10
11
...12-13
13
P/N 154637701 (0701)
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Frigidaire FMB330RG
Summary of Contents for Frigidaire FMB330RG
-
Page 1: Table Of Contents
Serial #: (see Features page for location) 1-800-944-9044 Questions? (United States) 1-866-213-9397 (Canada) Visit our Web Site at www.frigidaire.com READ AND SAVE THESE INSTRUCTIONS Product Registration Card Please fill in completely, sign and return promptly! Safety Instructions ... Features ... Operating Instructions ... -
Page 2: Instructions
• Read all instructions before using your dishwasher. • Use your dishwasher only as instructed in this Use and Care Manual. • This Manual does not cover every possible condition and situation that may occur. Use common sense and caution when installing, operating and maintaining any appliance. -
Page 3: Features
Your dishwasher, illustrated below, cleans by spraying a mixture of hot, clean water, and detergent against the soiled surfaces of your dishes and tableware. Each cycle starts with a pre-drain. Next, the dishwasher fills with water to a level even with the heating element. This water is constantly pumped through the rotating spray arm and sprayed onto the dishes. -
Page 4: Operating Instructions
Appearance may vary from your model. 7. See page 11 for instructions on connecting the portable dishwasher. 8. Run hot water faucet nearest dishwasher until water is hot. Turn water off. 9. To start, close door to latch. Cycle Chart... -
Page 5: Dish Preparation
Unless the dishwasher is to be operated at once, it is best to rinse off these food soils. • Load dishes facing the center of the rack so that the water spray from the rotating spray arm can reach soiled surfaces. -
Page 6: Preparing And Loading Dishes
Preparing and Loading Dishes Loading the Top Rack Glasses and cups —Place glasses and cups against outside pins at an angle. Cups with a concave bottom will collect water. Small plates and saucers dishes between middle two rows of pins. Plasticware —Load plasticware in the top rack to avoid melting. -
Page 7: Dishwasher Dispenser And Detergents
As a rule, use 1 teaspoon for each grain above 12. Unlatch the door, open slowly and add detergent to the bottom of the tub. Close the door to latch and the dishwasher will continue through the cycle. -
Page 8: Factors Affecting Performance
120°F (49°C) to give satisfactory results. To check water temperature entering dishwasher: • Turn on hot water faucet nearest dishwasher for • Hold a candy or meat thermometer in stream of • If temperature is below 120°F (49°C), have a... -
Page 9: Care And Cleaning
Care of Drain Air Gap If a drain air gap was installed for your built-in dishwasher, check to make sure it is clean so the dishwasher will drain properly. Drain air gaps are usually mounted on countertop and can be inspected by removing the cover. - Page 10 To remove food fragments from the filter assembly, the filters must be removed from the dishwasher. To remove the filters, pull up on the edge of the main filter. Next, rinse the main filter and fine filter under running water. Cleaning with a brush may also be necessary to remove any fragments trapped in the filters.
-
Page 11: Connecting Portable
Connecting and Disconnecting the Portable Dishwasher The portable dishwasher must be connected to a faucet and electrical outlet each time it is used. Follow directions on this page to properly connect dishwasher. Faucet Adapter Assembly (Figure A) Connecting the Portable... -
Page 12: Solutions To Common Dishwashing Problems
An early warning of this condition is a cloudy iridescent appearance on glasses. To prevent, be sure dishwasher is getting a full fill of water. Water should reach base of heating element. If water level is low, have water pressure checked by a plumber. -
Page 13: Troubleshooting
Common Dishwashing Problems and Solutions continued Most of today’s china is dishwasher safe. Antique, handpainted china, and handpainted pottery should be washed by hand. Do not place silver next to or touching stainless steel utensils in dishwasher silverware basket. This can cause pitting of stainless steel blades. - Page 14 Major Appliance Warranty Information Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.
